Overview

EN ISO 22553-13:2021 (Corrected version 2021-11) specifies a laboratory method to determine the re-solving behaviour of electro-deposition coatings (e-coats). Adopted by CEN, this part of the ISO 22553 series applies to cathodic and anodic electro-deposition coatings used in the automotive sector and other industrial applications (chiller units, consumer products, radiators, aerospace, agriculture). The method evaluates whether freshly deposited film dissolves again in the bath or during rinsing (including ultrafiltrate exposure).

Key topics and requirements

• Scope and terms: Defines re-solving, ultrafiltration (UF) and ultrafiltrate; references ISO 4618 and ISO 22553-1 terminology.
• Principle: Coat electrically conductive test panels in a laboratory deposition system, expose parts of the coated surface to the original e-coat bath and to the ultrafiltrate, then cure and assess film thickness and surface defects.
• Apparatus: Laboratory deposition tank with circulation and DC supply, film thickness gauge (max permissible error 0.1 µm), oven (stoving temperature control ±2 °C up to 150 °C), thermometer and timer.
• Test panels: Conductive panels with pre-treatment per ISO 1514; dimensions ~190 × 105 × 0.75 mm.
• Procedure highlights:
  • Homogenize bath (visible circulation) and set bath temperature (product-specific; typically 25–35 °C).
  • Deposit to nominal dry film thickness using appropriate voltage/time.
  • Sequential immersion: expose 2/3 then 1/3 of a panel to the e-coat bath (no voltage) for 10 min each, rinse; repeat on another panel using ultrafiltrate.
  • Cure/stove panels at the specified object temperature (typically 100–180 °C).
  • Measure dry film thickness at three points per area and calculate mean.
• Evaluation: Visual inspection for surface defects and rating of intensity (0–5) following ISO 4628-1:2016; report mean thicknesses and descriptive findings.
• Other: Single determination is standard; no precision data provided in the document.

Applications and users

This standard is intended for:

• Coating formulators and R&D labs assessing re-solving risk during bath circulation and rinsing.
• Quality control teams in automotive OEMs and Tier suppliers verifying e-coat robustness.
• Industrial coaters and testing laboratories for acceptance testing of cathodic/anodic e-coat systems.
• Suppliers of ultrafiltration systems and process engineers optimizing rinsing and bath maintenance.

Practical benefits include early detection of formulation or process issues that could lead to film defects, improved bath management, and clearer acceptance criteria for suppliers and manufacturers.

Related standards

• ISO 1514 - Standard panels for testing
• ISO 2808 - Determination of film thickness
• ISO 4618 - Terms and definitions for paints and varnishes
• ISO 4628-1 - Evaluation of degradation (designation system)
• ISO 22553-1 - E-coat vocabulary
• ISO 23321 - Demineralized water for industrial applications

Keywords: EN ISO 22553-13:2021, electro-deposition coatings, re-solving behaviour, e-coat, ultrafiltrate, film thickness, stoving, automotive coatings.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2022
Barve in laki - Elektrodepozicijski premazi - 13. del: Določanje ponovnega
raztapljanja (ISO 22553-13:2021)
Paints and varnishes - Electro-deposition coatings - Part 13: Determination of re-solving
behaviour (ISO 22553-13:2021)
Beschichtungsstoffe - Elektrotauchlacke - Teil 13: Bestimmung des Rücklöseverhaltens
(ISO 22553-13:2021)
Peintures et vernis - Peintures d'électrodéposition - Partie 13: Détermination du
comportement de redissolution (ISO 22553-13:2021)
Ta slovenski standard je istoveten z: EN ISO 22553-13:2021
ICS:
87.040 Barve in laki Paints and varnishes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

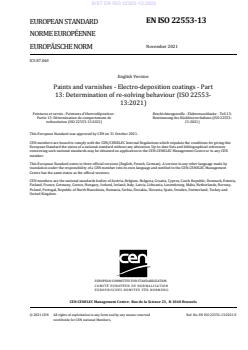

EN ISO 22553-13
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2021
EUROPÄISCHE NORM
ICS 87.040
English Version
Paints and varnishes - Electro-deposition coatings - Part
13: Determination of re-solving behaviour (ISO 22553-
13:2021)
Peintures et vernis - Peintures d'électrodéposition - Beschichtungsstoffe - Elektrotauchlacke - Teil 13:
Partie 13: Détermination du comportement de Bestimmung des Rücklöseverhaltens (ISO 22553-
redissolution (ISO 22553-13:2021) 13:2021)
This European Standard was approved by CEN on 31 October 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 22553-13:2021 E
worldwide for CEN national Members.

Contents Page
European foreword . 3

European foreword
The text of ISO 22553-13:2021 has been prepared by Technical Committee ISO/TC 35 "Paints and
varnishes” of the International Organization for Standardization (ISO) and has been taken over as
which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2022, and conflicting national standards shall be
withdrawn at the latest by May 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO 22553-13:2021 has been approved by CEN as EN ISO 22553-13:2021 without any
modification.
INTERNATIONAL ISO
STANDARD 22553-13
First edition
2021-03
Paints and varnishes — Electro-
deposition coatings —
Part 13:
Determination of re-solving behaviour
Peintures et vernis — Peintures d'électrodéposition —
Partie 13: Détermination du comportement de redissolution
Reference number
ISO 22553-13:2021(E)
©
ISO 2021
ISO 22553-13:2021(E)
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved

ISO 22553-13:2021(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Apparatus and test equipment . 2
6 Test panels . 3
7 Number of determinations . 3
8 Procedure. 3
9 Evaluation . 4
10 Precision . 5
11 Test report . 5
Bibliography . 6
ISO 22553-13:2021(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of
...
