EN 12163:2011

Copper and copper alloys - Rod for general purposes

This European Standard specifies the composition, property requirements and dimensional tolerances for copper alloy rod in the shape of circles, squares, hexagons or octagons, finally produced by drawing or extruding intended for general purposes.
The sampling procedures and the methods of test for verification of conformity to the requirements of this European Standard are also specified.

Kupfer und Kupferlegierungen - Stangen zur allgemeinen Verwendung

Diese Europäische Norm legt die Zusammensetzung, die Anforderungen an die Eigenschaften und die Grenzabmaße für durch Ziehen oder Pressen endgefertigte Stangen aus Kupferlegierungen in runder, quadratischer, sechseckiger oder achteckiger Form zur allgemeinen Verwendung fest. Der Ablauf der Probenentnahme und die Prüfverfahren zur Feststellung der Übereinstimmung mit den Anforderungen dieser Norm sind ebenfalls festgelegt.

Cuivre et alliages de cuivre - Barres pour usages généraux

La présente Norme européenne spécifie la composition, les caractéristiques et les tolérances dimensionnelles des barres en cuivre et alliages de cuivre de forme ronde, carrée, hexagonale ou octogonale, fabriquées par étirage ou filage, destinées à des usages généraux.
Les procédures d'échantillonnage et les méthodes d'essai pour la vérification de la conformité aux prescriptions de la présente Norme européenne sont également spécifiées.

Baker in bakrove zlitine - Palice za splošno uporabo

Dokument določa sestavo, zahteve za lastnosti in odstopke mer za ravne palice iz bakra in bakrovih zlitin za splošno uporabo. Določeni so tudi postopki vzorčenja in metode preskušanja za preverjanje skladnosti z zahtevami tega dokumenta.

General Information

• Status: Withdrawn
• Publication Date: 31-May-2011
• Withdrawal Date: 13-Apr-2025
• ICS: 77.150.30 - Copper products
• Technical Committee: CEN/TC 133 - Copper and copper alloys
• Drafting Committee: CEN/TC 133/WG 4 - Extruded and drawn products, forgings and scrap
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 20-Jul-2016
• Completion Date: 14-Apr-2025
• Directive: 97/23/EC - Directive 97/23/EC of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment
• Ref Project: SIST EN 12163:2011 - Copper and copper alloys - Rod for general purposes

Relations

• Replaces: EN 12163:1998 - Copper and copper alloys - Rod for general purposes
• Effective Date: 28-May-2011
• Replaced By: EN 12163:2016 - Copper and copper alloys - Rod for general purposes
• Effective Date: 27-Jul-2016

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Baker in bakrove zlitine - Palice za splošno uporaboKupfer und Kupferlegierungen - Stangen zur allgemeinen VerwendungCuivre et alliages de cuivre - Barres pour usages générauxCopper and copper alloys - Rod for general purposes77.150.30Bakreni izdelkiCopper productsICS:Ta slovenski standard je istoveten z:EN 12163:2011SIST EN 12163:2011en,fr,de01-oktober-2011SIST EN 12163:2011SLOVENSKI
STANDARDSIST EN 12163:19981DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12163
June 2011 ICS 77.150.30 Supersedes EN 12163:1998English Version
Copper and copper alloys - Rod for general purposes
Cuivre et alliages de cuivre - Barres pour usages généraux Kupfer und Kupferlegierungen - Stangen zur allgemeinen Verwendung This European Standard was approved by CEN on 14 April 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12163:2011: ESIST EN 12163:2011

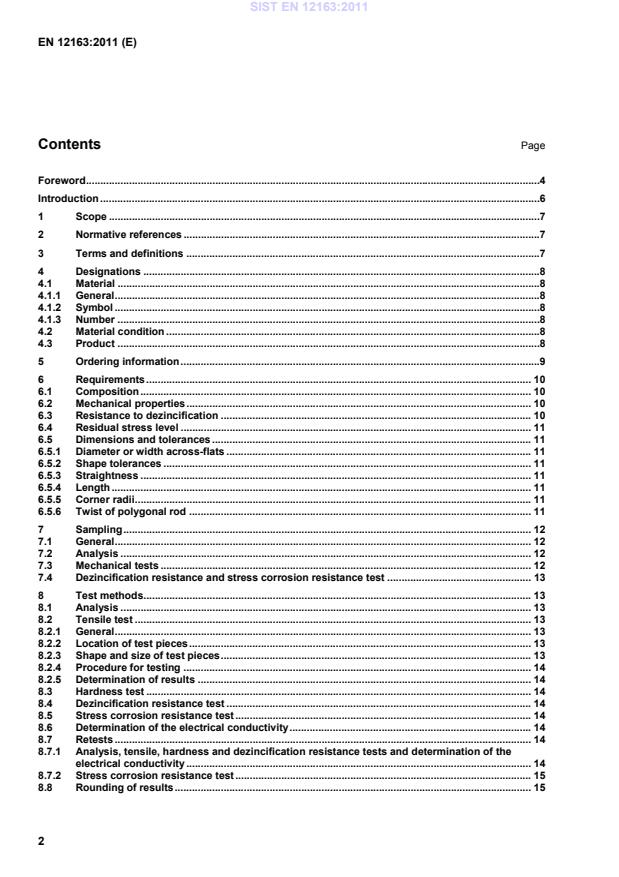

Determination of mean depth of dezincification . 33A.1Introduction . 33A.2Procedure . 33A.3Expression of results . 33Bibliography . 35 Figures Figure 1 — Measurement of twist of polygonal rod . 12 Figure A.1 — Example of contiguous fields . 34
Tables Table 1 — Composition of low alloyed copper alloys . 16 Table 2 — Composition of copper-aluminium alloys . 17 Table 3 — Composition of copper-nickel alloys . 17 Table 4 — Composition of copper-nickel-zinc alloys . 17 Table 5 — Composition of copper-tin alloys . 18 Table 6 — Composition of copper-zinc alloys. 18 Table 7 — Composition of complex copper-zinc alloys . 19 Table 8 — Mechanical properties of rod of low alloyed copper alloys . 20 Table 9 — Mechanical properties of rod of copper-aluminium alloys . 22 Table 10 — Mechanical properties of rod of copper-nickel alloys . 23 Table 11 — Mechanical properties of rod of copper-nickel-zinc alloys . 24 Table 12 — Mechanical properties of rod of copper-tin alloys . 25 Table 13 — Mechanical properties of rod of copper-zinc alloys . 26 Table 14 — Mechanical properties of rod of complex copper-zinc alloys . 29 Table 15 — Dimensional tolerances for rod . 31 Table 16 — Tolerances on straightness of rod . 31 Table 17 — Corner radii for square and polygonal rod . 31 Table 18 — Maximum twist of square and polygonal rod . 32 Table 19 — Sampling rate . 32
2) CuCr1 (CW105C), CuNi1P (CW108C), CuNi3Si1 (CW112C), CuSi3Mn1 (CW116C) CuZn5 (CW500L), CuZn28 (CW504L), CuZn33 (CW506L); 3) CuAl6Si2Fe (CW301G), CuAl7Si2 (CW302G), CuAl10Fe3Mn2 (CW306G); 4) CuSn5 (CW451K); SIST EN 12163:2011

D-89079 Ulm
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights other than those identified above. CEN shall not be held responsible for identifying any or all such patent rights. SIST EN 12163:2011

The sampling procedures and the methods of test for verification of conformity to the requirements of this European Standard are also specified. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1173, Copper and copper alloys — Material condition designation EN 1412, Copper and copper alloys — European numbering system EN 1655, Copper and copper alloys — Declarations of conformity EN 10204:2004, Metallic products — Types of inspection documents EN 14977, Copper and copper alloys — Detection of tensile stress — 5 % ammonia test EN ISO 6506-1, Metallic materials — Brinell hardness test — Part 1: Test method (ISO 6506-1:2005) EN ISO 6509:1995, Corrosion of metals and alloys — Determination of dezincification resistance of brass (ISO 6509:1981) EN ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
(ISO 6892-1:2009) ISO 1190-1, Copper and copper alloys — Code of designation — Part 1: Designation of materials ISO 6957, Copper alloys — Ammonia test for stress corrosion resistance 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 rod straight product of uniform cross-section along its whole length 3.2 deviation from circular form difference between the maximum and the minimum diameters measured at any one cross-section of a round product SIST EN 12163:2011

Material condition for a product which is stress relieved. NOTE Products in the M, R. or H. material condition may be specially processed (i.e. mechanically or thermally stress relieved) in order to lower the residual stress level to improve the resistance to stress corrosion and the dimensional stability on machining [see 5 k), 5 l) and 8.4]. Exact conversion between material conditions designated R. and H. is not possible. Except when the suffix S is used, material condition is designated by only one of the above designations. 4.3 Product The product designation provides a standardized pattern of designation from which a rapid and unequivocal description of a product is conveyed in communication. It provides mutual comprehension at the international level with regard to products which meet the requirements of the relevant European Standard. The product designation is no substitute for the full content of the standard. The product designation for products to this standard shall consist of:  denomination (Rod);  number of this European Standard (EN 12163);  material designation, either symbol or number (see Tables 1 to 7); SIST EN 12163:2011

Rod EN 12163 — CuZn36 — R370 — HEX14B — RD
or Rod EN 12163 — CW507L — R370 — HEX14B — RD Denomination
Number of this European Standard Material designation
Material condition designation
Cross-sectional shape, nominal cross-sectional dimension in millimetres, tolerance class
Corner designation
5 Ordering information In order to facilitate the enquiry, order and confirmation of order procedures between the purchaser and the supplier, the purchaser shall state on his enquiry and order the following information: a) quantity of product required (mass); b) denomination (Rod); c) number of this European Standard (EN 12163); d) material designation (see Tables 1 to 7); e) material condition designation (see 4.2 and Tables 8 to 14) if it is other than M; f) cross-sectional shape; g) nominal cross-sectional dimension (diameter or width across-flats); h) whether other than class A tolerances are required (see Table 15); SIST EN 12163:2011

500 kg Rod EN 12163 — CuZn36 — R370 — HEX14B — RD
— length 3 000 mm ± 100 mm
or
500 kg Rod EN 12163 — CW507L — R370 — HEX14B — RD
— length 3 000 mm ± 100 mm 6 Requirements 6.1 Composition The composition shall conform to the requirements for the appropriate material given in Tables 1 to 7. 6.2 Mechanical properties The tensile or the hardness properties shall conform to the appropriate requirements given in Tables 8 to 14. The tests shall be carried out in accordance with 8.2 or 8.3. 6.3 Resistance to dezincification The maximum depth of dezincification of CuZn38As (CW511L) and CuZn21Si3P (CW724R) products shall be 100 µm for sizes up to 40 mm. For greater sizes the average depth of dezincification shall be less than 100 µm and the maximum measured value shall be less than 200 µm.
The test shall be carried out in accordance with 8.4. Products in CuZn21Si3P (CW724R) that have passed the test shall be marked with “Si”. NOTE Products in alloy CuZn38As (CW511L) may be subjected to heat treatment in the range 450 °C to 550 °C during manufacture. If the user needs to heat the material above 530 °C during subsequent processing then advice should be sought from the supplier. SIST EN 12163:2011

Key 1 Reference plane V twist
W width across-flats Figure 1 — Measurement of twist of polygonal rod 7 Sampling 7.1 General When required (e.g. if necessary in accordance with specified procedures of a supplier's quality system, or when the purchaser requests inspection documents with test results, or for use in cases of dispute), an inspection lot shall be sampled in accordance with 7.2 to 7.4. 7.2 Analysis The sampling rate shall be in accordance with Table 19. A test sample, depending on the analytical technique to be employed, shall be prepared from each sampling unit and used for the determination of the composition. NOTE 1 When preparing the test sample, care should be taken to avoid contaminating or overheating the test sample. Carbide tipped tools are recommended; steel tools, if used, should be made of magnetic material to assist in the sub-sequent removal of extraneous iron. If the test samples are in finely divided form (e.g. drillings, millings), they should be treated carefull
...
