EN 1514-6:2003
(Main)Flanges and their joints - Dimensions of gaskets for PN-designated flanges - Part 6: Covered serrated metal gaskets for use with steel flanges
Flanges and their joints - Dimensions of gaskets for PN-designated flanges - Part 6: Covered serrated metal gaskets for use with steel flanges
This European Standard specifies the construction, dimensions and marking of covered serrated metal gaskets for use with flanges complying with EN 1092-1 for PN 10, PN 16, PN 25, PN 40, PN 63 and PN 100 up to and including DN 3000.
This document does not extend to covered serrated metal based heat exchanger gaskets with pass bars or large vessel gaskets but, in the lack of a dedicated document for such gaskets, the principles set down can be applied to them.
NOTE 1 Dimensions of other types of gaskets for use with flanges to EN 1092-1, EN 1092-2, prEN 1092-3 and EN 1092-4 are given in EN 1514-1, EN 1514-2, EN 1514-3, EN 1514-4, prEN 1514-7 and prEN 1514-8.
NOTE 2 Annex A lists information that should be supplied by the purchaser when ordering gaskets in circumstances where the choice of the gasket materials appropriate to the service is left to the supplier.
Flansche und ihre Verbindungen - Maße für Dichtungen für Flansche mit PN-Bezeichnung - Teil 6: Kammprofildichtungen für Stahlflansche
Diese Europäische Norm legt die Ausführung, Maße und Kennzeichnung von Kammprofildichtungen für Flansche nach EN 1092-1 für PN 10, PN 16, PN 25, PN 40, PN 63 und PN 100 bis einschließlich DN 3 000 fest.
Diese Europäische Norm gilt nicht für Kammprofildichtungen für Wärmeaustauscher mit Durchgangsstegen oder große Behälterdichtungen. Falls jedoch für diese Dichtungen kein eigenes Dokument vorliegt, können die hier festgelegten Prinzipien angewendet werden.
ANMERKUNG 1 Die Maße für andere Dichtungsformen für Flansche nach EN 1092-1, EN 1092-2, prEN 1092-3 und EN 1092-4 sind in EN 1514-1, EN 1514-2, EN 1514-3, EN 1514-4, prEN 1514-7 und prEN 1514-8 enthalten.
ANMERKUNG 2 Anhang A enthält Angaben, die der Anwender bei der Bestellung von Dichtungen machen sollte, wenn die Auswahl der für den Anwendungsfall geeigneten Dichtungswerkstoffe dem Lieferer überlassen bleibt.
Brides et leurs assemblages - Dimensions des joints pour les brides désignées PN - Partie 6: Joints métalliques striés revêtus pour utilisation avec des brides en acier
La présente Norme européenne prescrit la construction, les dimensions et le marquage des joints métalliques striés revêtus utilisés avec les brides conformes à l'EN 1092-1 pour PN 10, PN 16, PN 25, PN 40, PN 63 et PN 100 jusqu'à et y compris DN 3000.
Le présent document ne s'applique pas aux joints métalliques striés revêtus pour échangeur thermique multi-passes ou grands récipients mais, en l'absence de document consacré à de tels joints, les principes établis peuvent leur être appliqués.
NOTE 1 Les dimensions des autres types de joints utilisés avec des brides conformes aux EN 1092-1, EN 1092-2, EN 1092-3 et EN 1092-4 sont données dans les EN 1514-1, EN 1514-2, EN 1514-3, EN 1514-4, prEN 1514-7 et prEN 1514-8.
NOTE 2 L'Annexe A liste les informations que l'acheteur peut fournir lors de sa commande de joints lorsque le choix des matériaux de joint appropriés à l'utilisation est laissé au fournisseur.
Prirobnice in prirobnični spoji - Mere tesnil za prirobnice z oznako PN - 6. del: Kovinska nazobčana oplaščena tesnila za jeklene prirobnice
General Information
- Status
- Published
- Publication Date
- 09-Dec-2003
- Withdrawal Date
- 29-Jun-2004
- Technical Committee
- CEN/TC 74 - Flanges and their joints
- Drafting Committee
- CEN/TC 74/WG 8 - Gaskets
- Current Stage
- 9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
- Start Date
- 08-Jun-2020
- Completion Date
- 14-Apr-2025
Overview
EN 1514-6:2003 (CEN) defines the construction, dimensions and marking of covered serrated metal gaskets intended for use with steel flanges complying with EN 1092-1. The standard covers PN-designated flanges for pressure ratings PN 10, PN 16, PN 25, PN 40, PN 63 and PN 100, and applies to nominal diameters up to and including DN 3000. Published by CEN in 2003, this part of the EN 1514 series standardizes gasket geometry and identification to ensure interchangeability and reliable sealing performance in industrial piping and equipment.
Key Topics
- Scope and applicability
- Covered serrated metal gaskets for steel flanges per EN 1092-1
- Applicable PN classes and DN sizes (up to DN 3000)
- Construction requirements
- Requirements for gasket construction and covered serrated profile (general geometric/constructive definition provided)
- Dimensions
- Standardized gasket dimensions to match PN-designated flange faces (ensures compatibility and interchangeability)
- Marking and identification
- Marking rules to identify gasket type, size and other relevant information for traceability
- Limitations and exclusions
- Does not extend to metal-based heat exchanger gaskets with pass bars or very large vessel gaskets, though the standard’s principles can be applied where a dedicated document is absent
- Purchaser information (Annex A)
- Lists information purchasers should supply when ordering gaskets if material selection is left to the supplier
Applications
EN 1514-6:2003 is intended for professionals who specify, design, manufacture, procure or maintain flange joints and gaskets in sectors such as:
- Oil & gas and petrochemical piping systems
- Power generation and utility plants
- Water and wastewater infrastructure
- Chemical processing and refineries
- General industrial piping and pressure equipment
Typical uses include specifying covered serrated metal gaskets for steel flange connections where standardized dimensions, reliable sealing and clear marking are required.
Who Uses This Standard
- Piping and mechanical engineers
- Gasket and flange manufacturers
- Procurement and specification writers
- Pressure system inspectors and maintenance teams
- Design offices and OEMs working with PN-designated steel flanges
Related Standards
- EN 1092-1 (steel flanges) - primary flange standard for which these gaskets are intended
- Other parts of EN 1514: EN 1514-1, EN 1514-2, EN 1514-3, EN 1514-4, prEN 1514-7, prEN 1514-8 - dimensions for other gasket types
- EN 1092-2 to EN 1092-4 - additional flange materials/types
Keywords: EN 1514-6:2003, covered serrated metal gaskets, steel flanges, PN-designated flanges, EN 1092-1, gasket dimensions, flange gaskets, DN 3000.
Frequently Asked Questions
EN 1514-6:2003 is a standard published by the European Committee for Standardization (CEN). Its full title is "Flanges and their joints - Dimensions of gaskets for PN-designated flanges - Part 6: Covered serrated metal gaskets for use with steel flanges". This standard covers: This European Standard specifies the construction, dimensions and marking of covered serrated metal gaskets for use with flanges complying with EN 1092-1 for PN 10, PN 16, PN 25, PN 40, PN 63 and PN 100 up to and including DN 3000. This document does not extend to covered serrated metal based heat exchanger gaskets with pass bars or large vessel gaskets but, in the lack of a dedicated document for such gaskets, the principles set down can be applied to them. NOTE 1 Dimensions of other types of gaskets for use with flanges to EN 1092-1, EN 1092-2, prEN 1092-3 and EN 1092-4 are given in EN 1514-1, EN 1514-2, EN 1514-3, EN 1514-4, prEN 1514-7 and prEN 1514-8. NOTE 2 Annex A lists information that should be supplied by the purchaser when ordering gaskets in circumstances where the choice of the gasket materials appropriate to the service is left to the supplier.
This European Standard specifies the construction, dimensions and marking of covered serrated metal gaskets for use with flanges complying with EN 1092-1 for PN 10, PN 16, PN 25, PN 40, PN 63 and PN 100 up to and including DN 3000. This document does not extend to covered serrated metal based heat exchanger gaskets with pass bars or large vessel gaskets but, in the lack of a dedicated document for such gaskets, the principles set down can be applied to them. NOTE 1 Dimensions of other types of gaskets for use with flanges to EN 1092-1, EN 1092-2, prEN 1092-3 and EN 1092-4 are given in EN 1514-1, EN 1514-2, EN 1514-3, EN 1514-4, prEN 1514-7 and prEN 1514-8. NOTE 2 Annex A lists information that should be supplied by the purchaser when ordering gaskets in circumstances where the choice of the gasket materials appropriate to the service is left to the supplier.
EN 1514-6:2003 is classified under the following ICS (International Classification for Standards) categories: 23.040.80 - Seals for pipe and hose assemblies. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 1514-6:2003 is associated with the following European legislation: EU Directives/Regulations: 97/23/EC; Standardization Mandates: M/071. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 1514-6:2003 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

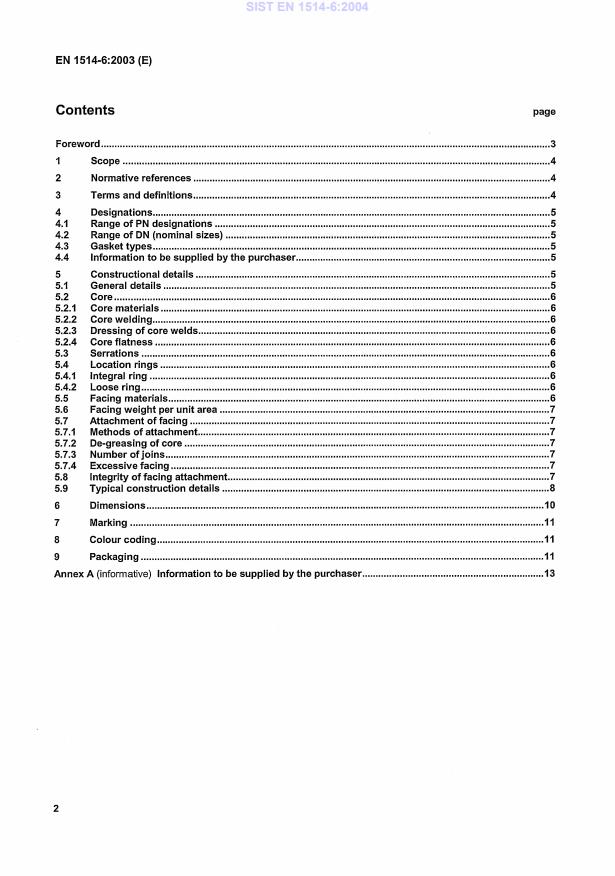

Standards Content (Sample)
