EN 12350-9:2010

Testing fresh concrete - Part 9: Self-compacting concrete - V-funnel test

This European Standard specifies the procedure for determining the V-funnel flow time for self-compacting concrete.  The test is not suitable when the maximum size of the aggregate exceeds 22,4 mm.

Prüfung von Frischbeton - Teil 9: Selbstverdichtender Beton - Auslauftrichterversuch

Diese Europäische Norm legt das Verfahren zur Bestimmung der Auslauftrichter-Fließdauer für selbstverdichtenden
Beton fest. Die Prüfung ist nicht geeignet, wenn das Größtkorn der Gesteinskörnung 22,4 mm
übersteigt

Essai pour béton frais - Partie 9: Béton auto-plaçant - Essai d'écoulement à l'entonnoir en V

La présente Norme européenne spécifie la méthode de détermination de la durée d’écoulement à l’entonnoir
en V pour le béton auto-plaçant. Cet essai ne convient pas lorsque le diamètre maximum des granulats
excède 22,4 mm.

Preskušanje svežega betona - 9. del: Samozgoščevalni beton - Preskus z V-lijakom

Ta evropski standard določa postopek za ugotavljanje časa razleza z v-lijakom za samozgoščevalni beton. Ta preskus ni ustrezen, če največja velikost agregata presega 22,4 mm.

General Information

• Status: Published
• Publication Date: 20-Jul-2010
• Withdrawal Date: 30-Jan-2011
• ICS: 91.100.30 - Concrete and concrete products
• Technical Committee: CEN/TC 104 - Concrete ( performance, production, placing and compliance criteria )
• Drafting Committee: CEN/TC 104/SC 1 - Revision of ENV 206
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 18-Jun-2021
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/128 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on products for concrete, mortar and grout
• Ref Project: SIST EN 12350-9:2010 - Testing fresh concrete - Part 9: Self-compacting concrete - V-funnel test

Overview

EN 12350-9:2010 specifies the V-funnel test for assessing the viscosity and filling ability of self-compacting concrete (SCC). Part of the EN 12350 series for testing fresh concrete, this European Standard defines the apparatus, sample size, test procedure and reporting requirements for measuring the V-funnel flow time (tv). The test is intended for fresh SCC mixes with a maximum aggregate size up to 22.4 mm.

Key topics and technical requirements

• Purpose: Measure V-funnel flow time to evaluate SCC viscosity and filling ability (ability to flow and fill formwork without vibration).
• Scope limit: Not suitable when maximum aggregate size exceeds 22.4 mm.
• Sample: Minimum sample volume 12 L, obtained according to EN 12350-1 (sampling).
• Apparatus:
  • V-shaped funnel manufactured to the standard’s internal dimensions and tolerances, normally metal with smooth, non-corroding surfaces and a quick-release, watertight hinged or sliding gate.
  • Container to collect flow (≥12 L).
  • Stopwatch capable of 0.1 s resolution.
  • Straight edge for striking off level.
• Procedure highlights:
  • Fill funnel in one operation without agitation; strike level with straight edge.
  • After a delay of (10 ± 2) s, open the gate quickly and measure time tv from gate opening until it is possible to see vertically through the funnel into the container.
  • Measure tv to 0.1 s; report to the nearest 0.5 s.
  • Flow must be continuous; repeat test if a blockage occurs. If blockage happens twice, the concrete is considered to lack required SCC viscosity/passing ability.
• Reporting: Test report must include sample identification, location, date/time, V-funnel flow time, any deviations, and a declaration of conformity with the standard. Optional: concrete temperature and age.
• Performance data: The standard supplies repeatability (r) and reproducibility (R) figures derived from multi-laboratory trials for typical tv values.

Applications and users

• Useful for concrete laboratories, quality control (QC) teams, precast plants, contractors and specifiers wanting to:
  • Verify SCC mix design and consistency before casting.
  • Control on-site SCC delivery and placement properties.
  • Compare SCC formulations for filling ability and resistance to segregation.
• Relevant for research institutions and manufacturers developing admixtures or SCC constituents.

Related standards

• EN 12350 series (Testing fresh concrete), notably:
  • EN 12350-1 (Sampling)
  • EN 12350-8 (SCC - Slump-flow)
  • EN 12350-10 (SCC - L-box)
  • EN 12350-11 (SCC - Sieve segregation)
  • EN 12350-12 (SCC - J-ring)

Keywords: EN 12350-9:2010, V-funnel test, self-compacting concrete, SCC, testing fresh concrete, V-funnel flow time, viscosity, filling ability.

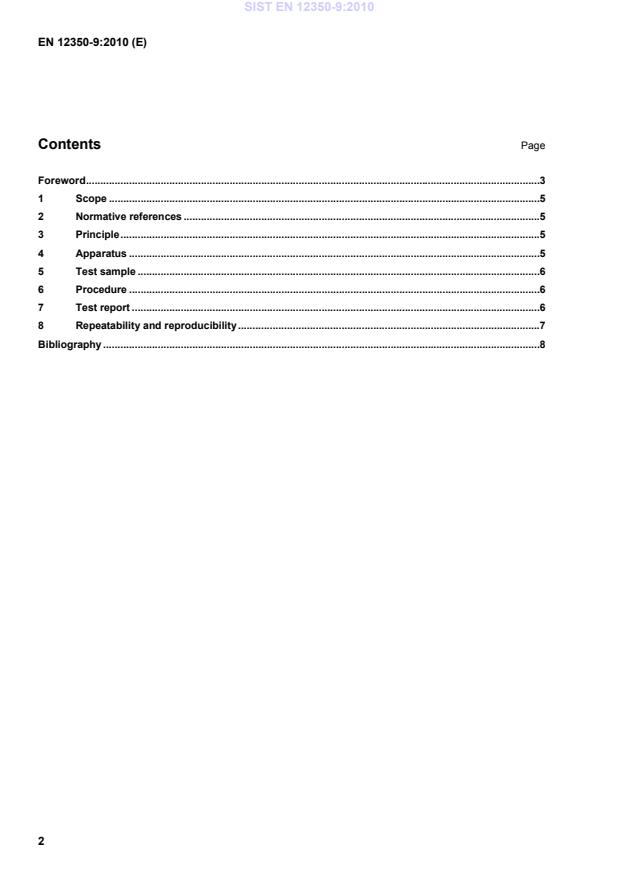

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Prüfung von Frischbeton - Teil 9: Selbstverdichtender Beton - AuslauftrichterversuchEssai pour béton frais - Partie 9: Béton auto-plaçant - Essai d'écoulement à l'entonnoir en VTesting fresh concrete - Part 9: Self-compacting concrete - V-funnel test91.100.30Beton in betonski izdelkiConcrete and concrete productsICS:Ta slovenski standard je istoveten z:EN 12350-9:2010SIST EN 12350-9:2010en,fr,de01-december-2010SIST EN 12350-9:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12350-9
July 2010 ICS 91.100.30 English Version
Testing fresh concrete - Part 9: Self-compacting concrete - V-funnel test
Essai pour béton frais - Partie 9: Béton auto-plaçant -Essai d'écoulement à l'entonnoir en V
Prüfung von Frischbeton - Teil 9: Selbstverdichtender Beton - Auslauftrichterversuch This European Standard was approved by CEN on 20 June 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12350-9:2010: ESIST EN 12350-9:2010
...
