EN 13501-1:2002
(Main)Fire classification of construction products and building elements - Part 1: Classification using test data from reaction to fire tests
Fire classification of construction products and building elements - Part 1: Classification using test data from reaction to fire tests
This European Standard provides the reaction to fire classification procedure for all construction products, including products incorporated within building elements.
Products are considered in relation to their end use application.
This document applies to two categories, which are treated separately in this European Standard:
construction products, excluding floorings;
floorings.
NOTE The treatment of some families of products is still under review and can necessitate amendments to this standard (see European Decision 2000/147/EC).
Klassifizierung von Bauprodukten und Bauarten zu ihrem Brandverhalten - Teil 1: Klassifizierung mit den Ergebnissen aus den Prüfungen zum Brandverhalten von Bauprodukten
Diese Europäische Norm legt die Verfahren zur Klassifizierung des Brandverhaltens von Bauprodukten einschließlich der Produkte innerhalb von Bauteilen fest.
Bauprodukte werden unter Berücksichtigung ihrer praktischen Anwendung betrachtet.
Diese Europäische Norm wird auf zwei Kategorien von Bauprodukten angewendet, die getrennt behandelt werden.
¾ Bauprodukte, mit Ausnahme von Bodenbelägen;
¾ Bodenbeläge.
ANMERKUNG Die Behandlung einiger Gruppen von Bauprodukten ist noch nicht abgeschlossen und kann Ergänzungen zu dieser Europäischen Norm erfordern (siehe die Entscheidung der Kommission (2000/147/EG).
Classement au feu des produits et éléments de construction - Partie 1: Classement à partir des données d'essais de réaction au feu
La présente Norme européenne fournit la procédure de classement en réaction au feu de tous les produits de construction , y compris les produits contenus dans les éléments de construction.
Les produits sont considérés en fonction de leur utilisation finale
Le présent document s'applique à deux catégories de produits qui sont traitées séparément dans la présente norme :
produits de construction, hormis les revêtements de sols ;
revêtements de sols.
NOTE Le traitement de certaines familles de produits est toujours en révision et peut nécessiter des amendements à cette norme (voir la Décision européenne 2000/147/CE).
Požarna klasifikacija gradbenih proizvodov in elementov stavb - 1. del: Klasifikacija po podatkih iz preskusov odziva na ogenj
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Fire classification of construction products and building elements - Part 1: Classification using test data from reaction to fire testsPožarna klasifikacija gradbenih proizvodov in elementov stavb - 1. del: Klasifikacija po podatkih iz preskusov odziva na ogenjClassement au feu des produits et éléments de construction - Partie 1: Classement a partir des données d'essais de réaction au feuKlassifizierung von Bauprodukten und Bauarten zu ihrem Brandverhalten - Teil 1: Klassifizierung mit den Ergebnissen aus den Prüfungen zum Brandverhalten von BauproduktenTa slovenski standard je istoveten z:EN 13501-1:2002SIST EN 13501-1:2002en13.220.50Požarna odpornost gradbenih materialov in elementovFire-resistance of building materials and elementsICS:SLOVENSKI
STANDARDSIST EN 13501-1:200201-september-2002
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13501-1February 2002ICS 13.220.50English versionFire classification of construction products and building elements- Part 1: Classification using test data from reaction to fire testsClassement au feu des produits et éléments deconstruction - Partie 1: Classement à partir des donnéesd'essais de réaction au feuKlassifizierung von Bauprodukten und Bauarten zu ihremBrandverhalten - Teil 1: Klassifizierung mit denErgebnissen aus den Prüfungen zum Brandverhalten vonBauproduktenThis European Standard was approved by CEN on 16 November 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13501-1:2002 E

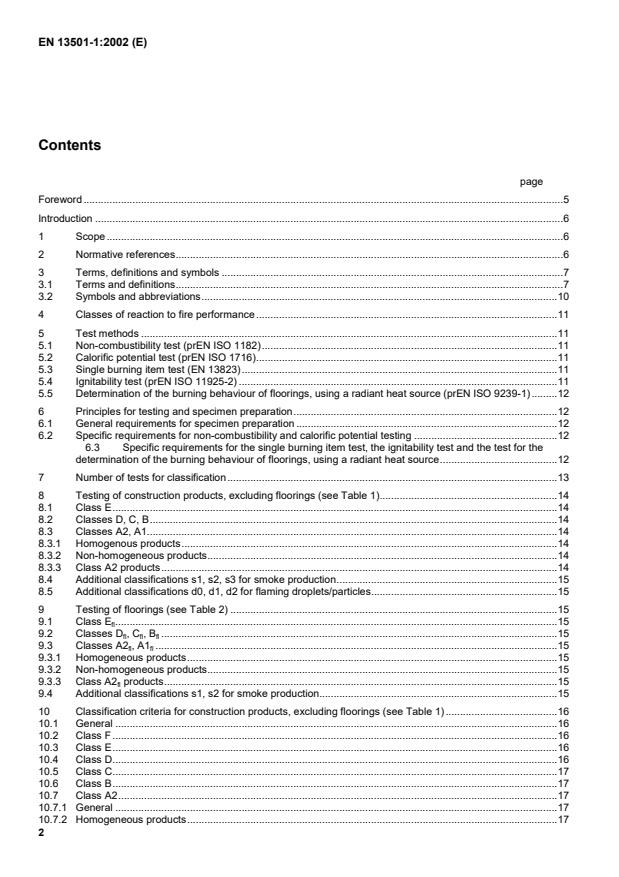

EN 13501-1:2002 (E)2ContentspageForeword.5Introduction.61Scope.62Normative references.63Terms, definitions and symbols.73.1Terms and definitions.73.2Symbols and abbreviations.104Classes of reaction to fire performance.115Test methods.115.1Non-combustibility test (prEN ISO 1182).115.2Calorific potential test (prEN ISO 1716).115.3Single burning item test (EN 13823).115.4Ignitability test (prEN ISO 11925-2).115.5Determination of the burning behaviour of floorings, using a radiant heat source (prEN ISO 9239-1).126Principles for testing and specimen preparation.126.1General requirements for specimen preparation.126.2Specific requirements for non-combustibility and calorific potential testing.126.3Specific requirements for the single burning item test, the ignitability test and the test for thedetermination of the burning behaviour of floorings, using a radiant heat source.127Number of tests for classification.138Testing of construction products, excluding floorings (see Table 1).148.1Class E.148.2Classes D, C, B.148.3Classes A2, A1.148.3.1Homogenous products.148.3.2Non-homogeneous products.148.3.3Class A2 products.148.4Additional classifications s1, s2, s3 for smoke production.158.5Additional classifications d0, d1, d2 for flaming droplets/particles.159Testing of floorings (see Table 2).159.1Class Efl.159.2Classes Dfl, Cfl, Bfl.159.3Classes A2fl, A1fl.159.3.1Homogeneous products.159.3.2Non-homogeneous products.159.3.3Class A2fl products.159.4Additional classifications s1, s2 for smoke production.1510Classification criteria for construction products, excluding floorings (see Table 1).1610.1General.1610.2Class F.1610.3Class E.1610.4Class D.1610.5Class C.1710.6Class B.1710.7Class A2.1710.7.1General.1710.7.2Homogeneous products.17
EN 13501-1:2002 (E)310.7.3Non-homogeneous products.1810.8Class A1.1810.8.1Homogeneous products.1810.8.2Non-homogeneous products.1910.9Additional classifications s1, s2, s3 for smoke production.2010.9.1General.2010.9.2s1.2010.9.3s2.2010.9.4s3.2010.10Additional classifications d0, d1, d2 for flaming droplets and/or particles.2010.10.1Products classified A2, B, C, D.2010.10.2Products classified E.2111Classification criteria for floorings (see Table 2).2111.1General.2111.2Class Ffl.2111.3Class Efl.2111.4Class Dfl.2111.5Class Cfl.2211.6Class Bfl.2211.7Class A2fl.2211.6.1General.2211.6.2Homogeneous products.2211.6.3Non-homogeneous products.2211.8Class A1fl.2311.8.1Homogeneous products.2311.8.2Non-homogeneous products.2311.9Additional classifications s1, s2 for smoke production.2411.9.1General.2411.9.2s1.2411.9.3s2.2412Presentation of classification.2512.1Construction products, excluding floorings.2512.2Floorings.2513Field of application of the classification.2614Classification report.2614.1General.2614.2Content and format.26Annex A (informative)
Background information for the application of the Commission Decision of 8 February2000 implementing Council Directive 89/106/EEC as regards the classification of the reaction to fireperformance of construction products.30A.1General.30A.2Assumptions.30A.3Reference fire situations.31A.3.1Reference fire situations for construction products except floorings.31A.3.2Reference fire situations for floorings.31A.4Relationship between classes and reference fire situations.32A.4.1General.32A.4.2For all construction products excluding floorings.32A.4.3For floorings.33Annex B (normative)
Reaction to fire classification report.36B.1General layout.36B.2Introduction.36B.3Details of classified product.36B.3.1Nature and end use application.36B.3.2Description.36B.4Test reports and test results in support of this classification.37B.4.1Test reports.37B.4.2Test results for construction products except floorings.38
EN 13501-1:2002 (E)4B.4.3Test results for floorings.39B.5Classification and direct field of application.39B.5.1Reference and direct field of application.39B.5.2Classification.39B.5.3Field of application.40B.6Limitations.40B.6.1Restrictions.40B.6.2Warning.40Bibliography.41
EN 13501-1:2002 (E)5ForewordThis European Standard has been prepared by Technical Committee CEN/TC 127 "Fire safety in buildings", thesecretariat of which is held by BSI.This European Standard shall be given the status of a national standard, either by publication of an identical text orby endorsement, at the latest by July 2002, and conflicting national standards shall be withdrawn at the latest byDecember 2002.This document has been prepared under a mandate given to CEN by the European Commission and the EuropeanFree Trade Association, and supports essential requirements of EU Directive(s).For relationship with EU Directive(s), see informative annex A, which is an integral part of this document.CEN, CENELEC and EOTA committees preparing technical specifications, which contain performancerequirements against reaction to fire tests, should make reference to the reaction to fire classification given in thisEuropean Standard and not refer directly to any specific fire test method.EN 13501 Fire classification of construction products and building elements consists of the following parts:Part 1: Classification using data from reaction to fire testsPart 2: Classification using data from fire resistance tests (excluding ventilation services)Part 3:Classification using data from fire resistance tests on components of normal service installations (otherthan smoke control systems)Part 4: Classification using data from fire resistance tests on components of smoke control systemsPart 5: Classification using data from external fire exposure to roof testsAccording to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain,Sweden, Switzerland and the United Kingdom.
EN 13501-1:2002 (E)6IntroductionThe aim of this European Standard is to define a harmonized procedure for the classification of reaction to fire ofconstruction products. This classification is based on the test procedures listed in clause 5.This European Standard has been prepared in support of the second essential requirement in the EC ConstructionProducts Directive (89/106/EEC) and as detailed in the Interpretative Document Number 2: Safety in case of fire (OJC62 Vol. 37).Background information on the Commission Decision is given in annex A.The European Commission has drawn up a list of products which, under specified conditions, can be considered to beclass A1 without testing. This information is given in the Commission Decision of 4 October 1996 establishing the list ofproducts belonging to Classes A1 and A1fl 'No contribution to fire' provided for in Decision 96/603/EEC.Parts 2, 3 and 4 of this European Standard are concerned with classification resulting from fire resistance tests. Part 5covers classification resulting from tests for external fire exposure to roofs.NOTE
If the classification based on the tests and criteria given in Tables 1 and 2 is not appropriate, one or more referencescenarios (representative scale tests typifying agreed hazard scenarios) can be called upon within the context of a definedprocedure. This procedure is intended to be the subject of a future European Standard or Commission Decision, on the basis of anagreement between the Commission and the Member States, in consultation with CEN/CENELEC and EOTA.1 ScopeThis European Standard provides the reaction to fire classification procedure for all construction products, includingproducts incorporated within building elements.Products are considered in relation to their end use application.This document applies to two categories, which are treated separately in this European Standard:-
construction products, excluding floorings;-
floorings.NOTEThe treatment of some families of products is still under review and can necessitate amendments to this standard(see European Decision 2000/147/EC).2 Normative referencesThis European Standard incorporates by dated or undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text, and the publications are listed hereafter. Fordated references, subsequent amendments to or revisions of any of these publications apply to this EuropeanStandard only when incorporated in it by amendment or revision. For undated references the latest edition of thepublication referred to applies (including amendments).prEN ISO 1182, Reaction to fire tests for building products - Non-combustibility test (ISO/FDIS 1182:2000).prEN ISO 1716:1998, Reaction to fire tests for building products - Determination of the gross calorific value(ISO/DIS 1716:1998).
EN 13501-1:2002 (E)7prEN ISO 9239-1, Reaction to fire tests for floorings - Part 1: Determination of the burning behaviour using aradiant heat source (ISO/FDIS 9239-1:2000).prEN ISO 11925-2, Reaction to fire tests for building products – Part 2: Ignitability when subjected to directimpingement of flame (ISO/DIS 11925-2:1999).EN 13238, Reaction to fire tests for building products - Conditioning procedures and general rules for selection ofsubstrates.EN 13823, Reaction to fire tests for building products – Building products excluding floorings exposed to thethermal attack by a single burning item.EN ISO 13943, Fire safety – Vocabulary (ISO 13943:2000).3 Terms, definitions and symbols3.1 Terms and definitionsFor the purposes of this European Standard, the following terms and definitions apply.NOTEWhere the definitions are identical to those in EN ISO 13943, this is indicated.3.1.1productmaterial, element or component about which information is required3.1.2materialsingle basic substance or uniformly dispersed mixture of substances, e.g. metal, stone, timber, concrete, mineral woolwith uniformly dispersed binder or polymers3.1.3homogeneous productproduct consisting of a single material, having uniform density and composition throughout the product3.1.4non-homogeneous productproduct that does not satisfy the requirements of a homogeneous product. It is a product composed of one or morecomponents, substantial and/or non-substantial3.1.5substantial componentmaterial that constitutes a significant part of a non-homogeneous product. A layer with a mass/unit area
1,0 kg/m2 ora thickness
1,0 mm is considered to be a substantial component3.1.6non-substantial componentmaterial that does not constitute a significant part of a non-homogeneous product. A layer with a mass/unit area < 1,0kg/m2 and a thickness < 1,0 mm is considered to be a non-substantial componentTwo or more non-substantial layers that are adjacent to each other (i.e. with no substantial component(s) in betweenthe layers) are regarded as one non-substantial component when they collectively comply with the requirements for alayer being a non-substantial component.3.1.7internal non-substantial componentnon-substantial component that is covered on both sides by at least one substantial component
EN 13501-1:2002 (E)83.1.8external non-substantial componentnon-substantial component that is not covered at one side by a substantial component3.1.9flooringupper layer(s) of a floor, comprising any surface finish with or without an attached backing and with any accompanyingunderlay, interlayer and adhesives3.1.10substrateproduct which is used immediately beneath the product about which information is required. For flooring, it is the flooron which it is mounted or the material which represents this floor3.1.11standard substrateproduct which is representative of the substrate used in end-use applications3.1.12end use applicationreal application of a product, in relation to all aspects that influence the behaviour of that product under different firesituations. It covers aspects such as its quantity, orientation, position in relation to other adjacent products, and itsmethod of fixing3.1.13fire performanceresponse of an item when exposed to a specific fire (EN ISO 13943)3.1.14reaction to fireresponse of a product in contributing by its own decomposition to a fire to which it is exposed, under specifiedconditions3.1.15fire scenariodetailed description of conditions, including environmental, of one or more stages from before ignition to aftercompletion of combustion at a specific location or in a real scale simulation (EN ISO 13943)3.1.16reference scenariohazard situation used as a reference for a given test method or classification system3.1.17fire situationstage in the development of a fire, characterised by the nature, severity and size of the thermal attack on the productsinvolved3.1.18combustionexothermic reaction of a substance with an oxidizer (EN ISO 13943)NOTECombustion generally emits effluent accompanied by flames and/or visible light.3.1.19calorific valuethermal energy produced by combustion of unit of mass of a given substance (EN ISO 13943)NOTEIt is expressed in joules per kilogram.
EN 13501-1:2002 (E)93.1.20gross calorific potentialcalorific value of a material when the combustion is complete and any produced water is entirely condensed3.1.21contribution to fireenergy released by a product influencing the fire growth both in pre- and post-flashover situations3.1.22ignitabilitymeasure of the ease with which an item can be ignited, under specified conditions (EN ISO 13943)3.1.23heat releasecalorific energy which is
...
