EN 13422
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2019
EUROPÄISCHE NORM
ICS 93.080.30 Supersedes EN 13422:2004+A1:2009
English Version
Vertical road signs - Portable deformable warning devices
and delineators - Portable road traffic signs - Cones and
cylinders
Signalisation routière verticale - Dispositifs d'alerte et Straßenverkehrszeichen (vertikal) - Transportable
balisages de voie souples et mobiles - Signaux Straßenverkehrszeichen - Leitkegel und Leitzylinder
temporaires mobiles - Cônes et cylindres
This European Standard was approved by CEN on 16 September 2019.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13422:2019 E
worldwide for CEN national Members.

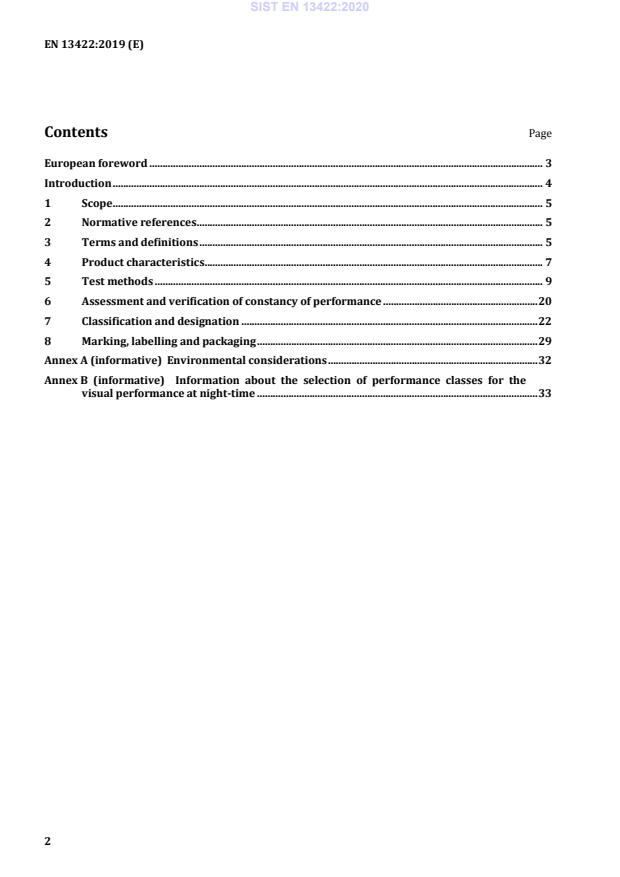

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Product characteristics . 7
5 Test methods . 9
6 Assessment and verification of constancy of performance . 20
7 Classification and designation . 22
8 Marking, labelling and packaging . 29
Annex A (informative) Environmental considerations . 32
Annex B (informative) Information about the selection of performance classes for the
visual performance at night-time . 33
European foreword
This document (EN 13422:2019) has been prepared by Technical Committee CEN/TC 226 “Road
equipment”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2020, and conflicting national standards shall be
withdrawn at the latest by May 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13422:2004+A1:2009.
In comparison with the previous edition, the following technical modifications have been made:
a) updating of the normative references;
b) clarification of the definitions in Clause 3;
c) amendment of performance requirements for Class R 3, R 3 and L 1;
L rel
d) clarification of the test method for the relative distribution of retroreflective performance.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Introduction
This document provides requirements for the construction and visual performance of traffic cones and
cylinders. The visual performance at daytime is specified by the colour and luminance factor. The visual
performance at night-time is specified by the coefficient of retroreflection R , the coefficient of
A
retroreflected luminance R and the relative distribution of retroreflective performance L .
L rel
1 Scope
This document specifies requirements for new traffic cones and new traffic cylinders with
retroreflective properties.
This document specifies minimum essential visual and physical performance characteristics; test
methods for determination of product performance and the means by which this performance may be
communicated to the user and the public including safety enforcement agencies.
The document provides a series of categories or classes by which a traffic cone or traffic cylinder may
be specified for use in different applications in accordance with best practice.
In the case of physical properties, performance levels and indicative tests are provided for cold weather,
stability, and impact resistance when dropped. Requirements for visual recognition properties, colour,
retroreflectivity and luminance are provided.
Provision for identification and marking to declared levels of performance is provided.
There are other product shapes which perform similar functions. This document does not cover devices
made in other shapes, or which do not meet the design requirements of this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 1043-1, Plastics — Symbols and abbreviated terms — Part 1: Basic polymers and their special
characteristics (ISO 1043-1)
EN ISO/CIE 11664-1:2019, Colorimetry - Part 1: CIE standard colorimetric observers (ISO/CIE 11664-
1:2019)
EN ISO 11664-2:2011, Colorimetry - Part 2: CIE standard illuminants (ISO 11664-2:2007)
ISO 4:1997, Information and documentation — Rules for the abbreviation of title words and titles of
publications
CIE 15:2004, Colorimetry
CIE S 017/E:2011, International lighting vocabulary
CIE 54.2:2001, Retroreflection — Definition and measurement
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 4:1997, CIE S 017/E:2011 and
the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
traffic cone
three dimensional device of conical shape comprising one or more parts including a base plate, cone
body and a retroreflective surface or surfaces
3.2
base plate
lowest part of the traffic cone which supports the cone body, having an upper visible surface, and a
lower surface in contact with the support surface
3.3
cone body
part of the traffic cone which is conical in shape, but excludes the base plate and the retroreflective
surface(s)
3.4
category A cone
traffic cone in which a minimum of 80 % of the nominal height of the cone is retroreflective
3.5
category B cone
traffic cone in which a minimum of 25 % of the nominal height of the cone is retroreflective
3.6
traffic cylinder
three dimensional device of substantially cylindrical shape comprising one or more parts including a
cylinder body, and a retroreflective surface or surfaces
3.7
cylinder body
part of the traffic cylinder which is substantially cylindrical in shape and supports the retroreflective
surface or surfaces
3.8
category A cylinder
traffic cylinder in which a minimum of 80 % of the nominal height of the cylinder is retroreflective
3.9
category B cylinder
traffic cylinder in which a minimum of 25 % of the nominal height of the cylinder is retroreflective
3.10
retroreflective surface(s)
part (or those parts) of a traffic cone or traffic cylinder fixed to the cone body or cylinder body which
are retroreflective according to the requirements of this document
3.11
height of traffic cone
H
vertical distance, measured between the ground and the top of the traffic cone
3.12
height of traffic cylinder
H
vertical distance, measured between the top of the cylinder body and the lowest extremity of the
cylinder body
3.13
test product
product in original size and design, prepared by the manufacturer and submitted to testing
3.14
sample
construction representing parts of the product or its constituents in original materials prepared by the
manufacturer and submitted to testing
3.15
product family
products that are related in such a way that testing of one of the products covers all of the products
from a product family
4 Product characteristics
4.1 Traffic cones
4.1.1 Design of traffic cones
4.1.1.1 Shape of traffic cones
There shall be two shape classes for traffic cones (S1 and S2).
Class S1 - The angle between the sides of the cone body and the cone's vertical axis shall be (10 ± 2,5)°
for at least the uppermost 75 % H of the traffic cone. The lower 25 % H of the traffic cone above the
base plate may have an angle between the sides of the body and the traffic cone's vertical axis of
between 7,5° and 14,5°.
Class S2 - The angle between the sides of the cone body and the cone's vertical axis shall be (10 ± 2,5)°
for at least the uppermost 75 % H of the traffic cone. The lower 25 % H of the traffic cone above the
base plate may have an increased angle between the sides of the body and the traffic cone's vertical axis
of between 14,6° and 45°.
4.1.1.2 Shape of the base plate for traffic cones
The base plate shall have a minimum of 4 and not more than 8 sides.
4.1.2 Dimensions of traffic cones
4.1.2.1 General
Traffic cones shall conform to Table 1 and shall be assigned according to weight class (W) of Table 1
achieved. The nominal height of the traffic cone and the weight class required shall be specified by the
purchaser. The height H of the traffic cone shall not deviate more than 5 % from the nominal height, as
specified by the purchaser.
Table 1 — Nominal height H of traffic cones and minimum weight W
Nominal Minimum weight W
height H in kg
in mm
Class W1 Class W2 Class W3
≥ 900 ≤ 1 000 4,80 6,00 7,50
≥ 750 < 900 3,20 4,00 5,00
≥ 500 < 750 1,30 1,90 2,50
≥ 450 < 500 1,10 1,80 2,20
≥ 300 < 450 0,80 0,80 0,80
4.1.2.2 Stacked height of traffic cones
The overall height of two identical traffic cones, when stacked one upon the other, shall not exceed
1,2 H of each individual traffic cone. Traffic cones shall be designed to ensure that, when stacked, they
do not bind together, nor damage the retroreflective surface(s).
4.1.2.3 Top of body of traffic cones
The external diameter of the top of the cone body shall be (60 ± 15) mm. The top of the cone body shall
have a circular hole provided in its upper surface. The hole shall have a diameter of (40 ± 5) mm.
The area of the cone body immediately below the top of the traffic cone shall have a configuration to
provide a hand grip. This area need not be retroreflective and shall not exceed the greater height of
either 0,1 H or 60 mm measured from the top.
4.1.2.4 Base plate of traffic cones
When the thickness of the outer edge of the base plate exceeds 15 mm, its plan area shall be contained
within a circle whose diameter is 0,75 H of the traffi
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
