EN 12504-3:2005

Testing concrete in structures - Part 3: Determination of pull-out force

This document specifies a method for the determination of the pull-out force of hardened concrete using a cast-in disc insert and rod, or a similar device installed afterwards by drilling into the hardened concrete.
NOTE   The test method is not intended as an alternative for the determination of the compressive strength of concrete, but with suitable correlations it can provide an estimate of in situ strength.

Prüfung von Beton in Bauwerken - Teil 3: Bestimmung der Ausziehkraft

1.1   Diese Norm ein Verfahren zur Bestimmung der Ausziehkraft von Festbeton mit einer Einlage, die in den Frischbeton eingesetzt wird oder einer ähnlichen Einlage fest, die nachträglich in den Festbeton eingebohrt wird.
ANMERKUNG   Das Prüfverfahren gilt nicht als Alternative für die Bestimmung der Druckfestigkeit von Beton; bei geeigneten Korrelationen kann es jedoch zu einer Schätzung der Festigkeit im Bauwerk führen.

Essais pour béton dans les structures - Partie 3: Détermination de la force d'arrachement

La présente Norme européenne spécifie une méthode permettant de déterminer la force d'arrachement du béton durci à l'aide d'un insert coulé dans le béton, constitué d'un disque et d'une tige, ou d'une insertion similaire placée ultérieurement par forage à l'intérieur du béton durci.
NOTE   Cette méthode d'essai ne peut pas se substituer aux essais de détermination de la résistance du béton à la compression ; cependant, elle peut fournir une estimation de la résistance in situ du béton si des corrélations fiables sont établies.

Preskušanje betona v konstrukcijah – 3. del: Določevanje izvlečne sile

General Information

• Status: Published
• Publication Date: 08-Mar-2005
• Withdrawal Date: 29-Sep-2005
• ICS: 91.100.30 - Concrete and concrete products
• Technical Committee: CEN/TC 104 - Concrete ( performance, production, placing and compliance criteria )
• Drafting Committee: CEN/TC 104/SC 1 - Revision of ENV 206
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 18-Jun-2021
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Ref Project: SIST EN 12504-3:2005 - Testing concrete in structures - Part 3: Determination of pull-out force

Overview

EN 12504-3:2005 - "Testing concrete in structures: Determination of pull-out force" (CEN) specifies a standardized method to measure the pull-out force of hardened concrete using a cast‑in disc insert and rod or a similar device installed after hardening by drilling and under‑reaming. The method is intended for in‑situ assessment and comparative testing and - with appropriate correlations - can provide an estimate of in‑situ compressive strength, but it is not a direct alternative to standard compressive testing.

Key topics and requirements

• Test principle: A small metal disc with a central rod is loaded in tension until the disc is pulled out; the maximum force is recorded.
• Apparatus:
  • Disc diameter: 25 ± 0.1 mm.
  • Rod diameter: ≤ 0.6 × disc diameter; rod length from surface to disc = disc diameter.
  • Bearing ring: inside diameter 55 ± 0.1 mm, outside diameter 70 ± 1 mm.
  • Calibrated loading system with maximum force indicator; tolerance ±2% and a device to record peak force.
• Test procedure:
  • Install cast‑in devices before concreting or install after hardening using drilling/under‑reaming per manufacturer instructions.
  • Do not test frozen concrete.
  • Load at a steady rate of 0.5 ± 0.2 kN/s until fracture (or apply a proof load).
  • Report maximum force to the nearest 0.05 kN.
• Test area and placement:
  • Minimum centre spacing 200 mm, at least 100 mm from edges.
  • Ensure reinforcement lies outside the expected conical failure surface by at least one bar diameter or the maximum aggregate size.
  • Minimum concrete thickness 100 mm.
• Results and reporting: Report location, concrete description and age, curing and surface conditions, apparatus type, whether rupture or proof load, individual forces, deviations from standard, and a declaration of compliance.
• Correlation to strength: Annex A gives an empirical relationship and a fracture-area formula; general correlations may give ~±20% (95% confidence) for four results, while specially prepared correlations can reach ~±10%.

Applications and users

• Practical uses: estimating in‑situ strength, determining formwork/prop removal times, timing of post‑tensioning, curing termination, comparative on‑site quality checks.
• Who uses it: structural and geotechnical engineers, site and laboratory technicians, testing laboratories, contractors, precast manufacturers, and building inspectors involved in concrete testing in structures.

Related standards

• EN 12504 series (testing concrete in structures) - see EN 12504-1 (cored specimens, compressive testing) for direct strength comparison and correlation procedures.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2005
3UHVNXãDQMHEHWRQDYNRQVWUXNFLMDK±GHO'RORþHYDQMHL]YOHþQHVLOH
Testing concrete in structures - Part 3: Determination of pull-out force
Prüfung von Beton in Bauwerken - Teil 3: Bestimmung der Ausziehkraft
Essais pour béton dans les structures - Partie 3: Détermination de la force d'arrachement
Ta slovenski standard je istoveten z: EN 12504-3:2005
ICS:
91.100.30 Beton in betonski izdelki Concrete and concrete
products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 12504-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2005
ICS 91.100.30
English version
Testing concrete in structures - Part 3: Determination of pull-out
force
Essais pour béton dans les structures - Partie 3: Prüfung von Beton in Bauwerken - Teil 3: Bestimmung der
Détermination de la force d'arrachement Ausziehkraft
This European Standard was approved by CEN on 4 September 2003.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12504-3:2005: E
worldwide for CEN national Members.

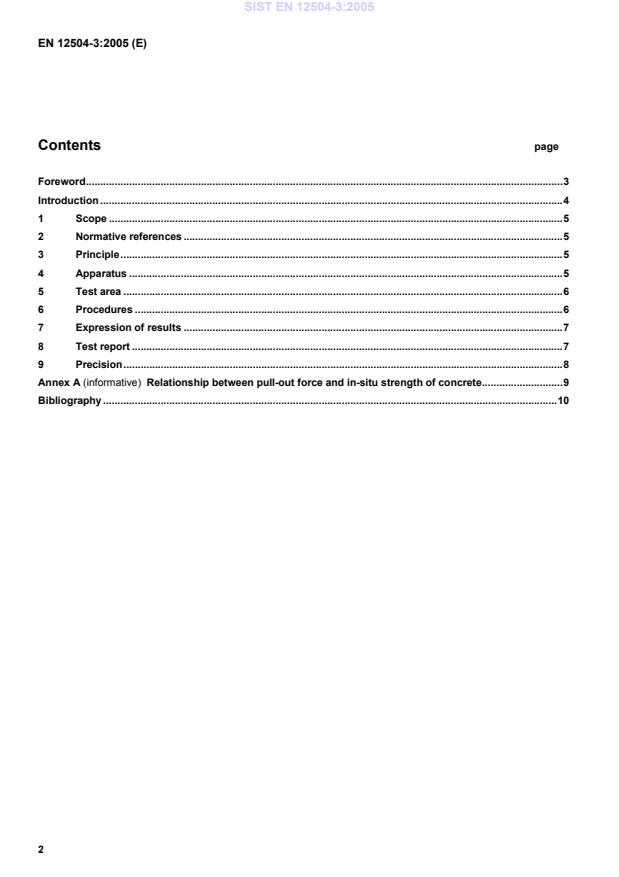

Contents page
