EN 12274-3:2018

Slurry surfacing - Test methods - Part 3: Consistency

This European Standard specifies a test method for determining the consistency of slurry surfacing mixtures. This test is dedicated to Slurry Seals (D ≤ 4mm).
NOTE 1   The method can be used as a mix design aid to determine the amount of water required to form a stable, workable mixture.
NOTE 2   To obtain the correct consistency, it can be necessary to repeat the test with different known percentages of water.
This European Standard applies to slurry surfacings for roads, airfields and other trafficked areas.

Dünne Asphaltdeckschichten in Kaltbauweise — Prüfverfahren — Teil 3: Konsistenz von Bitumenschlämmen

Diese Europäische Norm legt ein Verfahren zur Bestimmung der Konsistenz von Mischgut dünner Asphaltdeckschichten in Kaltbauweise fest. Dieses Prüfverfahren gilt für dünne Asphaltdeckschichten in Kaltbauweise mit D ≤ 4 mm.
ANMERKUNG 1   Das Verfahren kann hilfsweise zur Bestimmung der benötigten Wassermenge für ein gut verarbeitbares Mischgut verwendet werden.
ANMERKUNG 2   Um die richtige Konsistenz zu erhalten, kann es notwendig sein, die Prüfung mit geänderten bekannten Wasseranteilen zu wiederholen.
Diese Europäische Norm gilt für dünne Asphaltdeckschichten in Kaltbauweise für Straßen, Flugplätze und andere Verkehrsflächen

Matériaux bitumineux coulés à froid - Méthode d'essai - Partie 3: Consistance

La présente Norme européenne spécifie une méthode d'essai pour la détermination de la consistance des mélanges de matériaux bitumineux coulés à froid.
NOTE 1   La méthode peut être utilisée comme aide à la conception des mélanges pour déterminer la quantité d'eau nécessaire à l'obtention d'un mélange stable, maniable.
NOTE 2   Pour obtenir la consistance correcte, il peut être nécessaire de répéter l'essai avec différentes teneurs en eau connues.
La présente Norme européenne s'applique aux matériaux bitumineux coulés à froid pour les routes, terrains d'aviation et autres zones de trafic.

Tankoplastne prevleke po hladnem postopku - Preskusne metode - 3. del: Konsistenca

General Information

• Status: Published
• Publication Date: 13-Mar-2018
• Withdrawal Date: 29-Sep-2018
• ICS: 93.080.20 - Road construction materials
• Technical Committee: CEN/TC 227 - Road materials
• Drafting Committee: CEN/TC 227/WG 2 - Surface dressing and slurry surfacing
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 29-Jul-2024
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 12274-3:2018 - Slurry surfacing - Test methods - Part 3: Consistency

Relations

• Replaces: EN 12274-3:2002 - Slurry surfacing - Test methods - Part 3: Consistency
• Effective Date: 21-Mar-2018

Overview

EN 12274-3:2018 (CEN) defines a laboratory test method for determining the consistency of slurry surfacing mixtures. The method is dedicated to Slurry Seals (maximum particle size D ≤ 4 mm) and applies to slurry surfacings for roads, airfields and other trafficked areas. The procedure helps determine the workable consistency of slurry sealing mixes and can be used as a mix design aid to establish the amount of water required to form a stable, workable mixture.

Key topics and requirements

• Scope: Consistency test for slurry surfacing mixtures (Slurry Seals, D ≤ 4 mm).
• Purpose: Assess slurry flow to guide mix design (pre-wetting water, emulsion content) and confirm field-appropriate consistency.
• Apparatus (high level):
  • Frustum-of-cone mould (75 ± 1 mm height; top Ø 40 ± 1 mm; bottom Ø 90 ± 1 mm).
  • 250 × 250 mm metallic template with an indelible flow scale of eight concentric circles (inner circle Ø 90 mm, radii steps 10 mm).
  • Balance (0.1 g resolution), beaker ≥ 0.5 L, stirring rod, oven (110 ± 5 °C).
• Sample and conditions:
  • Typical sample mass: 400 ± 5 g dry aggregate (or corrected for natural moisture).
  • Test temperature: ambient (23 ± 5) °C.
  • Aggregate moisture determined per EN 1097-5 if wet.
• Procedure summary:
  • Homogenize emulsion; prepare mix with aggregates, filler, additives and pre-wetting water.
  • Fill mould placed on non-absorbent flow sheet; lift mould and allow slurry to flow.
  • Measure flow after (10 ± 2) s at four equidistant points and average.
• Results and reporting:
  • Expressed as slurry flow (mm) and reported alongside pre-wetting water (%), bitumen emulsion (%), test temperature, deviations, and other metadata.
  • Test precision (repeatability/reproducibility) is not provided in the standard.

Applications and users

• Practical for:
  • Pavement engineers and technologists performing mix design of slurry seals.
  • Construction contractors and quality control (QC) laboratories verifying workability and consistency before field application.
  • Specification authors and road authorities setting acceptance criteria for slurry surfacing.
• Benefits:
  • Helps optimize water and emulsion contents to achieve a stable, non-segregating slurry with adequate flow for uniform coverage.

Related standards

• EN 12274 series (Slurry surfacing - Test methods):
  • Part 1: Sampling
  • Part 2: Residual binder content
  • Part 4: Cohesion
  • Part 5: Minimum binder content and wearing resistance
  • Part 6: Rate of application
  • Part 7: Shaking abrasion test
  • Part 8: Visual assessment of defects
• Normative reference: EN 1097-5 (aggregate moisture determination)

Keywords: EN 12274-3:2018, slurry surfacing, slurry seal, consistency test, mix design, bitumen emulsion, pre-wetting water, slurry flow, road surfacing.

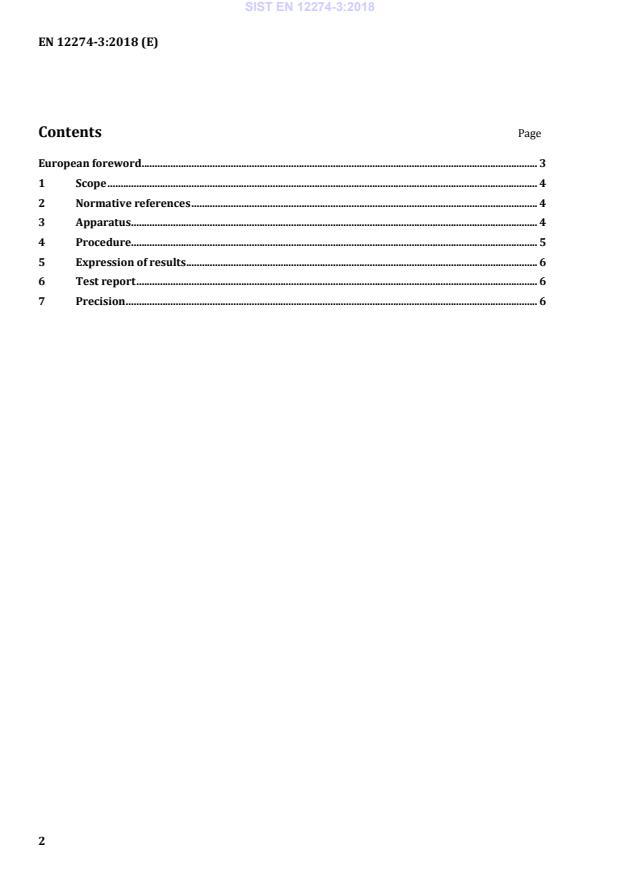

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tankoplastne prevleke po hladnem postopku - Preskusne metode - 3. del: KonsistencaDünne Asphaltschicht in Kaltbauweise - Prüfverfahren - Teil 3: KonsistenzSlurry surfacing - Test methods - Part 3: Consistency93.080.20Materiali za gradnjo cestRoad construction materialsICS:Ta slovenski standard je istoveten z:EN 12274-3:2018SIST EN 12274-3:2018en,fr,de01-maj-2018SIST EN 12274-3:2018SLOVENSKI
STANDARDSIST EN 12274-3:20021DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12274-3
March
t r s z ICS
{ uä r z rä t r Supersedes EN
s t t y væ uã t r r tEnglish Version
Slurry surfacing æ Test methods æ Part
uã Consistency Matériaux bitumineux coulés à froid æ Méthode d 5essai æ Partie
uã Consistance
Dünne Asphaltdeckschichten in Kaltbauweise æ Prüfverfahren æ Teil
uã Konsistenz von Bitumenschlämmen This European Standard was approved by CEN on
s u November
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s t t y væ uã t r s z ESIST EN 12274-3:2018
...
