EN 1469:2004

Natural stone products - Slabs for cladding - Requirements

This document specifies requirements for slabs of natural stone which are made for use as cladding and ceiling finishes. It does not cover aggregates and artificially agglomerated stony material and does not cover installation for cladding.
NOTE   It does not cover roofing slates used as external cladding.

Natursteinprodukte - Bekleidungsplatten - Anforderungen

Dieses Dokument legt Anforderungen an glatte Platten aus Naturstein fest, die als Bekleidung für Wände und
Decken eingesetzt werden. Nicht erfasst werden Gesteinskörnungen und künstlich hergestelltes Gesteinsmaterial
sowie die Verlegung der Platten für Wandbekleidungen.
ANMERKUNG Nicht erfasst werden Schiefer für Dachabdeckungen, die als Außenbekleidung verwendet werden.

Produits en pierre naturelle - Revêtement mural - Exigences

Le présent document définit les exigences relatives aux dalles en pierre naturelle destinées à être utilisées pour les revêtements de murs et de plafonds. Il ne couvre pas les agrégats ni les matériaux rocheux agglomérés artificiellement, et ne concerne pas la mise en �uvre des revêtements de murs.

Proizvodi iz naravnega kamna – Plošče za navpične in stropne obloge - Zahteve

General Information

• Status: Withdrawn
• Publication Date: 02-Nov-2004
• Withdrawal Date: 13-Apr-2025
• ICS: 91.100.15 - Mineral materials and products
• Technical Committee: CEN/TC 246 - Natural stones
• Drafting Committee: CEN/TC 246/WG 3 - Product specifications
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 11-Mar-2015
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/121 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on internal and external wall and ceiling finishes
• Ref Project: SIST EN 1469:2005 - Natural stone products - Slabs for cladding - Requirements

Relations

• Replaced By: EN 1469:2015 - Natural stone products - Slabs for cladding - Requirements
• Effective Date: 18-Mar-2015

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Natural stone products - Slabs for cladding - RequirementsProduits en pierre naturelle - Revetement mural - ExigencesNatursteinprodukte - Bekleidungsplatten - Anforderungen91.100.15Mineralni materiali in izdelkiMineral materials and productsICS:SIST EN 1469:2005enTa slovenski standard je istoveten z:EN 1469:200401-marec-2005SIST EN 1469:2005SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1469November 2004ICS 91.100.15 English versionNatural stone products - Slabs for cladding - RequirementsPierre naturelle - Produits finis, dalles de revêtement mural- SpécificationsNatursteinprodukte - Bekleidungsplatten - AnforderungenThis European Standard was approved by CEN on 2 September 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1469:2004: E

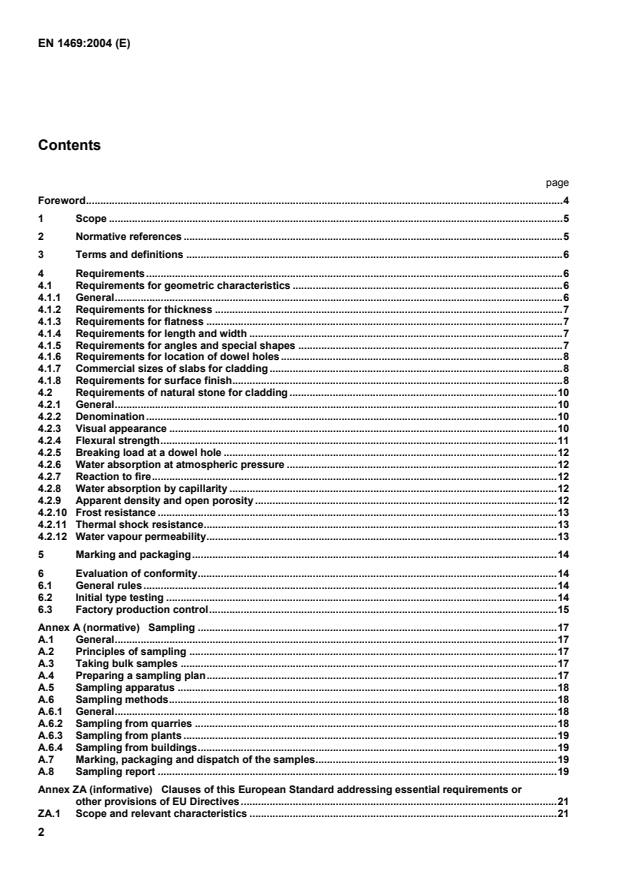

Sampling.17 A.1 General.17 A.2 Principles of sampling.17 A.3 Taking bulk samples.17 A.4 Preparing a sampling plan.17 A.5 Sampling apparatus.18 A.6 Sampling methods.18 A.6.1 General.18 A.6.2 Sampling from quarries.18 A.6.3 Sampling from plants.19 A.6.4 Sampling from buildings.19 A.7 Marking, packaging and dispatch of the samples.19 A.8 Sampling report.19 Annex ZA (informative)
Clauses of this European Standard addressing essential requirements or other provisions of EU Directives.21 ZA.1 Scope and relevant characteristics.21

1 Scope This document specifies requirements for slabs of natural stone which are made for use as cladding and ceiling finishes. It does not cover aggregates and artificially agglomerated stony material and does not cover installation for cladding. NOTE It does not cover roofing slates used as external cladding. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1925, Natural stone test methods - Determination of water absorption coefficient by capillarity. EN 1936, Natural stone test method - Determination of real density and apparent density and of total and open porosity. EN 12371, Natural stone test methods - Determination of frost resistance. EN 12372, Natural stone test methods - Determination of flexural strength under concentrated load. EN 12407, Natural stone test methods - Petrographic examination. EN 12440, Natural stone - Denomination criteria. EN 12524, Building materials and products - Hygrothermal properties - Tabulated design values. EN 12670:2001, Natural stone - Terminology. EN 13161, Natural stone test methods - Determination of flexural strength under constant moment. EN 13364:2001, Natural stones test methods - Determination of breaking load at a dowel hole. EN 13373, Natural stone test methods - Determination of geometric characteristics on units. EN 13501-1, Fire classification of construction products and building elements - Part 1: Classification using test data from reaction to fire tests. EN 13755, Natural stone test methods - Determination of water absorption at atmospheric pressure. EN 14066, Natural stone test methods - Determination of resistance to ageing by thermal shock. EN ISO 12572, Hygrothermal performance of building materials and products - Determination of water vapour transmission properties (ISO 12572:2001). NOTE Besides the European Standards for test methods mentioned in this clause, there exist further standards which can be used for scientific examinations, but which are not relevant for the application in practice according to this standard.

Adhesives as defined in EN 12004.
3.2 dimensions of slabs for cladding the length l, width b and thickness d are the dimensions of a slab for cladding. They are given in the stated sequence in millimetres (see Figure 1)
Figure 1 — Dimensions of a slab for cladding 4 Requirements 4.1 Requirements for geometric characteristics 4.1.1 General All measurements shall be carried out in accordance with EN 13373 and all measured values of individual units shall fall within the required tolerances.

± 10 % More than 30 Up to and including 80
± 3 mm More than 80 ± 5 mm
Stricter tolerances may be declared by the manufacturer. This is particularly important when the edges of the slabs will be visible. NOTE If the slab is to be fixed by adhesive or a thin mortar bed, stricter tolerances may be needed. The required thickness of slabs shall result from a structural analysis or similar procedure which takes into account the technical and physical properties of the stone and the intended application. For natural cleft/riven faces, Table 1 does not apply and the tolerances on thickness shall be declared by manufacturer. 4.1.3 Requirements for flatness The deviation from flatness of the surface (except for natural cleft faces) shall not exceed 0,2 % of the slab length, and shall not exceed 3 mm. For natural cleft faces, the tolerance on flatness shall be declared by manufacturer. 4.1.4 Requirements for length and width The length or width shall not deviate from the nominal size by more than given in Table 2. Table 2 – Tolerances on length and width Nominal length or width in mm < 600 ≥ 600 Sawn edges thickness ≤ 50 mm ± 1 mm ± 1,5 mm Sawn edges thickness > 50 mm ± 2 mm ± 3 mm
Stricter tolerances may be declared by the manufacturer. 4.1.5 Requirements for angles and special shapes The permissible tolerance at any point shall be as stated in Table 2 (see Figure 2). Each slab angle shall be in accordance with the agreed geometry. Pieces of special or irregular shape shall be checked for compliance with the required shape by use of a suitable template, the permissible tolerance at any point shall be as stated in Table 2. Stricter tolerances may be declared by the manufacturer. This is particularly important when the edges of the slabs will be visible.

Dimensions in millimetres
Key 1 Nominal size 2 The slab sides shall fall within the two dotted lines indicating the tolerances of length and width according to Table 2 Figure 2 — Example of tolerances on angles 4.1.6 Requirements for location of dowel holes The specified location, depth and diameter (shape) of dowel holes shall be as follows: • Location measured along the length or width of the slab: ± 2 mm • Location measured along thickness: ± 1 mm (to be measured from the exposed face) • Depth: + 3 / - 1 mm • Diameter: + 1 / - 0,5 mm Stricter tolerances may be declared by the manufacturer. For other fixing systems (e.g. slots), specific tolerances shall be declared by the manufacturer. 4.1.7 Commercial sizes of slabs for cladding Commercial sizes shall be based on the area of the smallest possible circumscribed rectangle measured in square metres accurate to two decimal places. NOTE For small units it may be necessary to agree a minimum size, for example 0,25 m2. 4.1.8 Requirements for surface finish 4.1.8.1 General Surface finishes shall be carried out uniformly to the edges of the cladding slab. The surface finishing of some types of stones may typically involve the use of patching, fillers or other similar products for natural holes, faults or cracks; this is to be considered as part of the normal processing. In such cases the type of treatment, as well as the type and nature of additional materials, shall be declared.

Key 1
Reference sample 2
Production sample 3
Daylight Figure 3 — Comparison between production sample and reference sample All visible variations such as cracks, inclusions, cavities, stylolites and veins are permitted as far as they are typical for the stone and the performance of the stone is not adversely affected. 4.2.4 Flexural strength This characteristic shall always be declared. The flexural strength shall be determined using the test method in EN 12372 or EN 13161 and the mean value, lower expected value and standard deviation shall be declared. NOTE An identification test as defined in EN 12372 or EN 13161 is usually carried out for the purpose of CE marking. However, where the surface finish of the delivered product is known, the test may be carried out with this finish, in accordance with the technological tests defined in EN 12372 or EN 13161.
...
