prEN 15129-1

Anti-seismic devices - Part 1: General design rules

This document covers the design of anti-seismic devices that are provided in structures, with the aim of modifying their response to the seismic action. It specifies functional requirements and general design rules of the anti-seismic devices for the seismic and non-seismic design situations, material characteristics, manufacturing and general testing requirements, as well as assessment and verification of constancy of performance, installation and maintenance requirements. This document covers the types of anti-seismic devices as defined in Clause 4.
NOTE   Additional information concerning the scope of this document is given in Part 2, Part 3, Part 4, Part 5 and Part 6 of this European Standard.

Erdbebenvorrichtungen - Teil 1: Allgemeine Bemessungsregeln

Dieses Dokument regelt die Bemessung von Erdbebenvorrichtungen, die zur Milderung der Erdbeben-einwirkung in Tragwerke eingebaut werden. Es legt funktionelle Anforderungen und allgemeine Bemessungsgrundsätze für die Erdbebenvorrichtungen für seismische und nichtseismische Bemessungssituationen, Werkstoffeigenschaften, Anforderungen an Herstellung und allgemeine Prüfung, die Bewertung und Überprüfung der Leistungsbeständigkeit sowie Anforderungen an Einbau und Instandhaltung fest. Dieses Dokument regelt die Typen von Erdbebenvorrichtungen und Kombinationen daraus, wie sie in Abschnitt 4 definiert sind.
ANMERKUNG   Zusätzliche Informationen, den Anwendungsbereich dieses Dokuments betreffend, werden in Teil 2, Teil 3, Teil 4, Teil 5 und Teil 6 dieser Europäischen Norm angegeben.

Dispositifs anti-sismiques - Règles générales de calcul

Le présent document traite de la conception de dispositifs anti-sismiques qui sont installés dans des structures dans le but de modifier leur réponse à l'action sismique. Il spécifie les exigences fonctionnelles et les règles générales de calcul des dispositifs anti-sismiques en situation sismique et en situation non sismique, les caractéristiques des matériaux, les exigences de fabrication et les exigences d'essai générales, ainsi que les exigences relatives à l'évaluation et à la vérification de la constance des performances, d'installation et de maintenance. Le présent document s'applique aux types de dispositifs anti-sismiques définis à l'Article 4.
NOTE   Des informations complémentaires concernant le domaine d'application du présent document sont fournies dans les Parties 2, 3, 4, 5 et 6 de la présente Norme européenne.

Naprave za zagotavljanje potresne varnosti konstrukcij - 1. del: Splošna pravila za načrtovanje

General Information

• Status: Not Published
• Publication Date: 18-May-2025
• ICS: 91.120.25 - Seismic and vibration protection
• Technical Committee: CEN/TC 340 - Anti-seismic devices
• Drafting Committee: CEN/TC 340/WG 5 - Revision of EN 15129
• Current Stage: 4098 - Decision to abandon - Enquiry
• Start Date: 15-Apr-2024
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Mandate: M/132 - Addenda to the mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on circulation fixtures, structural bearings and floorings
• Ref Project: oSIST prEN 15129-1:2024 - Anti-seismic devices - Part 1: General design rules

Relations

• Revises: EN 15129:2018 - Anti-seismic devices
• Effective Date: 15-May-2019

Overview

prEN 15129-1 - Anti-seismic devices - Part 1: General design rules (CEN draft) sets out the general requirements for the design, manufacture, testing, installation and maintenance of devices intended to modify a structure’s response to seismic action. Intended to supersede EN 15129:2018, this part provides performance-based rules that apply to the full family of anti-seismic devices (fuses, dampers, isolators, sliders, restraints, etc.) and directs readers to Parts 2–6 for device-specific provisions.

Key topics and requirements

• Scope and intent: Defines functional requirements for devices used in seismic and non-seismic design situations and their connections to structural members.
• Performance-based design: Aligns seismic analysis and device verification with the EN 1998 (Eurocode 8) series; requires consideration of design situations, service life, durability and sustainability (EN 1990/EN 1991).
• Reliability and safety objectives:
  • “No failure” requirement for rare seismic events (residual capacity expected, except for fuse-type devices).
  • “Damage limitation” for more frequent seismic actions (limited, repairable damage).
  • Increased system reliability implemented via displacement magnification factor (γ) per EN 1998.
• Limit states:
  • Ultimate Limit State (ULS): verification for Significant Damage and Near Collapse, ductility and residual capacity requirements.
  • Serviceability Limit State (SLS): functional performance for Fully Operational and Damage Limitation states.
• Materials and properties: Materials must conform to European standards; properties must reflect strain, strain rate, environmental effects, ageing and temperature variation.
• Constitutive laws and modelling: Behaviour must be supported by adequate modelling and Type Tests; device properties for analysis come from experimental testing.
• Assessment and AVCP: Performance assessment and verification of constancy of performance (AVCP) required for device components.
• Documentation, installation and maintenance: Manufacturers must supply test reports, installation guidance, inspection/maintenance and replacement procedures; devices must be accessible for inspection and serviceable during structure life.

Applications and users

• Structural and geotechnical engineers specifying seismic mitigation systems
• Manufacturers and designers of seismic isolators, viscous/visco‑elastic dampers, sliders, fuse restraints
• Certification bodies, testing laboratories and notified bodies (AVCP)
• Contractors, installers and facilities managers responsible for inspection, replacement and maintenance
• Asset owners and infrastructure operators seeking compliance with Eurocodes and European standards

Related standards

• EN 1990, EN 1991, EN 1998 (Eurocodes) - design principles and seismic actions
• EN 1337 series - structural bearings and slider definitions
• prEN 15129 Parts 2–6 - device-specific requirements (Rigid Connection Devices; Displacement/Velocity Dependent Devices; Elastomeric Isolators; Curved & Flat Surface Sliders)

Keywords: anti-seismic devices, seismic isolators, seismic design, EN 15129-1, Eurocode, CEN, viscous dampers, lead rubber bearing, seismic protection.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2024
Naprave za zagotavljanje potresne varnosti konstrukcij - 1. del: Splošna pravila za
načrtovanje
Anti-seismic devices - Part 1: General design rules
Erdbebenvorrichtungen - Teil 1: Allgemeine Bemessungsregeln
Dispositifs anti-sismiques - Règles générales de calcul
Ta slovenski standard je istoveten z: prEN 15129-1
ICS:
91.120.25 Zaščita pred potresi in Seismic and vibration
vibracijami protection
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2023
ICS 91.120.25 Will supersede EN 15129:2018
English Version
Anti-seismic devices - Part 1: General design rules
Dispositifs anti-sismiques Erdbebenvorrichtungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 340.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15129-1:2023 E
worldwide for CEN national Members.

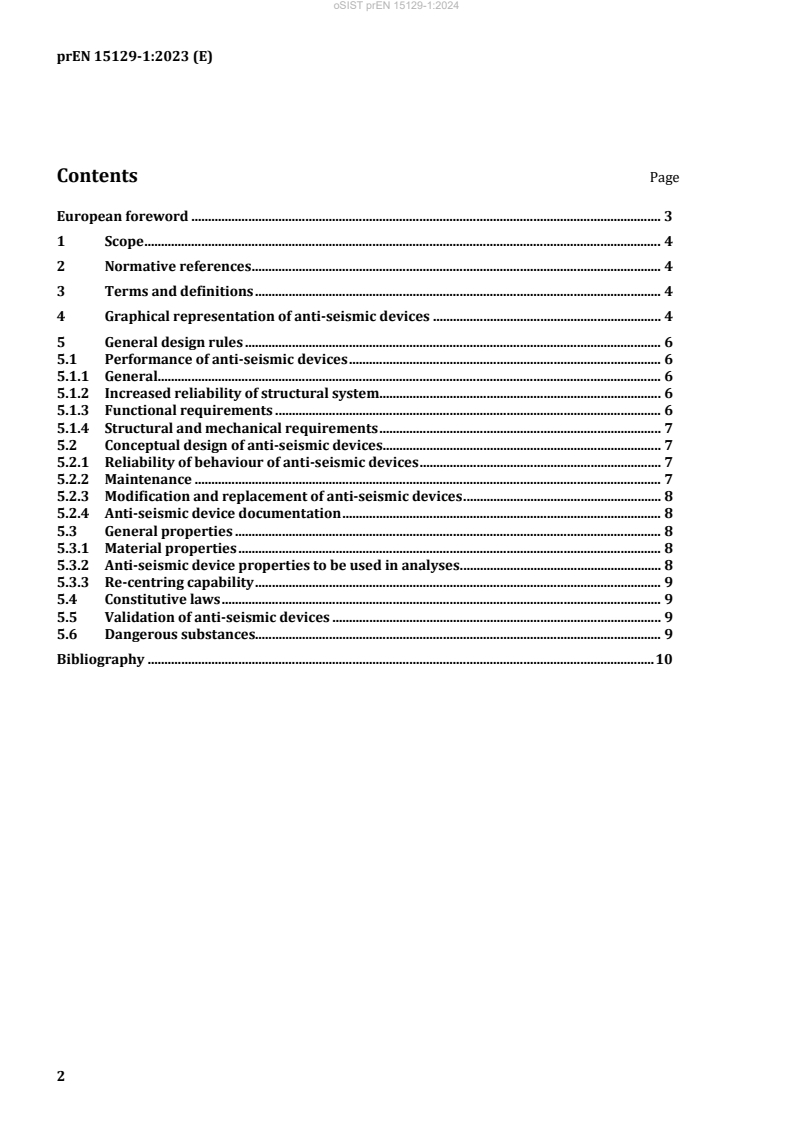

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Graphical representation of anti-seismic devices . 4
5 General design rules . 6
5.1 Performance of anti-seismic devices . 6
5.1.1 General. 6
5.1.2 Increased reliability of structural system. 6
5.1.3 Functional requirements . 6
5.1.4 Structural and mechanical requirements . 7
5.2 Conceptual design of anti-seismic devices. 7
5.2.1 Reliability of behaviour of anti-seismic devices . 7
5.2.2 Maintenance . 7
5.2.3 Modification and replacement of anti-seismic devices . 8
5.2.4 Anti-seismic device documentation . 8
5.3 General properties . 8
5.3.1 Material properties . 8
5.3.2 Anti-seismic device properties to be used in analyses . 8
5.3.3 Re-centring capability . 9
5.4 Constitutive laws . 9
5.5 Validation of anti-seismic devices . 9
5.6 Dangerous substances. 9
Bibliography . 10
European foreword
This document (prEN 15129-1:2023) has been prepared by Technical Committee CEN/TC 340 “Anti-
seismic devices”, the secretariat of which is held by UNI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 15129:2018.
EN 15129-1:2023 includes the following significant technical changes with respect to EN 15129:2018:
— Editorial revision (new structure of 5.1, removal of former subclause 4.3).
The structure of EN 15129, Anti-seismic devices, is as follows:
— Part 1: General Design Rules;
— Part 2: Rigid Connection Devices;
— Part 3: Displacement Dependent Devices;
— Part 4: Velocity Dependent Devices;
— Part 5: Elastomeric Isolators;
— Part 6: Curved and Flat Surface Sliders.

1 Scope
This document covers the design of anti-seismic devices that are provided in structures, with the aim of
modifying their response to the seismic action. It specifies functional requirements and general design
rules of the anti-seismic devices for the seismic and non-seismic design situations, material
characteristics, manufacturing and general testing requirements, as well as assessment and verification
of constancy of performance, installation and maintenance requirements. This document covers the types
of anti-seismic devices as defined in Clause 4.
NOTE Additional information concerning the scope of this document is given in Part 2, Part 3, Part 4, Part 5
and Part 6 of this European Standard.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1337 (all parts), Structural bearings
EN 1990, Eurocode - Basis of structural and geotechnical design
EN 1991 (all parts), Eurocode 1: Actions on structures
EN 1998 (all parts), Eurocode 8: Design of structures for earthquake resistance
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 1990, the EN 1991 series and
the EN 1998 series apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
4 Graphical representation of anti-seismic devices
The anti-seismic devices covered in this European Standard and their identification symbols are given in
Table 1.
Table 1 — Anti-seismic devices covered by this European Standard
Graphic
Representation
Description of Anti-Seismic
Part Notes
Device Elevation view
Plan
view
Direction x Direction y
Mechanical
Fuse
2 –
Restraints
(MFR)
Hydraulic
Fuse
2 –
Restraints
(HFR)
This type of device is
Temporary
usually referred to as
Connection 2 –
Shock Transmission
Devices (TCD)
Unit (STU)
Linear
Devices 3 –
(LD)
Nonlinear
Devices 3 –
(NLD)
Fluid
This symbol applies
Viscous
4 – also to two-shaft
Dampers
dampers
(FVD)
Fluid
Spring
4 –
Dampers
(FSD)
Elastomeric Isolator The isolators are
(EI) shown in the
deformed position to
Lead Rubber
underscore their
Bearing (LRB)
horizontal flexibility
The symbols apply to
Curved Surface both Single and
Slider (CSS) Multiple Curved
Surface Sliders
The symbols apply to
Flat Surface Slider both types of sliders
(FSS) as given in the
EN 1337 series
Seismic Isolators Energy Dissipating Devices Rigid Connection Devices (RCD)
Velocity Dependent Displacement
Fuse Restraints (FR)
Devices Dependent Devices
(VDD) (DDD)
5 General design rules
5.1 Performance of anti-seismic devices
5.1.1 General
The seismic analysis and design of structures equipped with anti-seismic devices shall be performed in
agreement with the EN 1998 series.
Design situations and rules for the definition of actions to be used for the design of anti-seismic devices
and their connections to structural members are given in the EN 1991 series and the EN 1998 series.
Design situations, design service life, durability and sustainability aspects shall be considered in
accordance with the EN 1990 series and the EN 1998 series.
The anti-seismic devices and their connections to structural members shall be designed and
manufactured in such a way that the following requirements are met, each with an adequate degree of
reliability and in accordance with the performance-based design approach as in the following:
— No failure: the anti-seismic devices and their connections to structural members shall be designed
and manufactured to withstand a seismic action having a lo
...
