EN 12814-5:2025

(Main)

Testing of welded joints of thermoplastics semi-finished products - Part 5: Macroscopic examination

Testing of welded joints of thermoplastics semi-finished products - Part 5: Macroscopic examination

This document specifies the cutting and preparation of test specimens and the conditions for performing the macroscopic examination of the test specimens.
The test is applicable to welded assemblies made from thermoplastics materials filled or unfilled, using the following processes:
—   hot gas welding: round nozzle, high speed nozzle, wedge;
—   extrusion welding;
—   heated tool welding: butt, saddle, socket, wedge;
—   electrofusion welding: socket, saddle.

Prüfen von Schweißverbindungen aus thermoplastischen Kunststoffen - Teil 5: Makroskopische Untersuchung

Dieses Dokument legt das Schneiden und die Herstellung der Probekörper und die Bedingungen zur Durchführung der makroskopischen Untersuchung der Probekörper fest.
Die Prüfung ist auf geschweißte Fügeteile aus thermoplastischen Kunststoffen mit oder ohne Füllstoff anwendbar, die mit folgenden Verfahren hergestellt wurden:
-   Warmgasschweißen: Fächelschweißdüse, Ziehschweißdüse, Schweißen mit Heizkeil;
-   Extrusionsschweißen;
-   Heizelementschweißen: Stumpfschweißen, Sattelschweißen, Muffenschweißen, Schweißen mit Heizkeil;
-   Heizwendelschweißen: Muffenschweißen, Sattelschweißen.

Essai des assemblages soudés sur produits semi-finis en thermoplastiques - Partie 5 : Examen macroscopique

Le présent document spécifie la méthode de découpage et de préparation des éprouvettes, ainsi que les conditions pour effectuer l’examen macroscopique sur ces éprouvettes.
L’essai est applicable à des assemblages soudés de matières thermoplastiques chargées ou non chargées, en utilisant les procédés suivants :
—   soudage au gaz chaud : buse ronde, buse rapide, coin chauffant ;
—   soudage par extrusion ;
—   soudage par élément chauffant : bout à bout, selle de raccordement, emboîture, coin chauffant ;
—   soudage par électrofusion : emboîture, selle de raccordement.

Preskušanje zvarjenih spojev plastomernih polizdelkov - 5. del: Makroskopska preiskava

General Information

Status
Published
Publication Date
02-Dec-2025
ICS
25.160.40 - Welded joints and welds
Technical Committee
CEN/TC 249 - Plastics
Drafting Committee
CEN/TC 249/WG 16 - Welding of thermoplastics
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
03-Dec-2025
Due Date
01-May-2026
Completion Date
03-Dec-2025
Ref Project
SIST EN 12814-5:2026 - Testing of welded joints of thermoplastics semi-finished products - Part 5: Macroscopic examination

Relations

Replaces
EN 12814-5:2000 - Testing of welded joints of thermoplastics semi-finished products - Part 5: Macroscopic examination
Effective Date
31-Jan-2024
EN 12814-5:2026EN 12814-5:2026
PreviousNext
Standard
EN 12814-5:2026
English language
7 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

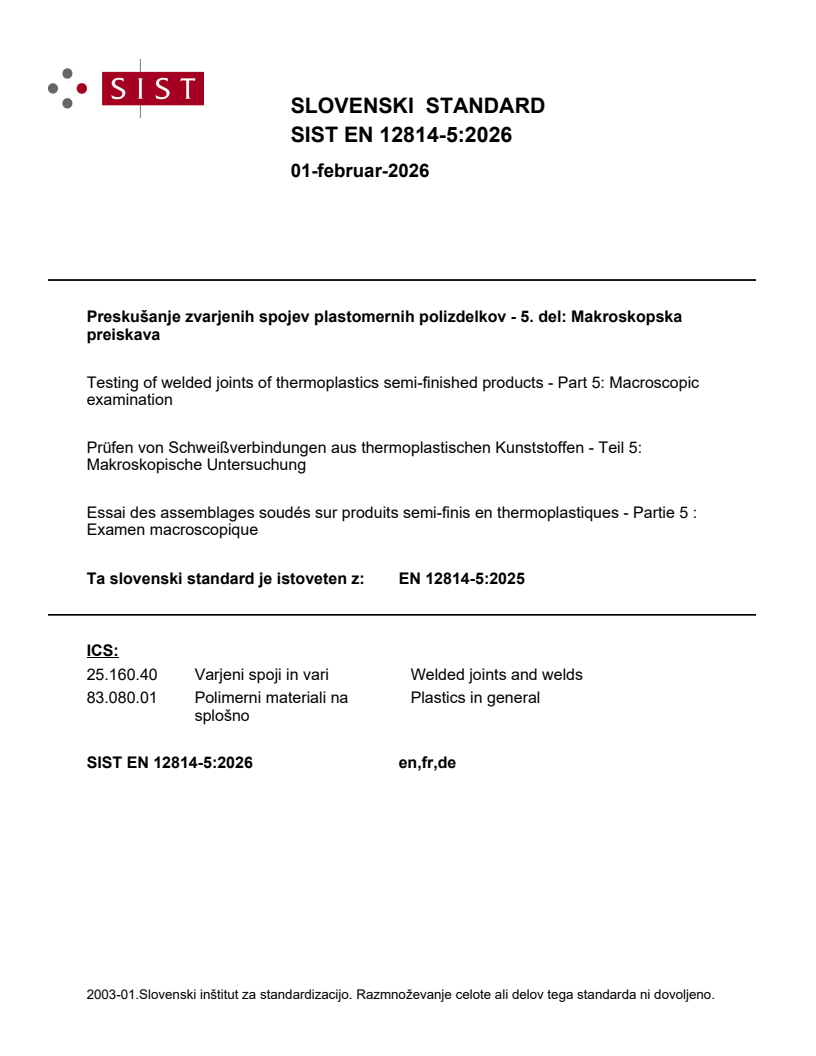

SLOVENSKI STANDARD
01-februar-2026
Preskušanje zvarjenih spojev plastomernih polizdelkov - 5. del: Makroskopska
preiskava
Testing of welded joints of thermoplastics semi-finished products - Part 5: Macroscopic
examination
Prüfen von Schweißverbindungen aus thermoplastischen Kunststoffen - Teil 5:
Makroskopische Untersuchung
Essai des assemblages soudés sur produits semi-finis en thermoplastiques - Partie 5 :
Examen macroscopique
Ta slovenski standard je istoveten z: EN 12814-5:2025
ICS:
25.160.40 Varjeni spoji in vari Welded joints and welds
83.080.01 Polimerni materiali na Plastics in general
splošno
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 12814-5
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2025
EUROPÄISCHE NORM
ICS 25.160.40 Supersedes EN 12814-5:2000
English Version
Testing of welded joints of thermoplastics semi-finished
products - Part 5: Macroscopic examination
Essai des assemblages soudés sur produits semi-finis Prüfen von Schweißverbindungen aus
en thermoplastiques - Partie 5 : Examen thermoplastischen Kunststoffen - Teil 5:
macroscopique Makroskopische Untersuchung
This European Standard was approved by CEN on 19 October 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12814-5:2025 E
worldwide for CEN national Members.

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Principle of the test . 4
5 Purpose of the test . 4
6 Cutting of test specimens . 5
7 Test procedure . 5
7.1 General. 5
7.2 Test specimen preparation . 5
7.3 Surface finish . 6
8 Examination . 6
9 Test report . 6
Bibliography . 7

European foreword
This document (EN 12814-5:2025) has been prepared by Technical Committee CEN/TC 249 “Plastics”,
the secretariat of which is held by SIS.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2026, and conflicting national standards shall be
withdrawn at the latest by June 2026.
Attention
...
