prEN ISO 10764

Footwear - Test method for slide fasteners - Lateral strength (ISO/DIS 10764:2008)

This method is intended to assess the lateral strength of a closed slide fastener.  The method is applicable to all types of slide fastener.

Schuhe - Prüfverfahren für Reißverschlüsse - Seitenfestigkeit (ISO/DIS 10764:2008)

Diese Norm beschreibt ein Verfahren zur Beurteilung der Seitenfestigkeit eines geschlossenen Reißverschlusses für Schuhe. Das Verfahren gilt für sämtliche Arten von Reißverschlüssen.

Chaussures - Méthode d'essai pour les fermetures éclair - Résistance latérale (ISO/DIS 10764:2008)

Obutev - Preskusna metoda za zadrge - Stranska trdnost (ISO/DIS 10764:2008)

General Information

• Status: Not Published
• ICS: 61.040 - Headgear. Clothing accessories. Fastening of clothing
• ICS: 61.060 - Footwear
• Technical Committee: CEN/TC 309 - Footwear
• Drafting Committee: CEN/TC 309/WG 1 - Minimum performance requirements and test methods for components for footwear
• Current Stage: 4098 - Decision to abandon - Enquiry
• Start Date: 09-Jul-2010
• Completion Date: 09-Jul-2010
• Ref Project: oSIST prEN ISO 10764:2008 - Footwear - Test method for slide fasteners - Lateral strength (ISO/DIS 10764:2008)

Overview

prEN ISO 10764 (ISO/DIS 10764:2008) is a CEN draft standard that defines a repeatable test method to assess the lateral strength of closed slide fasteners used in footwear. The method is applicable to all types of slide fastener and is intended to support quality control, product development and regulatory compliance by providing standardised measurement of failure load and failure mode.

Key Topics

• Purpose: Assess lateral strength of closed slide fasteners for footwear.
• Test principle: Pull the stringers laterally in a tensile testing machine until failure and record the maximum force.
• Apparatus and accuracy:
  • Tensile testing machine with jaw separation rate of (100 ± 10) mm/min.
  • Force measurement accuracy to class 2 per ISO 7500-1, with capacity ranges for light (0.5 kN), medium (1 kN) and heavy (2 kN) duty fasteners.
  • Two clamps with square ends of (25.5 ± 0.5) mm width, corrugated or abrasive coated surfaces, avoiding localised pressure at the clamping edge.
  • Optional locating jig and, for heavy duty chains, solvent-based polychloroprene adhesive to aid gripping.
• Specimen preparation: Minimum of three test positions (or three fasteners); each test position requires at least 50 mm of free closed fastener on either side of the clamped area. Mark clamping lines (25 ± 2 mm) parallel and 3.0 ± 0.5 mm from the teeth edge.
• Procedure highlights: Close the fastener, clamp each stringer aligned to the marked lines, align chain at 90° to the machine axis, run at the specified jaw rate until failure, and record the maximum force in newtons and the observed failure mode.
• Failure modes recorded: Locked teeth separation, teeth pulled off the stringer, stringer failure, stringer torn at clamp edge, or clamp slip.

Applications

This test method is valuable for:

• Quality control - routine inspection of fastener batches to ensure consistent lateral strength.
• Product development - comparing fastener types (light, medium, heavy duty) and materials during design iterations.
• Supplier qualification and procurement - defining acceptance criteria based on mean maximum forces and failure modes.
• Durability assessment and compliance - providing objective data for footwear performance claims and regulatory documentation.

Related Standards

• ISO 7500-1 - verification of force measuring systems for tensile testing machines.
• ISO 17709 - sampling locations, preparation and conditioning for footwear tests.
• ISO 18454 - standard atmospheres for conditioning and testing of footwear components.
• ISO 19952 - footwear vocabulary (terms and definitions used in this standard).

Test report should include reference to the method, full sample description, test date, arithmetic mean maximum forces, failure types and any deviations from the method. This ensures traceability and practical utility of lateral strength data for footwear manufacturers, test labs and standards officers.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2008
Obutev - Preskusna metoda za zadrge - Stranska trdnost (ISO/DIS 10764:2008)
Footwear - Test method for slide fasteners - Lateral strength (ISO/DIS 10764:2008)
Schuhe - Prüfverfahren für Reißverschlüsse - Seitenfestigkeit (ISO/DIS 10764:2008)
Chaussures - Méthode d'essai pour les fermetures éclair - Résistance latérale (ISO/DIS
10764:2008)
Ta slovenski standard je istoveten z: prEN ISO 10764
ICS:
61.040 3RNULYDOD'RGDWNLN Headgear. Clothing
REODþLORP6SHQMDQMHREODþLO accessories. Fastening of
clothing
61.060 Obuvala Footwear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2008
ICS 61.040
English Version
Footwear - Test method for slide fasteners - Lateral strength
(ISO/DIS 10764:2008)
Chaussures - Méthode d'essai pour les fermetures éclair - Schuhe - Prüfverfahren für Reißverschlüsse -
Résistance latérale (ISO/DIS 10764:2008) Seitenfestigkeit (ISO/DIS 10764:2008)
This draft European Standard is submitted to CEN members for parallel enquiry. It has been drawn up by the Technical Committee
CEN/TC 309.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the
same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2008 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN ISO 10764:2008: E
worldwide for CEN national Members.

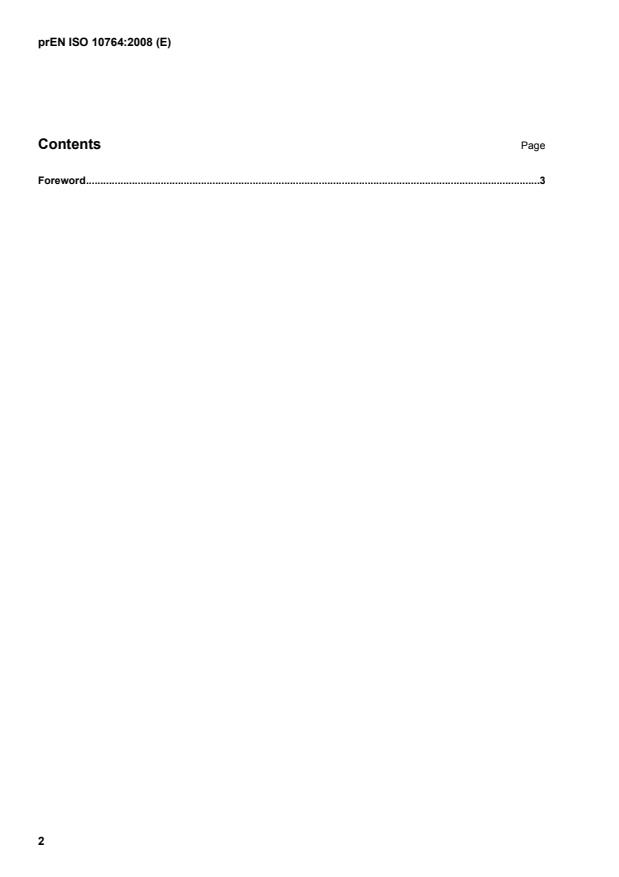

Contents Page
Foreword.3

Foreword
This document (prEN ISO 10764:2008) has been prepared by Technical Committee CEN/TC 309 "Footwear",
the secretariat of which is held by AENOR, in collaboration with Technical Committee ISO/TC 216 "Footwear".
This document is currently submitted to the parallel Enquiry.

DRAFT INTERNATIONAL STANDARD ISO/DIS 10764
ISO/TC 216 Secretariat: AENOR
Voting begins on: Voting terminates on:
2008-04-24 2008-09-24
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION • МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ • ORGANISATION INTERNATIONALE DE NORMALISATION
Footwear — Test method for slide fasteners — Lateral strength
Chaussures — Méthode d'essai pour les fermetures éclair — Résistance latérale
ICS 61.060
ISO/CEN PARALLEL ENQUIRY
This draft International Standard is a draft standard developed within the European Committee for
Standardization (CEN) and processed under the CEN-lead mode of collaboration as defined in the
Vienna Agreement. The document has been transmitted by CEN to ISO for circulation for ISO member
body voting in parallel with CEN enquiry. Comments received from ISO member bodies, including those
from non-CEN members, will be considered by the appropriate CEN technical body. Should this DIS be
accepted, a final draft, established on the basis of comments received, will be submitted to a parallel two-
month FDIS vote in ISO and formal vote in CEN.
To expedite distribution, this document is circulated as received from the committee secretariat.
ISO Central Secretariat work of editing and text composition will be undertaken at publication
stage.
Pour accélérer la distribution, le présent document est distribué tel qu'il est parvenu du
secrétariat du comité. Le travail de rédaction et de composition de texte sera effectué au
Secrétariat central de l'ISO au stade de publication.
THIS DOCUMENT IS A DRAFT CIRCULATED FOR COMMENT AND APPROVAL. IT IS THEREFORE SUBJECT TO CHANGE AND MAY NOT BE
REFERRED TO AS AN INTERNATIONAL STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS BEING ACCEPTABLE FOR INDUSTRIAL, TECHNOLOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT, WITH THEIR COMMENTS, NOTIFICATION OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPORTING DOCUMENTATION.
©
International Organization for Standardization, 2008

ISO/DIS 10764
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
Copyright notice
This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as permitted
under the applicable laws of the user's country, neither this ISO draft nor any extract from it may be
reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, photocopying,
recording or otherwise, without prior written permission being secured.
Requests for permission to reproduce should be addressed to either ISO at the address below or ISO's
member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
©
ii ISO 2008 – All rights reserved

ISO/DIS 10764
Contents Page
Foreword .iv
1 Scope.1
2 Normative references.
...
