EUROPEAN STANDARD
EN 14063-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2013
ICS 91.100.60
English Version
Thermal insulation products for buildings - In-situ formed
expanded clay lightweight aggregate products - Part 2:
Specification for the installed products
Produits isolants thermiques pour le bâtiment - Produits à Wärmedämmstoffe für Gebäude - An der
base de granulats légers d'argile expansée formés en place Verwendungsstelle hergestellte Wärmedämmung aus
- Partie 2: Spécifications relatives aux produits installés Blähton-Leichtzuschlagsstoffen (LWA) - Teil 2:
Spezifikation für die eingebauten Produkte
This European Standard was approved by CEN on 23 May 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14063-2:2013: E
worldwide for CEN national Members.

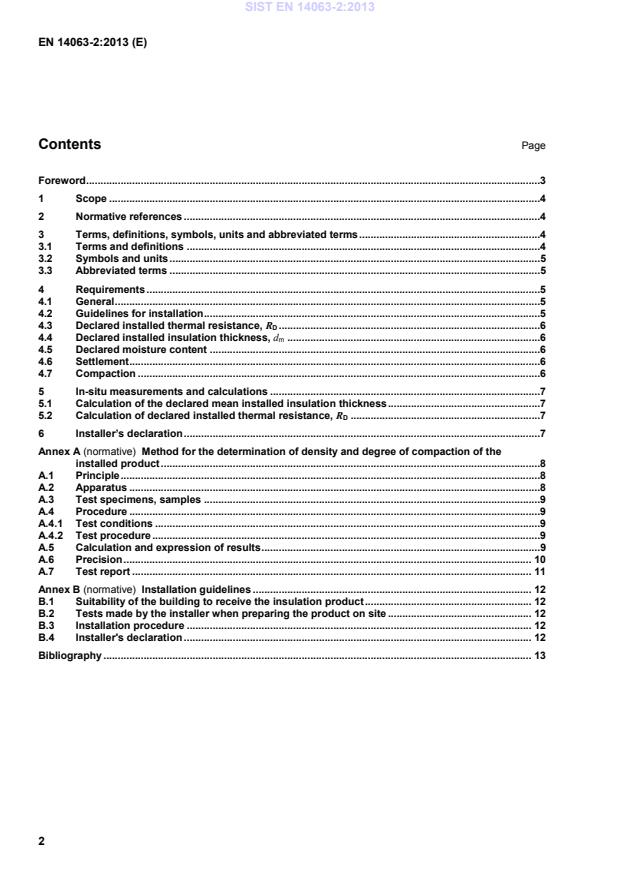

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Terms, definitions, symbols, units and abbreviated terms .4
3.1 Terms and definitions .4
3.2 Symbols and units .5
3.3 Abbreviated terms .5
4 Requirements .5
4.1 General .5
4.2 Guidelines for installation .5
4.3 Declared installed thermal resistance, R .6
D
4.4 Declared installed insulation thickness, d .6
m
4.5 Declared moisture content .6
4.6 Settlement .6
4.7 Compaction .6
5 In-situ measurements and calculations .7
5.1 Calculation of the declared mean installed insulation thickness .7
5.2 Calculation of declared installed thermal resistance, R .7
D
6 Installer’s declaration .7
Annex A (normative) Method for the determination of density and degree of compaction of the
installed product .8
A.1 Principle .8
A.2 Apparatus .8
A.3 Test specimens, samples .9
A.4 Procedure .9
A.4.1 Test conditions .9
A.4.2 Test procedure .9
A.5 Calculation and expression of results .9
A.6 Precision . 10
A.7 Test report . 11
Annex B (normative) Installation guidelines . 12
B.1 Suitability of the building to receive the insulation product . 12
B.2 Tests made by the installer when preparing the product on site . 12
B.3 Installation procedure . 12
B.4 Installer's declaration . 12
Bibliography . 13
Foreword
This document (EN 14063-2:2013) has been prepared by Technical Committee CEN/TC 88 "Thermal
insulating materials and products", the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by January 2014, and conflicting national standards shall be withdrawn at
the latest by January 2014.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This European standard consists of two parts. The first part is the harmonised part satisfying the mandate and
the CPD. It is the basis for the CE marking covering the products, which are placed on the market. The
second part, which is the non-harmonised part, covers the specification for the installed products. Both parts
need to be used for the application of the insulation products in the end-use applications covered by
EN 14063.
Part 1 of this European Standard has been prepared under a mandate given to CEN by the European
Commission and the European Free Trade Association and supports the essential requirements of EU
Directives. For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of Part 1.
Attention is drawn to the need to take into account any complementary member state rules (e.g. installation
rules) which together with this European Standard ensures the fitness for purpose of the installed product.
This European Standard is one of a series for mineral wool, expanded clay, expanded perlite, exfoliated
vermiculite, polyurethane/polyisocyanurate, cellulose, bound expanded polystyrene and expanded polystyrene
in-situ formed insulation products used in buildings, but this standard can be used in other areas where
appropriate.
The reduction in energy used and emissions produced during the installed life of insulation products exceeds
by far the energy used and emissions made during the production and disposal processes.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
1 Scope
This European Standard specifies the requirements for loose-fill expanded clay lightweight aggregate (LWA)
products installed in roofs, ceilings, floors and ground floors.
This Part 2 is a specification for the installed product.
Part 2 of this European Standard describes, when taken together with Part 1, the product characteristics that
are linked to the essential requirements of the EU Construction Products Directive. Part 2 also specifies the
checks and tests to be used for the declarations made by the installer of the product.
Part 2 of this European Standard does not specify the required level of a given property to be achieved by a
product to demonstrate fitness for purpose in a particular application. The levels required for a given
application are to be found in national regulations or non conflicting standards.
This European Standard does not cover factory made expanded clay lightweight aggregate products or in-situ
products intended to be used for the insulation of building equipment and industrial installations.
This European Standard does not specify performance requirements for airborne sound insulation and for
acoustic absorption applications.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 823:2013, Thermal insulating products for building applications — Determination of thickness
EN 1097-3, Tests for mechanical and physical properties of aggregates — Part 3: Determination of loose bulk
density and voids
EN 1097-5, Tests for mechanical and physical properties of aggregates — Part 5: Determination of the water
content by drying in a ventilated oven
EN 14063-1, Thermal insulation products for buildings — In-situ formed expanded clay lightweight aggregate
products — Part 1: Specification for the loose-fill products before installation
EN ISO 9229:2007, Thermal insulation — Vocabulary (ISO 9229:2007)
3 Terms, definitions, symbols, units and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 9229:2007 and the following
apply.
3.1.1
expanded clay lightweight aggregate
insulation material or product composed of lightweight granular material having a cellular structure formed by
expanding clay minerals by heat
3.1.2
design insulation thickness
insulation thickness after compaction as specified by the designer
3.1.3
declared installed insulation thickness
insulation thickness as installed by the installer including compaction if prescribed
3.1.4
compaction
mechanical compression (e.g. by vibrator) of the installed insulation layer, expressed as a percentage of the
initially untreated layer thickness
[SOURCE: EN 14063-1:2004]
3.1.5
settlement
decrease of installed insulation thickness with time, expressed as a percentage of the initial installed thickness
(after compaction if prescribed)
3.2 Symbols and units
d mean insulation thickness m
m
d mean
...
