EN 16582-3:2015

Domestic swimming pools - Part 3: Specific requirements including safety and test methods for aboveground pools

This part of FprEN 16582 specifies the specific safety and quality requirements and test methods for domestic aboveground swimming pools in addition to the general requirements of FprEN 16582 1 and shall be read in conjunction with it. The requirements of this standard take priority over those in FprEN 16582-1.
These requirements and test methods are applicable to aboveground pool structures, including their means of access.
This European Standard applies to pools with a minimum water depth of more than 400 mm.
This European Standard does not apply to:
—   pools of public use covered by EN 15288-1;
—   paddling pools according to EN 71-8;
—   domestic or public use spas.

Schwimmbäder für private Nutzung - Teil 3: Besondere Anforderungen einschließlich sicherheitstechnischer Anforderungen und Prüfverfahren für auf dem Boden aufgestellte Schwimmbäder

Dieser Teil von FprEN 16582 legt die speziellen sicherheitstechnischen Anforderungen und Anforderungen an die Qualität sowie Prüfverfahren für auf dem Boden aufgestellte Schwimmbäder für private Nutzung zusätzlich zu den allgemeinen Anforderungen der FprEN 16582 1 fest und muss zusammen mit dieser gelesen werden. Die Anforderungen dieser speziellen Norm haben Vorrang vor denen in FprEN 16582 1.
Diese Anforderungen und Prüfverfahren gelten nur für auf dem Boden aufgestellte Schwimmbecken-konstruktionen, einschließlich deren Zugangseinrichtungen.
Dieses Dokument gilt für Schwimmbäder mit einer minimalen Wassertiefe von mehr als 400 mm.
Diese Norm gilt nicht für:
   öffentliche genutzte Schwimmbäder, die in EN 15288 1 behandelt sind;
   Planschbecken nach EN 71 8;
   Warmsprudelbecken für private oder öffentliche Nutzung.

Piscines privées à usage familial - Partie 3 : Exigences spécifiques et de sécurité et méthodes d'essai pour piscines hors sol

La présente partie du FprEN 16582 spécifie les exigences de sécurité et de qualité spécifiques, ainsi que les méthodes d'essai pour les piscines privées hors sol, en complément des exigences générales du FprEN 16582 1, et doit être lue conjointement avec cette dernière. Les exigences de la présente norme sont prioritaires sur celles du FprEN 16582-1.
Ces exigences et méthodes d'essai sont applicables à la structure des piscines hors sol, ainsi qu'à leurs moyens d'accès.
La présente Norme européenne s'applique aux piscines présentant une hauteur d'eau minimale supérieure à 400 mm.
La présente Norme européenne ne s’applique pas :
   aux piscines à usage collectif couvertes par l'EN 15288-1 ;
   aux pataugettes selon l'EN 71-8 ;
   aux spas à usage privé familial ou à usage collectif.

Plavalni bazeni za domačo uporabo - 3. del: Posebne zahteve, vključno z varnostjo in preskusnimi metodami za bazene, postavljene na površini

Ta del standarda EN 16582 poleg splošnih zahtev standarda EN 16582-1 določa posebne varnostne in kakovostne zahteve ter preskusne metode za nadzemne plavalne bazene za domačo uporabo in se navezuje na navedeni standard. Zahteve tega standarda imajo prednost pred zahtevami standarda EN 16582-1. Te zahteve in preskusne metode se uporabljajo za nadzemne strukture plavalnih bazenov, vključno z načinom dostopa.
Ta evropski standard se uporablja za bazene z minimalno globino vode več kot 400 mm.
Ta evropski standard se ne uporablja za:
– javne plavalne bazene, obravnavane v standardu EN 15288-1;
– bazene za otroke v skladu s standardom EN 71-8;
– prostore za dobro počutje za domačo ali javno uporabo.

General Information

• Status: Published
• Publication Date: 25-Aug-2015
• Withdrawal Date: 28-Feb-2016
• ICS: 97.220.10 - Sports facilities
• Technical Committee: CEN/TC 402 - Private family Swimming Pools and related materials/equipment and accessories
• Drafting Committee: CEN/TC 402/WG 1 - Pool structure - design, product and installation
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 21-Oct-2021
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 16582-3:2015 - Domestic swimming pools - Part 3: Specific requirements including safety and test methods for aboveground pools

Overview

EN 16582-3:2015 - published by CEN - defines specific safety and quality requirements and test methods for domestic aboveground swimming pools. It is Part 3 of the EN 16582 series and must be read in conjunction with EN 16582-1:2015 (general requirements). EN 16582-3:2015 applies to aboveground pool structures (including means of access) with a minimum water depth of more than 400 mm and takes priority over Part 1 where requirements conflict. It does not apply to public pools (EN 15288-1), paddling pools (EN 71-8) or spas.

Key topics and technical requirements

• Scope and applicability
  • Targets domestic aboveground swimming pools (frame-supported and self-stabilizing types).
  • Minimum water depth: > 400 mm.
• Structural tests and mechanical strength
  • Resistance to horizontal deformation: horizontal force test (400 N applied via an angle bracket at a specified position).
  • Resistance to vertical deformation: vertical load tests using a 300 mm diameter disc; required forces differ by top-wall width (1500 N for >50 mm, 500 N for ≤50 mm).
  • Bursting strength: impact/drop test using a cylindrical barrel (diameter 400–500 mm, ~120 l capacity, total mass ~120 kg, tipped into pool at the most unfavourable point). (See standard for exact drop-height specification.)
• Self-stabilizing walls (inflatable / water-filled tubes)
  • Overflow and behaviour tests to verify the pool will not collapse or empty suddenly when overflowing or under transient load.
  • Deflation stability: pools must retain shape and not collapse when inflatable upper tubes are intentionally deflated.
  • Inflation ports: caps must be permanently secured and protected against accidental removal; check valves to prevent instantaneous deflation are required.
• Membrane and material tests
  • Tear resistance (EN 1875-3, EN ISO 4674-2): acceptable warp/weft thresholds.
  • Weld tensile strength (EN ISO 1421): specified DaN/50 mm requirements.
  • Adhesion (EN ISO 2411): minimum adhesion results specified.

Practical applications

• Ensures product safety, durability and user protection for domestic aboveground pools.
• Used to define manufacturing quality and to design aboveground pool structures that resist deformation, impacts and accidental deflation.
• Guides test labs performing conformity testing and certification bodies assessing compliance.
• Useful to manufacturers, product designers, importers, installers, retailers and safety engineers for product development, documentation and market access in CEN member countries.

Related standards

• EN 16582-1:2015 (General requirements and test methods)
• EN 16582-2 (Inground pools - specific requirements)
• EN 15288-1 (Public pools - excluded scope)
• EN 71-8 (Paddling pools - excluded scope)
• Test method references: EN 1875-3, EN ISO 1421, EN ISO 2411, EN ISO 4674-2

For exact test setups, numeric tolerances and procedural details consult the full EN 16582-3:2015 text.

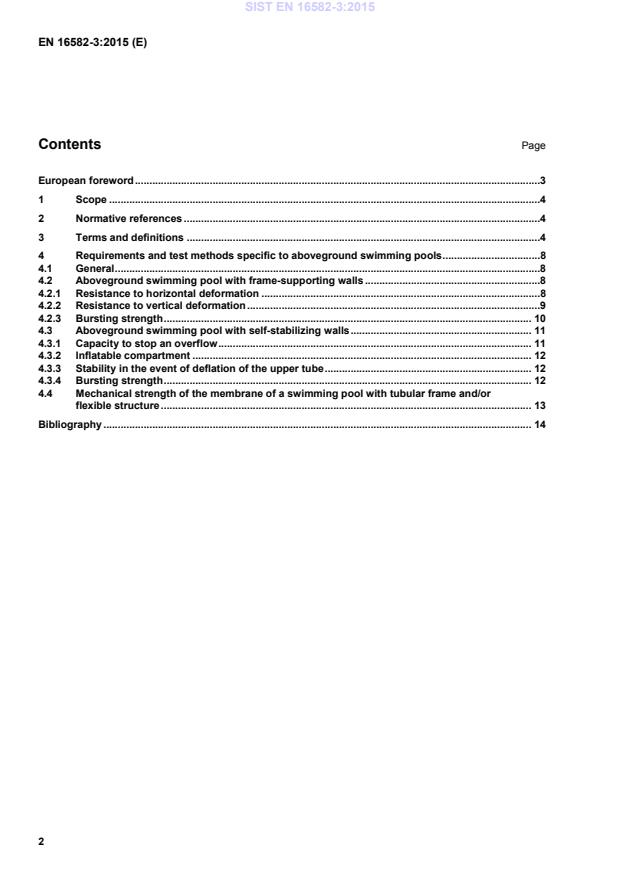

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Schwimmbäder für private Nutzung - Teil 3: Spezielle Besondere Anforderungen einschließlich sicherheitstechnischer Anforderungen und Prüfverfahren für auf dem Boden aufgestellte SchwimmbäderPiscines privées à usage familial - Partie 3: Exigences spécifiques, exigences de sécurité et méthodes d'essai pour piscines hors solDomestic swimming pools - Part 3: Specific requirements including safety and test methods for aboveground pools97.220.10Športni objektiSports facilitiesICS:Ta slovenski standard je istoveten z:EN 16582-3:2015SIST EN 16582-3:2015en,fr,de01-oktober-2015SIST EN 16582-3:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16582-3
August 2015 ICS 97.220.10 English Version
Domestic swimming pools - Part 3: Specific requirements including safety and test methods for aboveground pools
Piscines privées à usage familial - Partie 3 : Exigences spécifiques et de sécurité et méthodes d'essai pour piscines hors sol
Schwimmbäder für private Nutzung - Teil 3: Besondere Anforderungen einschließlich sicherheitstechnischer Anforderungen und Prüfverfahren für auf dem Boden aufgestellte Schwimmbäder This European Standard was approved by CEN on 20 June 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16582-3:2015 ESIST EN 16582-3:2015

Note 1 to entry: See Figure 1. 3.2 pool wall generally upright structure serving to enclose or divide water or to protect an area SIST EN 16582-3:2015

a) Case 1 Key 1 frame 2
...
