Gas cylinders - Fitting of valves to gas cylinders (ISO 13341:2010)

ISO 13341:2010 specifies the procedures to be followed when connecting cylinder valves to gas cylinders. It specifically applies to all valve and cylinder combinations connected with ISO screw threads as specified in ISO 10920 and ISO 11363-1. It defines routines for inspection and preparation prior to valving for both taper and parallel screw threads.
Torque values are given for steel and aluminium gas cylinders including composite cylinders with steel or aluminium boss.
The procedures and practices specified in ISO 13341:2010 can be beneficially applied to other valve to cylinder screw thread connection systems.

Gasflaschen - Eindrehen von Ventilen in Gasflaschen (ISO 13341:2010)

Diese Internationale Norm legt die Verfahren fest, die beim Eindrehen von Flaschenventilen in Gasflaschen zu beachten sind. Sie gilt speziell für alle Ventil/Flaschenkombinationen mit den Schraubgewinden, wie sie in ISO 10920 und ISO 11363-1 festgelegt sind. Diese Norm definiert das Vorgehen bei der Inspektion und bei der Vorbereitung des Ventileindrehvorganges sowohl für kegelige als auch zylindrische Schraubgewinde.
Im Anhang A werden Werte für die Drehmomente von Gasflaschen aus Stahl und Aluminium einschließlich Flaschen aus Verbundwerkstoff mit einem Anschlussstück aus Stahl oder Aluminium angegeben.
ANMERKUNG   Die in dieser Internationalen Norm angegebenen Verfahren und Praktiken können nutzbringend für andere Anschlusssysteme von Ventil-Flaschen-Schraubgewinden angewendet werden. ISO/TR 11364 [4] listet weltweit genutzte Gewinde zur Verbindung von Ventilen mit Gasflaschen auf. Er enthält Einzelheiten der Gewinde-Identifizierungskennzeichen, Informationen über eine mögliche Austauschbarkeit der Gewinde mit ISO-Gewinden und die Information, ob das Umwickelverfahren und die in dieser Internationalen Norm angegebenen Drehmomente genutzt werden können. ISO/TR 11364 [4] gibt eindeutige Anweisungen über die Methode und die Drehmomente für alle enthaltenen Eingangsgewinde vor, die nicht austauschbar sind.

Bouteilles à gaz - Montage des robinets sur les bouteilles à gaz (ISO 13341:2010)

L'ISO 13341:2010 prescrit les modes opératoires à suivre lors du montage des robinets sur des bouteilles à gaz. Elle s'applique particulièrement à toutes les combinaisons de robinets et de bouteilles raccordés avec des filetages ISO indiqués dans l'ISO 10920 et l'ISO 11363-1. Elle définit les opérations de routine en matière de vérification et de préparation avant montage d'un robinet à filetage conique ou d'un robinet à filetage parallèle.
Des valeurs de couples de serrage sont données dans l'Annexe A pour les bouteilles à gaz en acier et en aluminium, y compris les bouteilles composites munies de bossages en acier ou en aluminium.
Les modes opératoires et pratiques prescrits dans l'ISO 13341:2010 peuvent être avantageusement appliqués à d'autres systèmes de raccordement des robinets sur des filetages de bouteilles.

Premične plinske jeklenke - Montaža ventilov na plinske jeklenke (ISO 13341:2010)

Ta mednarodni standard določa postopke, katerimi je treba slediti, ko se ventili za jeklenke združujejo s plinskimi jeklenkami. Izrecno velja za vse kombinacije ventilov in jeklenk, povezanih z navoji vijakov ISO, kot je določeno v ISO 10920 in ISO 11363-1. Opredeljuje običajni potek dela za nadzor in pripravo, preden se konični in paralelni navoji vijakov opremijo z ventilom. Vrednosti vrtilnega momenta za jeklene in aluminijeve plinske jeklenke so podane v dodatku A, vključno za jeklenke iz kompozitnih mas z jeklenimi ali aluminijevi nastavki.

General Information

Status
Published
Publication Date
30-Sep-2010
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
28-Sep-2010

RELATIONS

Buy Standard

Standard
EN ISO 13341:2011
English language
14 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Ortsbewegliche Gasflaschen - Eindrehen von Ventilen in Gasflaschen (ISO 13341:2010)Bouteilles à gaz transportables - Montage des robinets sur les bouteilles à gaz (ISO 13341:2010)Transportable gas cylinders - Fitting of valves to gas cylinders (ISO 13341:2010)23.060.40Pressure regulators23.020.30MHNOHQNHPressure vessels, gas cylindersICS:Ta slovenski standard je istoveten z:EN ISO 13341:2010SIST EN ISO 13341:2011en,fr,de01-februar-2011SIST EN ISO 13341:2011SLOVENSKI

STANDARDSIST EN ISO 13341:1999/AC:1999SIST EN ISO 13341:19991DGRPHãþD
SIST EN ISO 13341:2011
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN ISO 13341
October 2010 ICS 23.020.30 Supersedes EN ISO 13341:1997English Version
Gas cylinders - Fitting of valves to gas cylinders (ISO 13341:2010)
Bouteilles à gaz - Montage desrobinets sur les bouteilles à gaz (ISO 13341:2010)

Gasflaschen -Eindrehen von Ventilen in Gasflaschen (ISO 13341:2010) This European Standard was approved by CEN on 25 September 2010.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN ISO 13341:2010: ESIST EN ISO 13341:2011

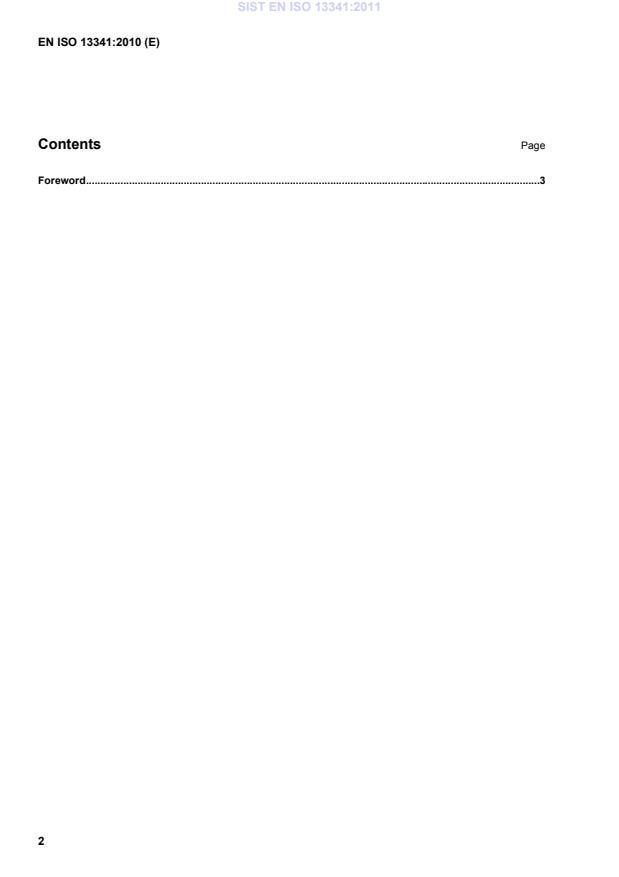

EN ISO 13341:2010 (E) 2 Contents Page Foreword ..............................................................................................................................................................3SIST EN ISO 13341:2011
