Copper and copper alloys - Plumbing fittings - Part 8: Fittings with press ends for use with plastics and multilayer pipes

This European Standard specifies materials and test requirements for fittings of copper and copper alloys.
This part of EN 1254 specifies press end connections with or without plating in the size range 10mm to 110mm for the purpose of joining plastics and multilayer pipes for the use in hot and cold water systems according to EN 806, which are designed for service lifetime up to 50 years, as well as heating and cooling systems or gas systems, including fuel gas systems.
Fittings may comprise a combination of end types, specified in this standard, EN 1254, or other standards, providing they are suitable for the fluid /gas being conveyed.
The standard establishes a designation system for the fittings.
Dependent on the manufacturer’s declaration, based upon testing the combination on the fitting and pipe material, this standard is applicable to press fittings for joining the following plastics and multilayer pipes:
EN ISO 15874, Plastics piping systems for hot and cold water installations - Polypropylene (PP)
EN ISO 15875, Plastics piping systems for hot and cold water installations - Crosslinked polyethylene (PE-X)
EN ISO 15876, Plastics piping systems for hot and cold water installations - Polybutylene (PB)
EN ISO 15877, Plastics piping systems for hot and cold water installations - Chlorinated poly(vinyl chloride) (PVC-C)
EN ISO 21003, Multilayer piping systems for hot and cold water installations inside buildings
EN ISO 22391, Plastics piping systems for hot and cold water installations - Polyethylene of raised temperature resistance (PE-RT)
ISO 17484: Plastics piping systems - Multilayer pipe systems for indoor gas installations with a maximum operating pressure up to and including 5 bar (500 kPa)
Fittings may be suitable for joining other pipes provided the fitting joint with the specified pipe meets the requirements of this standard and the relevant pipe standard.

Kupfer und Kupferlegierungen - Fittings - Teil 8: Pressfittings für den Einsatz mit Kunststoff- und Mehrschichtverbundrohren

Diese Europäische Norm legt Werkstoffe und Prüfanforderungen für Fittings aus Kupfer und Kupferlegie-rungen fest.
Dieser Teil der EN 1254 legt Pressfittingverbindungen mit oder ohne galvanischem oder nichtgalvanischem  Überzug in einem Nennweitenbereich von 10 mm bis 110 mm fest, die für das Verbinden von Kunststoff- und Mehrschichtverbundrohren für die Verwendung in Warm- und Kaltwassersystemen nach EN 806 für eine Lebensdauer von bis zu fünfzig Jahren sowie Heizungs- und Kühlanlagen oder Gasanlagen, einschließlich Flüssiggasanlagen, vorgesehen sind.
Fittings können mit einer Kombination von Anschlusstypen versehen sein, die entweder in dieser Euro-päischen Norm EN 1254 oder in anderen Normen festgelegt sind, sofern diese für das durchgeleitete Medium/Gas geeignet sind.
Die Europäische Norm legt ein Bezeichnungssystem für die Fittings fest.
Diese Europäische Norm gilt für Pressfittings für das Verbinden der folgenden Kunststoff- und Mehrschicht-verbundrohre:
EN ISO 15874, Kunststoff-Rohrleitungssysteme für die Warm- und Kaltwasserinstallation — Polypropylen (PP)
EN ISO 15875, Kunststoff-Rohrleitungssysteme für die Warm- und Kaltwasserinstallation — Vernetztes Poly-ethylen (PE-X)
EN ISO 15876, Kunststoff-Rohrleitungssysteme die für Warm- und Kaltwasserinstallation — Polybuten (PB)
EN ISO 15877, Kunststoff-Rohrleitungssysteme die für Warm- und Kaltwasserinstallation — Chloriertes Polyvinylchlorid (PVC-C)
EN ISO 21003, Mehrschichtverbund-Rohrleitungssysteme für die Warm- und Kaltwasserinstallation innerhalb von Gebäuden
EN ISO 22391, Kunststoff-Rohrleitungssysteme für die Warm- und Kaltwasserinstallation — Polyethylen erhöhter Temperaturbeständigkeit (PE-RT)
ISO 17484, Plastics piping systems — Multilayer pipe systems for indoor gas installations with a maximum operating pressure up to and including 5 bar (500 kPa)
Fittings können für das Verbinden anderer Rohre geeignet sein, sofern die Fittingverbindung mit dem festge-legten Rohr den Anforderungen dieser Europäischen Norm und der für das jeweilige Rohr geltenden Norm entspricht.

Cuivre et alliages de cuivre - Raccords - Partie 8: Raccords à sertir pour tuyaux en plastique et tubes multicouches

La présente Norme européenne spécifie les matériaux et les prescriptions d'essai concernant les raccords en cuivre et alliages de cuivre.
La présente partie de l'EN 1254 spécifie les raccordements à sertir avec ou sans placage ou revêtement, dans la gamme de dimension de 10 mm à 110 mm, permettant le raccordement de tuyaux en plastique et de tubes multicouches destinés à être utilisés dans des installations d'eau chaude et froide conformes à l'EN 806, conçus pour une durée de vie en service de cinquante ans, ainsi que dans les installations de chauffage et de refroidissement ou les systèmes de gaz, y compris les systèmes de gaz combustible.
Les raccords peuvent comprendre une combinaison de plusieurs types d’extrémité spécifiés dans la présente Norme européenne, EN 1254, ou dans d'autres normes, à condition qu'ils soient adaptés pour
le liquide / le gaz transporté.
La Norme européenne établit un système de désignation pour les raccords.
La présente Norme européenne est applicable aux raccords à sertir permettant de raccorder les tuyaux en plastique et tubes multicouches suivants :
EN ISO 15874, Systèmes de canalisations en plastique pour les installations d'eau chaude et froide — Polypropylène (PP) ;
EN ISO 15875, Système de canalisations en plastique pour les installations d’eau chaude et froide — Polyéthylène réticulé (PE-X) ;
EN ISO 15876, Systèmes de canalisations en plastique pour les installations d'eau chaude et froide — Polybutène (PB) ;
EN ISO 15877, Systèmes de canalisations en plastique pour les installations d’eau chaude et froide — Poly (chlorure de vinyle) chloré (PVC-C) ;
EN ISO 21003, Systèmes de canalisations multicouches pour installations d'eau chaude et froide à l'intérieur des bâtiments ;
EN ISO 22391, Système de canalisations en plastique pour les installations d’eau chaude et froide — Polyéthylène de meilleure résistance à la température (PE-RT) ;
ISO 17484, Systèmes de canalisations en matières plastiques — Tubes multicouches et leurs assemblages pour une pression maximale de service inférieure ou égale à 5 bar (500 kPa) destinés à l'alimentation en gaz à l'intérieur des bâtiments.
Les raccords peuvent être adaptés pour raccorder d'autres tuyaux à condition que le raccordement avec le tuyau spécifié satisfasse aux prescriptions de la présente Norme européenne et de la norme de tuyau pertinente.

Baker in bakrove zlitine - Fitingi - 8. del: Fitingi s stiskalnimi zaključki pri uporabi plastičnih in večplastnih cevi

Ta evropski standard določa materiale in preskusne zahteve za fitinge iz bakra in bakrovih zlitin. Ta del standarda EN 1254 določa stiskalne zaključke z nanosom ali premazom v razponu od 10 mm do 110 mm za spajanje plastičnih in večplastnih cevi, namenjene za uporabo tako v sistemih za vročo in hladno vodo v skladu s standardom EN 806, ki so zasnovani za življenjsko dobo do petdeset let, kot tudi v sistemih ogrevanja in hlajenja. Fitingi lahko sestavljajo kombinacijo zaključkov, določenih v tem evropskem standardu EN 1254 ali drugih standardih, če so ti primerni za prenašanje tekočin/plina. Ta evropski standard določa sistem označevanja za fitinge. Ta evropski standard se uporablja za stiskalne fitinge za spajanje ene ali več naslednjih plastičnih in večplastnih cevi: EN ISO 15874, plastični cevni sistemi za inštalacije za vročo in hladno vodo, – polipropilen (PP); EN ISO 15875, plastični cevni sistemi za napeljave za vročo in hladno vodo – zamreženi polietilen (PE-X); EN ISO 15876, plastični cevni sistemi za napeljave za vročo in hladno vodo – polibutilen (PB); EN ISO 15877, plastični cevni sistemi za napeljave za vročo in hladno vodo – kloriran poli (vinil klorid) (PVC-C); EN ISO 21003, večplastni cevni sistemi za napeljave za vročo in hladno vodo v stavbah; EN ISO 22391, plastični cevni sistemi za napeljave za vročo in hladno vodo – polietilen s povišano temperaturno odpornostjo (PE-RT); ISO 17484, plastični cevni sistemi – večplastni cevni sistemi za notranje plinske napeljave z največjim delovnim tlakom do vključno 5 barov (500 kPa). Fitingi so lahko primerni za spajanje drugih cevi, če spoj fitinga s posamezno cevjo ustreza zahtevam tega evropskega standarda in ustreznega standarda za cev.

General Information

Status
Withdrawn
Publication Date
09-Oct-2012
Withdrawal Date
25-May-2021
Current Stage
9960 - Withdrawal effective - Withdrawal
Completion Date
26-May-2021

Relations

Buy Standard

Standard
EN 1254-8:2014
English language
24 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

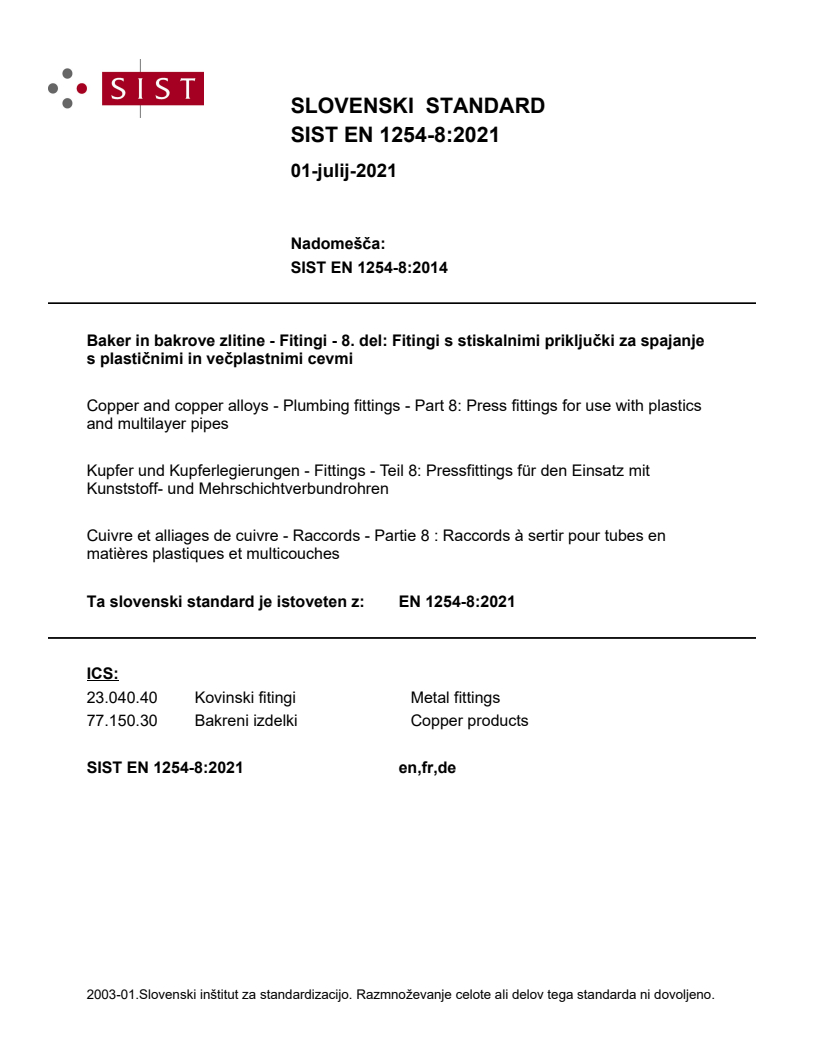

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kupfer und Kupferlegierungen - Fittings - Teil 8: Pressfittings für den Einsatz mit Kunststoff- und MehrschichtverbundrohrenCuivre et alliages de cuivre - Raccords - Partie 8 : Raccords à sertir pour tuyaux en plastique et tubes multicouchesCopper and copper alloys - Plumbing fittings - Part 8: Fittings with press ends for use with plastics and multilayer pipes77.150.30Bakreni izdelkiCopper products23.040.40Kovinski fitingiMetal fittingsICS:Ta slovenski standard je istoveten z:EN 1254-8:2012SIST EN 1254-8:2014en,fr,de01-julij-2014SIST EN 1254-8:2014SLOVENSKI
STANDARD



SIST EN 1254-8:2014



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1254-8
October 2012 ICS 23.040.40 English Version
Copper and copper alloys - Plumbing fittings - Part 8: Fittings with press ends for use with plastics and multilayer pipes
Cuivre et alliages de cuivre - Raccords - Partie 8: Raccords à sertir pour tuyaux en plastique et tubes multicouches
Kupfer und Kupferlegierungen - Fittings - Teil 8: Pressfittings für den Einsatz mit Kunststoff- und Mehrschichtverbundrohren This European Standard was approved by CEN on 11 August 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1254-8:2012: ESIST EN 1254-8:2014



EN 1254-8:2012 (E) 2 Contents Page Foreword .4Introduction .51 Scope .62 Normative references .63 Terms and definitions .74 Requirements .84.1 General .84.2 Materials .84.2.1 General .84.2.2 Reaction to fire . 104.2.3 Resistance to high temperature (for heating networks) . 104.3 Dimensions and tolerances . 114.3.1 Minimum bore area . 114.3.2 Minimum bore area through an internal support . 114.3.3 Tolerance for the alignment of the fitting ends . 134.4 Design and manufacture .
...
