EN ISO 21301-1:2019

Plastics - Ethylene-vinyl acetate (EVAC) moulding and extrusion materials - Part 1: Designation system and basis for specifications (ISO 21301-1:2019)

1.1    This document establishes a system of designation for ethylene-vinyl acetate thermoplastic material, which can be used as the basis for specifications.
1.2    The types of ethylene-vinyl acetate (EVAC) plastic are differentiated from each other by a classification system based on appropriate levels of the following designatory properties:
a)    vinyl acetate content;
b)    melt mass-flow rate;
and on information about the intended application and/or method of processing, important properties, additives, colorants, fillers and reinforcing materials.
1.3    This document is applicable to all ethylene vinyl acetate copolymers containing from a mass fraction from 3 % to 50 % (approximately 25 % molar) of vinyl acetate.
It applies to materials ready for normal use in the form of powder, granules or pellets and to materials unmodified or modified by colorants, additives, fillers, etc.
1.4    It is not intended to imply that materials having the same designation give necessarily the same performance. This document does not provide engineering data, performance data or data on processing conditions which can be required to specify a material for a particular application and/or method of processing.
If such additional properties are required, they are determined in accordance with the test methods specified in ISO 21301-2, if suitable.
1.5    In order to specify a thermoplastic material for a particular application or to ensure reproducible processing, additional requirements can be given in data block 5 (see 4.1).

Kunststoffe - Ethylen-Vinylacetat (E/VAC)-Werkstoffe - Teil 1: Bezeichnungssystem und Basis für Spezifikationen (ISO 21301-1:2019)

Plastiques - Matériaux à base de copolymères éthylène/acétate de vinyle (EVAC) pour moulage et extrusion - Partie 1: Système de désignation et base de spécification (ISO 21301-1:2019)

1.1    Le présent document établit un système de désignation des matériaux thermoplastiques à base de copolymère éthylène/acétate de vinyle qui peut être utilisé comme base pour les spécifications.
1.2    Les types de plastiques à base de copolymère éthylène/acétate de vinyle (EVAC) sont différenciés les uns des autres par un système de classification fondé sur des niveaux appropriés des propriétés de désignation suivantes:
a)    teneur en acétate de vinyle;
b)    indice de fluidité à chaud en masse;
et des informations sur l'application prévue et/ou la méthode de mise en œuvre, les propriétés importantes, les additifs, les colorants, les charges et les matériaux de renfort.
1.3    Le présent document est applicable à tous les copolymères éthylène/acétate de vinyle contenant une fraction massique de 3 % à 50 % (approximativement 25 % molaire) d'acétate de vinyle.
Il s'applique aux matériaux prêts à l'emploi dans le cadre d'une utilisation normale sous la forme de poudre, granulés ou grains et aux matériaux non modifiés ou modifiés par des colorants, additifs, charges, etc.
1.4    Le fait que des matériaux aient la même désignation n'implique pas qu'ils présentent nécessairement les mêmes performances. Le présent document ne comporte pas de données sur la conception, la performance ou les conditions de mise en œuvre qui peuvent être exigées pour spécifier un matériau pour une application et/ou une méthode de mise en œuvre particulière.
Si de telles caractéristiques supplémentaires sont nécessaires, elles sont déterminées conformément aux méthodes d'essai spécifiées dans l'ISO 21301‑2, s'il y a lieu.
1.5    Afin de spécifier un matériau thermoplastique pour une application particulière ou d'assurer une méthode de mise en œuvre reproductible, des exigences supplémentaires peuvent être codées dans le bloc de données 5 (voir 4.1).

Polimerni materiali - Materiali na osnovi kopolimerov etilen/vinilacetata (EVAC) za oblikovanje in ekstrudiranje - 1. del: Sistem označevanja in podlage za specifikacije (ISO 21301-1:2019)

1.1 Ta dokument določa sistem označevanja plastomernega materiala na osnovi kopolimerov etilen/vinilacetata, ki ga je mogoče uporabiti kot podlago za specifikacije.
1.2 Vrste kopolimerov etilen/vinilacetata (EVAC) se ločujejo glede na sistem razvrščanja, ki temelji na ustreznih ravneh označevalnih lastnosti:
a) vsebnost etilen/vinilacetata;
b) masni pretok taline;
ter informacijah o predvideni uporabi in/ali metodi obdelave, pomembnih lastnostih, aditivih, barvilih, polnilih in materialih za ojačanje.
1.3 Ta dokument se uporablja za vse kopolimere etilen/vinilacetata, katerih masni delež vinilacetata je 3–50 % (približno 25 % molarnega).
Uporablja se za materiale v obliki praška, granul ali peletov, pripravljene za običajno uporabo, in materiale, nespremenjene ali spremenjene z barvili, aditivi, polnili itd.
1.4 Materiali z enako oznako nimajo nujno tudi enakih
lastnosti. Ta dokument ne podaja tehničnih podatkov, podatkov o delovanju ali podatkov o pogojih obdelave, ki so morda potrebni za določitev materiala za določeno uporabo in/ali metodo obdelave.
Če so take dodatne lastnosti zahtevane, jih je treba določiti v skladu s preskusnimi metodami
iz standarda ISO 21301-2, če je to primerno.
1.5 Zahteve za določanje plastomernega materiala za določeno uporabo ali zagotavljanje ponovljive
obdelave so podane v podatkovnem bloku 5 (glej točko 4.1).

General Information

• Status: Published
• Publication Date: 05-Mar-2019
• Withdrawal Date: 29-Sep-2019
• ICS: 83.080.20 - Thermoplastic materials
• Technical Committee: CEN/TC 249 - Plastics
• Drafting Committee: CEN/TC 249/SC 1/WG 7 - Polyolefin materials
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 06-Mar-2019
• Completion Date: 06-Mar-2019
• Ref Project: SIST EN ISO 21301-1:2019 - Plastics - Ethylene-vinyl acetate (EVAC) moulding and extrusion materials - Part 1: Designation system and basis for specifications (ISO 21301-1:2019)

Relations

• Replaces: EN ISO 4613-1:1999 - Plastics - Ethylene/vinyl acetate (E/VAC) moulding and extrusion materials - Part 1: Designation and specification (ISO 4613-1:1993)
• Effective Date: 13-Mar-2019

Overview

EN ISO 21301-1:2019 - Plastics - Ethylene‑vinyl acetate (EVAC) moulding and extrusion materials - Part 1: Designation system and basis for specifications (CEN adoption of ISO 21301-1:2019) defines a standardized system to identify and classify ethylene‑vinyl acetate (EVAC) thermoplastic materials. It provides a clear, machine‑readable designation format that can be used as the basis for material specifications, product marking and procurement, for EVAC copolymers containing 3 % to 50 % (mass fraction) vinyl acetate in powder, granule or pellet form (including materials modified with colorants, additives, fillers or reinforcing materials).

Key topics

• Designation system structure: identity block (standard number) + individual‑item block subdivided into five data blocks (1–5). The individual‑item block begins with a hyphen and data blocks are separated by commas.
• Data block 1 - EVAC identification and vinyl acetate (VAC) content: EVAC symbol (per ISO 1043‑1) followed by VAC content code. VAC ranges are encoded into eight two‑digit code numbers:
  • 03: >3 % ≤5 %
  • 08: >5 % ≤10 %
  • 13: >10 % ≤15 %
  • 18: >15 % ≤20 %
  • 23: >20 % ≤25 %
  • 28: >25 % ≤30 %
  • 35: >30 % ≤40 %
  • 45: >40 % ≤50 %
• Data block 2: filler/reinforcement type and physical form (ISO 1043‑2 codes) and nominal mass content.
• Data block 3: intended application or processing method plus important properties, additives and supplementary information.
• Data block 4: designatory properties such as melt mass‑flow rate (MFR) and other key classification parameters.
• Data block 5: optional block for additional specification requirements to ensure reproducible processing or performance.
• Limits of the standard: EN ISO 21301‑1:2019 does not supply engineering performance data or processing conditions. Where test data are required, refer to ISO 21301‑2.

Applications

• Standardized material identification for technical data sheets, product marking and inventory.
• Basis for drafting material specifications in procurement and supply agreements.
• Communication between material producers, compounders, moulders and extruders to reduce ambiguity in EVAC selection.
• Quality control, regulatory documentation and traceability in manufacturing of footwear, packaging, wire & cable, adhesives, seals, automotive and consumer goods that use EVAC.

Who should use this standard

• Material suppliers and compounders
• Product designers and R&D engineers specifying EVAC materials
• Quality assurance and regulatory compliance teams
• Moulding and extrusion processors, procurement specialists

Related standards

• ISO 21301‑2 (test specimen preparation & property determination)
• ISO 1043‑1 and ISO 1043‑2 (polymer and filler symbol systems)
• ISO 8985 (determination of vinyl acetate content)
• Supersedes ISO 4613‑1 (older designation system)

Using EN ISO 21301‑1:2019 ensures consistent, unambiguous EVAC identification and forms a practical foundation for material specification, procurement and communication across the plastics value chain.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2019
1DGRPHãþD
SIST EN ISO 4613-1:2000
3ROLPHUQLPDWHULDOL0DWHULDOLQDRVQRYLNRSROLPHURYHWLOHQYLQLODFHWDWD(9$&]D
REOLNRYDQMHLQHNVWUXGLUDQMHGHO6LVWHPR]QDþHYDQMDLQSRGODJH]D
VSHFLILNDFLMH,62
Plastics - Ethylene-vinyl acetate (EVAC) moulding and extrusion materials - Part 1:
Designation system and basis for specifications (ISO 21301-1:2019)
Kunststoffe - Ethylen-Vinylacetat (E/VAC)-Werkstoffe - Teil 1: Bezeichnungssystem und
Basis für Spezifikationen (ISO 21301-1:2019)
Plastiques - Matériaux à base de copolymères éthylène/acétate de vinyle (EVAC) pour
moulage et extrusion - Partie 1: Système de désignation et base de spécification (ISO
21301-1:2019)
Ta slovenski standard je istoveten z: EN ISO 21301-1:2019
ICS:
83.080.20 Plastomeri Thermoplastic materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 21301-1
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2019
EUROPÄISCHE NORM
ICS 83.080.20 Supersedes EN ISO 4613-1:1999
English Version
Plastics - Ethylene-vinyl acetate (EVAC) moulding and
extrusion materials - Part 1: Designation system and basis
for specifications (ISO 21301-1:2019)
Plastiques - Matériaux à base de copolymères Kunststoffe - Ethylen-Vinylacetat (E/VAC)-Werkstoffe -
éthylène/acétate de vinyle (EVAC) pour moulage et Teil 1: Bezeichnungssystem und Basis für
extrusion - Partie 1: Système de désignation et base de Spezifikationen (ISO 21301-1:2019)
spécification (ISO 21301-1:2019)
This European Standard was approved by CEN on 10 February 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 21301-1:2019 E
worldwide for CEN national Members.

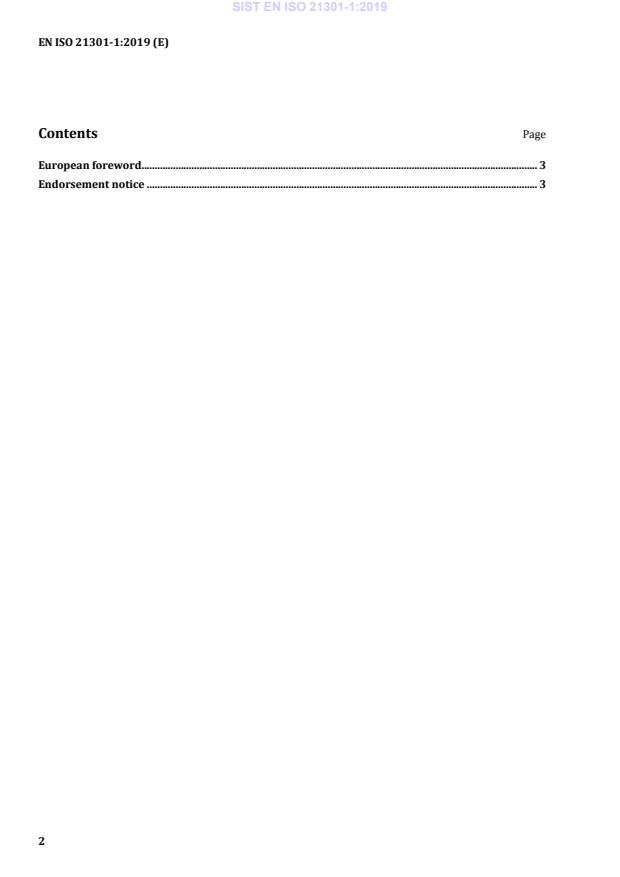

Contents Page
European foreword . 3
Endorsement notice . 3

European foreword
This document (EN ISO 21301-1:2019) has been prepared by Technical Committee ISO/TC 61 "Plastics"
in collaboration with Technical Committee CEN/TC 249 “Plastics” the secretariat of which is held by
NBN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2019, and conflicting national standards
shall be withdrawn at the latest by September 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 4613-1:1999.

According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of ISO 21301-1:2019 has been approved by CEN as EN ISO 21301-1:2019 without any
modification.
INTERNATIONAL ISO
STANDARD 21301-1
First edition
2019-02
Plastics — Ethylene-vinyl acetate
(EVAC) moulding and extrusion
materials —
Part 1:
Designation system and basis for
specifications
Plastiques — Matériaux à base de copolymères éthylène/acétate de
vinyle (EVAC) pour moulage et extrusion —
Partie 1: Système de désignation et base de spécification
Reference number
ISO 21301-1:2019(E)
©
ISO 2019
ISO 21301-1:2019(E)
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

ISO 21301-1:2019(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Designation system . 2
4.1 General . 2
4.2 Data block 1 . 2
4.3 Data block 2 . 3
4.4 Data block 3 . 3
4.5 Data block 4 . 4
4.5.1 General. 4
4.5.2 Melt mass-flow rate . 4
4.6 Data block 5 . 5
5 Examples of designations . 6
ISO 21301-1:2019(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 61 Plastics, Subcommittee SC 9,
Thermoplastic materials.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
This first edition of ISO 21301-1 cancels and replaces the second edition of ISO 4613-1:1993, which has
been technically revised. The main changes compared to the previous edition are as follows:
— a new designation system has been introduced;
— the range of MFR has been added.
The revised designation system is published under a new ISO number, as many existing documents
refer to ISO 4613-1.
...
