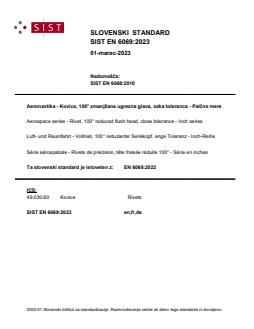

SLOVENSKI STANDARD
01-marec-2023
Nadomešča:
SIST EN 6069:2010
Aeronavtika - Kovice, 100° zmanjšana ugrezna glava, ozka toleranca - Palčne mere
Aerospace series - Rivet, 100° reduced flush head, close tolerance - Inch series
Luft- und Raumfahrt - Vollniet, 100° reduzierter Senkkopf, enge Toleranz - Inch-Reihe
Série aérospatiale - Rivets de précision, tête fraisée réduite 100° - Série en inches
Ta slovenski standard je istoveten z: EN 6069:2022
ICS:
49.030.60 Kovice Rivets
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 6069
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2022
EUROPÄISCHE NORM
ICS 49.030.60 Supersedes EN 6069:2009
English Version
Aerospace series - Rivet, 100° reduced flush head, close
tolerance - Inch series
Série aérospatiale - Rivets de précision, tête fraisée Luft- und Raumfahrt - Vollniet, 100° reduzierter
réduite 100° - Série en inches Senkkopf, enge Toleranz - Inch-Reihe
This European Standard was approved by CEN on 30 May 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6069:2022 E
worldwide for CEN national Members.

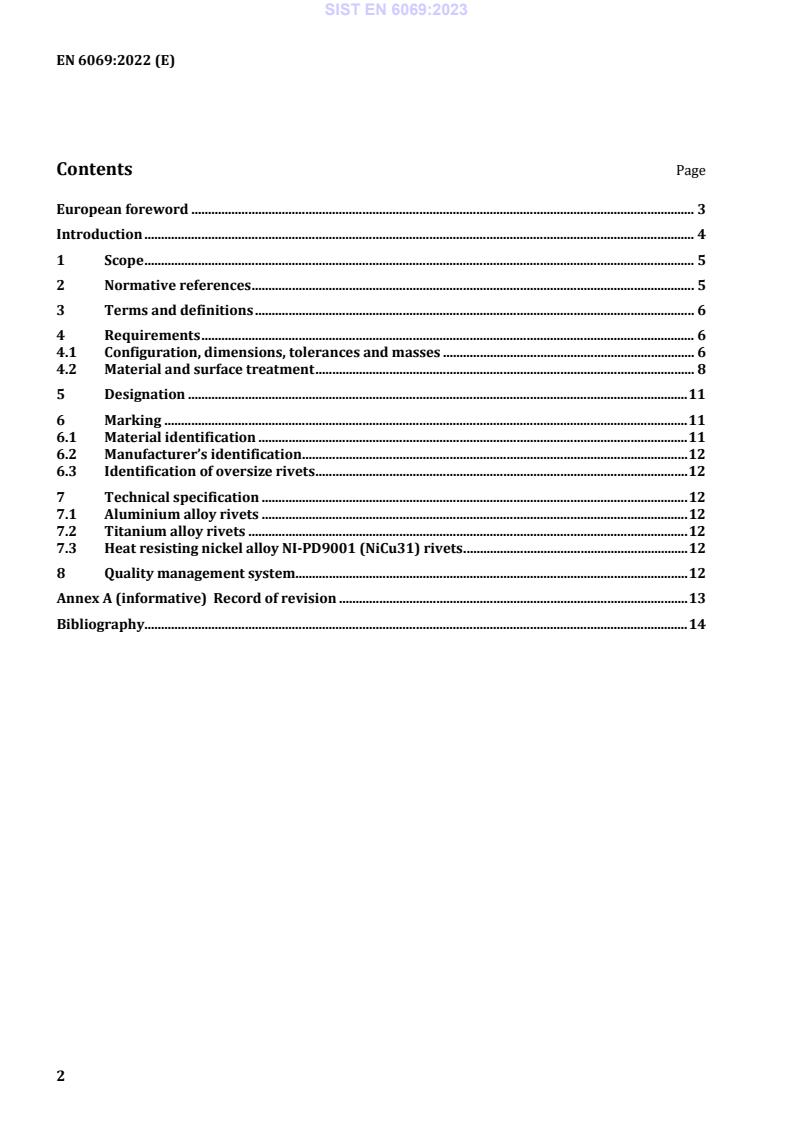

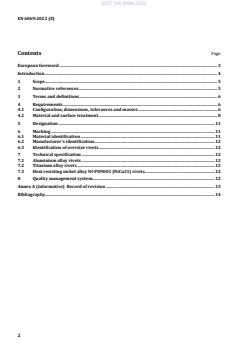

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Requirements . 6
4.1 Configuration, dimensions, tolerances and masses . 6
4.2 Material and surface treatment . 8
5 Designation . 11
6 Marking . 11
6.1 Material identification . 11
6.2 Manufacturer’s identification . 12
6.3 Identification of oversize rivets . 12
7 Technical specification . 12
7.1 Aluminium alloy rivets . 12
7.2 Titanium alloy rivets . 12
7.3 Heat resisting nickel alloy NI-PD9001 (NiCu31) rivets . 12
8 Quality management system. 12
Annex A (informative) Record of revision . 13
Bibliography. 14
European foreword
This document (EN 6069:2022) has been prepared by the Aerospace and Defence Industries
Association of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2023, and conflicting national standards shall be
withdrawn at the latest by June 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 6069:2009.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
Introduction
This document is published at Airbus agreed version prEN 6069 edition P4. Former issue 1 to 3 and
drafts may exist of Airbus development only but without any ASD–STAN official publication. In
consequence configuration management discrepancies with these unofficial documents are under
Airbus responsibility.
1 Scope
This document specifies the dimensions, tolerances and mass of rivets with 100° reduced flush head,
close tolerance, inch series, for aerospace applications.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2115, Aerospace series — Aluminium alloy 2117-T42 — Wire for solid rivets — D ≤ 10 mm
EN 2116, Aerospace series — Aluminium alloy 2017A-T42 — Wire for solid rivets — D ≤ 10 mm
EN 2117, Aerospace series — Aluminium alloy AL-P5056A (5056A)-H32 — Wire for solid rivets —
D ≤ 10 mm
EN 2424, Aerospace series — Marking of aerospace products
EN 2941, Aerospace series — Nickel alloy rivets — Technical specification
EN 3115, Aerospace series — Aluminium alloy 7050-T73 — Wire for solid rivets — D ≤ 10 mm
EN 4372, Aerospace series — Heat resisting nickel alloy with copper NI-PD9001 (NiCu31) — Wire for solid
rivets — D ≤ 10 mm
prEN 6104, Aerospace series — Rivets, solid, in aluminium or aluminium alloy — Inch series — Technical
specification
prEN 6118, Aerospace series — Process specification — Aluminium base protection for fasteners
ISO 8080, Aerospace — Anodic treatment of titanium and titanium alloys — Sulfuric acid process
MIL-A-8625, Anodic Coatings for Aluminum and Aluminum Alloys
MIL-DTL-5541, Chemical Conversion Coatings on Aluminum and Aluminum alloys
NASM5674, Rivets, Structural, Aluminium Alloy, Titanium Columbium Alloy, General Specification for
NAS9800, Head Protrusion Gaging, 100° Flush Head Fasteners, Gage Block, Gage diameters and Stylus
SAE AMS 4982, Titanium Alloy Wire 44.5 Cb
...
Questions, Comments and Discussion
