HD 629.2 S3:2024
(Main)Test requirements for accessories for use on power cables of rated voltage from 3,6/6(7,2) kV up to 20,8/36(42) kV - Part 2: Cables with impregnated paper insulation
Test requirements for accessories for use on power cables of rated voltage from 3,6/6(7,2) kV up to 20,8/36(42) kV - Part 2: Cables with impregnated paper insulation
1.1 General This document specifies performance requirements for type tests for cable accessories for use on impregnated paper insulated power cables as specified in HD 621. It is not necessary to repeat these tests, once successfully completed, unless changes are made in the materials, design or manufacturing process, which might affect the performance characteristics. Accessories for special applications such as submarine cables, ships cables or hazardous situations (explosive environments, fire resistant cables or seismic conditions) are not included. Test methods are included in EN 61442:2005. NOTE It might be possible, subject to agreement between supplier and purchaser, and/or the relevant conformity assessment body, to demonstrate that conformity to the earlier standard can be used to claim conformity to this document, provided an assessment is made of any additional type testing that might need to be carried out. Any such additional testing that is part of a sequence of testing cannot be done separately. 1.2 Type of accessories The accessories covered by this document are listed below: - indoor and outdoor terminations of all designs, including terminal boxes; - straight joints, branch joints and stop end joints of all designs, suitable for use underground or in air; - screened or unscreened plug-in type or bolted-type separable connectors capable of interfacing with bushing profiles as specified in EN 50180 series and EN 50181. 1.3 Rated voltage The rated voltages U0/U(Um) of the accessories covered by this document are 3,6/6(7,2) - 3,8/6,6(7,2) - 6/10(12) - 6,35/11(12) - 8,7/15(17,5) - 12/20(24) - 12,7/22(24) - 18/30(36) - 19/33(36) - 20,8/36(42) kV.
Prüfanforderungen für Kabelgarnituren für Starkstromkabel mit einer Nennspannung von 3,6/6(7,2) kV bis 20,8/36(42) kV - Teil 2: Kabel mit massegetränkter Papierisolierung
1.1 Allgemeines 56 Dieses Dokument legt die Anforderungen für Typprüfungen an Kabelgarnituren in Verbindung mit masse-57 getränkten Papierkabeln, wie in HD 621 beschrieben, fest. 58 Nachdem diese Prüfung erfolgreich bestanden wurde, braucht diese nicht wiederholt werden, es sei denn, 59 Änderungen in Werkstoff, Konstruktion oder Herstellprozess, welche die Betriebseigenschaften beeinflussen 60 können, wurden vorgenommen. 61 Diese Norm gilt nicht für Garnituren für spezielle Anwendungsbereiche, z. B. Seekabel, Schiffskabel, oder 62 Einsatz unter gefährlichen Bedingungen (explosive Umgebung, feuerbeständige Kabel oder Erdbeben-63 gefährdung). 64 Die Prüfverfahren sind in EN 61442 enthalten. 65 ANMERKUNG Vorbehaltlich einer Vereinbarung zwischen Hersteller und Kunde und/oder der zuständigen 66 Konformitätsbewertungsstelle, könnte es möglich sein nachzuweisen, dass die Konformität mit der früheren Norm 67 verwendet werden kann, um die Konformität mit diesem Dokument zu beanspruchen, vorausgesetzt, es wird eine 68 Bewertung aller zusätzlichen Typprüfungen vorgenommen, die möglicherweise durchgeführt werden müssen. Solche 69 zusätzlichen Prüfungen, die Teil einer Prüffolge sind, können nicht separat durchgeführt werden. 70 1.2 Art der Kabelgarnituren 71 Dieses Dokument gilt für folgende Kabelgarnituren: 72 – Innen- und Freiluftendverschlüsse jeglicher Bauart, einschließlich Anschlusskästen; 73 – Verbindungsmuffen, Abzweigmuffen, Endmuffen und Übergangsmuffen jeglicher Bauart, geeignet zur 74 unterirdischen Verlegung oder in der Luft; 75 – geschirmte oder ungeschirmte steck- oder schraubbare Kabelanschlüsse, deren Durchführungskonturen 76 mit den in den Normen EN 50180 und EN 50181 spezifizierten übereinstimmen. 77 1.3 Nennspannung 78 Die Nennspannungen U0/U (Um) der von diesem Dokument abgedeckten Kabelgarnituren sind 3,6/6(7,2) – 79 3,8/6,6(7,2) – 6/10(12) – 6,35/11(12) – 8,7/15(17,5) – 12/20(24) – 12,7/22(24) – 18/30(36) – 19/33(36) – 80 20,8/36(42) kV.
Prescriptions relatives aux essais sur les accessoires des câbles d'énergie pour des tensions assignées de 3,6/6(7,2) kV à 20,8/36(42) kV - Partie 2: Câbles isolés au papier imprégné
Preskusne zahteve za pribor, ki se uporablja na elektroenergetskih kablih za naznačene napetosti od 3,6/6(7,2) kV do vključno 20,8/36(42) kV - 2. del: Kabli, izolirani z impregniranim papirjem
Ta dokument določa zahteve glede delovanja za tipske preskuse pribora, ki se uporablja na kablih, izoliranih z impregniranim papirjem, kot je opredeljeno v standardu HD 621.
Preskusov ni treba ponavljati, če so uspešno opravljeni, razen če je prišlo do sprememb v
materialih, zasnovi ali proizvodnem procesu, ki lahko vplivajo na lastnosti delovanja.
Pribor, namenjen posebni uporabi, na primer podmorski kabli, ladijski kabli ali uporabi v nevarnih razmerah (v eksplozivnih okoljih, ognjeodpornih kablih ali potresnih okoljih), ni vključen.
Preskusne metode so vključene v standardu EN 61442:2005.
OPOMBA: Odvisno od dogovora med dobaviteljem in kupcem in/ali ustreznim telesom za ocenjevanje skladnosti je mogoče prikazati, da se lahko skladnost s prejšnjimi standardi uporabi za sklicevanje na skladnost s tem dokumentom, če se predhodno oceni, ali je treba izvesti dodatne tipske preskuse. Dodatnih preskusov, ki so del zaporedja preskusov, ni mogoče izvesti posebej.
General Information
Relations
Standards Content (Sample)

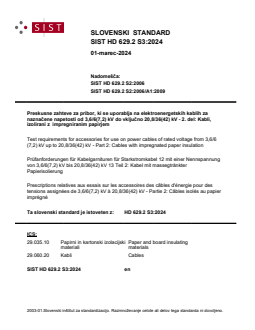

SLOVENSKI STANDARD
01-marec-2024
Nadomešča:
SIST HD 629.2 S2:2006
SIST HD 629.2 S2:2006/A1:2009
Preskusne zahteve za pribor, ki se uporablja na elektroenergetskih kablih za
naznačene napetosti od 3,6/6(7,2) kV do vključno 20,8/36(42) kV - 2. del: Kabli,
izolirani z impregniranim papirjem
Test requirements for accessories for use on power cables of rated voltage from 3,6/6
(7,2) kV up to 20,8/36(42) kV - Part 2: Cables with impregnated paper insulation
Prüfanforderungen für Kabelgarnituren für Starkstromkabel 12 mit einer Nennspannung
von 3,6/6(7,2) kV bis 20,8/36(42) kV 13 Teil 2: Kabel mit massegtränkter
Papierisolierung
Prescriptions relatives aux essais sur les accessoires des câbles d'énergie pour des
tensions assignées de 3,6/6(7,2) kV à 20,8/36(42) kV - Partie 2: Câbles isolés au papier
imprégné
Ta slovenski standard je istoveten z: HD 629.2 S3:2024
ICS:
29.035.10 Papirni in kartonski izolacijski Paper and board insulating
materiali materials
29.060.20 Kabli Cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

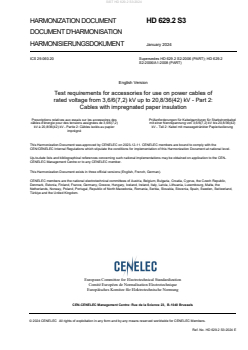

HARMONIZATION DOCUMENT HD 629.2 S3
DOCUMENT D'HARMONISATION
HARMONISIERUNGSDOKUMENT January 2024
ICS 29.060.20 Supersedes HD 629.2 S2:2006 (PART); HD 629.2
S2:2006/A1:2008 (PART)
English Version
Test requirements for accessories for use on power cables of
rated voltage from 3,6/6(7,2) kV up to 20,8/36(42) kV - Part 2:
Cables with impregnated paper insulation
Prescriptions relatives aux essais sur les accessoires des Prüfanforderungen für Kabelgarnituren für Starkstromkabel
câbles d'énergie pour des tensions assignées de 3,6/6(7,2) mit einer Nennspannung von 3,6/6(7,2) kV bis 20,8/36(42)
kV à 20,8/36(42) kV - Partie 2: Câbles isolés au papier kV - Teil 2: Kabel mit massegetränkter Papierisolierung
imprégné
This Harmonization Document was approved by CENELEC on 2023-12-11. CENELEC members are bound to comply with the
CEN/CENELEC Internal Regulations which stipulate the conditions for implementation of this Harmonization Document at national level.
Up-to-date lists and bibliographical references concerning such national implementations may be obtained on application to the CEN-
CENELEC Management Centre or to any CENELEC member.
This Harmonization Document exists in three official versions (English, French, German).
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. HD 629.2 S3:2024 E

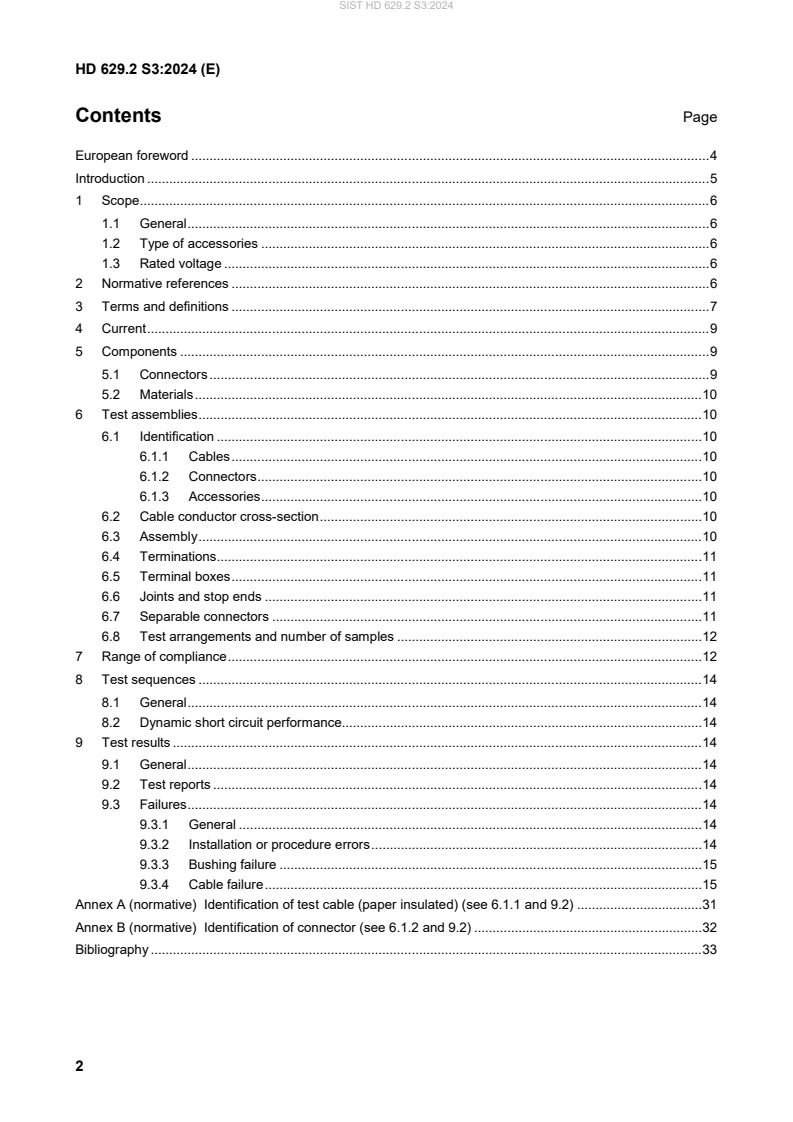

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
1.1 General . 6
1.2 Type of accessories . 6
1.3 Rated voltage . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Current . 9
5 Components . 9
5.1 Connectors . 9
5.2 Materials . 10
6 Test assemblies . 10
6.1 Identification . 10
6.1.1 Cables . 10
6.1.2 Connectors . 10
6.1.3 Accessories . 10
6.2 Cable conductor cross-section . 10
6.3 Assembly . 10
6.4 Terminations . 11
6.5 Terminal boxes . 11
6.6 Joints and stop ends . 11
6.7 Separable connectors . 11
6.8 Test arrangements and number of samples . 12
7 Range of compliance . 12
8 Test sequences . 14
8.1 General . 14
8.2 Dynamic short circuit performance . 14
9 Test results . 14
9.1 General . 14
9.2 Test reports . 14
9.3 Failures . 14
9.3.1 General . 14
9.3.2 Installation or procedure errors . 14
9.3.3 Bushing failure . 15
9.3.4 Cable failure . 15
Annex A (normative) Identification of test cable (paper insulated) (see 6.1.1 and 9.2) . 31
Annex B (normative) Identification of connector (see 6.1.2 and 9.2) . 32
Bibliography . 33
Tables
Table 1 — Test cable conductor cross-sections for separable connectors . 12
Table 2 — Range of compliance for separable connectors . 13
Table 3 — Indoor terminations for impregnated paper insulated cables (including shrouded terminations)
(see Table 12) . 16
Table 4 — Outdoor terminations for impregnated paper insulated cables (see Table 12) . 17
Table 5 — Joints for impregnated paper insulated cables (see Table 13) . 18
Table 6 — Stop ends for impregnated paper insulated cables (see Table 14) . 19
Table 7 — Screened separable connectors for impregnated paper insulated cables (see Table 15) . 20
Table 8 — Unscreened separable connectors (excluding shrouded terminations) for impregnated paper
insulated cables (see Table 16) . 22
Table 9 — Additional tests for non-circular conductor profile and/or insulation screen compliance (see 7.4
and 7.5) . 23
Table 10 — Additional tests for smallest and largest cable cross section compliance (see 7.1) . 24
Table 11 — Summary of test voltages (refer to Clause 8) . 25
Table 12 — Test arrangements for terminations . 26
Table 13 — Test arrangements for joints . 27
Table 14 — Test arrangements for stop ends . 28
Table 15 — Test arrangements for screened separable connectors . 29
Table 16 — Test arrangement for unscreened separable connectors . 30
European foreword
This document (HD 629.2 S3:2024) has been prepared by CLC/TC 20 “Electric cables”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2024-12-11
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2026-12-11
conflicting with this document have to be
withdrawn
This document partially supersedes HD 629.2 S2:2006 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A complete
listing of these bodies can be found on the CENELEC website.
Introduction
This document defines the requirements which can be called up for joints, stop ends, separable connectors,
indoor and outdoor terminations when used with impregnated paper insulated power cables covered by
HD 621. The equivalent requirements for extruded power cables are given in HD 629.1 S3.
The equivalent requirements for transition joints, when used between extruded insulated power cables and
impregnated paper insulated power cables covered by HD 620 and HD 621 or other relevant standards are
given in HD 629.3 S1.
Formerly, approvals of such products have been achieved on the basis of national standards and specifications
and/or the demonstration of satisfactory service performance. The publication of this document does not
invalidate existing approvals. However, products approved to such earlier standards or specifications cannot
claim approval to this document unless specifically tested to it.
1 Scope
1.1 General
This document specifies performance requirements for type tests for cable accessories for use on impregnated
paper insulated power cables as specified in HD 621.
It is not necessary to repeat these tests, once successfully completed, unless changes are made in the
materials, design or manufacturing process, which might affect the performance characteristics.
Accessories for special applications such as submarine cables, ships cables or hazardous situations (explosive
environments, fire resistant cables or seismic conditions) are not included.
Test methods are included in EN 61442:2005.
NOTE It might be possible, subject to agreement between supplier and purchaser, and/or the relevant conformity
assessment body, to demonstrate that conf
...
