Photovoltaic devices - Part 8-1: Measurement of spectral responsivity of multi-junction photovoltaic (PV) devices

IEC 60904-8-1:2017 gives guidance for the measurement of the spectral responsivity of multi-junction photovoltaic devices. It is principally intended for non-concentrating devices, but parts may be applicable also to concentrating multi-junction PV devices. The SR is required for analysis of measured current-voltage characteristics of multi-junction PV devices as described in IEC 60904-1-1.

Photovoltaische Einrichtungen - Teil 8-1: Messen der spektralen Empfindlichkeit von photovoltaischen (PV) Einrichtungen mit Mehrschichtsolarzellen

Dispositifs photovoltaïques - Partie 8-1: Mesurage de la sensibilité spectrale des dispositifs photovoltaïques (PV) multijonctions

L'IEC 60904-8-1:2017 fournit des préconisations relatives au mesurage de la sensibilité spectrale des dispositifs photovoltaïques multijonctions. Elle concerne essentiellement les dispositifs qui ne sont pas à concentration, mais des parties peuvent également être appliquées aux dispositifs photovoltaïques multijonctions à concentration. La sensibilité spectrale est exigée pour analyser les caractéristiques courant-tension mesurées des appareils photovoltaïques multijonctions décrits dans l'IEC 60904-1-1.

Fotonapetostne naprave - 8-1. del: Merjenje spektralne odzivnosti fotonapetostnih naprav z več spoji

Ta del standarda IEC 60904 podaja smernice za merjenje spektralne odzivnosti fotonapetostnih naprav z več spoji. Namenjen je predvsem koncentriranim napravam, vendar se lahko deli uporabljajo tudi za koncentrirane fotonapetostne naprave z več spoji. Spektralna odzivnost je potrebna za analizo merjenih karakteristik tok-napetost fotonapetostnih naprav z več spoji, kot je opisano v standardu IEC 60904-1-1.
Zahteve za merjenje spektralne odzivnosti fotonapetostnih naprav z enim spojem so zajete v standardu IEC 60904-8, ta dokument pa opisuje dodatne zahteve za merjenje spektralne odzivnosti fotonapetostnih naprav z več spoji. V tem dokumentu je obravnavano le merjenje spektralne odzivnosti posameznih spojnih plasti znotraj naprave z več spoji z dvema priključkoma.
Ta dokument se lahko uporablja za fotonapetostne naprave, ki so namenjene za uporabo pri koncentriranem sevanju, če so merjene brez optike za koncentracijo.

General Information

Status
Published
Publication Date
07-Sep-2017
Current Stage
6060 - Document made available
Due Date
08-Sep-2017
Completion Date
08-Sep-2017

Buy Standard

Standard
EN 60904-8-1:2017
English language
16 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 60904-8-1:2017
01-november-2017

)RWRQDSHWRVWQHQDSUDYHGHO0HUMHQMHVSHNWUDOQHRG]LYQRVWLIRWRQDSHWRVWQLK

QDSUDY]YHþVSRML

Photovoltaic devices - Part 8-1: Measurement of spectral responsivity of multi-junction

photovoltaic (PV) devices
Ta slovenski standard je istoveten z: EN 60904-8-1:2017
ICS:
27.160 6RQþQDHQHUJLMD Solar energy engineering
SIST EN 60904-8-1:2017 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 60904-8-1:2017
---------------------- Page: 2 ----------------------
SIST EN 60904-8-1:2017
EUROPEAN STANDARD EN 60904-8-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2017
ICS 27.160
English Version
Photovoltaic devices -
Part 8-1: Measurement of spectral responsivity
of multi-junction photovoltaic (PV) devices
(IEC 60904-8-1:2017)
Dispositifs photovoltaïques - Photovoltaische Einrichtungen -

Partie 8-1: Mesurage de la sensibilité spectrale Teil 8-1: Messen der spektralen Empfindlichkeit von

des dispositifs photovoltaïques (PV) multijonctions photovoltaischen (PV) Einrichtungen mit Mehrschichtsolarzellen

(IEC 60904-8-1:2017) (IEC 60904-8-1:2017)

This European Standard was approved by CENELEC on 2017-06-22. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,

Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 60904-8-1:2017 E
---------------------- Page: 3 ----------------------
SIST EN 60904-8-1:2017
EN 60904-8-1:2017

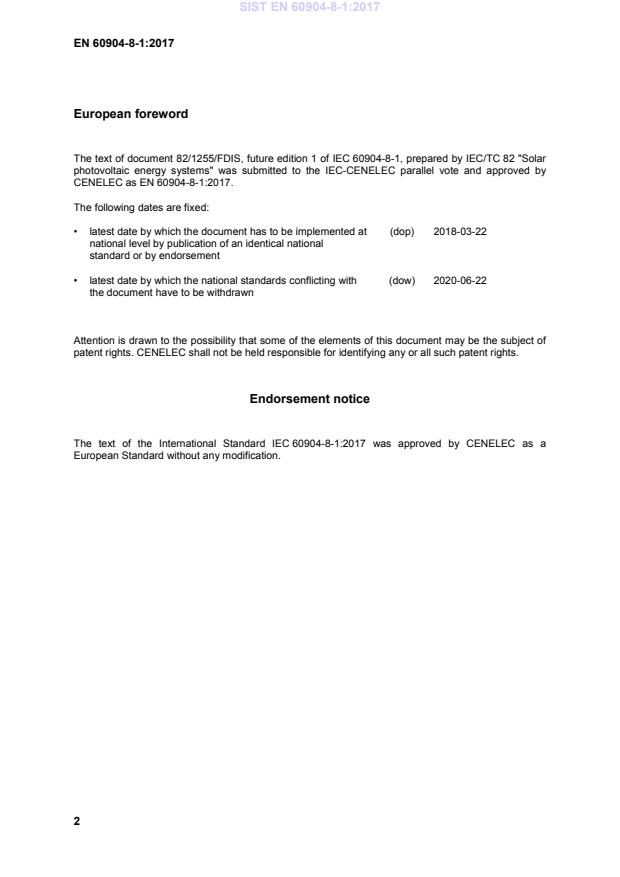

European foreword

The text of document 82/1255/FDIS, future edition 1 of IEC 60904-8-1, prepared by IEC/TC 82 "Solar

photovoltaic energy systems" was submitted to the IEC-CENELEC parallel vote and approved by

CENELEC as EN 60904-8-1:2017.
The following dates are fixed:
• latest date by which the document has to be implemented at (dop) 2018-03-22
national level by publication of an identical national
standard or by endorsement
• latest date by which the national standards conflicting with (dow) 2020-06-22
the document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice

The text of the International Standard IEC 60904-8-1:2017 was approved by CENELEC as a

European Standard without any modification.
---------------------- Page: 4 ----------------------
SIST EN 60904-8-1:2017
EN 60904-8-1:2017
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments)

applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod),

the relevant EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is

available here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60904-8 - Photovoltaic devices - Part 8: EN 60904-8 -
Measurement of spectral responsivity of
a photovoltaic (PV) device
IEC 60904-9 - Photovoltaic devices - Part 9: Solar EN 60904-9 -
simulator performance requirements
IEC/TS 61836 - Solar photovoltaic energy systems - - -
Terms, definitions and symbols
---------------------- Page: 5 ----------------------
SIST EN 60904-8-1:2017
---------------------- Page: 6 ----------------------
SIST EN 60904-8-1:2017
IEC 60904-8-1
Edition 1.0 2017-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Photovoltaic devices –
Part 8-1: Measurement of spectral responsivity of multi-junction photovoltaic
(PV) devices
Dispositifs photovoltaïques –
Partie 8-1: Mesurage de la sensibilité spectrale des dispositifs photovoltaïques
(PV) multijonctions
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 27.160 ISBN 978-2-8322-4339-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 60904-8-1:2017
– 2 – IEC 60904-8-1:2017 © IEC 2017
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

4 General considerations .................................................................................................... 6

5 Bias light ......................................................................................................................... 6

6 Bias voltage ..................................................................................................................... 6

7 Apparatus ........................................................................................................................ 7

7.1 General ................................................................................................................... 7

7.2 Apparatus for measurement of SR using continuous light source ............................ 7

7.3 Apparatus for measurement of SR using pulsed light source ................................... 8

7.4 Apparatus for measurement of series-connected modules ....................................... 8

8 Measurement of SR ......................................................................................................... 8

8.1 Measurement of SR using continuous light source .................................................. 8

8.2 Measurement of SR using pulsed light source ......................................................... 8

8.3 Measurement of series-connected modules ............................................................ 8

9 Correction of measured SR.............................................................................................. 8

9.1 General ................................................................................................................... 8

9.2 Correction for shunting............................................................................................ 9

9.3 Correction for luminescent coupling ........................................................................ 9

9.3.1 General ........................................................................................................... 9

9.3.2 Correcting the SR of the second junction (for the coupling J  J ) .............. 10

1 2
9.3.3 Correcting the SR of the third junction (for the coupling J  J and J
1 2 2

 J )............................................................................................................. 10

9.3.4 Correcting the SR of the fourth (or higher) junction ........................................ 11

10 Report ........................................................................................................................... 11

Bibliography .......................................................................................................................... 13

---------------------- Page: 8 ----------------------
SIST EN 60904-8-1:2017
IEC 60904-8-1:2017 © IEC 2017 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PHOTOVOLTAIC DEVICES –
Part 8-1: Measurement of spectral responsivity
of multi-junction photovoltaic (PV) devices
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60904-8-1 has been prepared by IEC technical committee 82:

Solar photovoltaic energy systems.
The text of this International Standard is based on the following documents:
FDIS Report on voting
82/1255/FDIS 82/1273/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60904 series, published under the general title Photovoltaic

devices, can be found on the IEC website.
---------------------- Page: 9 ----------------------
SIST EN 60904-8-1:2017
– 4 – IEC 60904-8-1:2017 © IEC 2017

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 10 ----------------------
SIST EN 60904-8-1:2017
IEC 60904-8-1:2017 © IEC 2017 – 5 –
PHOTOVOLTAIC DEVICES –
Part 8-1: Measurement of spectral responsivity
of multi-junction photovoltaic (PV) devices
1 Scope

This part of IEC 60904 gives guidance for the measurement of the spectral responsivity (SR)

of multi-junction photovoltaic devices. It is principally intended for non-concentrating devices,

but parts may be applicable also to concentrating multi-junction PV devices. The SR is

required for analysis of measured current-voltage characteristics of multi-junction PV devices

as described in IEC 60904-1-1.

The requirements for measurement of SR of single-junction PV devices are covered by

IEC 60904-8, whereas this document describes the additional requirements for the
measurement of SR of multi-junction PV devices. This document only considers the

measurement of SR of individual junction layers within a two-terminal multi-junction device.

This document may be applicable to PV devices designed for use under concentrated

irradiation if they are measured without the optics for concentration.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 60904-8, Photovoltaic devices – Part 8: Measurement of spectral responsivity of a

photovoltaic (PV) device

IEC 60904-9, Photovoltaic devices – Part 9: Solar simulator performance requirements

IEC TS 61836, Solar photovoltaic energy systems – Terms, definitions and symbols
3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC TS 61836 and the

following apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
current limiting junction

junction in a multi-junction photovoltaic device in which under given illumination conditions the

lowest photovoltaic current is generated
---------------------- Page: 11 ----------------------
SIST EN 60904-8-1:2017
– 6 – IEC 60904-8-1:2017 © IEC 2017
4 General considerations

The procedure for measurement of the Spectral Responsivity (SR) of single-junction PV

devices is described in detail in IEC 60904-8. The procedure for measurement of the SR of a

multi-junction PV device requires the same basic principles, but is more complex, in particular

with respect to requirements for bias light and bias voltage.

This document describes the additional considerations, requirements and procedures for the

measurement of the SR of multi-junction PV devices based on the measurement principles of

single-junction PV devices.

Therefore, the provisions in IEC 60904-8 are also valid for the measurement of multi-junction

PV devices except where explicitly amended by this document.

Multi-junction PV devices consist of two or more series-connected junctions, each of which

responds in a different wavelength band of light. For multi-junction PV devices which provide

separate connections to each junction, the measurement of individual junction SR is identical

to that for single-junction devices as described in IEC 60904-8 using the appropriate

connections.

The procedures in this document describe the measurement of the SR of two-terminal multi-

junction PV devices, i.e. devices which have two or more series-connected junctions with only

two external electrical connections. The measurement procedures allow the successive

measurement of the SR of each of these junctions by appropriately setting the measurement

conditions using the correct bias light (Clause 5) and bias voltage (Clause 6).
5 Bias light

The measurement of the SR of single-junction PV devices (IEC 60904-8) requires bias light of

unspecified spectral content. For multi-junction photovoltaic devices the measurement of the

SR of a particular junction requires that this junction is current limiting. This is achieved by

applying bias light to all other junctions in the multi-junctions device such that at all times

during the measurement each of them produces a photovoltaic current larger than the

photovoltaic current generated in the junction under test. The photovoltaic current in the

junction-under-test might be generated partly by the bias light to the other junctions in

addition to the monochromatic light used for the actual measurement of SR. The spatial non-

uniformity (as defined in IEC 60904-9) of the applied bias light over the active area of the

multi-junction device should be less than 10 %, corresponding
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
