SLOVENSKI STANDARD
01-september-2009
(OHNWULþQHLQãWDODFLMH]DRVYHWOLWHYLQVYHWLOQLNHQDOHWDOLãþLK1DSUHGQLVLVWHP
YRGHQMD]DYL]XDOQRSULVWDMDQMH $9'*6
Electrical installations for lighting and beaconing of aerodromes - Advanced Visual
Docking Guidance Systems (A-VDGS)
Elektrische Anlagen für Beleuchtung und Befeuerung von Flugplätzen - Erweitertes
optisches Andockführungssystem (A-VDGS)
Installations électriques pour l'éclairage et le balisage des aérodromes - Systèmes
Avancés de Guidage Visuel pour l’Accostage
Ta slovenski standard je istoveten z: EN 50512:2009
ICS:
29.140.50 Instalacijski sistemi za Lighting installation systems
razsvetljavo
93.120 *UDGQMDOHWDOLãþ Construction of airports
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 50512
NORME EUROPÉENNE
February 2009
EUROPÄISCHE NORM
ICS 93.120
English version
Electrical installations for lighting and beaconing of aerodromes -
Advanced Visual Docking Guidance Systems (A-VDGS)

Installations électriques pour l'éclairage  Elektrische Anlagen für Beleuchtung
et le balisage des aérodromes - und Befeuerung von Flugplätzen -
Systèmes Avancés de Guidage Visuel Erweitertes optisches
pour l’Accostage (SAGVA) Andockführungssystem (A-VDGS)

This European Standard was approved by CENELEC on 2008-12-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50512:2009 E

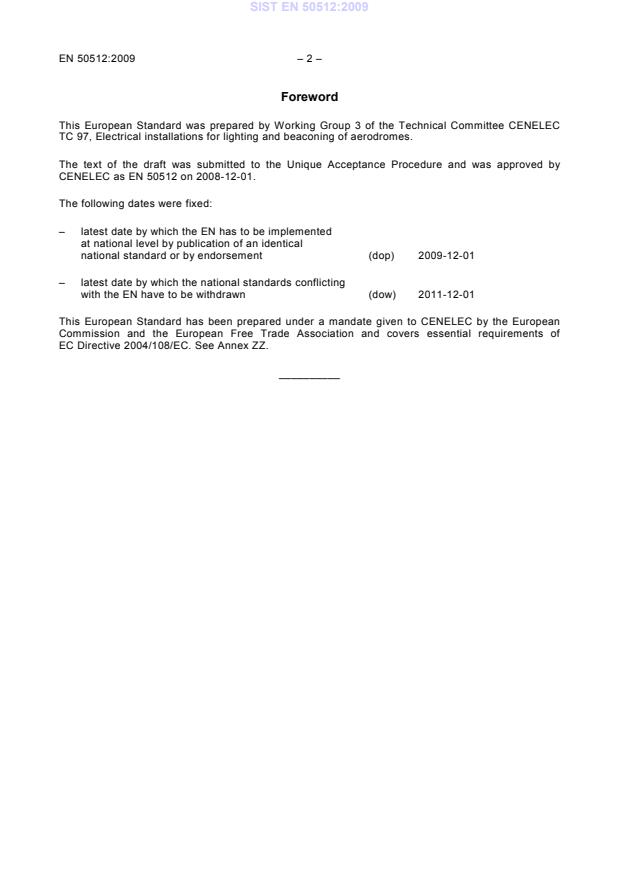

Foreword
This European Standard was prepared by Working Group 3 of the Technical Committee CENELEC
TC 97, Electrical installations for lighting and beaconing of aerodromes.
The text of the draft was submitted to the Unique Acceptance Procedure and was approved by
CENELEC as EN 50512 on 2008-12-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2009-12-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2011-12-01
This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and covers essential requirements of
EC Directive 2004/108/EC. See Annex ZZ.
__________
– 3 – EN 50512:2009
Contents
Introduction . 4
1 Scope . 4
2 Normative references . 4
3 Definitions . 5
4 Requirements . 8
4.1 System performance . 8
4.2 Design . 10
4.3 Safety . 13
4.4 Installation and m a intenanc e . 14
4.5 Verification of equipment quality . 14
5 T est . 15
5.1 Type tests . 15
5.2 Factory test. 26
5.3 Site test . 26
Annex A (informative) Best practices for an A-VDGS and proved methods –
Functions to support the operation particular on busy airports . 27
Annex ZZ (informative) Coverage of Essential Requirements of EC Directives . 30
Figures
Figure 1 – Area covered by the A-VDGS . 8
Figure 2 – Principle test configuration . 19
Figure 3 – Measurement configuration . 20
Figure 4 – Measurement area . 21
Tables
Table 1 – A-VDGS accuracy . 9
Table 2 – Maximum aircraft taxi speed during the docking procedure . 9
Table 3 – Minimum luminance ratios (LR) for various colours, at test angles on the reference
axis and off the reference axis . 11
Table 4 – Temperature tests . 16
Table 5 – Vibration test . 23
Table A.1 – Information provided by the A-VDGS display. 28

Introduction
This European Standard contains the requirements for an Advanced Visual Docking Guidance
System (A-VDGS) as it is described in the ICAO Annex 14. This standard covers the characteristics
of the electrical and mechanical components. This standard includes the software design where this
affects the required system performance and safety.
An A-VDGS is to be designed to achieve safe and precise guidance during the docking procedure of
an aircraft. The system provides at least a display which shows information of azimuth guidance and
stop information.
The use of an A-VDGS is in principle limited to a defined area with an opening angle and a border
distance to the stop point related to the centre line. The reference point for all distances and
guidance information at the aircraft is the central axis of the nose wheel.
It has to be considered that in some cases the topographical situation of an airport requires a
reduced working area for an A-VDGS which will result in the area being different from the
requirements stated herein.
For practical use on the airport it has to be considered that the detection range can be limited due to
the actual weather and visibility condition prevailing (fog, rain, snow, etc.).
1 Scope
This European Standard specifies requirements of electrical and mechanical design, installation,
maintenance and testing procedures for advanced visual docking guidance systems.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of the
referenced document (including any amendments) applies.
EN 60068-2-1, Environmental testing - Part 2-1: Tests - Test A: Cold (IEC 60068-2-1)
EN 60068-2-2, Environmental testing - Part 2-2: Tests - Test B: Dry heat (IEC 60068-2-2)
EN 60068-2-5, Environmental testing - Part 2-5: Tests - Test Sa: Simulated solar radiation at ground
level (IEC 60068-2-5)
EN 60068-2-30, Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic (12 h + 12 h
cycle) (IEC 60068-2-30)
EN 60068-2-64, Environmental testing - Part 2-64: Tests - Test Fh: Vibration, broadband random and
guidance (IEC 60068-2-64)
EN 60439-1:1999, Low-voltage switchgear and control gear assemblies - Part 1: Type-tested and
partially type-tested assemblies (IEC 60439-1:1999)
EN 60529, Degrees of protection provided by enclosures (IP Code) (IEC 60529)
EN 60825-1, Safety of laser products - Part 1: Equipment classification and requirements
(IEC 60825-1)
– 5 – EN 50512:2009
EN 61000-3-2, Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic current
emissions (equipment input current ≤ 16 A per phase) (IEC 61000-3-2)
EN 61000-3-3, Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of voltage changes,
voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current
≤ 16 A per phase and not subject to conditional connection (IEC 61000-3-3)
EN 61000-3-11, Electromagnetic compatibility (EMC) - Part 3-11: Limits - Limitation of voltage
changes, voltage fluctuations and flicker in public low-voltage supply systems - Equipment with rated
current ≤ 75 A and subject to conditional connection (IEC 61000-3-11)
EN 61000-3-12, Electromagnetic compatibility (EMC) - Part 3-12: Limits - Limits for harmonic
currents produced by equipment connected to public low-voltage systems with input current > 16 A
and ≤ 75 A per phase (IEC 61000-3-12)
EN 61000-6-2, Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for
industrial environments (IEC 61000-6-2)
EN 61000-6-3, Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission
standard for residential, commercial and light-industrial environments (IEC 61000-6-3)
HD 472, Nominal voltages for low-voltage public electricity supply systems
(IEC 60038 ‘IEC standard voltages’, mod.)
HD 60364 series, Low voltage electrical installations (IEC 60364 series, mod.)
3 Definitions
For the purposes of this document, the following terms and definitions apply.
The following definitions were developed to be included in international standards relating to A-VDGS
on aerodromes.
3.1
Advanced Visual Docking Guidance System (A-VDGS)
those systems that provide additional guidance information to pilots, e.g. aircraft type indication,
distance-to-go information and closing speed. Docking guidance information is provided on an
A-VDGS display. Advanced-VDGS also permit interfacing to external management, guidance or
allocation systems
3.2
A-VDGS display
display which presents the guidance and other information to the pilots in the left and/or right hand
seats and to the drivers and to any other persons assisting the aircraft docking procedure
3.3
aircraft type
the aircraft manufacturer's designation for an aircraft grouping with similar design or style of
structure
3.4
ambient brightness
the overall brightness level in the viewing environment surroundings

3.5
azimuth guidance
information which will enable the pilot of an aircraft to follow the required track
3.6
control of the A-VDGS
any manual or automatic means to operate the A-VDGS. This includes the required settings for an
individual guidance procedure
3.6.1
local control
the control of the A-VDGS from a position where the A-VDGS display and the docking area can be
observed by the A-VDGS operator
3.6.2
remote control
the control of the A-VDGS from any remote position where the operator may not be able to observe
the docking procedure
3.7
detection range
the distance within which the A-VDGS is able to detect an aircraft
3.8
earthed
connected to the general mass of earth in such a manner as to ensure at all times an immediate
discharge of electrical energy to reduce the danger of equipment damage or personnel injury
3.9
electrical equipment
anything used, intended to be used or installed for use, to generate, provide, transmit, transform,
rectify, convert, conduct, distributes, control, store, measure or use electrical energy
3.10
emergency stop
the event caused by manual or automatic means that initiates the emergency stop indication
3.11
emergency stop indication
a stop indication to pilots, drivers and any other persons assisting the docking procedure to
immediately interrupt the docking procedure
3.12
guidance
presentation of any information assisting the pilot and/or driver to reach safely and with the required
accuracy the designated stop area
3.13
Luminance Ratio (LR)
the ratio of luminance emitted from the display in the ON state compared to the luminance in the OFF
state
– 7 – EN 50512:2009
Luminance ratio (LR) shall be calculated as follows:
LR = (L - L ) / L
a b b
wher
...
