EN IEC 60335-2-34:2023/A11:2023

Household and similar electrical appliances - Safety - Part 2-34: Particular requirements for motor-compressors

This European Standard deals with the safety of sealed (hermetic and semi-hermetic type) motor-compressors, their protection and control systems, if any, which are intended for use in equipment for household and similar purposes and which conform with the standards applicable to such equipment. It applies to motor-compressors tested separately, under the most severe conditions that may be expected to occur in normal use, their rated voltage being not more than 250 V for single-phase motor-compressors and 480 V for other motor-compressors

Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-34: Besondere Anforderungen für Motorverdichter

Appareils électrodomestiques et analogues - Sécurité - Partie 2-34: Exigences particulières pour les motocompresseurs

Gospodinjski in podobni električni aparati - Varnost - 2-34. del: Posebne zahteve za motorne kompresorje - Dopolnilo A11

General Information

• Status: Published
• Publication Date: 04-May-2023
• ICS: 97.040.30 - Domestic refrigerating appliances
• Technical Committee: CLC/TC 61 - Safety of household and similar electrical appliances
• Drafting Committee: CLC/TC 61/WG 01 - Relation with standardization and legislation
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 05-May-2023
• Due Date: 07-Sep-2022
• Completion Date: 05-May-2023
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Mandate: M/511 - Mandate to CEN, CENELEC and ETSI relating to harmonised standards in the field of the Low Voltage Directive
• Ref Project: SIST EN IEC 60335-2-34:2023/A11:2023 - Household and similar electrical appliances - Safety - Part 2-34: Particular requirements for motor-compressors

Relations

• Amends: EN IEC 60335-2-34:2023 - Household and similar electrical appliances - Safety - Part 2-34: Particular requirements for motor-compressors
• Effective Date: 30-Mar-2021

Overview

EN IEC 60335-2-34:2023/A11:2023 is a CENELEC European amendment to the safety standard for motor-compressors used in household and similar electrical appliances. It covers the safety of sealed (hermetic and semi‑hermetic) motor‑compressors and their protection/control systems when those compressors are tested separately under the most severe conditions expected in normal use. The standard applies where the rated voltage is ≤ 250 V for single‑phase motor‑compressors and ≤ 480 V for others. Amendment A11 updates scope, classification, abnormal‑operation requirements and annexes, and adds guidance on interactions with EU regulations.

Key Topics and Requirements

• Scope and exclusions: Clarifies applicability to household and similar equipment and excludes compressors designed exclusively for industrial use (e.g., EN 12693, EN 60034-1).
• Classification: Strengthened language requiring that motor‑compressors “shall be classified,” aligning classification with safety obligations.
• Abnormal operation: Adds requirements for handling potentially explosive atmospheres; where applicable, motor‑compressors shall comply with IEC 60079-1 and IEC 60079-15 (as modified by the amendment) for group IIA gases or the refrigerant used.
• Components and protection: Addresses protective devices and control systems (thermal motor protectors and related component testing are mapped to specific subclauses).
• Annex updates:
  • Annex ZAA (informative): Explains the relevance of the Pressure Equipment Directive (2014/68/EU) for refrigerating systems, including volume/pressure limits and common refrigerant classifications.
  • Annex ZC (normative): Lists international and corresponding European normative references that are invoked by the standard.
• Testing context: Applies to compressors tested separately under expected severe conditions; references ageing tests and motor protector requirements as covered in specific subclauses.

Practical Applications and Users

This standard is essential for:

• Appliance and compressor manufacturers designing sealed hermetic and semi‑hermetic motor‑compressors for household equipment
• Product safety and compliance engineers preparing CE marking and conformity documentation
• Test laboratories performing safety and abnormal‑condition testing
• Regulatory bodies and notified bodies assessing conformity with both electrical safety standards and overlapping EU directives (e.g., PED, Low Voltage Directive)
• Designers selecting refrigerants and sizing pressure-containing components to determine whether PED applies

Practical uses include design validation, component selection (protectors, controls), risk assessment for refrigerants, and establishing test protocols for safety certification.

Related Standards

• EN IEC 60335-1 (Part 1: General requirements)
• IEC 60079-1 and IEC 60079-15 (explosive atmospheres)
• EN 378-2 (refrigerating systems - design and documentation)
• EN 12693 (positive displacement refrigerant compressors)
• EN 60034-1 (rotating electrical machines)

Keywords: EN IEC 60335-2-34:2023/A11:2023, motor-compressors safety, household electrical appliances, hermetic compressor standard, refrigerant safety, Pressure Equipment Directive, CENELEC.

Standards Content (Sample)

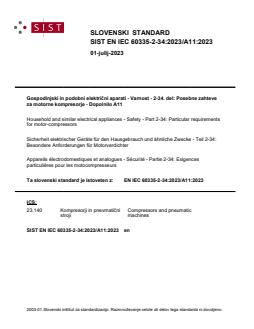

SLOVENSKI STANDARD
01-julij-2023
Gospodinjski in podobni električni aparati - Varnost - 2-34. del: Posebne zahteve
za motorne kompresorje - Dopolnilo A11
Household and similar electrical appliances - Safety - Part 2-34: Particular requirements
for motor-compressors
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-34:
Besondere Anforderungen für Motorverdichter
Appareils électrodomestiques et analogues - Sécurité - Partie 2-34: Exigences
particulières pour les motocompresseurs
Ta slovenski standard je istoveten z: EN IEC 60335-2-34:2023/A11:2023
ICS:
23.140 Kompresorji in pnevmatični Compressors and pneumatic
stroji machines
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60335-2-34:2023/A11
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2023
ICS 97.040.30
English Version
Household and similar electrical appliances - Safety - Part 2-34:
Particular requirements for motor-compressors
Appareils électrodomestiques et analogues - Sécurité - Sicherheit elektrischer Geräte für den Hausgebrauch und
Partie 2-34: Exigences particulières pour les ähnliche Zwecke - Teil 2-34: Besondere Anforderungen für
motocompresseurs Motorverdichter
This amendment A11 modifies the European Standard EN IEC 60335-2-34:2023; it was approved by CENELEC on 2022-09-05. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60335-2-34:2023/A11:2023 E

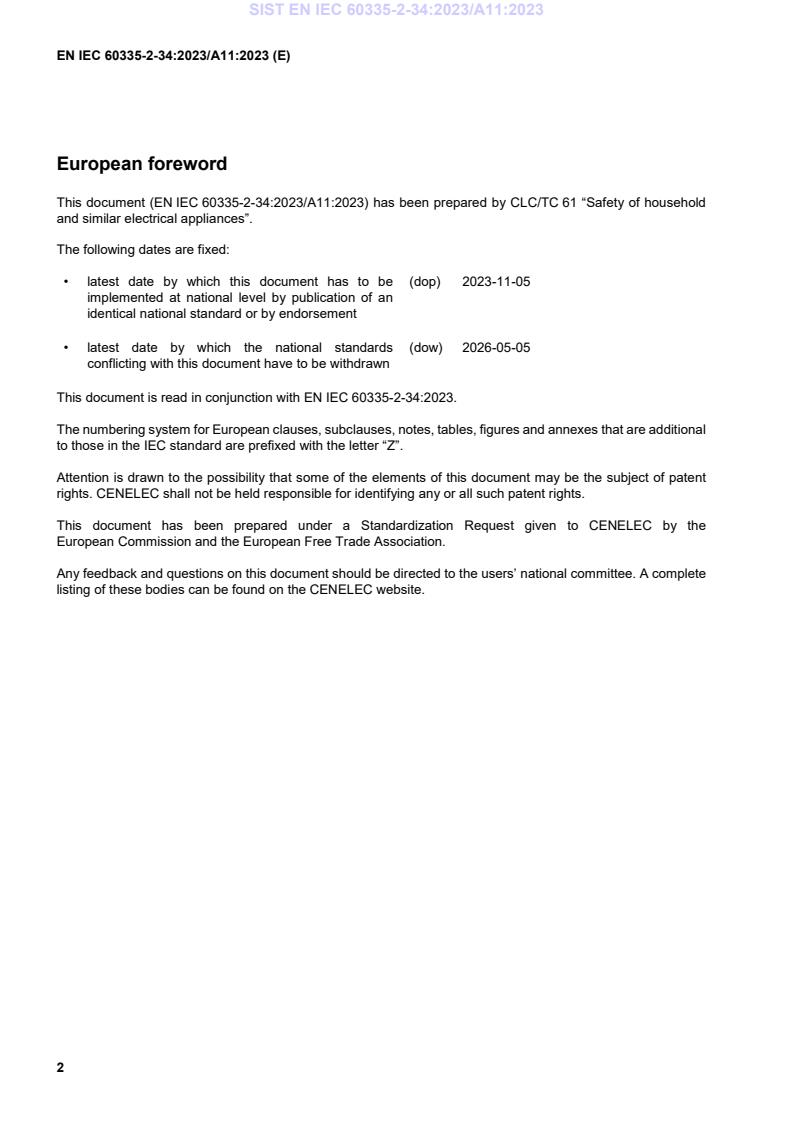

European foreword
This document (EN IEC 60335-2-34:2023/A11:2023) has been prepared by CLC/TC 61 “Safety of household
and similar electrical appliances”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2023-11-05
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) 2026-05-05
conflicting with this document have to be withdrawn
This document is read in conjunction with EN IEC 60335-2-34:2023.
The numbering system for European clauses, subclauses, notes, tables, figures and annexes that are additional
to those in the IEC standard are prefixed with the letter “Z”.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a Standardization Request given to CENELEC by the
European Commission and the European Free Trade Association.
Any feedback and questions on this document should be directed to the users’ national committee. A complete
listing of these bodies can be found on the CENELEC website.
1 Modification to the Introduction
Addition:
With European Amendment A11, EN 60335-2-34:2013 is superseded.
This European Amendment A11, supplements or modifies the corresponding clauses of the standards below:
— EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021+A16:— (Part 1)
— EN IEC 60335-2-34:2023 (Part 2)
2 Modification to Clause 1, “Scope”
Replace the fifth paragraph, excluding note 102, starting from “So far as is practicable …” up to ” -playing with
the appliances by young children” by the following:
This document deals with the reasonably foreseeable hazards presented by appliances that are encountered
by all persons. However, in general, it does not take into account:
— children playing with the appliance;
— the use of the appliance by young children and very young children;
— the use of the appliance by older children without supervision.
It is recognized that very vulnerable people may have needs beyond the level addressed in this document.
In the sixth paragraph starting with “This standard does not apply…”, modify the first dashed item as follows:
— motor-compressors designed exclusively for industrial purposes (EN 12693 or EN 60034-1);
3 Modification to Clause 6, “Classification”
6.101 Modification
Replace “are classified” with “shall be classified” (twice) and “can be classified” by “shall be classified”.
4 Modification to Clause 19, “Abnormal operation”
19.13 Modification
In the addition, replace “this shall be reported” with “shall comply with the requirements of IEC 60079-1 and
IEC 60079-15, as modified by Annex DD, for group IIA gases or the refrigerant used”.
5 Modification to Clause 24, “Components”
24.1.4 Modification
Delete the paragraph starting with “Thermal motor protectors are tested in combination…”.
6 Modification to annexes
To be published in 2023. Stage at the time of publication: FprEN 60335-1:2012/A16:2021.
Annex C
(normative)
Ageing test on motors
This annex of Part 1 is not applicable, as it is covered by subclause 22.9 of this document.
Annex D
(normative)
Thermal motor protectors
This annex of Part 1 is not applicable, as
...
