EN 50498:2010

• Abstract:

  This European Standard specifies limits and methods of measurement for disturbance emissions and immunity characteristics of aftermarket equipment (ESAs) which are referenced by Automotive EMC Directive 2004/104/EC, Annex I, 3.2.9, and which are not related to immunity-related functions of vehicles as defined in Automotive EMC Directive 2004/104/EC, Annex I, 2.1.12. Any equipment (or part of an ESA) which has a primary function of radio transmission and/or reception according to the ITU Radio Regulations are excluded from the scope of this publication. This European Standard covers the frequency range 9 kHz to 400 GHz. To date, it specifies limits and methods of measurement for conducted and radiated disturbances from ESAs in the frequency range 30 MHz to 1 GHz and immunity requirements for conducted transients. The assessment of an ESA needs to be performed only in the frequency ranges where limits are defined. The emission requirements have been selected so as to ensure that disturbances generated by ESAs operating normally do not exceed a level that could prevent the vehicle or apparatus external to the vehicle from operating as intended. Fault conditions are not taken into account. Not all disturbance phenomena have been included for testing purposes in this standard but only those considered as relevant for the equipment covered by this standard. As ESAs covered by this standard are not related to immunity-related function, only the following electromagnetic disturbance phenomena are evaluated: • broadband and narrowband radiated electromagnetic disturbances; • conducted transient disturbances; • conducted transient immunity. Accessories that are not connected directly to the vehicle harness, but only via a special interface are normally excluded from vehicular EMC requirements.

• Status: Published
• Publication Date: 08-Jul-2010
• ICS: 33.100.01 - Electromagnetic compatibility in general
• Technical Committee: CLC/TC 210 - Electromagnetic Compatibility (EMC)
• Drafting Committee: CLC/TC 210 - Electromagnetic Compatibility (EMC)
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 09-Jul-2010
• Completion Date: 09-Jul-2010
• Directive: Not Harmonized2004/108/EC - Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
  OJ Ref: C 53/, C 53/04 OJ Date: 25-Feb-2014
• Directive:

  ---

  Not Harmonized2004/108/EU - DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
  OJ Ref: C 306/01 OJ Date: 25-Feb-2014
• Directive:

  ---

  Harmonized Standard2014/30/EU - Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)
  OJ Ref: C, C 173 OJ Date: 13-May-2016
• Directive:

  ---

  Not Harmonized89/336/EEC - Electromagnetic compatibility (EMC)
• Mandate: M/359 - Standardisation mandate forwarded to CEN/CENELEC/ETSI for equipment covered by the EMC Directive intended to be installed in vehicles
• Ref Project: SIST EN 50498:2011 - Electromagnetic compatibility (EMC) - Product family standard for aftermarket electronic equipment in vehicles

Overview

EN 50498:2010 (CLC) is a European product-family standard for electromagnetic compatibility (EMC) of aftermarket electronic equipment installed in vehicles (Electrical/Electronic Sub‑Assemblies, ESAs). It is referenced by the Automotive EMC Directive 2004/104/EC and specifies limits and measurement methods for disturbance emissions and immunity relevant to ESAs that are not part of vehicle immunity‑related functions. The standard covers the electromagnetic spectrum 9 kHz to 400 GHz but, to date, defines specific measurement limits and methods principally in the 30 MHz to 1 GHz band and immunity tests for conducted transients.

Key topics and requirements

• Scope and exclusions
  • Applies to aftermarket ESAs (e.g., many infotainment or accessory modules) but excludes equipment whose primary function is radio transmission/reception (ITU Radio Regulations).
  • Accessories connected only via a special interface and not to the vehicle harness are normally excluded.
• Emission limits
  • Defines broadband (quasi‑peak) and narrowband (average) radiated disturbance limits for the 30 MHz–1 GHz range to prevent interference with the vehicle or external apparatus.
• Conducted disturbances
  • Specifies limits for conducted transient disturbances on power lines (including typical pulse amplitude limits for 12 V and 24 V vehicle systems).
• Immunity testing
  • Requires application of ISO 7637‑2 transients (pulses 1, 2a, 2b, 3a, 3b and 4) to supply lines and relevant interfaces; immunities are defined at specified test levels (level III) and functional status criteria (functional status D describes degraded operation until reset).
• Test process and reporting
  • Test plan must document ESA size, operating conditions, test facility and antenna types, frequency steps and exercising method.
  • Test reports must provide EUT identification, equipment used, set‑up, performance level, test data, observed effects, and parameters chosen where options exist.

Applications and who uses it

• Aftermarket ESA manufacturers (car alarms, navigation modules, vehicle sensors, non‑radio infotainment add‑ons) use EN 50498 to design for vehicle EMC compliance.
• EMC test laboratories use the standard to certify emissions and conducted immunity of ESAs referenced by the Automotive EMC Directive.
• Vehicle manufacturers (OEMs) and system integrators reference EN 50498 when evaluating compatibility of aftermarket products with vehicle electrical environments.
• Compliance engineers and certification bodies rely on its limits and test methods for CE/EC declarations and regulatory conformity.

Related standards

• ISO 7637‑2 (conducted transient test methods)
• EN 55013, EN 55020, EN 55022, EN 55024 (broadcast/ITE EMC standards)
• Automotive EMC Directive 2004/104/EC and Directive 2004/108/EC

Keywords: EN 50498, EMC, aftermarket electronic equipment, vehicle EMC, Automotive EMC Directive, ESAs, conducted transients, radiated disturbances, ISO 7637-2, CLC, CENELEC.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Elektromagnetna združljivost (EMC) - Standard za družino proizvodov elektronske opreme za naknadno vgradnjo v vozilaElektromagnetische Verträglichkeit (EMV) - Produktfamiliennorm für in Fahrzeugen nachgerüstete elektronische GeräteCompatibilité électromagnétique (CEM) - Norme de famille de produits pour les équipements électroniques destinés au marché des pièces de rechange et accessoires pour véhiculesElectromagnetic compatibility (EMC) - Product family standard for aftermarket electronic equipment in vehicles43.040.10RSUHPDElectrical and electronic equipment33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in generalICS:Ta slovenski standard je istoveten z:EN 50498:2010SIST EN 50498:2011en,fr,de01-januar-2011SIST EN 50498:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD EN 50498 NORME EUROPÉENNE
EUROPÄISCHE NORM July 2010
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2010 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50498:2010 E
ICS 33.100.01
English version
Electromagnetic compatibility (EMC) -
Product family standard for aftermarket electronic equipment in vehicles
Compatibilité électromagnétique (CEM) - Norme de famille de produits
pour les équipements électroniques destinés au marché des pièces
de rechange et accessoires
pour véhicules
Elektromagnetische Verträglichkeit
(EMV) -
Produktfamiliennorm für elektronische Geräte die nachträglich in Fahrzeuge eingebaut werden
This European Standard was approved by CENELEC on 2010-07-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

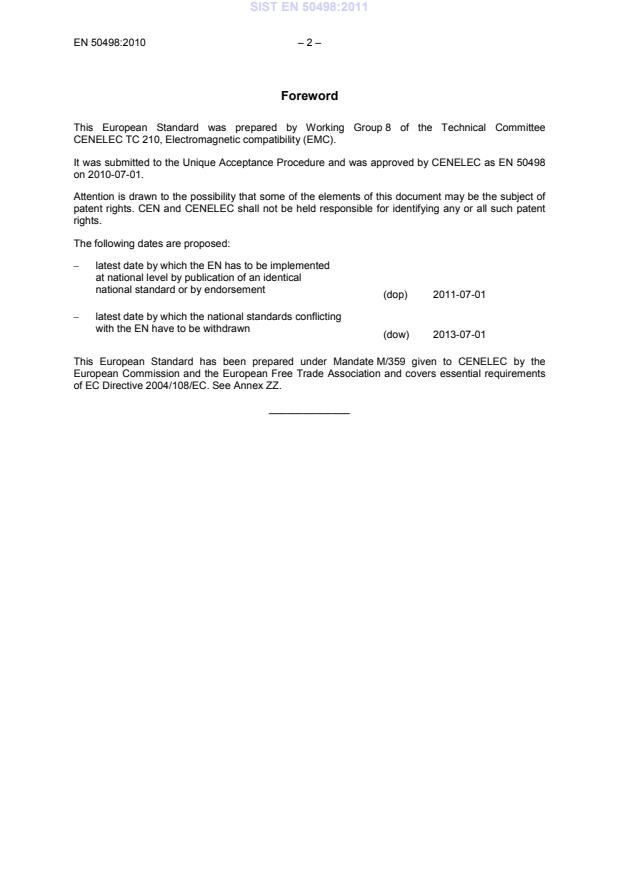

It was submitted to the Unique Acceptance Procedure and was approved by CENELEC as EN 50498 on 2010-07-01. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent rights. The following dates are proposed: – latest date by which the EN has to be implemented at national level by publication of an identical national standard or by endorsement
(dop)
2011-07-01 – latest date by which the national standards conflicting with the EN have to be withdrawn
(dow)
2013-07-01 This European Standard has been prepared under Mandate M/359 given to CENELEC by the European Commission and the European Free Trade Association and covers essential requirements of EC Directive 2004/108/EC. See Annex ZZ. ______________ SIST EN 50498:2011

– 3 – EN 50498:2010 Contents 1Scope and objective . 42Normative references . 43Terms and definitions . 44Abbreviations . 55Test configuration. 56Applicability . 57Requirements . 57.1Broadband radiated disturbances . 57.2Narrowband disturbances. 67.3Conducted transient disturbances . 67.4Conducted transient immunity . 78Test plan . 79Test report . 7Annex ZZ (informative)
Coverage of Essential Requirements of EC Directives . 8Bibliography . 9 Tables Table 1 – Limits for broadband radiated disturbances . 6Table 2 – Limits for narrowband radiated disturbances of ESAs . 6Table 3 – Limits of transient disturbances . 6Table 4 – Immunity test levels and functional status . 7 SIST EN 50498:2011

As ESAs covered by this standard are not related to immunity-related function, only the following electromagnetic disturbance phenomena are evaluated: • broadband and narrowband radiated electromagnetic disturbances; • conducted transient disturbances; • conducted transient immunity. Accessories that are not connected directly to the vehicle harness, but only via a special interface are normally excluded from vehicular EMC requirements. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. ISO 7637-2:2004, Road vehicles – Electrical disturbances from conduction and coupling – Part 2: Electrical transient conduction along supply lines only 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 Electrical/Electronic Sub-Assembly (ESA) electrical and/or electronic device or set(s)
...
