EN 60317-28:2014
(Main)Specifications for particular types of winding wires - Part 28: Polyesterimide enamelled rectangular copper wire, class 180
Specifications for particular types of winding wires - Part 28: Polyesterimide enamelled rectangular copper wire, class 180
IEC 60317-28:2013 specifies the requirements of enamelled rectangular copper winding wire of class 180 with a sole coating based on polyesterimide resin, which may be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. NOTE - A modified resin is a resin that has undergone a chemical change, or contains one or more additives to enhance certain performance or application characteristics. The range of nominal conductor dimensions covered by this standard is: - width: min. 2,0 mm max. 16,0 mm; - thickness: min. 0,80 mm max. 5,60 mm. Wires of grade 1 and grade 2 are included in this specification and apply to the complete range of conductors. The specified combinations of width and thickness as well as the specified width/thickness ratio are given in IEC 60317-0-2:2013. This second edition cancels and replaces the first edition published in 1990, Amendment 1:1997 and Amendment 2:2007. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: - new subclause containing general notes on winding wire, formerly a part of the scope; - revision to references to IEC 60317-0-2:2013 to clarify that their application is normative; - new 3.3, Appearance; - deletion of Clause 22, High temperature failure; - modification to Clause 23, Pin hole test. Keywords: requirements of enamelled rectangular copper winding wire, class 180, sole coating based on polyesterimide resin
Festlegungen für bestimmte Typen von Wickeldrähten - Teil 28: Flachdrähte aus Kupfer, lackisoliert mit Polyesterimid, Klasse 180
Spécifications pour types particuliers de fils de bobinage - Part 28: Fil de section rectangulaire en cuivre émaillé avec polyesterimide, classe 180
La CEI 60317-28:2013 spécifie les exigences pour les fils de bobinage de section rectangulaire en cuivre émaillé de classe 180 avec un revêtement unique à base de résine polyesterimide, qui peut être modifiée sous réserve de conserver l'identité chimique de la résine initiale et de répondre à toutes les exigences spécifiées pour le fil. NOTE - Une résine modifiée est une résine qui a subi une modification chimique, ou qui contient un ou plusieurs additifs pour améliorer les résultats obtenus ou les caractéristiques d'utilisation. La gamme des dimensions nominales des conducteurs couverte par la présente norme est: - largeur: min. 2,0 mm max. 16,0 mm; - épaisseur: min. 0,80 mm max. 5,60 mm. Les fils de grade 1 et de grade 2 sont compris dans la présente spécification et s'appliquent à la gamme complète des conducteurs. Les combinaisons spécifiées de largeur et d'épaisseur ainsi que le rapport largeur/épaisseur spécifié sont indiqués dans la CEI 60317-0-2:2013. Cette deuxième édition annule et remplace la première édition parue en 1990, l'Amendement 1:1997 et l'Amendement 2:2007. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques significatives suivantes par rapport à l'édition précédente: - un nouveau paragraphe contenant des notes générales sur le fil de bobinage intégrées auparavant au domaine d'application; - la révision des références à la CEI 60317-0-2:2013, pour bien établir que leur application est normative; - un nouveau 3.3, Aspect; - la suppression de l'Article 22, Défaillance à haute température; - une révision de l'Article 23, Détection des microfissures en immersion. Mots clés: exigences pour les fils de bobinage de section rectangulaire en cuivre émaillé, de classe 180, revêtement unique à base de résine polyesterimide
Specifikacije za posebne vrste navijalnih žic - 28. del: S poliesterimidom emajliran bakren pravokoten vodnik, razred 180 (IEC 60317-28:2013)
General Information
Relations
Standards Content (Sample)

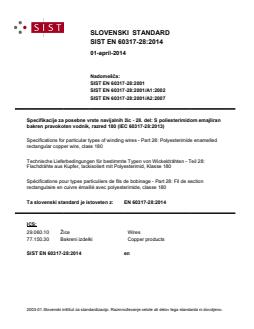

SLOVENSKI STANDARD
01-april-2014
Nadomešča:
SIST EN 60317-28:2001
SIST EN 60317-28:2001/A1:2002
SIST EN 60317-28:2001/A2:2007
Specifikacije za posebne vrste navijalnih žic - 28. del: S poliesterimidom emajliran
bakren pravokoten vodnik, razred 180 (IEC 60317-28:2013)
Specifications for particular types of winding wires - Part 28: Polyesterimide enamelled
rectangular copper wire, class 180
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 28:
Flachdrähte aus Kupfer, lackisoliert mit Polyesterimid, Klasse 180
Spécifications pour types particuliers de fils de bobinage - Part 28: Fil de section
rectangulaire en cuivre émaillé avec polyesterimide, classe 180
Ta slovenski standard je istoveten z: EN 60317-28:2014
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

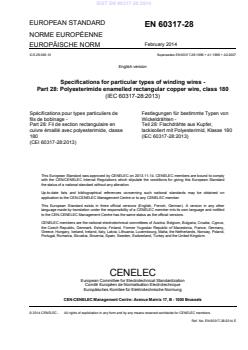

EUROPEAN STANDARD
EN 60317-28
NORME EUROPÉENNE
February 2014
EUROPÄISCHE NORM
ICS 29.060.10 Supersedes EN 60317-28:1996 + A1:1998 + A2:2007
English version
Specifications for particular types of winding wires -
Part 28: Polyesterimide enamelled rectangular copper wire, class 180
(IEC 60317-28:2013)
Spécifications pour types particuliers de Festlegungen für bestimmte Typen von
fils de bobinage - Wickeldrähten -
Part 28: Fil de section rectangulaire en Teil 28: Flachdrähte aus Kupfer,
cuivre émaillé avec polyesterimide, classe lackisoliert mit Polyesterimid, Klasse 180
180 (IEC 60317-28:2013)
(CEI 60317-28:2013)
This European Standard was approved by CENELEC on 2013-11-14. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60317-28:2014 E

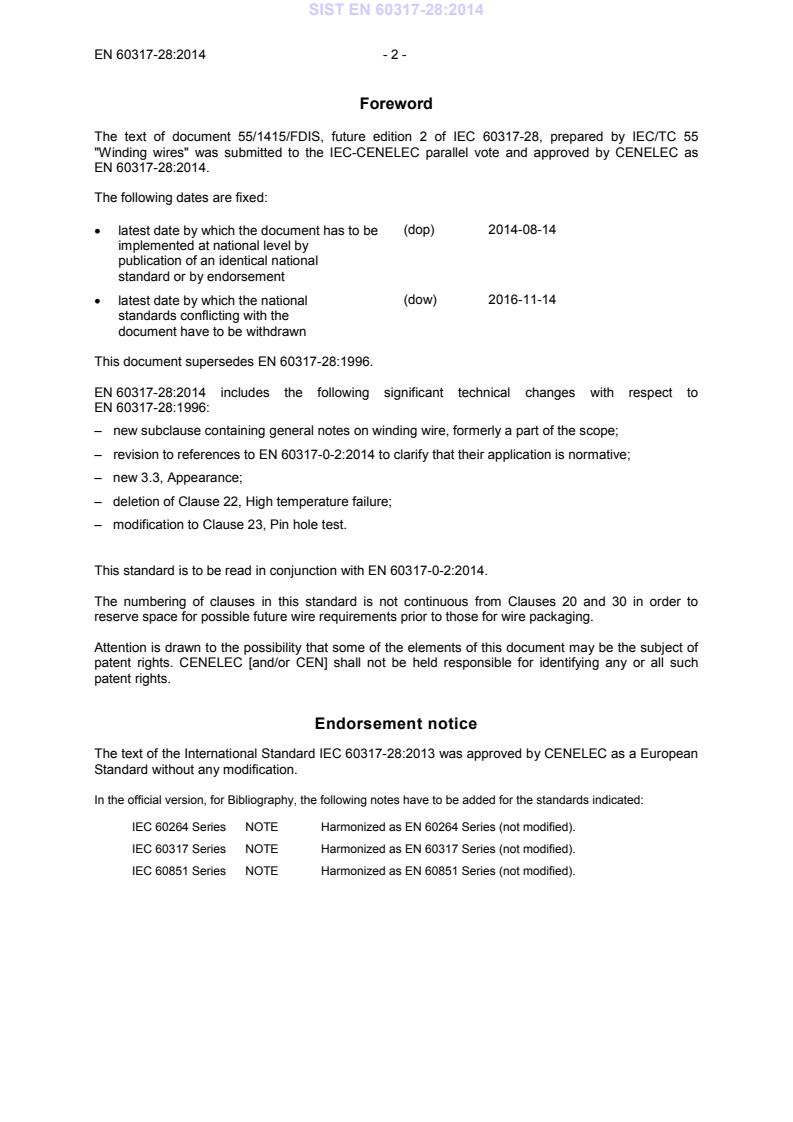

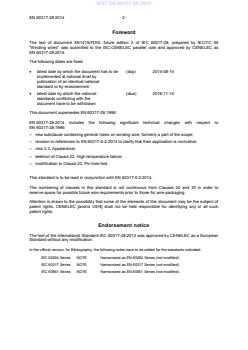

Foreword
The text of document 55/1415/FDIS, future edition 2 of IEC 60317-28, prepared by IEC/TC 55
"Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2014-08-14
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-11-14
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60317-28:1996.
EN 60317-28:1996:
– new subclause containing general notes on winding wire, formerly a part of the scope;
– revision to references to EN 60317-0-2:2014 to clarify that their application is normative;
– new 3.3, Appearance;
– deletion of Clause 22, High temperature failure;
– modification to Clause 23, Pin hole test.
This standard is to be read in conjunction with EN 60317-0-2:2014.
The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order to
reserve space for possible future wire requirements prior to those for wire packaging.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 60317-28:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60264 Series NOTE Harmonized as EN 60264 Series (not modified).
IEC 60317 Series NOTE Harmonized as EN 60317 Series (not modified).
IEC 60851 Series NOTE Harmonized as EN 60851 Series (not modified).
- 3 - EN 60317-28:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
IEC 60317-0-2 2013 Specifications for particular types EN 60317-0-2 2014
of winding wires -
Part 0-2: General requirements - Enamelled
rectangular copper wire
IEC 60317-28 ®
Edition 2.0 2013-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 28: Polyesterimide enamelled rectangular copper wire, class 180
Spécifications pour types particuliers de fils de bobinage –
Partie 28: Fil de section rectangulaire en cuivre émaillé avec polyesterimide,
classe 180
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX J
ICS 29.060.10 ISBN 978-2-8322-1143-4
– 2 – 60317-28 © IEC:2013
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Methods of test . 6
3.2.2 Winding wire . 6
3.3 Appearance . 7
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion . 7
12 Resistance to solvents . 7
13 Breakdown voltage . 7
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 8
18 Heat or solvent bonding .
...
