EN 61184:2017
(Main)Bayonet lampholders
Bayonet lampholders
IEC 61184:2017 This document applies to bayonet lampholders B15d and B22d for connection of lamps and semi-luminaires to a supply voltage of 250 V. This document also covers lampholders which are integral with a luminaire or intended to be built into appliances. It covers the requirements for the lampholder only. This fourth edition cancels and replaces the third edition published in 2008 and Amendment 1:2011. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) Restructuring of the standard in accordance with IEC Directives Part 2. b) Clause 18: Update on creepage distances and clearances; c) Addition of Annex B.
Bajonett-Lampenfassungen
Douilles à baïonnette
L'IEC 61184:2017 Le présent document s'applique aux douilles à baïonnette B15d et B22d destinées à connecter les lampes et les semi-luminaires à une tension d'alimentation de 250 V. Le présent document couvre également les douilles qui sont intégrées dans un luminaire ou destinées à être incorporées dans des appareils. Il couvre uniquement les exigences applicables à la douille. Cette quatrième édition annule et remplace la troisième édition parue en 2008 et son Amendement 1:2011. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) Restructuration de la norme conformément aux Directives IEC, Partie 2. b) Article 18: Mise à jour des distances dans l’air et des lignes de fuite; c) Ajout de l’Annexe B.
Bajonetni okovi za žarnice in sijalke (IEC 61184:2017)
Ta dokument se nanaša na bajonetne okove B15d in B22d za priključitev sijalk in polsvetilk na napajalno napetost 250 V.
Ta dokument zajema tudi okove, ki so del sijalk ali bodo vgrajeni v naprave. Zajema samo zahteve za okove za sijalke in žarnice.
Za vse druge zahteve, kot je zaščita pred električnim udarom v območju terminalov, se upoštevajo zahteve zadevnega standarda za naprave, ki se preskusijo po vgradnji v ustrezno opremo, ta oprema pa je preskušena po lastnem standardu. Okovi, ki so namenjeni zgolj uporabi proizvajalcev svetilk, niso namenjeni prodaji na drobno. Če so v svetilkah uporabljeni okovi, so njihove najvišje temperature delovanja določene v IEC 60598-1.
B15d označuje prileganje vznožka/okova, kot to določa standard IEC 60061-1, list 7004-11 in IEC 60061-2, list 7005-16 z ustreznimi merami.
B22d označuje prileganje vznožka/okova, kot to določa standard IEC 60061-1, list 7004-10 in IEC 60061-2, list 7005-10 z ustreznimi merami.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2018
1DGRPHãþD
SIST EN 61184:2008
SIST EN 61184:2008/A1:2011
Bajonetni okovi za žarnice in sijalke (IEC 61184:2017)
Bayonet lampholders (IEC 61184:2017)
Bajonett-Lampenfassungen (IEC 61184:2017)
Douilles à baïonnette (IEC 61184:2017)
Ta slovenski standard je istoveten z: EN 61184:2017
ICS:
29.140.10 Grla in držala žarnic Lamp caps and holders
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 61184
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2017
ICS 29.140.10 Supersedes EN 61184:2008
English Version
Bayonet lampholders
(IEC 61184:2017)
Douilles à baïonnette Bajonett-Lampenfassungen
(IEC 61184:2017) (IEC 61184:2017)
This European Standard was approved by CENELEC on 2017-06-26. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61184:2017 E

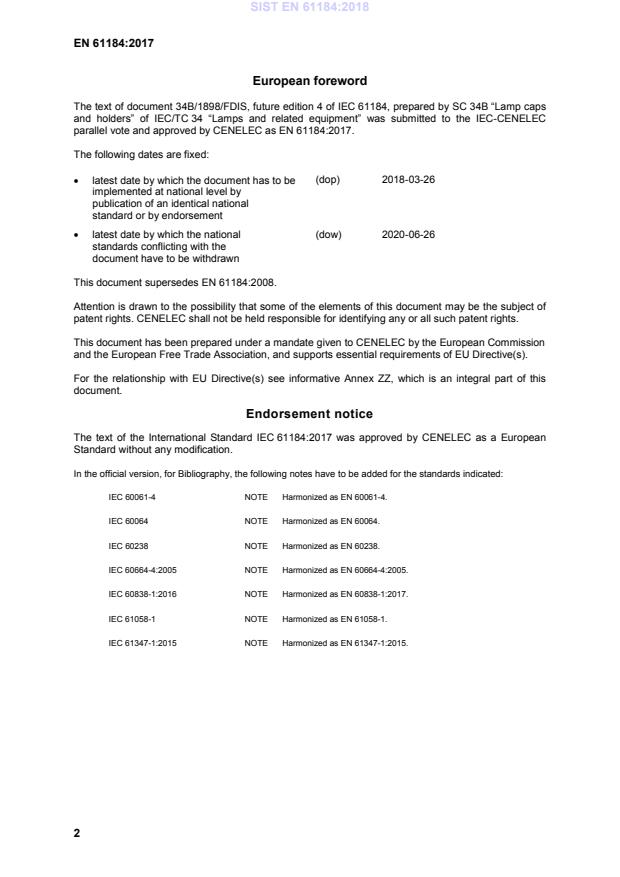

European foreword
The text of document 34B/1898/FDIS, future edition 4 of IEC 61184, prepared by SC 34B “Lamp caps
and holders” of IEC/TC 34 “Lamps and related equipment” was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN 61184:2017.
The following dates are fixed:
(dop) 2018-03-26
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2020-06-26
standards conflicting with the
document have to be withdrawn
This document supersedes EN 61184:2008.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
Endorsement notice
The text of the International Standard IEC 61184:2017 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60061-4 NOTE Harmonized as EN 60061-4.
IEC 60064 NOTE Harmonized as EN 60064.
IEC 60238 NOTE Harmonized as EN 60238.
IEC 60664-4:2005 NOTE Harmonized as EN 60664-4:2005.
IEC 60838-1:2016 NOTE Harmonized as EN 60838-1:2017.
IEC 61058-1 NOTE Harmonized as EN 61058-1.
IEC 61347-1:2015 NOTE Harmonized as EN 61347-1:2015.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60061-1 - Lamp caps and holders together with EN 60061-1 -
gauges for the control of interchangeability
and safety -- Part 1: Lamp caps
IEC 60061 series Lamp caps and holders together with EN 60061 series
gauges for the control of interchangeability
and safety
IEC 60061-2 - Lamp caps and holders together with EN 60061-2 -
gauges for the control of interchangeability
and safety -- Part 2: Lampholders
IEC 60061-3 - Lamp caps and holders together with EN 60061-3 -
gauges for the control of interchangeability
and safety -- Part 3: Gauges
IEC 60068-2-75 2014 Environmental testing - Part 2-75: Tests - EN 60068-2-75 2014
Test Eh: Hammer tests
IEC 60112 2003 Method for the determination of the proof EN 60112 2003
and the comparative tracking indices of
solid insulating materials
+ A1 2009 + A1 2009
IEC 60227 series Polyvinyl chloride insulated cables of rated - series
voltages up to and including 450/750 V
IEC 60245 series Rubber insulated cables - Rated voltages - series
up to and including 450/750 V
IEC 60399 - Barrel thread for lampholders with shade EN 60399 -
holder ring
IEC 60417 - Graphical symbols for use on equipment. - -
Index, survey and compilation of the single
sheets.
IEC 60432 series Incandescent lamps - Safety specifications EN 60432 series
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
- - + corrigendum May 1993
+ A1 1999 + A1 2000
+ A2 2013 + A2 2013
IEC 60598-1 - Luminaires -- Part 1: General requirements EN 60598-1 -
and tests
IEC 60664-1 2007 Insulation coordination for equipment EN 60664-1 2007
within low-voltage systems -- Part 1:
Principles, requirements and tests
IEC 60695-2-11 2014 Fire hazard testing - Part 2-11: EN 60695-2-11 2014
Glowing/hot-wire based test methods -
Glow-wire flammability test method for
end-products (GWEPT)
IEC 60695-11-5 - Fire hazard testing - Part 11-5: Test flames EN 60695-11-5 -
- Needle-flame test method - Apparatus,
confirmatory test arrangement and
guidance
ISO 4046-4 2016 Paper, board, pulps and related terms - - -
Vocabulary - Part 4: Paper and board
grades and converted products
Annex ZZ
(informative)
Relationship between this European standard and the safety objectives of
Directive 2014/35/EU [2014 OJ L96] aimed to be covered
This European standard has been prepared under a Commission’s standardisation request relating to
harmonised standards in the field of the Low Voltage Directive, M/511, to provide one voluntary means
of conforming to safety objectives of Directive 2014/35/EU of the European Parliament and of the
Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the
making available on the market of electrical equipment designed for use within certain voltage limits
[2014 OJ L96].
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZ.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding safety objectives of
that Directive, and associated EFTA regulations.
Table ZZ.1 – Correspondence between this European standard and Annex I of
Directive 2014/35/EU [2014 OJ L96]
Safety objectives of Directive Clause(s) / sub-clause(s)
Remarks / Notes
2014/35/EU of this EN
1. General conditions
a) the essential characteristics, Clause 8
the recognition and observance
of which will ensure that
electrical equipment will be used
safely and in applications for
which it was made, shall be
marked on the electrical
equipment, or, if this is not
possible, on an accompanying
document;
b) the electrical equipment, All clauses
together with its component
parts, shall be made in such a
way as to ensure that it can be
safely and properly assembled
and connected;
c) the electrical equipment shall See item 2 and 3 of this table
be so designed and
manufactured as to ensure that
protection against the hazards
set out in points 2 and 3 is
assured, providing that the
equipment is used in
applications for which it was
made and is adequately
maintained.
2. Protection against hazards
arising from the electrical
equipment
Measures of a technical nature
shall be laid down in accordance
with point 1, in order to ensure
that:
a) persons and domestic Clauses 4, 9, 10, 11, 12, 13, 14,
15 and 17
animals are adequately
protected against the danger of
physical injury or other harm
which might be caused by direct
or indirect contact;
b) temperatures, arcs or Clauses 13, 15, 18, 19 and 20
radiation which would cause a
danger, are not produced;
c) persons, domestic animals Clauses 4, 13, 16 and 21
and property are adequately
protected against non-electrical
dangers caused by the electrical
equipment which are revealed
by experience;
d) the insulation is suitable for Clauses 10, 12, 13, 16, 18, 19
foreseeable conditions. and 20
3. Protection against hazards
which may be caused by
external influences on the
electrical equipment
Technical measures shall be
laid down in accordance with
point 1, in order to ensure that
the electrical equipment:
a) meets the expected Clauses 8, 9, 13, 16 and 21
mechanical requirements in
such a way that persons,
domestic animals and property
are not endangered;
b) is resistant to non-mechanical Clauses 13, 15,18, 19 and 20
influences in expected
environmental conditions, in
such a way that persons,
domestic animals and property
are not endangered;
c) does not endanger persons, Clauses 13, 15, 19 and 20
domestic animals and property
in foreseeable conditions of
overload.
WARNING 1: Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2: Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
IEC 61184 ®
Edition 4.0 2017-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Bayonet lampholders
Douilles à baïonnette
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.10 ISBN 978-2-8322-4361-9
– 2 – IEC 61184:2017 IEC 2017
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
3.1 Materials . 8
3.2 Means of fixing . 9
4 General requirements . 13
5 General conditions for tests . 13
6 Standard ratings . 14
6.1 Standard rated voltage . 14
6.2 Standard rated currents . 15
7 Classification . 15
8 Marking . 16
9 Dimensions. 18
10 Protection against electric shock . 19
11 Terminals .
...
