IEC 60245-1:2003+AMD1:2007 CSV

Rubber insulated cables - Rated voltages up to and including 450/750 V - Part 1: General requirements

Applies to rigid and flexible cables with insulation, and sheath if any, based on vulcanized rubber of rated voltages Uo/U up to and including 450/750 V used in power installations of nominal voltage not exceeding 450/750 V a.c. The particular types of cables are specified in IEC 60245-3, IEC 60245-4, etc. The code designations of these types of cables are given in Annex A. The principal change with respect to the previous edition is the replacement of insulation IE 1 with IE 4.

Conducteurs et câbles isolés au caoutchouc - Tension assignée au plus égale à 450/750 V - Partie 1: Exigences générales

S'applique aux conducteurs et câbles souples et rigides ayant une enveloppe isolante, et éventuellement une gaine, à base de caoutchouc vulcanisé, de tension assignée Uo/U au plus égale à 450/750 V, utilisés dans les installations d'énergie d'une tension nominale ne dépassant pas 450/750 V en courant alternatif. Les types particuliers de conducteurs et de câbles sont spécifiés dans la CEI 60245-3, la CEI 60245-4, etc. Le code de désignation de ces types de câbles est donné dans l'Annexe A. Le principal changement par rapport à l'édition précédente est le remplacement de l'isolation IE 1 par IE 4.

General Information

• Status: Published
• Publication Date: 29-Jan-2008
• ICS: 25.160.20 - Welding consumables
• ICS: 29.060.20 - Cables
• Technical Committee: TC 20 - Electric cables
• Current Stage: PPUB - Publication issued
• Start Date: 30-Jan-2008
• Completion Date: 30-Jan-2008

Standards Content (Sample)

IEC 60245-1
Edition 4.1 2008-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Rubber insulated cables – Rated voltages up to and including 450/750 V –
Part 1: General requirements
Conducteurs et câbles isolés au caoutchouc – Tension assignée au plus égale
à 450/750 V –
Partie 1: Exigences générales
IEC 60245-1:2003+A1:2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 60245-1
Edition 4.1 2008-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Rubber insulated cables – Rated voltages up to and including 450/750 V –
Part 1: General requirements
Conducteurs et câbles isolés au caoutchouc – Tension assignée au plus égale
à 450/750 V –
Partie 1: Exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CJ
CODE PRIX
ICS 25.160.20; 29.060.20 ISBN 2-8318-9450-6

– 2 – 60245-1 © IEC:2003+A1:2007

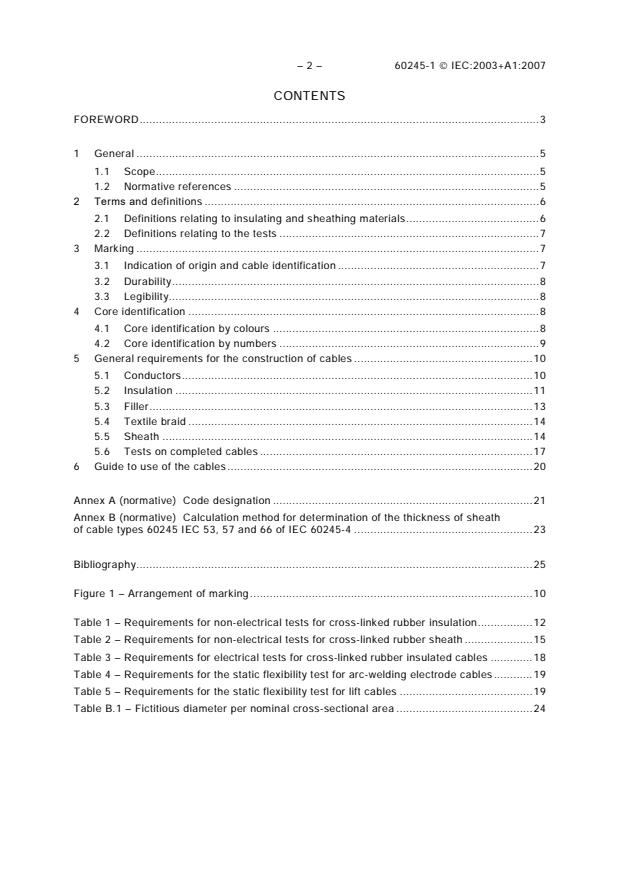

CONTENTS
FOREWORD.3

1 General.5
1.1 Scope.5
1.2 Normative references.5
2 Terms and definitions .6
2.1 Definitions relating to insulating and sheathing materials.6
2.2 Definitions relating to the tests .7
3 Marking.7
3.1 Indication of origin and cable identification .7
3.2 Durability.8
3.3 Legibility.8
4 Core identification.8
4.1 Core identification by colours .8
4.2 Core identification by numbers .9
5 General requirements for the construction of cables .10
5.1 Conductors.10
5.2 Insulation.11
5.3 Filler.13
5.4 Textile braid.14
5.5 Sheath.14
5.6 Tests on completed cables .17
6 Guide to use of the cables.20

Annex A (normative) Code designation .21
Annex B (normative) Calculation method for determination of the thickness of sheath
of cable types 60245 IEC 53, 57 and 66 of IEC 60245-4 .23

Bibliography.25

Figure 1 – Arrangement of marking.10

Table 1 – Requirements for non-electrical tests for cross-linked rubber insulation.12
Table 2 – Requirements for non-electrical tests for cross-linked rubber sheath .15
Table 3 – Requirements for electrical tests for cross-linked rubber insulated cables .18
Table 4 – Requirements for the static flexibility test for arc-welding electrode cables .19
Table 5 – Requirements for the static flexibility test for lift cables .19
Table B.1 – Fictitious diameter per nominal cross-sectional area .24

60245-1 © IEC:2003+A1:2007 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
RUBBER INSULATED CABLES –
RATED VOLTAGES UP TO AND INCLUDING 450/750 V –

Part 1: General requirements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specificatzions (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60245-1 has been prepared by IEC technical committee 20:
Electric cables.
The principal change with respect to the previous edition is the replacement of insulation IE 1
with IE 4. This fourth edition does not constitute a full technical revision.
This consolidated version of IEC 60245-1 consists of the fourth edition (2003) [documents
20/659/FDIS and 20/679/RVD] and its amendment 1 (2007) [documents 20/902/FDIS and
20/909/RVD].
The technical content is therefore identical to the base edition and its amendment and has
been prepared for user convenience.
It bears the edition number 4.1.

– 4 – 60245-1 © IEC:2003+A1:2007
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
IEC 60245 consists of the following parts, under the general title Rubber insulated cables –
Rated voltages up to and including 450/750 V:
Part 1: General requirements
Part 2: Test methods
Part 3: Heat resistant silicone insulated cables
Part 4: Cords and flexible cables
Part 5: Lift cables
Part 6: Arc welding electrode cables
Part 7: Heat resistant ethylene-vinyl-acetate rubber insulated cables
Part 8: Cords for applications requiring high flexibility
Parts 3 to 8 are for particular types of cable and should be read in conjunction with Part 1 and
Part 2. Further parts may be added as other types are standardized.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date,
the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60245-1 © IEC:2003+A1:2007 – 5 –
RUBBER INSULATED CABLES –
RATED VOLTAGES UP TO AND INCLUDING 450/750 V –

Part 1: General requirements
1 General
1.1 Scope
This part of IEC 60245
...
