prEN IEC 62271-205:2026

Hochspannungs-Schaltgeräte und -Schaltanlagen - Teil 205: Kompakte Schaltgerätekombinationen für Bemessungsspannungen über 52 kV

Appareillage à haute tension - Partie 205: Ensembles d'appareillage compacts, postes mobiles et préfabriqués pour une tension nominale supérieure à 52 kv

Visokonapetostne stikalne in krmilne naprave - 205. del: Sestav omrežnih stikalnih naprav, mobilne in montažne postaje za naznačene napetosti nad 52 kV

General Information

• Status: Not Published
• Publication Date: 16-Jan-2028
• ICS: 29.130.10 - High voltage switchgear and controlgear
• ICS: 29.130.99 - Other switchgear and controlgear
• Technical Committee: CLC/TC 17AC - High-voltage switchgear and controlgear
• Drafting Committee: IEC/SC 17C - IEC_SC_17C
• Current Stage: 4020 - Enquiry circulated - Enquiry
• Start Date: 26-Jun-2026
• Due Date: 31-May-2024
• Completion Date: 26-Jun-2026
• Ref Project: oSIST prEN IEC 62271-205:2026 - High-voltage switchgear and controlgear - Part 205: Compact switchgear assemblies, mobile and prefabricated substations for rated voltage above 52 kv

Relations

• Revises: EN 62271-205:2008 - High-voltage switchgear and controlgear - Part 205: Compact switchgear assemblies for rated voltages above 52 kV
• Effective Date: 23-Jan-2023

Overview

prEN IEC 62271-205:2026 is a CLC-adopted international standard that specifies requirements for high-voltage switchgear and controlgear assemblies-specifically, compact switchgear, mobile substations, and prefabricated substations intended for rated voltages above 52 kV. This standard applies to systems for both indoor and outdoor installation, serving public utility, industrial, or emergency power supply needs where rapid deployment, modularity, and operational safety of high-voltage equipment are crucial.

This edition introduces significant updates:

• Expanding the scope to include both mobile and prefabricated substations
• New and clarified definitions for mobile and prefabricated substations
• Separation of requirements specific to compact assemblies, mobile, and prefabricated substations
• Updated references to the latest IEC publications

Key Topics

The standard covers several critical technical areas to ensure performance, safety, and adaptability:

• Definitions and Types:

  • Compact switchgear assemblies: Integration of switching devices, instrument transformers, and other elements for high-voltage switching in a single compact unit.
  • Prefabricated substations: Factory-built assemblies for permanent installation.
  • Mobile substations: Factory-built assemblies engineered for rapid deployment and relocatability.

• Service Conditions:

  • Applicable for installations with rated voltages above 52 kV and frequencies up to 60 Hz.
  • Guidance for both indoor (containerized/enclosed) and outdoor environments.

• Design and Construction:

  • Requirements for earthing, corrosion resistance, sealing, position indication, and safety labeling.
  • Modular approach, allowing combinations of modules: high-voltage, transformer, medium-voltage, and protection/control.

• Testing and Ratings:

  • Type and routine testing procedures to demonstrate dielectric strength, resistance, current-carrying capability, tightness, and operational reliability.
  • Ratings encompass voltage, insulation, frequency, short-time withstand current, and more.

• Safety and Environmental Aspects:

  • Specialized provisions for maintenance, safety interlocks, and minimizing environmental impact throughout the product lifecycle.

Applications

The standard is relevant for organizations involved in the design, procurement, and operation of high-voltage substations, ensuring that products conform to internationally accepted safety, performance, and interoperability criteria in the following scenarios:

• Electric Utilities: Rapidly deployable mobile substations for grid emergencies, planned maintenance, or network expansion.
• Industrial Facilities: Compact switchgear and prefabricated substations where space, installation time, or relocation flexibility are key factors.
• Construction Projects: Temporary high-voltage substations for short- and intermediate-term power supply on sites.
• Disaster Recovery and Grid Reliability: Quick restoration of power using mobile substations after natural disasters or major faults.

Benefits include:

• Reduced installation time and costs due to off-site fabrication and pre-testing
• Modular solutions enable scalability and relocation as operational needs evolve
• Consistent safety and quality across international projects

Related Standards

The prEN IEC 62271-205:2026 is designed for use alongside other essential IEC publications in the high-voltage domain, including:

• IEC 62271-1: Common specifications for switchgear and controlgear
• IEC 62271-203: Requirements for gas-insulated metal-enclosed switchgear above 52 kV
• IEC 60068-2-17: Environmental testing - Sealing tests
• IEC 61936-1: Power installations exceeding 1 kV AC and 1.5 kV DC - General requirements
• IEC 62271-4: Handling procedures for gases in insulating and/or switching devices

By harmonizing requirements with these related standards, prEN IEC 62271-205:2026 streamlines compliance, supports effective risk management, and enhances operational efficiency in high-voltage power systems worldwide.

---

For further details and the full requirements, refer to the official publication of prEN IEC 62271-205:2026 High-voltage switchgear and controlgear - Part 205: Compact switchgear assemblies, mobile and prefabricated substations for rated voltage above 52 kV.

Standards Content (Sample)

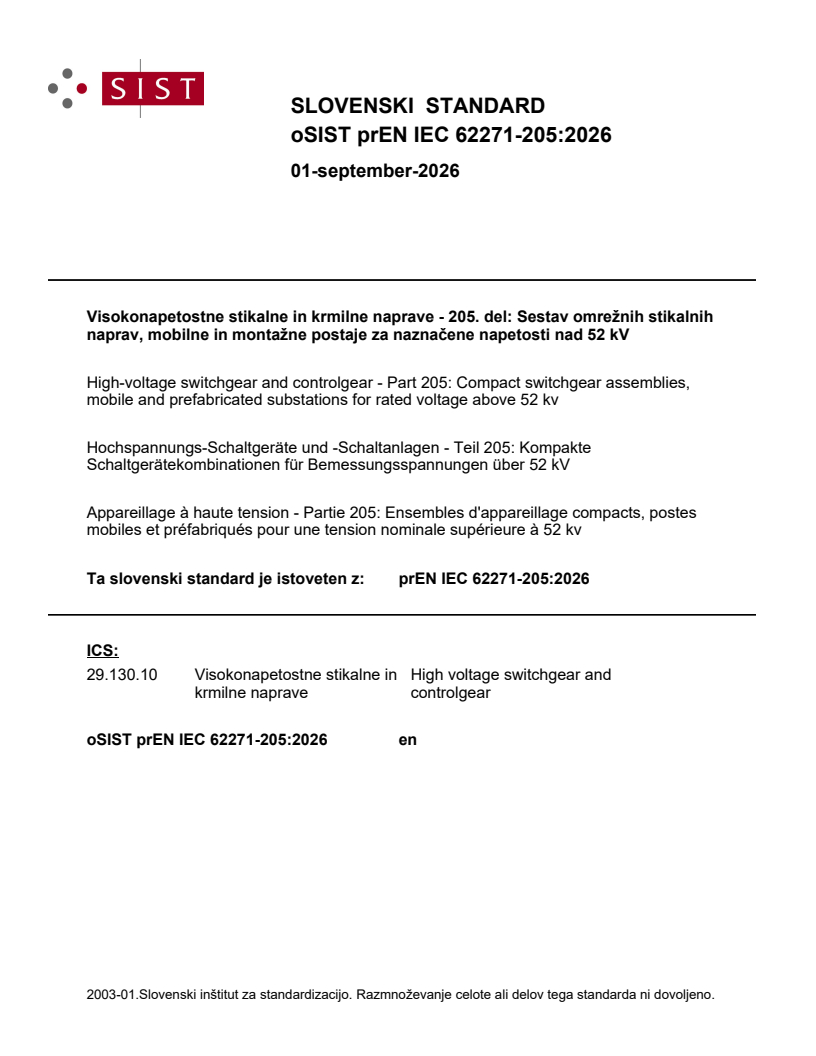

SLOVENSKI STANDARD
01-september-2026
Visokonapetostne stikalne in krmilne naprave - 205. del: Sestav omrežnih stikalnih
naprav, mobilne in montažne postaje za naznačene napetosti nad 52 kV
High-voltage switchgear and controlgear - Part 205: Compact switchgear assemblies,
mobile and prefabricated substations for rated voltage above 52 kv
Hochspannungs-Schaltgeräte und -Schaltanlagen - Teil 205: Kompakte
Schaltgerätekombinationen für Bemessungsspannungen über 52 kV
Appareillage à haute tension - Partie 205: Ensembles d'appareillage compacts, postes
mobiles et préfabriqués pour une tension nominale supérieure à 52 kv
Ta slovenski standard je istoveten z: prEN IEC 62271-205:2026
ICS:
29.130.10 Visokonapetostne stikalne in High voltage switchgear and
krmilne naprave controlgear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

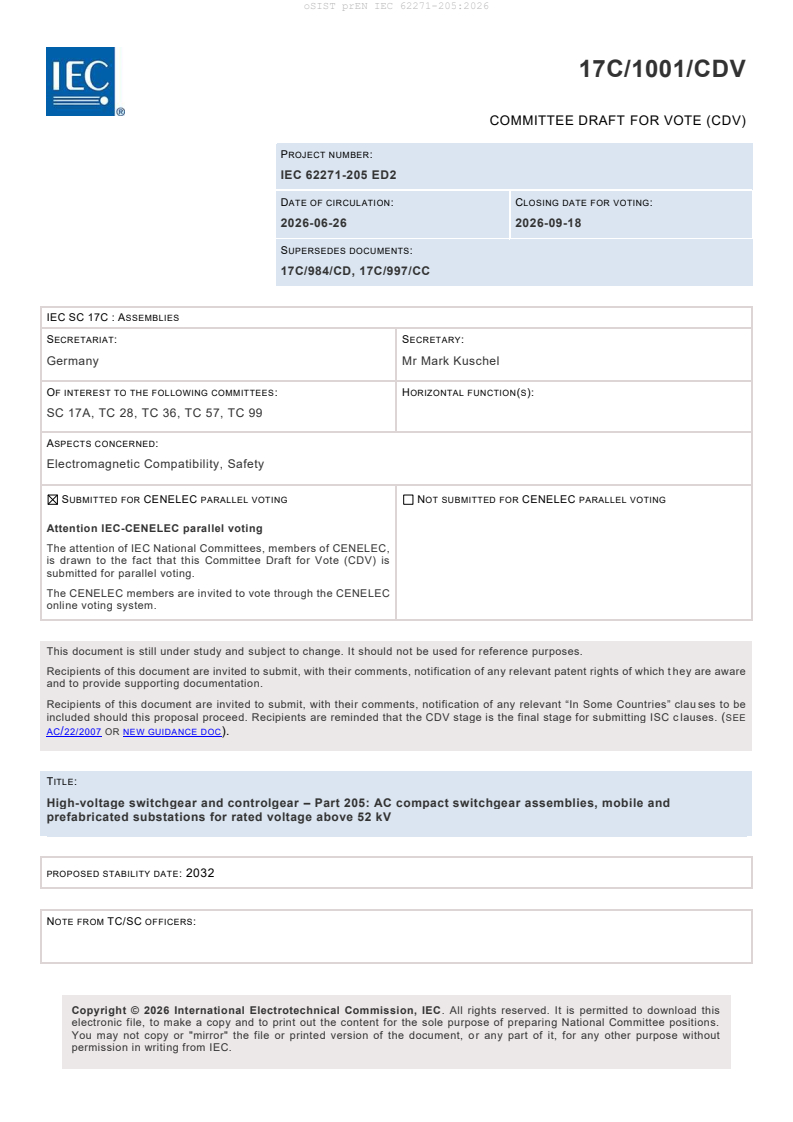

17C/1001/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 62271-205 ED2
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2026-06-26 2026-09-18
SUPERSEDES DOCUMENTS:
17C/984/CD, 17C/997/CC
IEC SC 17C : ASSEMBLIES
SECRETARIAT: SECRETARY:
Germany Mr Mark Kuschel
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):
SC 17A, TC 28, TC 36, TC 57, TC 99
ASPECTS CONCERNED:
Electromagnetic Compatibility, Safety
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of CENELEC,
is drawn to the fact that this Committee Draft for Vote (CDV) is
submitted for parallel voting.
The CENELEC members are invited to vote through the CENELEC
online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of which t hey are aware
and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some Countries” clau ses to be
included should this proposal proceed. Recipients are reminded that the CDV stage is the final stage for submitting ISC c lauses. (SEE
AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
High-voltage switchgear and controlgear – Part 205: AC compact switchgear assemblies, mobile and
prefabricated substations for rated voltage above 52 kV

PROPOSED STABILITY DATE: 2032
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.

IEC CDV 62271-205 © IEC 2026

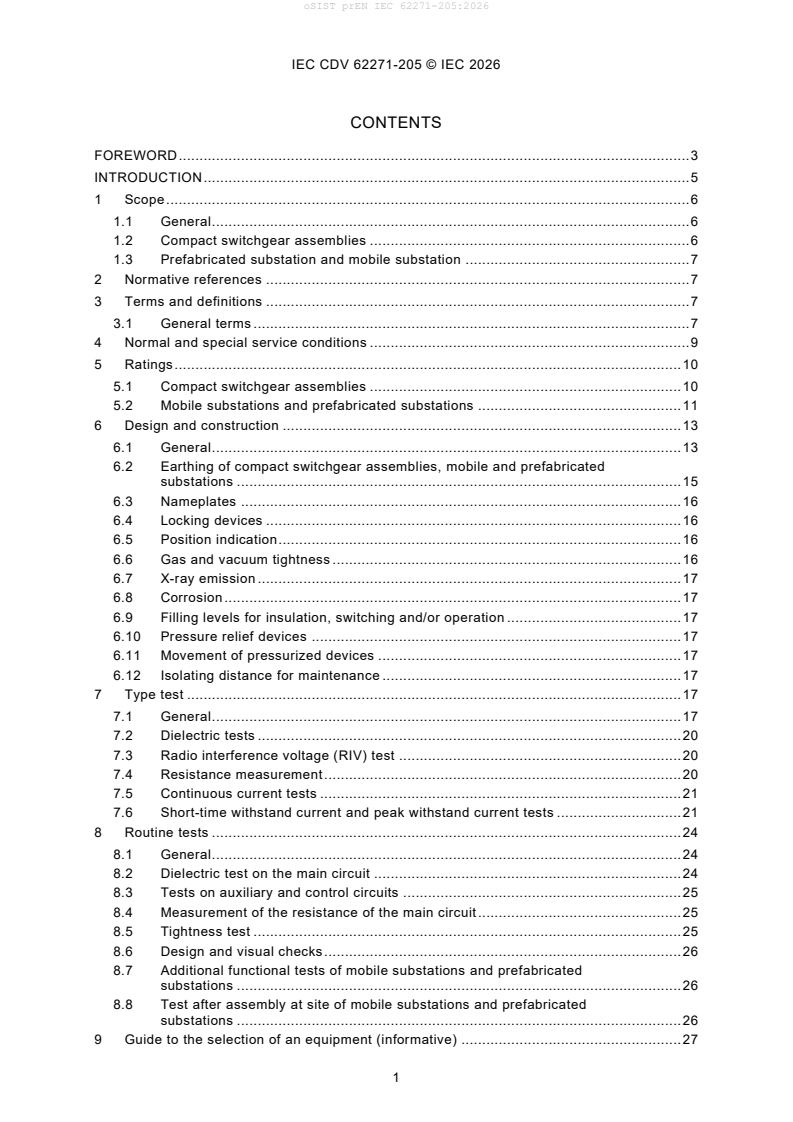

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
1.1 General . 6
1.2 Compact switchgear assemblies . 6
1.3 Prefabricated substation and mobile substation . 7
2 Normative references . 7
3 Terms and definitions . 7
3.1 General terms . 7
4 Normal and special service conditions . 9
5 Ratings . 10
5.1 Compact switchgear assemblies . 10
5.2 Mobile substations and prefabricated substations . 11
6 Design and construction . 13
6.1 General . 13
6.2 Earthing of compact switchgear assemblies, mobile and prefabricated
substations . 15
6.3 Nameplates . 16
6.4 Locking devices . 16
6.5 Position indication . 16
6.6 Gas and vacuum tightness . 16
6.7 X-ray emission . 17
6.8 Corrosion . 17
6.9 Filling levels for insulation, switching and/or operation . 17
6.10 Pressure relief devices . 17
6.11 Movement of pressurized devices . 17
6.12 Isolating distance for maintenance . 17
7 Type test . 17
7.1 General . 17
7.2 Dielectric tests . 20
7.3 Radio interference voltage (RIV) test . 20
7.4 Resistance measurement . 20
7.5 Continuous current tests . 21
7.6 Short-time withstand current and peak withstand current tests . 21
8 Routine tests . 24
8.1 General . 24
8.2 Dielectric test on the main circuit . 24
8.3 Tests on auxiliary and control circuits . 25
8.4 Measurement of the resistance of the main circuit . 25
8.5 Tightness test . 25
8.6 Design and visual checks . 26
8.7 Additional functional tests of mobile substations and prefabricated
substations . 26
8.8 Test after assembly at site of mobile substations and prefabricated
substations . 26
9 Guide to the selection of an equipment (informative) . 27
IEC CDV 62271-205 © IEC 2026
9.1 Compact switchgear assembly . 27
9.2 Mobile substations and prefabricated substations . 27
10 Information to be given with enquiries, tenders and orders (informative) . 27
10.1 Compact switchgear assemblies . 27
10.2 Mobile substations and prefabricated substations . 28
11 Transport, storage, installation, operating instructions and maintenance . 28
11.1 General . 28
11.2 Compact switchgear assemblies . 28
11.3 Mobile substations and prefabricated substations . 29
12 Safety . 29
13 Influence of the product on the environment . 29
Annex A (informative) Explanations of compact switchgear assemblies . 30
A.1 Explanations of the scope of compact switchgear assemblies . 30
A.2 Examples of compact switchgear assemblies . 30
B.1 Background of mobile substations . 33
B.2 Explanation of the scope of a mobile substation . 33
Annex C (informative) Explanation of prefabricated substations . 35
C.1 Background of prefabricated substations . 35
C.2 Explanation of the scope of prefabricated substation . 35
Bibliography . 37

Figure A.1 – Combination coverd by this document . 30
Figure A.2 – Example for Type 1 . 31
Figure A.4 – Example for Type 3 . 32
Figure A.5 – Example for Type 4 (highly integrated) . 32
Figure B.1 – Simplified lifetime of a mobile substation . 33
Figure B.2 – Combination of prefabricated hgh-voltage, transformer, medium-voltage,
protection & control module and vehicle . 33
Figure B.3 Mobile substation consisting of separate mobile modules . 34
Figure B.4 – Example of a mobile substation with high-voltage and transformer module
installed on a vehicle . 34
Figure C.1 – Simplified lifetime of prefabricated substation . 35
Figure C.2 – Combination of prefabricated high voltage-, transformer-, medium
voltage- and protection & control-module . 35
Figure C.3 – Combination of separated high voltage-, transformer-, medium voltage-
and protection & control-module . 35
Figure C.4 – Example of prefabricated substation with high-voltage- and protection &
control-module . 36
Figure C.5 – Example of prefabricated substation with medium-voltage- and power
supply module . 37

Table 1 – Type tests on the compact switchgear assembly . 18

IEC CDV 62271-205 © IEC 2026
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –

Part 205: AC compact switchgear assemblies, mobile and prefabricated
substations for rated voltage above 52 kV

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 62271-205 has been prepared by subcommittee 17C: Assemblies, of IEC technical
committee 17: High-voltage switchgear and controlgear. It is an International Standard.
This second edition cancels and replaces the first edition published in 2008. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Scope has been enlarged to include prefabricated substations and mobile substations
b) New terms “mobile substation” and “prefabricated substation” have been defined
c) References to actual IEC publications have been updated
IEC CDV 62271-205 © IEC 2026
d) Clauses and subclauses have been re-organized to distinguish between compact
switchgear assemblies, mobile substations and prefabricated substations where needed
The text of this International Standard is based on the following documents:
Draft Report on voting
XX/XX/FDIS XX/XX/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
This document is to be read in conjunction with IEC 62271-1 to which it refers and which is
applicable, unless otherwise specified. A list of all parts of the IEC 62271 series can be found,
under the general title High-voltage switchgear and controlgear, on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IEC CDV 62271-205 © IEC 2026
1 INTRODUCTION
2 This standard uses the terms compact switchgear assemblies, prefabricated substations and
3 mobile substations. Even if these terms suggest a clear distinction, the real applications show
4 a wide overlap and also a mixture of these terms. This is, among other things, due to the fact,
5 that compact switchgear assemblies, prefabricated substations and mobile substations are
6 generally highly customized and thus almost each application can be considered individual.
7 A prefabricated substation is basically designed for installation without further relocation. It is
8 pre-built off-site e.g., in a factory, and then transported to its final installation site.
9 A mobile substation is designed for temporary installations and relocations. It is pre-built off-
10 site, e.g., in a factory, and then transported to its location for use.
11 Compact switchgear assemblies consist of at least one mechanical switching device directly
12 connected to, or sharing components, with one or more other devices (e.g., instrument
13 transformers, bushings etc.). In general, they are designed for fixed installation and in most
14 cases transported to site as a whole.
15 A combination of above-described terms is possible. For instance, a compact switchgear
16 assembly may also form a part of a mobile substation.
17 Within mobile or prefabricated substations with rated voltages above 52 kV, switching devices
18 rated up to 52 kV (e.g., medium-voltage switching devices at 36 kV) as well as high-voltage
19 switching devices (e.g., 145 kV) may be used. For a better understanding in reading this
20 document the term “medium-voltage” will be used where necessary.
21 Mobile substations and prefabricated substations usually, but not exclusively, consist of the
22 following modules:
23 – High-voltage module;
24 – Power transformer module;
25 – Medium-voltage module;
26 – Protection and control module;
27 Mobile substations require additional suitable vehicles for transportation.
28 The CIGRE Technical Brochure 907 [1] “Mobile substations incorporating HV GIS” provides
29 guidance for mobile substation applications, which extend from those intended for rapid
30 deployment in an emergency through relocatable designs to prefabricated or ’build off-site’
31 solutions. Three cases for mobile/prefabricated substation are defined:
32 – Substation for short term (emergency) use – typically 1 week ÷ 6 months;
33 – Substation for intermediate term use – typically 6 months ÷ 3 years;
34 – Substation for long term use – typically more than 3 years.
35 More explanatory information could be found in CIGRE Technical Brochure 907 [1].
IEC CDV 62271-205 © IEC 2026
37 HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR-
39 Part 205: AC compact switchgear assemblies, mobile and prefabricated
40 substations for rated voltage above 52 kV
43 1 Scope
44 1.1 General
45 This part of IEC 62271 series applies to service conditions, rated characteristics, general
46 structural requirements and test methods of compact switchgear assemblies, mobile
47 substations and prefabricated substations, for indoor and/or outdoor installations in systems
48 having rated voltages above 52 kV and service frequencies up to and including 60 Hz.
49 1.2 Compact switchgear assemblies
50 In general, compact switchgear assemblies consist of at least one mechanical switching device
51 directly connected to or sharing components with one or more other devices such that there is
52 an interaction between the functions of the individual devices.
53 The devices, defined by IEC standards, which can be a part of a compact switchgear assembly
54 are exemplary listed below and is not be limited to:
55 NOTE To simplify the reading of this document, the term "switching device" is used instead of the term "mechanical
56 switching device".
57 Switching devices:
58 – Circuit-breakers
59 – Disconnectors/Earthing switches
60 – Switch-disconnectors
61 – Disconnecting circuit-breakers
62 Devices:
63 – Instrument transformers
64 – Surge arresters
65 – Bushings
66 – Insulators
67 – Cable connections
68 – Transformer connections
69 The interaction between devices might be due to proximity, sharing of components or a
70 combination of both. The assemblies can contain devices of air insulated switchgear (AIS) only
71 or a combination of part of AIS and part of gas-insulated metal-enclosed switchgear (GIS), so
72 called mixed technology switchgear (MTS) and can be delivered entirely prefabricated or
73 partially assembled.
74 Each switching device forming a part of a compact switchgear assembly shall comply with the
75 relevant individual standard. If a part of the compact switchgear assembly is formed by gas-
76 insulated metal-enclosed switchgear devices, the requirements of IEC 62271-203:2022 apply.
77 The parts of this document relevant for compact switchgear assemblies do not apply to
