EUROPEAN STANDARD EN 60350-2:2013/A11
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2014
ICS 97.040.20
English Version
Household electric cooking appliances - Part 2: Hobs - Methods
for measuring performance
Appareils de cuisson électrodomestiques - Partie 2: Tables Elektrische Kochgeräte für den Hausgebrauch - Teil 2:
de cuisson - Méthodes de mesure de l'aptitude à la fonction Kochfelder - Verfahren zur Messung der
Gebrauchseigenschaften
This amendment A11 modifies the European Standard EN 60350-2:2013; it was approved by CENELEC on 2014-09-29. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60350-2:2013/A11:2014 E

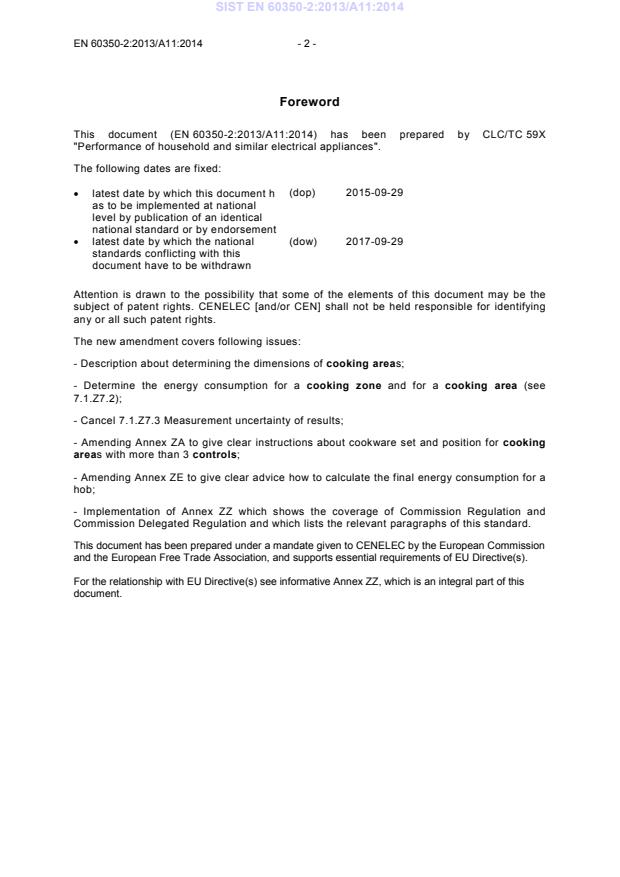

Foreword
This document (EN 60350-2:2013/A11:2014) has been prepared by CLC/TC 59X
"Performance of household and similar electrical appliances".
The following dates are fixed:
• latest date by which this document h (dop) 2015-09-29
as to be implemented at national
level by publication of an identical
national standard or by endorsement
(dow) 2017-09-29
• latest date by which the national
standards conflicting with this
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying
any or all such patent rights.
The new amendment covers following issues:
- Description about determining the dimensions of cooking areas;
- Determine the energy consumption for a cooking zone and for a cooking area (see
7.1.Z7.2);
- Cancel 7.1.Z7.3 Measurement uncertainty of results;
- Amending Annex ZA to give clear instructions about cookware set and position for cooking
areas with more than 3 controls;
- Amending Annex ZE to give clear advice how to calculate the final energy consumption for a
hob;
- Implementation of Annex ZZ which shows the coverage of Commission Regulation and
Commission Delegated Regulation and which lists the relevant paragraphs of this standard.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
- 3 - EN 60350-2:2013/A11:2014
Add a new clause 6.2.Z3
6.2.Z3 Dimensions of cooking areas
For cooking areas marked to show the limits where more than one cookware can be used
simultaneously the maximum length and maximum width of the marked surface is noted.
7.2.1 Temperature control
Add following Figure 4 after Note 2:
b
c
-0,5
∅ a
IEC 524/99
Specification of the saucepan
Diameter of cooking zone Dimensions of the saucepan
mm mm
a b c
145 140 3
≤ 145
180 140
≥ 3 ≤ 5
>145 ≤ 180
220 140
≥ 3 ≤ 5
>180 ≤ 220
The saucepan is made of low carbon steel having a maximum carbon content of 0,08 %. It is
cylindrical without metallic handles or protrusions. The diameter of the flat area at the base of
the saucepan is to be at least the diameter of the cooking zone. The maximum concavity of
the base of the saucepan is to be not more than 0,006 a, where a is the diameter of the flat
area at the base of the saucepan.
NOTE The lid is adapted to accommodate a stirrer.
The base of the saucepan shall not be convex.
Figure 4 – Saucepan
Delete 7.1.Z7.3 Measurement uncertainty of results – Energy consumption for a hob.
7.1.Z2 Cookware and water amount
rd th
Change the 3 sentence and add an additional paragraph and a note after the 4 sentence:
The material of the cookware bottom is stainless steel 1,4016 according to EN 10088-2, the
thickness is 6 mm ± 0,2 mm.
To guarantee a sufficient permeability of the cookware bottom the disc has to be annealed.
NOTE Grinding for adjusting after alteration is allowed within the given tolerances of 6 mm ± 0,2 mm.
The annealing should be done for app. 2 h at app. 650 °C in a nitriding-furnace.
Change Note 1 as following:
NOTE 1 An earthed wire of 2 mm² cross section and a maximum length of 2 m is welded to the metallic clamp.
7.1.Z7.2 Energy consumption for a hob
Add the following sentences at the end of clause 7.1.Z7.2
The energy consumption per cooking zone EC is equal to E . EC shall be noted
cooking zone cw cooking zone
with the cookware size under test normalized to 1000 g.
The energy consumption EC determined according to 7.1.Z6 shall not be greater than the
cooking zone
value declared by the manufacturer plus 10 %.
The energy consumption per cooking area EC is the arithmetic mean of the energy consumption
area
values of the pieces of cookware considered according to Table ZA.1 and Table ZA.2 on this type of
cooking area normalized to 1000 g.
7.5.2 Test procedure
Change the cross reference in subclause 4:
To do this: bring up the amount of water according to Table Z.3 to the boiling point at
maximum possible power level simultaneously on all induction cooking zones available on the
hob.
- 5 - EN 60350-2:2013/A11:2014
Annex B
(informative)
Addresses for suppliers
B.Z1 Stainless steel for bottom material of cookware
Change the reference to the clause in bracket
(see 7.1.Z2)
Annex ZA
(normative)
Further requirements for measuring the energy consumption and heating up
time for cooking areas
ZA.2.1 General
Change the second sentence as following:
If a hob is a combination from ZA.2.2 and ZA.2.3, then these areas will be tested separately.
Add an additional sentence at the end:
If a hob has more than one cooking area with limitative marking (see ZA.2.3), each cooking
area is tested separately.
Add a further line in Table ZA.1 and change the line “5 controls” as stated:
Table ZA.1 – Criteria for cookware set – cooking areas without limitative marking
Number of controls Selected cookware set
1 control Cookware with 210 mm diameter
Two cookware pieces with a diameter of 180 mm and 210
2 controls
mm
Three cookware pieces with a diameter of 150 mm, 180 mm
3 controls
and 210 mm
Four cookware pieces with a diameter of 150 mm, 180 mm
4 controls
and 210 mm twice
Five cookware pieces with a diameter of 150 mm, 180 mm,
5 controls
210 mm twice and 240 mm
Six cookware pieces with a diameter of 150 mm, 180 mm
6 controls
twice, 210 mm twice and 240 mm
Change the sentence after the note as following:
If a cookware is not detected, the next biggest cookware diameter is chosen independent from
the cookware category (see Table Z.3).
ZA.2.3 Hob with cooking area with limitative marking
Change Table ZA.2 and the sentence after the note as following:
Table ZA.2 – Criteria for cookware set – Cooking areas with limitative marking
Number of controls Selected cookware set
≤ 3 controls Three cookware pieces with a diameter of 150 mm, 180 mm and 210 mm
Five cookware pieces with a diameter of
150 mm
> 3 controls 180 mm
210 mm twice and
240 mm
If a cookware is not detected, the next biggest cookware diameter is chosen independent from
the cookware category (see Table Z.3).
- 7 - EN 60350-2:2013/A11:2014
Change Figure ZA.2 as following:
Example 1
Example 2
Figure ZA.2 - Example layouts for a hob with cooking area with limitative marking
Change ZA.3.3 as following:
ZA.3.3 Positioning on a cooking area with limitative markings
ZA.3.3.1 with ≤ 3 controls
The largest piece of cookware is positioned in the centre of the cooking area. To find the
centre the longest vertical and horizontal line within the marking is determined. Bisect the
horizontal line and move the vertical line parallel to this half distance point.
vertical
NOTE The wording “horizontal” and “vertical“refer to the drawing layer.
horizontal
Intersect the horizontal line (longest possible) at 25 %, 50 % and 75 %. 25 % determines the
position marker , 50 % determines the position marker and 75 % determines position
marker .
The position marker determines the center for the largest piece of cookware.
The smaller pieces of cookware are positioned centrally on the position marker and,
(see Figure ZA.3).
- 9 - EN 60350-2:2013/A11:2014
Key
H: longest horizontal line of the marked cooking area
V: longest vertical line of the marked cooking area
c: area of the control
m: limitative marking of the cooking area
,: position marker of the pieces of cookware with 150 mm diameter and 180 mm diameter
: center position of cookware with 210 mm diameter
Figure ZA.3 - Example - position a cookware set for measuring the energy consumption
for cooking areas with limitative markings ≤ 3 controls
The next biggest cookware piece has to be placed in accordance with the following order of
precedence:
a) segmented area being located at the rear of the hob;
b) segmented area being located at the left.
If a cookware is not detected at the described position, for this position the next biggest
cookware diameter is chosen independent from the cookware category (see Table Z.3).
The positions and sizes of the pieces of cookware used for measuring shall be noted.
ZA.3.3.2 with > 3 controls
The position of the pieces of cookware for a cooking area with more than 3 controls is
defined by following procedure.
First the longest possible horizontal and vertical lines within the marked area which shows the
limits where the cookware is used are determined. Bisect the vertical line and move the
horizontal line parallel to this half distance point.
Intersect the horizontal line (longest possible) at 20%, 50% and 80%. 20 % determines the
position marker , 50 % determines the position marker and 80 % determines position
marker .
The position marker determines the center for the largest piece of cookware.
The smaller pieces of cookware are positioned tangentially (=outer radius of cookware bottom
touches the position markers) one above and one below the horizontal line at the position
markers and , (see Figure ZA.4).
The two pieces of cookware with the diameter of 210 mm are positioned one below the
position marker and one above the position marker . The cookware with the diameter
of 180 mm is set above the position marker and the cookware with 150 mm diameter is
below the position marker .
If a cookware is not detected at the described position, for this position the next biggest
cookware diameter is chosen independent from the cookware category (see Table Z.3).
If the position of the specified cookware causes the cookware to partially cover the control,
then the cookware must be moved away, until the cookware no longer covers the control.
Moreover all pieces of cookware shall be as far as possible within the marked area. If
necessary, the biggest cookware on position marker is shifted first vertically then
horizontally. The other pieces of cookware are shifted first horizontally then vertically.
The pieces of cookware should be shifted as little as possible. If the shifting in the first
direction is not effective it can be skipped.
The positions and sizes of the pieces of cookware used for measuring shall be noted.
If it is not clear which cookware position is correct, all possibilities are assessed.
- 11 - EN 60350-2:2013/A11:2014
Example 1: Cooking area with control unit in the front
Example 2: Cooking area with control unit on the side
Key:
H: longest h
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
