SLOVENSKI STANDARD
SIST EN 61347-2-3:2011
01-oktober-2011
1DGRPHãþD
SIST EN 60925:1995
SIST EN 61347-2-4:2002
SIST EN 61347-2-5:2002
SIST EN 61347-2-6:2002
.UPLOQHVWLNDOQHQDSUDYH]DVLMDONHGHO3RVHEQH]DKWHYH]DL]PHQLþQR
QDSDMDQHHOHNWURQVNHSUHGVWLNDOQHQDSUDYH]DIOXRUHVFHQþQHVLMDONH

Lamp controlgear - Part 2-3: Particular requirements for a.c. and/or d.c. supplied

electronic control gear for fluorescent lamps
Geräte für Lampen - Teil 2-3: Besondere Anforderungen an wechsel- und/oder
gleichstromversorgte elektronische Betriebsgeräte für Leuchtstofflampen

Appareillages de lampes - Partie 2-3: Exigences particulières pour les appareillages

électroniques alimentés en courant alternatif et en courant continu pour lampes
fluorescentes
Ta slovenski standard je istoveten z: EN 61347-2-3:2011
ICS:
29.130.01 Stikalne in krmilne naprave Switchgear and controlgear
na splošno in general
29.140.99 Drugi standardi v zvezi z Other standards related to
žarnicami lamps
SIST EN 61347-2-3:2011 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 61347-2-3:2011
---------------------- Page: 2 ----------------------
SIST EN 61347-2-3:2011
EUROPEAN STANDARD
EN 61347-2-3
NORME EUROPÉENNE
July 2011
EUROPÄISCHE NORM

ICS 29.140.99 Supersedes EN 60925:1991, EN 61347-2-3:2001 + corr. Jul.2003 + corr. Dec.2010 + A1:2004 +

A2:2006, EN 61347-2-4:2001 + corr. Jul.2003 + corr. Dec.2010, EN 61347-2-5:2001 + corr.

Jul.2003 + corr. Dec.2010, EN 61347-2-6:2001 + corr. Jul.2003 + corr. Dec.2010
English version
Lamp control gear -
Part 2-3: Particular requirements for a.c. and/or d.c. supplied electronic
control gear for fluorescent lamps
(IEC 61347-2-3:2011)
Appareillages de lampes - Geräte für Lampen -
Partie 2-3: Exigences particulières pour Teil 2-3: Besondere Anforderungen an
les appareillages électroniques alimentés wechsel- und/oder gleichstromversorgte
en courant alternatif et/ou en courant elektronische Betriebsgeräte für
continu pour lampes fluorescentes Leuchtstofflampen
(CEI 61347-2-3:2011) (IEC 61347-2-3:2011)

This European Standard was approved by CENELEC on 2011-06-23. CENELEC members are bound to comply

with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard

the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CENELEC member into its own language and notified

to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,

the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,

Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,

Spain, Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61347-2-3:2011 E
---------------------- Page: 3 ----------------------
SIST EN 61347-2-3:2011
EN 61347-2-3:2011 - 2 -

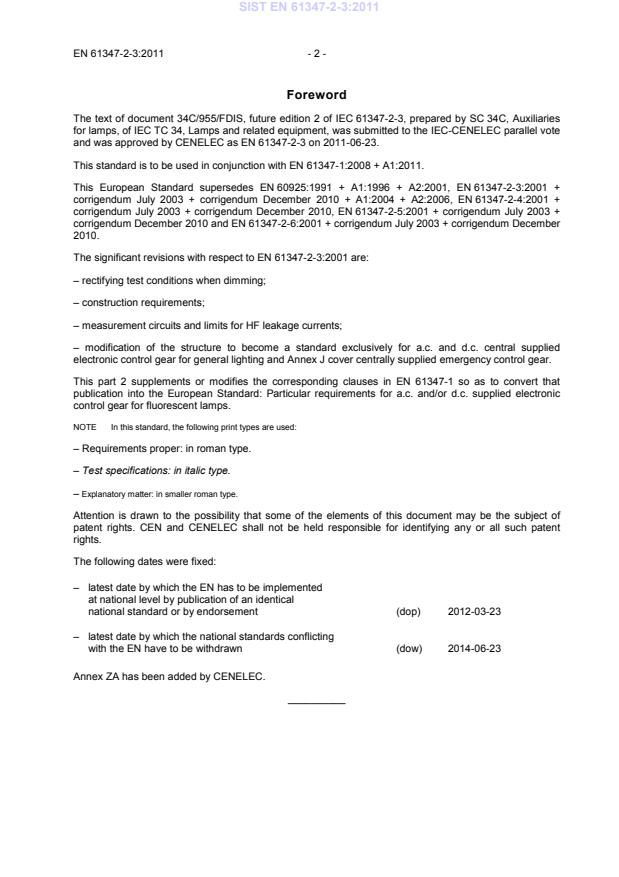

Foreword

The text of document 34C/955/FDIS, future edition 2 of IEC 61347-2-3, prepared by SC 34C, Auxiliaries

for lamps, of IEC TC 34, Lamps and related equipment, was submitted to the IEC-CENELEC parallel vote

and was approved by CENELEC as EN 61347-2-3 on 2011-06-23.
This standard is to be used in conjunction with EN 61347-1:2008 + A1:2011.

This European Standard supersedes EN 60925:1991 + A1:1996 + A2:2001, EN 61347-2-3:2001 +

corrigendum July 2003 + corrigendum December 2010 + A1:2004 + A2:2006, EN 61347-2-4:2001 +

corrigendum July 2003 + corrigendum December 2010, EN 61347-2-5:2001 + corrigendum July 2003 +

corrigendum December 2010 and EN 61347-2-6:2001 + corrigendum July 2003 + corrigendum December

2010.
The significant revisions with respect to EN 61347-2-3:2001 are:
– rectifying test conditions when dimming;
– construction requirements;
– measurement circuits and limits for HF leakage currents;

– modification of the structure to become a standard exclusively for a.c. and d.c. central supplied

electronic control gear for general lighting and Annex J cover centrally supplied emergency control gear.

This part 2 supplements or modifies the corresponding clauses in EN 61347-1 so as to convert that

publication into the European Standard: Particular requirements for a.c. and/or d.c. supplied electronic

control gear for fluorescent lamps.
NOTE In this standard, the following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type.
– Explanatory matter: in smaller roman type.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent

rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2012-03-23
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2014-06-23
Annex ZA has been added by CENELEC.
__________
---------------------- Page: 4 ----------------------
SIST EN 61347-2-3:2011
- 3 - EN 61347-2-3:2011
Endorsement notice

The text of the International Standard IEC 61347-2-3:2011 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60598-2-22 NOTE Harmonized as EN 60598-2-22.
IEC 61195 NOTE Harmonized as EN 61195.
IEC 61199 NOTE Harmonized as EN 61199.
__________
---------------------- Page: 5 ----------------------
SIST EN 61347-2-3:2011
EN 61347-2-3:2011 - 4 -
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.
Publication Year Title EN/HD Year
IEC 60929 2011 AC and/or DC-supplied electronic EN 60929 201X
control gear for tubular fluorescent lamps -
Performance requirements
IEC 61347-1 (mod) 2007 Lamp controlgear - EN 61347-1 2008
+ A1 2010 Part 1: General and safety requirements + A1 2011
1) 1)
IEC 61347-2-7 201X Lamp controlgear - EN 61347-2-7 201X
Part 2-7: Particular requirements for battery
supplied electronic controlgear for emergency
lighting (self-contained)
IEC 61547 - Equipment for general lighting purposes - EN 61547 -
EMC immunity requirements
To be published.
---------------------- Page: 6 ----------------------
SIST EN 61347-2-3:2011
IEC 61347-2-3
Edition 2.0 2011-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Lamp control gear –

Part 2-3: Particular requirements for a.c. and/or d.c. supplied electronic control

gear for fluorescent lamps
Appareillages de lampes –
Partie 2-3: Exigences particulières pour les appareillages électroniques
alimentés en courant alternatif et/ou en courant continu pour lampes
fluorescentes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX X
ICS 29.140.99 ISBN 978-2-88912-498-5
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 61347-2-3:2011
– 2 – 61347-2-3 © IEC:2011
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope ............................................................................................................................... 7

2 Normative references ....................................................................................................... 7

3 Terms and definitions ....................................................................................................... 8

4 General requirements ....................................................................................................... 8

5 General notes on tests ..................................................................................................... 9

6 Classification .................................................................................................................... 9

7 Marking ............................................................................................................................ 9

8 Protection against accidental contact with live parts ....................................................... 10

9 Terminals ....................................................................................................................... 10

10 Provisions for earthing .................................................................................................... 10

11 Moisture resistance and insulation .................................................................................. 10

12 Electric strength ............................................................................................................. 10

13 Thermal endurance test for windings .............................................................................. 10

14 Fault conditions .............................................................................................................. 10

15 Protection of associated components ............................................................................. 10

16 Abnormal conditions ....................................................................................................... 11

17 Behaviour of the control gear at end of lamp life ............................................................. 12

18 Construction ................................................................................................................... 19

19 Creepage distances and clearances ............................................................................... 19

20 Screws, current-carrying parts and connections .............................................................. 19

21 Resistance to heat, fire and tracking ............................................................................... 19

22 Resistance to corrosion .................................................................................................. 19

Annex A (normative) Test to establish whether a conductive part is a live part which

may cause an electric shock ................................................................................................. 24

Annex B (normative) Particular requirements for thermally protected lamp control gear ....... 25

Annex C (normative) Particular requirements for electronic lamp control gear with

means of protection against overheating ............................................................................... 26

Annex D (normative) Requirements for carrying out the heating tests of thermally

protected lamp control gear .................................................................................................. 27

Annex E (normative) Use of constant S other than 4 500 in t tests ..................................... 28

Annex F (normative) Draught-proof enclosure ...................................................................... 29

Annex G (normative) Explanation of the derivation of the values of pulse voltages .............. 30

Annex H (normative) Tests .................................................................................................. 31

Annex I (normative) Measurement of high-frequency leakage current .................................. 32

Annex J (normative) Particular additional safety requirements for a.c., a.c./d.c. or d.c.

supplied electronic control gear for emergency lighting ........................................................ 37

Annex K (informative) Components used in the asymmetric pulse test circuit (see

Figure 1) ............................................................................................................................... 41

Annex L (normative) Information for control gear design (from Annex E of IEC 61195)......... 42

Bibliography .......................................................................................................................... 43

---------------------- Page: 8 ----------------------
SIST EN 61347-2-3:2011
61347-2-3 © IEC:2011 – 3 –

Figure 1 – Asymmetric pulse test circuit ................................................................................ 14

Figure 2 – Asymmetric power detection circuit ...................................................................... 16

Figure 3 – Open filament test circuits .................................................................................... 19

Figure 4 – Circuit for testing rectifying effect ......................................................................... 20

Figure 5 – Nomographs for the capacitive leakage current limits of HF-operated

fluorescent lamps ................................................................................................................. 23

Figure I.1 – Leakage current test arrangement for various fluorescent lamps ........................ 36

Table 1 – Relation between r.m.s. working voltage and maximum peak voltage .................... 11

Table J.1 – Pulse voltages .................................................................................................... 40

Table K.1 – Material specification ......................................................................................... 41

Table K.2 – Transformer specification ................................................................................... 41

---------------------- Page: 9 ----------------------
SIST EN 61347-2-3:2011
– 4 – 61347-2-3 © IEC:2011
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMP CONTROL GEAR –
Part 2-3: Particular requirements for a.c. and/or d.c.
supplied electronic control gear for fluorescent lamps
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61347-2-3 has been prepared by subcommittee 34C: Auxiliaries

for lamps, of IEC technical committee 34: Lamps and related equipment.

This standard shall be used in conjunction with IEC 61347-1 (2007) and its Amendment 1

(2010).

This second edition cancels and replaces the first edition published in 2000, its Amendment 1

(2004) and its Amendment 2 (2006) ), IEC 61347-2-4 published in 2000, IEC 61347-2-5

published in 2000 and IEC 61347-2-6 published in 2000. This second edition constitutes a

technical revision.
---------------------- Page: 10 ----------------------
SIST EN 61347-2-3:2011
61347-2-3 © IEC:2011 – 5 –
The significant revisions with respect to the first edition are:
– rectifying test conditions when dimming;
– construction requirements;
– measurement circuits and limits for HF leakage currents;

– modification of the structure to become a standard exclusively for a.c. and d.c. central

supplied electronic control gear for general lighting and Annex J cover centrally-

supplied emergency control gear.
The text of this standard is based on the following documents:
FDIS Report on voting
34C/955/FDIS 34C/968/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

This part 2 supplements or modifies the corresponding clauses in IEC 61347-1 so as to

convert that publication into the IEC standard: Particular requirements for a.c. and/or d.c.

supplied electronic control gear for fluorescent lamps.
NOTE In this standard, the following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type.
– Explanatory matter: in smaller roman type.

A list of all parts of the IEC 61347 series, published under the general title: Lamp control

gear, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 11 ----------------------
SIST EN 61347-2-3:2011
– 6 – 61347-2-3 © IEC:2011
INTRODUCTION

This second edition of IEC 61347-2-3, published in conjunction with IEC 61347-1, represents

an review of the first edition of IEC 61347-2-3. The formatting into separately published parts

provides for ease of future amendments and revisions. Additional requirements will be added

as and when a need for them is recognized.

This standard, and the parts which make up IEC 61347-2, in referring to any of the clauses of

IEC 61347-1, specify the extent to which such a clause is applicable and the order in which

the tests are to be performed; they also include additional requirements, as necessary. All

parts which make up IEC 61347-2 are intended to be self-contained and, therefore, do not

include references to each other. However, for the case of emergency lighting lamp control

gear, some cross-referencing has been necessary.

Where the requirements of any of the clauses of IEC 61347-1 are referred to in this standard

by the phrase ”The requirements of clause n of IEC 61347-1 apply”, this phrase is interpreted

as meaning that all requirements of the clause in question of part 1 apply, except any which

are clearly inapplicable to the specific type of lamp control gear covered by this particular part

of IEC 61347-2.
---------------------- Page: 12 ----------------------
SIST EN 61347-2-3:2011
61347-2-3 © IEC:2011 – 7 –
LAMP CONTROL GEAR –
Part 2-3: Particular requirements for a.c. and/or d.c.
supplied electronic control gear for fluorescent lamps
1 Scope

This part of IEC 61347 specifies particular safety requirements for electronic control gear for

use on a.c. and d.c. supplies up to 1 000 V at 50 Hz or 60 Hz with operating frequencies

deviating from the supply frequency, associated with fluorescent lamps as specified in

IEC 60081 and IEC 60901, and other fluorescent lamps for high-frequency operation.

Performance requirements are the subject of IEC 60929.

Particular requirements for electronic control gear with means protection against overheating

are given in Annex C.

For emergency lighting operation, particular requirements for control gear operated from a

central supply are given in Annex J. Performance requirements appropriate to the safe

operation of emergency lighting are also contained in Annex J.

Requirements for emergency lighting control gear operating from non-centralised power

supplies are given in IEC 61347-2-7.

NOTE Performance requirements detailed by Annex J are those considered to be safety-related with respect to

reliable emergency operation.
2 Normative references
For the purposes of this document, the normative references given in Clause 2 of

IEC 61347-1 which are mentioned in this standard apply, together with the following normative

references.

IEC 60929: 2011, AC and/or DC-supplied electronic control gear for tubular fluorescent lamps

– Performance requirements
IEC 61347-1:2007, Lamp control gear – Part 1: General and safety requirements
Amendment 1(2010)

IEC 61347-2-7,___ Lamp control gear – Part 2-7: Particular requirements for battery supplied

electronic control gear for emergency lighting (self-contained)
IEC 61547, Equipment for general lighting purposes – EMC immunity requirements
___________
To be published
---------------------- Page: 13 ----------------------
SIST EN 61347-2-3:2011
– 8 – 61347-2-3 © IEC:2011
3 Terms and definitions

For the purposes of this document, the terms and definitions of Clause 3 of IEC 61347-1

apply, together with the following.
3.1
a.c. supplied electronic control gear

mains-supplied a.c. to a.c. invertor including stabilizing elements for starting and operating

one or more fluorescent lamps, generally at high frequency
3.2
maximum value of lamp power (of a controllable control gear)

lamp power (light output) which complies with 8.1 of IEC 60929, unless otherwise declared by

the manufacturer or responsible vendor
3.3
maximum allowed peak voltage

highest permitted peak voltage across any insulation under open-circuit condition and any

normal and abnormal operating conditions

The maximum peak voltage is related to the declared r.m.s. working voltage; see Table 1.

3.4
minimum value of lamp power (of a controllable control gear)

lowest percentage of the lamp power defined in 3.2 declared by the manufacturer or

responsible vendor
3.5
a.c./d.c. supplied electronic control gear for maintained emergency lighting

mains/battery-supplied a.c./d.c. to a.c. invertor including stabilizing elements for starting and

operating one or more fluorescent lamps, generally at high frequency for emergency lighting

3.6
cathode dummy resistor

cathode substitution resistor as specified on the relevant lamp data sheet of IEC 60081 or

IEC 60901 or as declared by the relevant lamp manufacturer or by the responsible vendor

3.7
d.c. supplied electronic control gear

d.c. supplied electronic control gear or invertor includes stabilisation elements for starting and

operating one or more tubular fluorescent lamps, generally at high frequency
4 General requirements

The requirements of Clause 4 of IEC 61347-1 apply, together with the following additional

requirement:

AC/d.c. electronic control gear for emergency lighting shall comply with the requirements of

Annex J.
---------------------- Page: 14 ----------------------
SIST EN 61347-2-3:2011
61347-2-3 © IEC:2011 – 9 –
5 General notes on tests

The requirements of Clause 5 of 61347-1 apply together with the following additional

requirement:
The following number of specimens shall be submitted for testing:
– one unit for the tests of Clause 6 to 12 and 15 to 22;

– one unit for the test of Clause 14 (additional units or components, where necessary, may

be required in consultation with the manufacturer).

Tests to meet the safety requirements for a.c./d.c. supplied electronic control gear for

emergency lighting are made under the conditions specified in Annex J.
6 Classification
The requirements of Clause 6 of IEC 61347-1 apply.
7 Marking
Control gear which forms an integral part of the luminaire need not be marked.
7.1 Mandatory markings

In accordance with the requirements of 7.2 of IEC 61347-1, control gear, other than integral

control gear, shall be clearly and durably marked with the following mandatory markings:

− items a), b), c), d), e), k) and l) of 7.1 of IEC 61347-1, together with
− the symbol for earthing, as applicable;
− for controllable control gear, the control terminals shall be identified;

− a declaration of the maximum working voltage (r.m.s.) according to 12.2 between

• output terminals;
• any output terminal and earth.

Marking for each of these two values shall be in steps of 10 V when the working voltage is

equal to, or less than, 500 V, and in steps of 50 V when the working voltage is higher than

500 V. The marking of maximum working voltage is referenced in two situations, the maximum

between output terminals and the maximum between any output terminal and earth. It is

acceptable for only the higher of these two voltages to be marked.
Marking shall be U-OUT=...V.
7.2 Information to be provided, if applicable

In addition to the above mandatory markings, the following information, if applicable, shall be

given either on the control gear, or be made available in the manufacturer’s catalogue or

similar:
– items h), i), and j) given in 7.1 of IEC 61347-1;

– information regarding voltage polarity reversal protection for d.c. supplied control gear

only.
---------------------- Page: 15 ----------------------
SIST EN 61347-2-3:2011
– 10 – 61347-2-3 © IEC:2011
8 Protection against accidental contact with live parts
The requirements of Clause 10 of IEC 61347-1 apply.
9 Terminals
The requirements of Clause 8 of IEC 61347-1 apply.
10 Provisions for earthing
The requirements of Clause 9 of IEC 61347-1 apply.
11 Moisture resistance and insulation

The requirements of Clause 11 of IEC 61347-1 apply together with the following additional

requirements:

The leakage current that may occur from contact with fluorescent lamps operated at high

frequency from a.c. supplied electronic control gear shall not exceed the values in Figure 5

when measured in accordance with Annex I. The values are in r.m.s. values.

The limits of leakage current values for frequencies between the values shown in Figure 5

should be obtained by calculation according to the formula in the figure (under consideration).

NOTE Limits of leakage current values for frequencies above 50 kHz are under consideration.

Compliance with these requirements is checked in accordance with Annex I.
12 Electric strength
The requirements of Clause 12 of IEC 61347-1 apply.
13 Thermal endurance test for windings
The requirements of Clause 13 of IEC 61347-1 do
...
