EN 60901:1996/A1:1997

Single-capped fluorescent lamps - Performance specifications

EN following parallel vote * Corrigendum to EN/A1 issued October 1997

Einseitig gesockelte Leuchtstofflampen - Anforderungen an die Arbeitsweise

Lampes à fluorescence à culot unique - Prescriptions de performances

Single-capped fluorescent lamps - Performance specifications

Ta standard določa zahteve glede zmogljivosti za fluorescenčne sijalke z enim vznožkom za splošno uporabo v razsvetljavi.

General Information

• Status: Published
• Publication Date: 16-Jul-1997
• Withdrawal Date: 31-Mar-1998
• ICS: 29.140.30 - Fluorescent lamps. Discharge lamps
• Technical Committee: CLC/TC 34 - 'Lamps and related equipment
• Drafting Committee: IEC/SC 34A - IEC_SC_34A
• Parallel Committee: IEC/SC 34A - IEC_SC_34A
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 17-Jul-1997
• Completion Date: 17-Jul-1997
• Directive: 2009/125/EC - Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005 establishing a framework for the setting of ecodesign requirements for energy-using products and amending Council Directive 92/42/EEC and Directives 96/57/EC and 2000/55/EC of the European Parliament and of the Council
• Directive: 245/2009 - Commission Regulation (EC) No 245/2009 of 18 March 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to ecodesign requirements for fluorescent lamps without integrated ballast, for high intensity discharge lamps, and for ballasts and luminaires able to operate such lamps, and repealing Directive 2000/55/EC of the European Parliament and of the Council (Text with EEA relevance)
• Directive: 874/2012 - Commission Delegated Regulation (EU) No 874/2012 of 12 July 2012 supplementing Directive 2010/30/EU of the European Parliament and of the Council with regard to energy labelling of electrical lamps and luminaires
• Ref Project: SIST EN 60901:2001/A1:2001 - Single-capped fluorescent lamps - Performance specifications

Relations

• Amends: EN 60901:1996 - Single-capped fluorescent lamps - Performance specifications
• Effective Date: 29-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2001
Single-capped fluorescent lamps - Performance specifications
Single-capped fluorescent lamps - Performance specifications
Einseitig gesockelte Leuchtstofflampen - Anforderungen an die Arbeitsweise
Lampes à fluorescence à culot unique - Prescriptions de performances
Ta slovenski standard je istoveten z: EN 60901:1996/A1:1997
ICS:
29.140.30 )OXRUHVFHQþQHVLMDONH6LMDONH Fluorescent lamps.
Discharge lamps
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

NORME CEI
INTERNATIONALE
IEC
INTERNATIONAL
STANDARD
AMENDEMENT 1
AMENDMENT 1
1997-06
Amendement 1
Lampes à fluorescence à culot unique
Prescriptions de performances
Amendment 1
Single-capped fluorescent lamps
Performance specifications
Les feuilles de cet amendement sont à insérer dans la
Publication 60901 (1996)
The sheets contained in this amendment are to be
inserted in Publication 60901 (1996)
 CEI 1997 Droits de reproduction réservés  Copyright - all rights reserved
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: [phone] e-mail: [e-mail] IEC web site http: //www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
S
PRICE CODE
International Electrotechnical Commission
Pour prix, voir catalogue en vigueur
For price, see current catalogue

INSTRUCTIONS POUR L’INSERTION INSTRUCTIONS FOR THE INSERTION
DES NOUVELLES PAGES ET FEUILLES OF NEW PAGES AND SHEETS
DE CARACTÉRISTIQUES DANS LA IN PUBLICATION
PUBLICATION
__________
__________
1. Remove title page and insert new title
1. Retirer la page de titre et insérer la
nouvelle page de titre. page.
SECTION DEUX – FEUILLES DE SECTION TWO – DATA SHEETS
CARACTÉRISTIQUES
2. Retirer les pages E-4 à II-2 et insérer les 2. Remove pages E-4 to II-2 and insert new
nouvelles pages E-4 à II-2. pages E-4 to II-2.
3. Retirer les pages II-3 à II-6 et insérer les 3. Remove pages II-3 to II-6 and insert new
nouvelles pages II-3 à II-6. pages II-3 to II-6.
4. Insérer les nouvelles feuilles 06-1, 3118-1 4. Insert new sheets 06-1, 3118-1 (three
(trois pages), 3124-1 (trois pages), 3136-1 pages), 3124-1 (three pages), 3136-1
(trois pages), 6255-1 (deux pages), 7442-1 (three pages), 6255-1 (two pages), 7442-1
(deux pages) et B110-1. (two pages) and B110-1.
5. Retirer les pages II-7 et II-8 et insérer les 5. Remove pages II-7 and II-8 and insert new
nouvelles pages II-7 et II-8. pages II-7 and II-8.
___________
AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 34A: Lampes, du comité d’études 34
de la CEI: Lampes et équipements associés.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
34A/706/FDIS 34A/743/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l’approbation de cet amendement.
___________

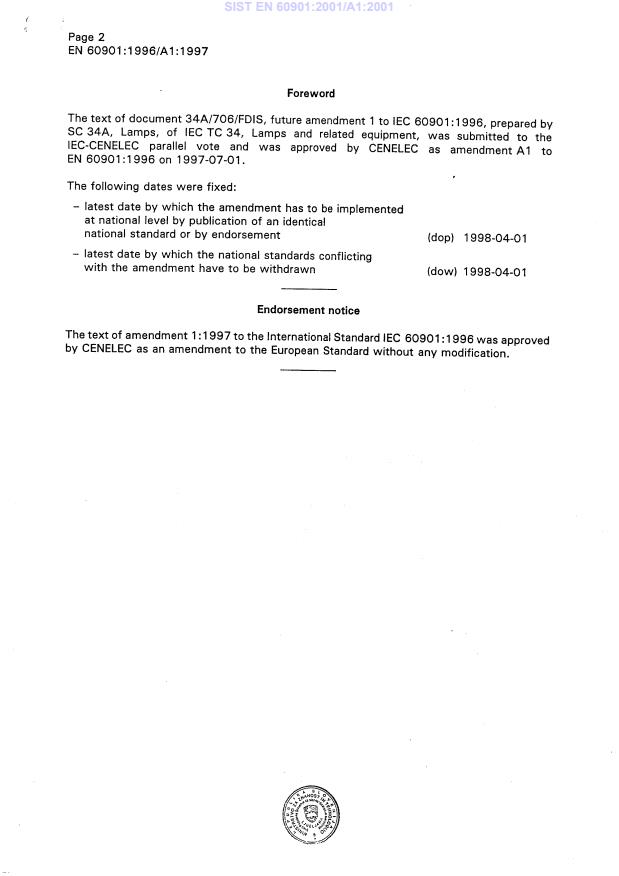

FOREWORD
This amendment has been prepared by subcommittee 34A: Lamps, of technical committee 34:
Lamps and related equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
34A/706/FDIS 34A/743/RVD
Full information on the voting for the approval of this amendment can be found in the report on
voting indicated in the above table.
___________
NORME
CEI
INTERNATIONALE
IEC
INTERNATIONAL
Deuxième édition
STANDARD
Second edition
Modifiée selon l'amendement 1 (1997)
Amended in accordance with amendment 1 (1997)
Lampes à fluorescence à culot unique
Prescriptions de performances
Single-capped fluorescent lamps
Performance specifications
 IEC 1997 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni utilisée No part of this publication may be reproduced or utilized in
sous quelque forme que ce soit et par aucun procédé, électronique any form or by any means, electronic or mechanical, including
ou mécanique, y compris la photocopie et les microfilms, sans photocopying and microfilm, without permission in writing from
l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: [phone] e-mail: [e-mail] IEC web site http: //www.iec.ch
Commission Electrotechnique Internationale
International Electrotechnical Commission

60901 Amend.1  IEC:1997 – E-4 –
The distance between the surface of the lamp and the starting aid should not exceed the
maximum value specified on the relevant lamp data sheet.
E.6 Lamp end support
For some lamps an additional lamp end supporting device is required, due to the length of the
lamp. It should be designed so that it does not influence the intended lamp performance.
If a part of the device is located between the limbs of the lamp, it should not exert any force on
the lamp other than that of gravity, taking into account a minimum gap between the limbs of the
lamp, as specified on the relevant lamp data sheet.
If necessary for safeguarding non-interchangeability, the device should be located at a distance
from the cap reference plane, as specified on the relevant lamp data sheet.

60901 Amend. 1  IEC:1997 – II-2 –
Section 2: Data sheets
2.1 General principles of numbering of data sheets
The first number represents the number of this standard "60901", followed by the letters "IEC".
The second number represents the data sheet number.
The third number represents the edition of the page of the data sheet. In cases where a data
sheet has more than one page, it is possible for the pages to have different edition numbers,
with the data sheet number remaining the same.
2.2 Diagrammatic data sheets for location of lamp dimensions
2.2.1 List of diagrammatic data sheets
60901-IEC-01 Dual-shaped lamps
60901-IEC-02 Quad-shaped lamps
60901-IEC-03 Square-shaped lamps
60901-IEC-04 Circular-shaped lamps
60901-IEC-05 Multi-limbed lamps
60901-IEC-06 Square-shaped lamps (cap 2G10)

60901 amend. 1  CEI:1997
– Page blanche –
– Blank page –
60901 Amend. 1  IEC:1997
SINGLE-CAPPED FLUORESCENT LAMPS
DIAGRAMMATIC DATA SHEET FOR
LOCATION OF LAMP DIMENSIONS
Cap: 2G10 Square-shaped
These drawings are intended only to indicate dimensions to be controlled and are
to be used in conjunction with the relevant lamp standard sheets.
IEC  668/97
NOTE – Dimensions A and B refer to the glass parts of the lamp.
Texte français au verso Publication CEI 60901
60901-IEC-06-1
IEC Publication 60901
French text overleaf
60901 Amend. 1  IEC:1997
– Page blanche –
– Blank page –
60901 Amend.1  IEC:1997 – II-4 –
2.3 Data sheets
2.3.1 List of lamp data sheets
Circuit
Sheet No. Nominal Means of
Frequency Shape Cap Cathode type
a.c. High
60901-IEC- wattage starting
mains frequency
W
Hz
0005 5 50 60 Dual G23 Internal – – Preheated
0007 7 50 60 Dual G23 Internal – – Preheated
0009 9 50 60 Dual G23 Internal – – Preheated
0011 11 50 – Dual G23 Internal – – Preheated
0013 13 – 60 Dual GX23 Internal – – Preheated
0510 10 50 60 Quad G24d-1 Internal – – Preheated
0513 13 50 60 Quad G24d-1 Internal – – Preheated
0518 18 50 60 Quad G24d-2 Internal – – Preheated
0526 26 50 60 Quad G24d-3 Internal – – Preheated
0715 15 – 60 Quad GX32d-1 Internal – – Preheated
0720 20 – 60 Quad GX32d-2 Internal – – Preheated
0727 27 – 60 Quad GX32d-3 Internal – – Preheated
1016 16 50 – Square GR8 Internal – – Preheated
1028 28 50 – Square GR8 Internal – – Preheated
1413 13 50 60 Multilimbed GX24d-1 Internal – – Preheated
1418 18 50 60
Multilimbed GX24d-2 Internal – – Preheated
1426 26 50 60 Multilimbed GX24d-3 Internal – – Preheated
2005 5 50 – Dual 2G7 External Starter Starterless Preheated
2007 7 50 – Dual 2G7 External Starter Starterless Preheated
2009 9 50 – Dual 2G7 External Starter Starterless Preheated
2011 11 50 – Dual 2G7 External Starter Starterless Preheated
2127 27 50 60 Dual GY10q-4 External Starter – Preheated
2128 28 50 60 Dual GY10q-5 External Starter – Preheated
2130 30 50 60 Dual GY10q-4 External Starter – Preheated
2136 36 50
60 Dual GY10q-6 External Starter – Preheated
2218 18 50 60 Dual 2G11 External Starter
Starterless Preheated
2224 24 50 60 Dual 2G11 External Starter Starterless Preheated
2236 36 50 60 Dual 2G11 External Starter Starterless Preheated
2510 10 50 – Quad G24q-1 External Starter Starterless Preheated
2513 13 50 – Quad G24q-1 External Starter Starterless Preheated
2518 18 50 – Quad G24q-2 External Starter Starterless Preheated
2526 26 50 – Quad G24q-3 External Starter Starterless Preheated
2613 13 50 60 Quad GX10q-2 External Starter – Preheated
2618 18 50 60 Quad GX10q-3 External Starter – Preheated
2627 27 50 60 Quad GX10q-4 External Starter – Preheated
3010 10 50 – Square GR10q External Starter – Preheated
3016 16 50 – Square GR10q External Starter – Preheated
3021 21 50 – Square
GR10q External Starter – Preheated
3028 28 50 – Square GR10q External Starter – Preheated
3038 38 50 – Square GR10q External Starter – Preheated
3118 18 50 60 Square 2G10 External Starter Starterless Preheated
3124 24 50 60 Square 2G10 External Starter Starterless Preheated
3136 36 50 60 Square 2G10 External Starter Starterless Preheated
3222 22 (D29) 50 60 Circular G10q External Starter Starterless Preheated
3231 32 (D29) 50 60 Circular G10q External Starter Starterless Preheated
3232 32 (D32) 50 60 Circular G10q External Starter Starterless Preheated
3239 40 (D29) 50 – Circular G10q External Starter Starterless Preheated
3240 40 (D32) 50 – Circular G10q External Starter Starterless Preheated
4224 24/27 – 60 Dual 2G11 External Starterless – Preheated, low resistance
4236 36/39 – 60 Dual 2G11 External Starterless – Preheated, low resistance
5010 10 50 – Square GR10q External Starterless – Preheated, high resistance
5016 16 50 – Square GR10q External Starterless – Preheated, high resistance
5021 21 50 – Square GR10q External Starterless – Preheated, high resistance
5028 28 50 – Square GR10q External Starterless – Preheated, low resistance
5038 38 50 – Square GR10q External Starterless – Preheated, low resistance
5222 22 (D29) – 60 Circular G10q External Starterless – Preheated, low resistance
5232 32 (D32) – 60 Circular G10q External Starterless – Preheated, low resistance
5240 40 (D32) – 60 Circular G10q External Starterless – Preheated, low resistance
6240 40 ≥20 k Dual 2G11 External – Starterless Preheated
6255 55 ≥20 k Dual 2G11 External – Starterless Preheated
7412 12 ≥20 k Multilimbed GX24q-1 External – Starterless Preheated
20 k
7416 16 ≥ Multilimbed GX24q-2 External – Starterless Preheated
≥20 k
7424 24 Multilimbed GX24q-3 External – Starterless Preheated
≥20 k
7432 32 Multilimbed GX24q-2 External – Starterless Preheated
≥20 k
7442 42 Multilimbed GX24q-4 External – Starterless Preheated
8240 40 Dual 2G11 External – Starterless Non-preheated
≥20 k
60901 Amend.1  IEC:1997 – II-6 –
2.3.2 List of lamp data sheets in order of wattage
Circuit
Sheet No. Nominal Means of
Frequency Shape Cap Cathode type
60901-IEC- wattage starting a.c. High
mains frequency
W
Hz
0005 5 50 60 Dual G23 Internal – – Preheated
2005 5 50 – Dual 2G7 External Starter Starterless Preheated
0007 7 50 60 Dual G23 Internal – – Preheated
2007 7 50 – Dual 2G7 External Starter Starterless Preheated
0009 9 50 60 Dual G23 Internal – – Preheated
2009 9 50 – Dual 2G7 External Starter Starterless Preheated
0510 10 50 60 Quad G24d-1 Internal – – Preheated
2510 10 50 – Quad G24q-1 External Starter Starterless Preheated
3010 10 50 – Square GR10q External Starter – Preheated
5010 10 50 – Square GR10q External Starterless – Preheated, high resistance
0011 11 50 – Dual G23 Internal – – Preheated
2011 11 50 – Dual 2G7 External Starter Starterless Preheated
7412 12 Multilimbed GX24q-1 External – Starterless Preheated
≥20 k
0013 13 – 60 Dual GX23 Internal – – Preheated
0513 13 50 60 Quad G24d-1 Internal – – Preheated
1413 13 50 60 Multilimbed GX24d-1 Internal – – Preheated
2513 13 50 – Quad G24q-1 External Starter Starterless Preheated
2613 13 – 60 Quad GX10q-2 External Starter – Preheated
0715 15 – 60 Quad GX32d-1 Internal – – Preheated
1016 16 50 – Square GR8 Internal – – Preheated
3016 16 – – Square GR10q External Starter – Preheated
5016 16 50 – Square GR10q External Starterless – Preheated, high resistance
7476 16 ≥20 k Multilimbed GX24q-2 External – Starterless Preheated
0518 18 50 60 Quad G24d-2 Internal – – Preheated
1418 18 50 60 Multilimbed GX24d-2 Internal – – Preheated
2218 18 50 60 Dual 2G11 External Starter Starterless Preheated
2518 18 50 – Quad
G24q-2 External Starter Starterless Preheated
2618 18 50 60 Quad GX10q-3 External Starter – Preheated
3118 18 50 60 Square 2G10 External Starter Starterless Preheated
0720 20 – 60 Quad GX32d-2 Internal – – Preheated
3021 21 50 – Square GR10q External Starter – Preheated
5021 21 50 – Square GR10q External Starterless – Preheated, high resistance
3222 22 (D29) 50 60 Circular G10q External Starter Starterless Preheated
5222 22 (D29) – 60 Circular G10q External Sans starer – Preheated, low resistance
2224 24 50 60 Dual 2G11 External Starter Starterless Preheated
3124 24 50 60 Square 2G10 External Starter Starterless Preheated
4224 24/27 – 60 Dual 2G11 External Starterless – Preheated, low resistance
7424 24 ≥20 k Multilimbed GX24q-3 External – Starterless Preheated
0526 26 50 60 Quad G24d-3 Internal – – Preheated
1426 26 50 60 Multilimbed GX24d-3 Internal – – Preheated
2526 26 50 – Quad G24q-3 External Starter Starterless Preheated
0727 27 – 60 Quad
GX32d-3 Internal – – Preheated
2127 27 50 60 Dual GY10q-4 External Starter – Preheated
2627 27 50 60 Quad GX10q-4 External Starter – Preheated
1028 28 50 – Square GR8 Internal – – Preheated
2128 28 50 60 Dual GY
...
