Requirements for automatic reclosing devices (ARDs) for circuit-breakers, RCBOs and RCCBs for household and similar uses

IEC 63024:2017 applies to automatic reclosing devices (ARDs) for household and similar uses, for rated voltage not exceeding 440 V AC, and which are intended to be used in combination with circuit-breakers, RCCBs and RCBOs, and designed either for factory assembly or for assembly on site. These devices are intended to reclose main protective devices (MPDs) such as circuit-breakers complying with IEC 60898-1 and/or IEC 60898-2, RCCBs complying with IEC 61008-1 and/or IEC 62423, and RCBOs complying with IEC 61009-1 and/or IEC 62423 after tripping of those devices in order to re-establish continuity of service.

Anforderungen an automatische Wiedereinschalteinrichtungen für Leitungsschutzschalter, RCBOs, RCCBs für Hausinstallationen und ähnliche Zwecke

Exigences pour les dispositifs à refermeture automatique (DRA) pour disjoncteurs, ID et DD, pour usages domestiques et analogues

L'IEC 63024:2017 s’applique aux dispositifs de refermeture automatique (DRA) pour usages domestiques et analogues, à des tensions assignées de 440 V c.a au maximum, et qui sont destinés à être utilisés conjointement avec des disjoncteurs, des ID et des DD. Ces dispositifs sont conçus pour un montage en usine ou sur site. Ces dispositifs sont destinés à refermer des dispositifs de protection principaux (DPP) tels que les disjoncteurs conformes à l’IEC 60898-1 et/ou à l’IEC 60898-2, les ID conformes à l’IEC 61008-1 et/ou à l’IEC 62423, ainsi que les DD conformes à l’IEC 61009-1 et/ou à l’IEC 62423 après un déclenchement de ces dispositifs, afin de rétablir la continuité du service.

Zahteve za naprave za avtomatski ponovni vklop (ARDs) odklopnikov, RCBOs in RCCBs za gospodinjsko in podobno uporabo (IEC 63024:2017)

Ta mednarodni standard se uporablja za naprave za avtomatski ponovni vklop (ARD) v gospodinjski in podobni uporabi, kadar naznačena napetost ne presega 440 V izmenične napetosti, pri čemer so te naprave namenjene uporabi v kombinaciji z odklopniki in/ali odklopniki na diferenčni tok (RCCB) in/ali odklopniki na diferenčni tok z nadtokovno zaščito (RCBO) ter zasnovane za sestavo v tovarni ali na mestu uporabe.
Te naprave so namenjene ponovnemu vklopu glavnih zaščitnih naprav (MPD), kot so odklopniki, skladni s standardom IEC 60898-1 in/ali IEC 60898-2, odklopniki na diferenčni tok, skladni s standardom IEC 61008-1, in odklopniki na diferenčni tok z nadtokovno zaščito, skladni s standardom IEC 61009-1 in/ali IEC 62423, po njihovem izklopu, da se znova vzpostavi neprekinjeno delovanje.
Ta dokument zajema naslednje vrste naprav za avtomatski ponovni vklop:
− naprave za avtomatski ponovni vklop z možnostjo ocene, ki napravo znova vklopijo le, če pričakovani linijski tok in pričakovani zemeljskostični tok ne presegata navedenih vrednosti;
– naprave za avtomatski ponovni vklop z možnostjo ocene, ki napravo znova vklopijo le, če pričakovani linijski tok ne presega navedene vrednosti;
– naprave za avtomatski ponovni vklop z možnostjo ocene, ki napravo znova vklopijo le, če pričakovani zemeljskostični tok ne presega določene vrednosti;
– naprave za avtomatski ponovni vklop, ki napravo znova vklopijo brez kakršne koli ocene.
OPOMBA 1: Pravila za vgradnjo definirajo pogoje uporabe posameznih izdelkov in tipov.
OPOMBA 2: Ocena ne more nadomestiti preverjanj, zahtevanih v standardu IEC 60364-6.
OPOMBA 3: Zahteve in preskusi za funkcijo ocenjevanja v sistemih IT se obravnavajo.
Ta dokument se ne uporablja za naprave za avtomatski ponovni vklop z več nastavitvami, ki jih lahko uporabnik nastavi med običajnim delovanjem.
Naprave, ki jih zajema ta dokument, morajo biti takšne, da jih lahko upravljajo nepoučene osebe, in ne smejo zahtevati vzdrževanja.

General Information

Status
Published
Publication Date
26-Apr-2018
Withdrawal Date
16-Jan-2021
Current Stage
6060 - Document made available - Publishing
Start Date
27-Apr-2018
Completion Date
27-Apr-2018

Relations

Buy Standard

Standard
EN 63024:2018
English language
63 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 63024:2018
01-september-2018
1DGRPHãþD
SIST EN 50557:2012
Zahteve za naprave za avtomatski ponovni vklop (ARDs) odklopnikov, RCBOs in
RCCBs za gospodinjsko in podobno uporabo (IEC 63024:2017)
Requirements for automatic reclosing devices (ARDs) for circuit-breakers, RCBOs and
RCCBs for household and similar uses (IEC 63024:2017)
Anforderungen an automatische Wiedereinschalteinrichtungen für
Leitungsschutzschalter, RCBOs, RCCBs für Hausinstallationen und ähnliche Zwecke
(IEC 63024:2017)
Exigences pour les dispositifs à refermeture automatique (DRA) pour disjoncteurs, ID et
DD, pour usages domestiques et analogues (IEC 63024:2017)
Ta slovenski standard je istoveten z: EN 63024:2018
ICS:
29.120.50 9DURYDONHLQGUXJD Fuses and other overcurrent
PHGWRNRYQD]DãþLWD protection devices
SIST EN 63024:2018 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 63024:2018

---------------------- Page: 2 ----------------------

SIST EN 63024:2018


EUROPEAN STANDARD EN 63024

NORME EUROPÉENNE

EUROPÄISCHE NORM
April 2018
ICS 29.120.50 Supersedes EN 50557:2011
English Version
Requirements for automatic reclosing devices (ARDs) for circuit-
breakers, RCBOs and RCCBs for household and similar uses
(IEC 63024:2017)
Exigences pour les dispositifs à refermeture automatique Anforderungen an automatische
(DRA) pour disjoncteurs, ID et DD, pour usages Wiedereinschalteinrichtungen für Leitungsschutzschalter,
domestiques et analogues RCBOs, RCCBs für Hausinstallationen und ähnliche
(IEC 63024:2017) Zwecke
(IEC 63024:2017)
This European Standard was approved by CENELEC on 2018-01-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 63024:2018 E

---------------------- Page: 3 ----------------------

SIST EN 63024:2018
EN 63024:2018 (E)

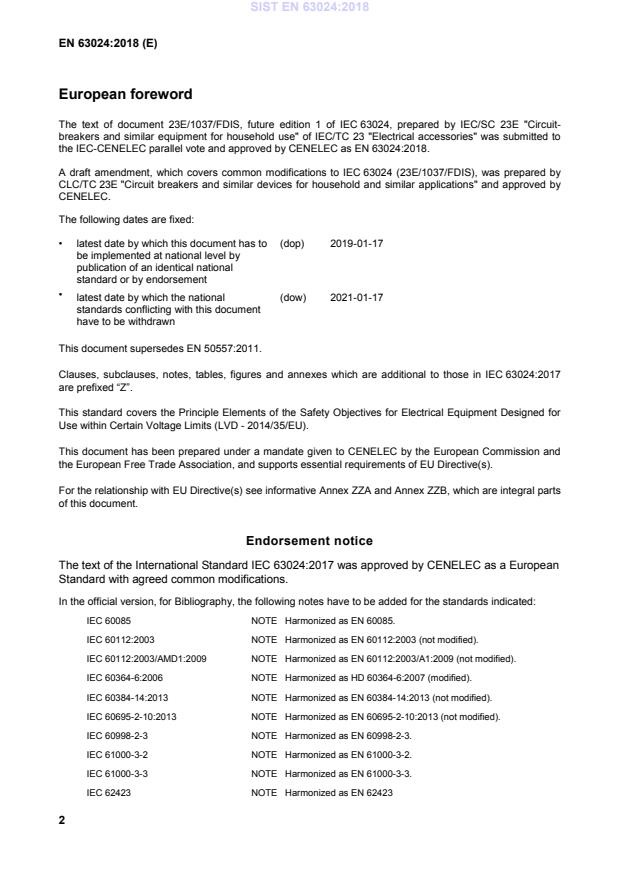

European foreword
The text of document 23E/1037/FDIS, future edition 1 of IEC 63024, prepared by IEC/SC 23E "Circuit-
breakers and similar equipment for household use" of IEC/TC 23 "Electrical accessories" was submitted to
the IEC-CENELEC parallel vote and approved by CENELEC as EN 63024:2018.
A draft amendment, which covers common modifications to IEC 63024 (23E/1037/FDIS), was prepared by
CLC/TC 23E "Circuit breakers and similar devices for household and similar applications" and approved by
CENELEC.
The following dates are fixed:
• latest date by which this document has to (dop) 2019-01-17
be implemented at national level by
publication of an identical national
standard or by endorsement

latest date by which the national (dow) 2021-01-17
standards conflicting with this document
have to be withdrawn

This document supersedes EN 50557:2011.

Clauses, subclauses, notes, tables, figures and annexes which are additional to those in IEC 63024:2017
are prefixed “Z”.

This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed for
Use within Certain Voltage Limits (LVD - 2014/35/EU).

This document has been prepared under a mandate given to CENELEC by the European Commission and
the European Free Trade Association, and supports essential requirements of EU Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZA and Annex ZZB, which are integral parts
of this document.

Endorsement notice
The text of the International Standard IEC 63024:2017 was approved by CENELEC as a European
Standard with a
...
