EN 60335-2-9:2003/A12:2007

Household and similar electrical appliances - Safety - Part 2-9: Particular requirements for grills, toasters and similar portable cooking appliances

Deals with the safety of electric portable appliances for household purposes that have a cooking function such as baking, roasting and grilling, their rated voltage being not more than 250 V.

Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-9: Besondere Anforderungen für Grillgeräte, Brotröster und ähnliche ortsveränderliche Kochgeräte

Appareils électrodomestiques et analogues - Sécurité - Partie 2-9: Règles particulières pour les grils, grille-pain et appareils de cuisson mobiles analogues

Gospodinjski in podobni električni aparati - Varnost - 2-9. del: Posebne zahteve za žare, opekače in podobne prenosne aparate za pripravo hrane

Obravnava varnost prenosnih električnih aparatov za gospodinjsko uporabo, ki imajo funkcijo kuhanja, na primer pečenja kolačev in pečenk ter pečenja na žaru, pri čemer njihova nazivna napetost ne presega 250 V.

General Information

• Status: Published
• Publication Date: 08-Nov-2007
• Withdrawal Date: 30-Sep-2010
• ICS: 13.120 - Domestic safety
• ICS: 97.040.50 - Small kitchen appliances
• Technical Committee: CLC/TC 61 - Safety of household and similar electrical appliances
• Drafting Committee: IEC/TC 61 - IEC_TC_61
• Parallel Committee: IEC/TC 61 - IEC_TC_61
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 09-Nov-2007
• Completion Date: 23-Sep-2025
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 2014/53/EU - Directive 2014/53/EU of The European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC
• Directive: 73/23/EEC - Electrical equipment designed for use within certain voltage limits
• Ref Project: SIST EN 60335-2-9:2003/A12:2008 - Household and similar electrical appliances - Safety -- Part 2-9: Particular requirements for grills, toasters and similar portable cooking appliances

Relations

• Replaced By: EN IEC 60335-2-9:2023 - Household and similar electrical appliances - Safety - Part 2-9: Particular requirements for grills, toasters and similar portable cooking appliances
• Effective Date: 25-Jan-2023
• Amends: EN 60335-2-9:2003 - Household and similar electrical appliances - Safety - Part 2-9: Particular requirements for grills, toasters and similar portable cooking appliances
• Effective Date: 29-Jan-2023

Overview

EN 60335-2-9:2003/A12:2007 is a European safety standard focused on household and similar electrical appliances, specifically addressing the particular safety requirements for grills, toasters, and analogous portable cooking appliances. This amendment (A12) updates the original EN 60335-2-9:2003 standard, providing enhanced guidelines on testing, safety parameters, and temperature limitations to ensure appliance safety during normal usage. Approved by CENELEC in 2007, this standard applies across multiple European countries and supports harmonized safety practices in the electrotechnical sector.

Key Topics

• Scope and Application
  The standard covers grills, toasters, rotisseries, waffle irons, sandwich makers, raclette grills, and similar portable cooking devices. It focuses on ensuring user safety concerning electrical, mechanical, and thermal hazards during operation.

• Safety Testing for Heating Components

  • Defines hot functional surfaces - those intentionally heated to perform the appliance's function.
  • Introduces specific temperature measurement methods using probes to assess surface heating, with detailed instructions on probe contact force and positioning.
  • Lists excluded surface areas from temperature rise measurements, such as edges near doors, vents, and certain appliance undersides.

• Temperature Limits for Surfaces
  Specifies maximum allowable temperature rises for various materials and surfaces on appliances:

  • Metal and painted metal surfaces: up to 85 K on top surfaces, 60 K on others
  • Vitreous-enamelled metal, glass, and ceramic: up to 95 K top surfaces, 65 K others
  • Plastics thicker than 0.3 mm: up to 105 K top surfaces, 80 K others

• Equipment-Specific Testing Requirements

  • Ovens, rotary grills, and cookers must operate at rated power with all heating elements on during testing.
  • Contact grills and similar appliances require temperature rise testing with special consideration of hot functional surface boundaries.
  • Breadmakers have targeted temperature limits and exclusion zones near ventilation and lids.

• Testing Tools and Procedures

  • Utilizes a specific probe (Figure Z101) designed for accurate thermal measurement on flat surfaces.
  • Defines measurement zones around handles, grips, and operational devices according to size and likelihood of user contact.
  • Includes diagrams (Figures Z102 and Z103) to clarify testing zones and excluded areas.

Applications

The EN 60335-2-9:2003/A12:2007 standard is critical for manufacturers, testing bodies, and compliance engineers involved with portable cooking electrical appliances. Applying this standard helps to:

• Ensure user safety by controlling surface temperatures to prevent burns or injuries.
• Guide product design to meet European safety requirements, avoiding hazardous heat exposure areas.
• Facilitate market access throughout Europe by conforming to valid CENELEC regulations and national implementations.
• Support testing laboratories in establishing reproducible and standardized thermal performance tests.
• Assist in product certification and risk assessment processes for grills, toasters, and related cooking devices.

Related Standards

• EN 60335-1 - General requirements for household and similar electrical appliances safety.
• IEC 60584-1 - Thermocouples for temperature measurements, referenced for probe specifications.
• EN 60335-2-6 - Particular requirements for stationary cooking ranges, hobs, ovens, and similar appliances (complementary for built-in units).
• CENELEC Internal Regulations - Governing rules for implementation and national adoption of European standards.

By adhering to EN 60335-2-9:2003/A12:2007, manufacturers and stakeholders ensure that grills, toasters, and similar portable cooking appliances achieve stringent safety levels, minimizing risks related to electrical shock, fire, and thermal hazards-critical factors for consumer protection and regulatory compliance in the European market.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2008
*RVSRGLQMVNLLQSRGREQLHOHNWULþQLDSDUDWL9DUQRVWGHO3RVHEQH]DKWHYH]D
åDUHRSHNDþHLQSRGREQHSUHQRVQHDSDUDWH]DSULSUDYRKUDQH
Household and similar electrical appliances - Safety - Part 2-9: Particular requirements
for grills, toasters and similar portable cooking appliances
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-9:
Besondere Anforderungen für Grillgeräte, Brotröster und ähnliche ortsveränderliche
Kochgeräte
Appareils électrodomestiques et analogues - Sécurité - Partie 2-9: Regles particulieres
pour les grils, grille-pain et appareils de cuisson mobiles analogues
Ta slovenski standard je istoveten z: EN 60335-2-9:2003/A12:2007
ICS:
13.120
97.040.20
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60335-2-9/A12
NORME EUROPÉENNE
November 2007
EUROPÄISCHE NORM
ICS 13.120; 97.040.50
English version
Household and similar electrical appliances -
Safety -
Part 2-9: Particular requirements for grills, toasters
and similar portable cooking appliances

Appareils électrodomestiques  Sicherheit elektrischer Geräte
et analogues - für den Hausgebrauch
Sécurité - und ähnliche Zwecke -
Partie 2-9: Règles particulières Teil 2-9: Besondere Anforderungen
pour les grils, grille-pain et appareils für Grillgeräte, Brotröster und
de cuisson mobiles analogues ähnliche ortsveränderliche Kochgeräte

This amendment A12 modifies the European Standard EN 60335-2-9:2003; it was approved by CENELEC on
2007-10-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2007 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60335-2-9:2003/A12:2007 E

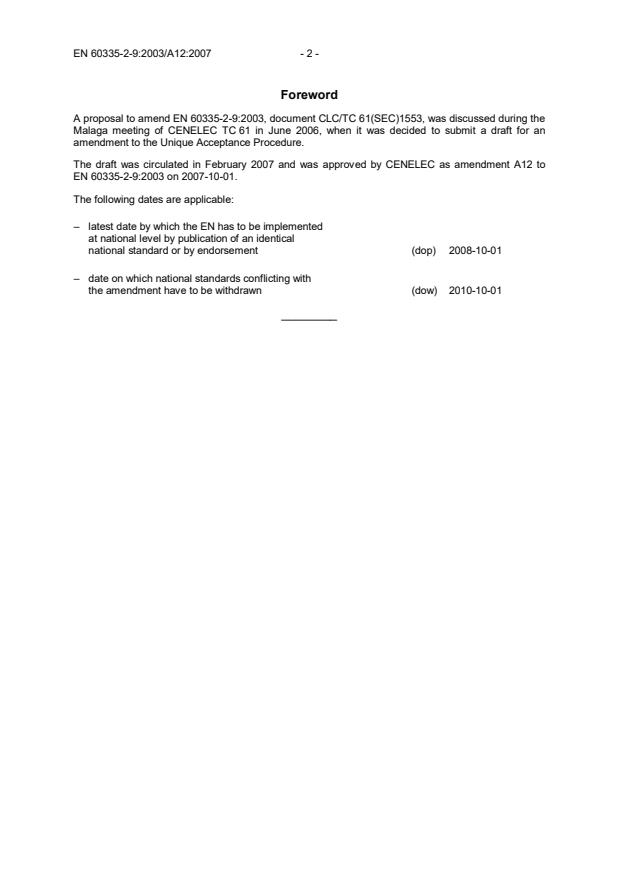

Foreword
A proposal to amend EN 60335-2-9:2003, document CLC/TC 61(SEC)1553, was discussed during the
Malaga meeting of CENELEC TC 61 in June 2006, when it was decided to submit a draft for an
amendment to the Unique Acceptance Procedure.
The draft was circulated in February 2007 and was approved by CENELEC as amendment A12 to
EN 60335-2-9:2003 on 2007-10-01.
The following dates are applicable:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2008-10-01
– date on which national standards conflicting with
the amendment have to be withdrawn (dow) 2010-10-01
________
- 3 - EN 60335-2-9:2003/A12:2007
3 Definitions
Add the following new definition:
3.Z101
hot functional surface
surface that is intentionally heated by an internal heat source and has to be hot to carry out the
function for which the appliance is intended
NOTE  An example is the heating plate of a waffle iron
11 Heating
11.1 Addition:
For ovens, rotary grills and cookers, compliance is also checked by the test of 11.Z101.
For contact grills, waffle irons, sandwich makers, radiant grills, raclette grills, griddles,
compliance is also checked by the test of 11.Z102.
For breadmakers, compliance is also checked by the test of 11.Z103.
11.3 Addition:
For flat surfaces, temperature rises are measured using the probe of Figure Z101. The probe is
applied with a force of 4 N ± 1 N to the surface in such a way that the best possible contact between
the probe and the surface is ensured.
NOTE  Any measuring instrument giving the same results as the probe may be used.
11.8 Addition:
The temperature rise of handles or grips and that of operational devices such
...
