Car multimedia systems and equipment - Drive monitoring system - Part 2: Recording methods of the drive monitoring system

IEC 63033-2:2018 specifies recording methods of the drive monitoring system that is specified in IEC TS 63033-1 in order to view the recorded video file with free eye point technology.

Systèmes et équipements multimédias pour automobiles - Système de surveillance de la conduite - Partie 2 : Méthodes d'enregistrement du système de surveillance de la conduite

IEC 63033-2:2018 spécifie les méthodes d'enregistrement du système de surveillance de la conduite défini dans l'IEC TS 63033-1 afin de permettre le visionnage du fichier vidéo enregistré à l'aide de la technologie "yeux libres".

General Information

Status
Published
Publication Date
27-Nov-2018
Current Stage
DELPUB - Deleted Publication
Completion Date
20-Apr-2022
Ref Project

Buy Standard

Standard
IEC 63033-2:2018 - Car multimedia systems and equipment - Drive monitoring system - Part 2: Recording methods of the drive monitoring system
English and French language
20 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

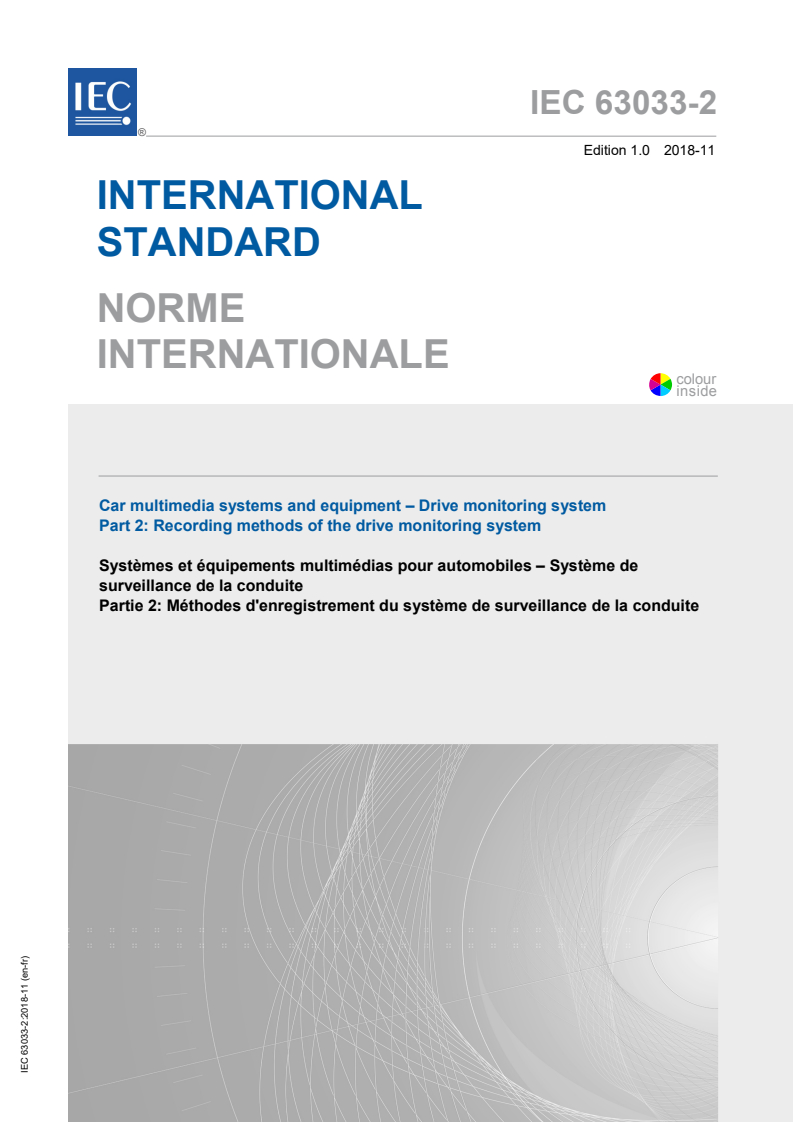

IEC 63033-2
Edition 1.0 2018-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Car multimedia systems and equipment – Drive monitoring system
Part 2: Recording methods of the drive monitoring system
Systèmes et équipements multimédias pour automobiles – Système de
surveillance de la conduite
Partie 2: Méthodes d'enregistrement du système de surveillance de la conduite
IEC 63033-2:2018-11 (en-fr)
---------------------- Page: 1 ----------------------

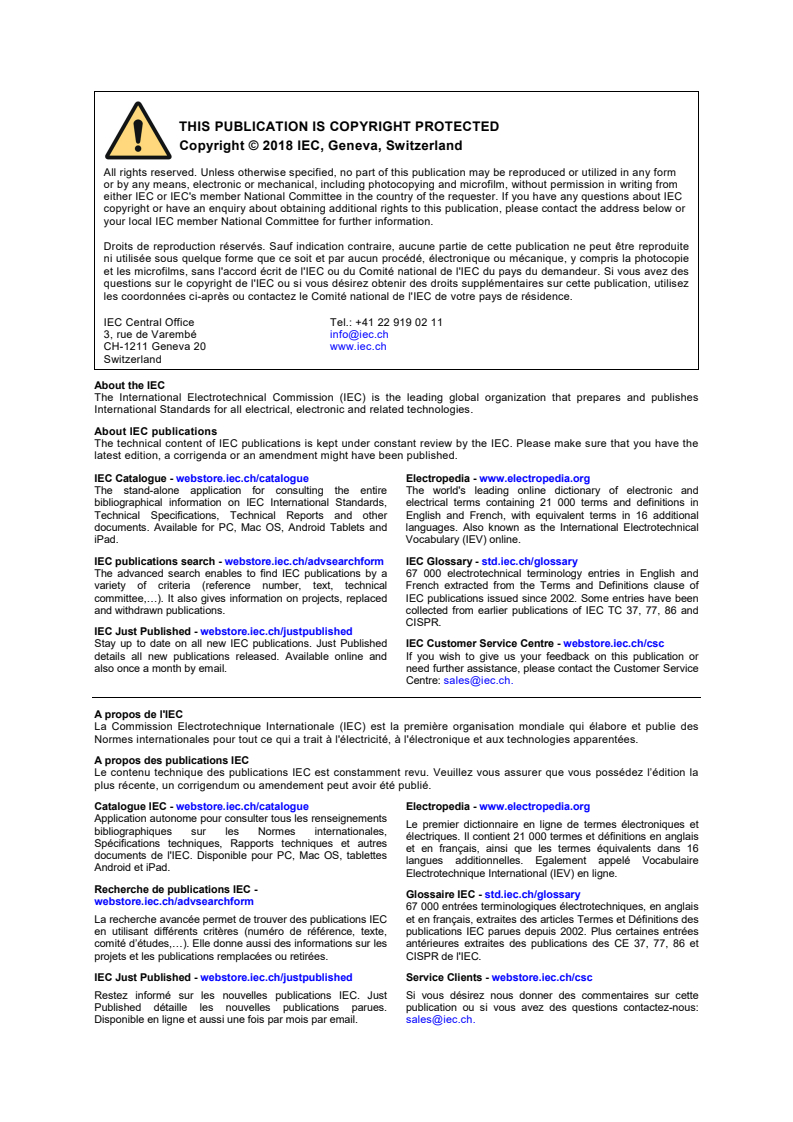

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais

La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des

en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées

comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et

projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc

Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette

Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:

Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 63033-2
Edition 1.0 2018-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Car multimedia systems and equipment – Drive monitoring system
Part 2: Recording methods of the drive monitoring system
Systèmes et équipements multimédias pour automobiles – Système de
surveillance de la conduite
Partie 2: Méthodes d'enregistrement du système de surveillance de la conduite
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.160; 43.040.15 ISBN 978-2-8322-6294-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

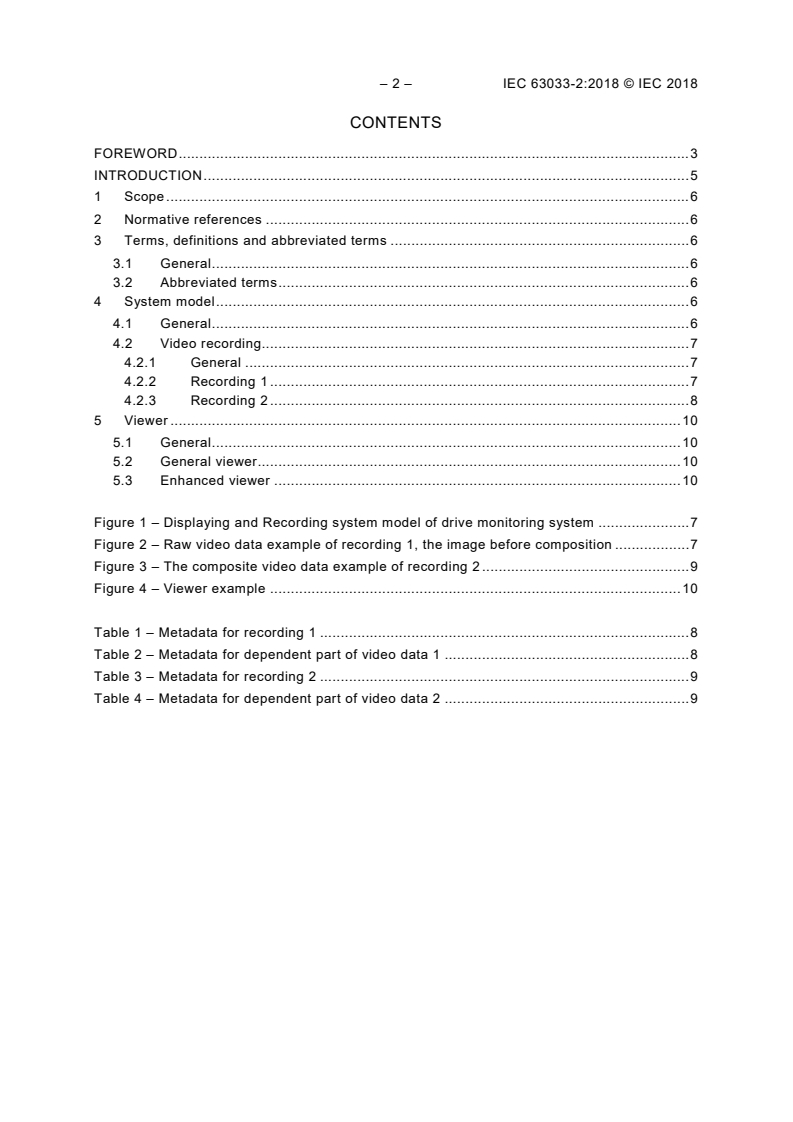

– 2 – IEC 63033-2:2018 © IEC 2018
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions and abbreviated terms ........................................................................ 6

3.1 General ................................................................................................................... 6

3.2 Abbreviated terms ................................................................................................... 6

4 System model .................................................................................................................. 6

4.1 General ................................................................................................................... 6

4.2 Video recording....................................................................................................... 7

4.2.1 General ........................................................................................................... 7

4.2.2 Recording 1 ..................................................................................................... 7

4.2.3 Recording 2 ..................................................................................................... 8

5 Viewer ........................................................................................................................... 10

5.1 General ................................................................................................................. 10

5.2 General viewer ...................................................................................................... 10

5.3 Enhanced viewer .................................................................................................. 10

Figure 1 – Displaying and Recording system model of drive monitoring system ...................... 7

Figure 2 – Raw video data example of recording 1, the image before composition .................. 7

Figure 3 – The composite video data example of recording 2 .................................................. 9

Figure 4 – Viewer example ................................................................................................... 10

Table 1 – Metadata for recording 1 ......................................................................................... 8

Table 2 – Metadata for dependent part of video data 1 ........................................................... 8

Table 3 – Metadata for recording 2 ......................................................................................... 9

Table 4 – Metadata for dependent part of video data 2 ........................................................... 9

---------------------- Page: 4 ----------------------
IEC 63033-2:2018 © IEC 2018 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CAR MULTIMEDIA SYSTEMS AND EQUIPMENT –
DRIVE MONITORING SYSTEM
Part 2: Recording methods of the drive monitoring system
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 63033-2 has been prepared by IEC technical committee 100:

Audio, video and multimedia systems and equipment.
The text of this International Standard is based on the following documents:
CDV Report on voting
100/3029/CDV 100/3134/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 5 ----------------------
– 4 – IEC 63033-2:2018 © IEC 2018

A list of all parts in the IEC 63033 series, published under the general title Car multimedia

systems and equipment – Drive monitoring system, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 6 ----------------------
IEC 63033-2:2018 © IEC 2018 – 5 –
INTRODUCTION

This document specifies recording methods of the drive monitoring system that is specified in

IEC TS 63033-1, which also specifies the model for generating the surrounding visual image

of the drive monitoring system. The system allows drivers to monitor the car’s perimeter in

real time by using "free eye point" technology, which allows drivers to dynamically change the

viewing perspective, offering the most appropriate views according to the driving situation.

IEC 63033-2 specifies recording methods of the drive monitoring system in order to view the

recorded video file with "free eye point" technology.
---------------------- Page: 7 ----------------------
– 6 – IEC 63033-2:2018 © IEC 2018
CAR MULTIMEDIA SYSTEMS AND EQUIPMENT –
DRIVE MONITORING SYSTEM
Part 2: Recording methods of the drive monitoring system
1 Scope

This part of IEC 63033 specifies recording methods of the drive monitoring system that is

specified in IEC TS 63033-1 in order to view the recorded video file with free eye point

technology.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC TS 63033-1:2017, Car multimedia system and equipment – Drive monitoring system –

Part1: General
3 Terms, definitions and abbreviated terms
3.1 General
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.2 Abbreviated terms
GNSS global navigation satellite system
SIM stream information and metadata
4 System model
4.1 General

IEC 63033-2 specifies recording methods of the drive monitoring system. Specifically, the

recording from a vehicle-mounted camera as obtained by the drive monitoring system, and

also a model for the replay of the recorded video. The purpose of the replay of the recorded

video can be considered in various ways, such as verification at the occurrence of an accident,

as legal proof, for reviewing driving behaviour and use at educational sites.

There are two types of recorded videos: recording of each camera image (referred to as

"recording 1"), and recording of the composite image (referred to as "recording 2"). For replay

of the recorded videos, the related metadata (refer to 4.2.2.3 and 4.2.3.3) is simultaneously

saved in recording 1 and recording 2. These recorded files are transferred by the portable

recording medium or via a network, where they can be later replayed by the user. The user

---------------------- Page: 8 ----------------------
IEC 63033-2:2018 © IEC 2018 – 7 –

can also recreate the composite image by using the stored metadata in the free eye point in

the viewer (refer to Clause 5). It is also possible to provide the distribution service with the

recorded file by using storage on the network.
Figure 1 – Displaying and Recording system model of drive monitoring system
4.2 Video recording
4.2.1 General

There are two types of recording files provided by the driver monitor system and as shown

Figure 1: recording 1 and recording 2.
4.2.2 Recording 1
4.2.2.1 General

Recording 1 consists of both the raw (before composite) video data as obtained by each

camera, and related metadata (refer to 4.2.2.3) at the same time. Using both, the video data

and the metadata, enables the user to recreate a new composite image. The user can change

the view point freely while viewing the composite image. In addition, they can also see a

vehicle’s surroundings instantly in a single composite image.
4.2.2.2 Video data

The raw video data obtained from the vehicle-mounted cameras is recorded. A raw video data

example is shown in Figure 2.

Since the recording is pre-composition, there is no distortion and the image cut-off is as

directly input from each vehicle-mounted camera. This method allows for the full image to be

transferred, thus, keeping as much of the original image information.
Figure 2 – Raw video data example of recording 1, the image before composition
---------------------- Page: 9 ----------------------
– 8 – IEC 63033-2:2018 © IEC 2018
4.2.2.3 Metadata for recording 1

The metadata listed in Table 1 and Table 2 shall be saved together with the video data. Some

metadata will be included in the SIM source packet.
Table 1 – Metadata for recording 1
Metadata Explanation Mandatory

Time stamp It is necessary to identify the exact time when a certain event occurred. The

time information is generally extracted from GNSS. If GNSS is not included
in the system, the time information can be extracted from another system
equivalent to GNSS.

GNSS It is necessary to identify details about the location and the exact time when ✔

a certain event occurred.
ID data It is necessary to specify which car the recorded file came from. ✔

Orientation It is necessary to identify details about orientation when a certain event

occurred.
Table 2 – Metadata for dependent part of video data 1
Metadata Explanation Mandatory

Optical axis shift The optical axis shift adjusts the central coordinates and the captured

data image’s width and height.
For details, please see IEC TS 63033-1.
Lens distortion data Distortion data of lens used for each camera.
For details, please see IEC TS 63033-1.

Camera position and Camera position information consisting of mounted camera position (X, Y, Z)

direction data
at optics' centre (mm) and camera angle (tilt angle ψ, rot angle φ, pan
angle θ) at optical axis direction (in °).
For details, see IEC TS 63033-1.

View point position The same view point position data as registered to make the existing Preferable to

and direction data composite image. It contains the virtual view point position (X, Y, Z), angle be saved

and virtual 3D projection surface.

3D car model data The same 3D car model data and size as registered to make the existing Preferable to

and size composite image. It contains 3D model data, transparency and drawing car be saved

model size (left, front, right, bottom, tail, top) described in mm.
4.2.3 Recording 2
4.2.3.1 General

Recording 2 records both the composite image video data and the related metadata (refer to

4.2.3.3) at the same time. A composite image video data example is shown in Figure 3.

Users cannot change the view point while viewing the composite image. However, the user

can instantly view the vehicle’s surroundings through a specific pre-set composite image

regardless of the viewer used (see Clause 5 for details).
---------------------- Page: 10 ----------------------
IEC 63033-2:2018 © IEC 2018 – 9 –
Figure 3 – The composite video data example of recording 2
4.2.3.2 Video data
The composite video data obtained from vehicle-mounted cameras is recorded.

Compared to the case of recording the raw video data of all cameras, it can reduce the data

size and memory required since only the composite result is recorded. On the other hand, the

image information from each camera that has not been used in the composite image will be

lost.
4.2.3.3 Metadata for recording 2

The metadata listed in Table 3 shall be saved together with the video data. Some metadata

will be included in the SIM source packet.
Table 3 – Metadata for recording 2
Metadata Explanation Mandatory

Time stamp It is necessary to identify the exact time when a certain event occurred. The

time information is generally extracted from GNSS. If GNSS is not included in
the system, the time information can be extracted from another system
equivalent to the GNSS.

GNSS It is necessary to identify details about the location and the exact time when a

certain event occurred.
ID data It is necessary to specify which car the recorded file came from.

Orientation It is necessary to identify details about orientation when a certain event

occurred.

Since users cannot create a composite image in recording 2, only the metadata given in Table

4 is required.
Table 4 – Metadata for dependent part of video data 2
Metadata Explanation Mandatory

View point position The same view point position data as registered to make the existing Preferable to

and direction data composite image. It contains virtual view point position (X, Y, Z), angle and the be saved

virtual 3D projection surface.
---------------------- Page: 11 ----------------------
– 10 – IEC 63033-2:2018 © IEC 2018
5 Viewer
5.1 General
Figure 4 – Viewer example

The term "viewer" is referred to as the video player necessary to view the recorded file and

can be classified into two types as shown in Figure 4. These are further referred to as the

"general viewer" and "enhanced viewer" depending on whether or not the viewer has a free

view point function.
5.2 General viewer

The general viewer plays the recorded video data just as it is, and sometimes crop and zoom

functions are enabled. The metadata regarding the time stamp, GNSS and orientation shall be

synchronous with the video data and displayed in the viewer.
5.3 Enhanced viewer

In addition to the general viewer's basic function, the enhanced viewer enables users to view

the video data with the free view point function. In order to generate a composite image with

"free eye point", the video data and the metadata recorded in recording 1 is necessary.
