IEC 60745-2-12:2003+AMD1:2008 CSV

Hand-held motor-operated electric tools - Safety - Part 2-12: Particular requirements for concrete vibrators

Deals with the safety of hand-held motor-operated or magnetically driven tools, specific requirements for concrete vibrators. The rated voltage being not more than 250 V for single-phase a.c. or d.c., and 440 V for three-phase a.c. tools. This consolidated version consists of the second edition (2003) and its amendment 1 (2008). Therefore, no need to order amendment in addition to this publication.

Outils électroportatifs à moteur - Sécurité - Partie 2-12: Règles particulières pour les vibreurs à béton

s'applique aux outils portatifs à moteur électrique ou à entraînement magnétique, règles particulières pour les vibreurs à béton. La tension assignée des outils n'étant pas supérieure à 250 V pour les outils à courant monophasé alternatif ou continu et à 440 V pour les outils à courant alternatif triphasé.  Cette version consolidée comprend la deuxième édition (2003) et son amendement 1 (2008). Il n'est donc pas nécessaire de commander l'amendement avec cette publication.

General Information

• Status: Published
• Publication Date: 16-Jul-2008
• ICS: 19.040 - Environmental testing
• ICS: 25.140.20 - Electric tools
• Technical Committee: TC 116 - Safety of motor-operated electric tools
• Current Stage: PPUB - Publication issued
• Start Date: 17-Jul-2008
• Completion Date: 17-Jul-2008

Overview

IEC 60745-2-12:2003+AMD1:2008 CSV is an international safety standard developed by the International Electrotechnical Commission (IEC) specifically for hand-held motor-operated or magnetically driven electric tools - with a focus on particular requirements for concrete vibrators. This standard addresses safety aspects for both single-phase a.c. or d.c. tools (with rated voltage not exceeding 250 V) and three-phase a.c. tools (with rated voltage not exceeding 440 V).

This consolidated version includes the second edition (2003) with Amendment 1 (2008), reflecting up-to-date requirements for user safety, reliability, and consistent performance in construction environments.

By establishing clear requirements, IEC 60745-2-12 helps manufacturers, importers, designers, and occupational health and safety professionals ensure compliance and foster a safer workplace.

Key Topics

• Scope of Application
  IEC 60745-2-12 focuses on hand-held concrete vibrators used for compacting concrete, specifying the design and testing parameters to meet global safety norms.

• Definitions and Design Types
  The standard identifies two principal designs:

  • Type A: Motor and vibrating mechanism located inside the vibrator bottle, connected to the handle and mains switch via a long flexible hose.
  • Type B: Only the vibrating mechanism is inside the bottle; the motor unit, handle, and mains switch are separate, connected by a flexible shaft within the hose.

• Electrical Safety
  Specifies requirements for protection against access to live parts, insulation, leakage current, and electric strength. Includes special provisions for supply cables and protection against moisture (IPX7 or IPX4 depending on design).

• Mechanical Strength and Endurance
  Requirements call for reliable mechanical connections, durability under normal and abnormal operating conditions, and resistance to mechanical hazards.

• Testing and Marking
  Includes guidelines for proper testing conditions, thermal performance, overload protection, and visible product marking and instructions for safe use.

Applications

• Manufacturing and Product Development
  Tool manufacturers use this standard as the baseline for safety and reliability during product design, testing, and certification for concrete vibrators.

• Construction and Industrial Safety Compliance
  Construction companies and equipment suppliers rely on IEC 60745-2-12 to source or commission compliant concrete vibrators, reducing workplace risks and adhering to international safety regulations.

• Quality Assurance and Auditing
  Compliance with IEC 60745-2-12 is often referenced during inspections, procurement processes, and safety audits within the construction and tool manufacturing sectors.

Related Standards

• IEC 60745-1: Safety of hand-held motor-operated electric tools - General requirements. This is the foundational standard to which IEC 60745-2-12 is aligned for all general criteria.
• IEC 60745-2 Series: Covers particular requirements for other hand-held power tools, such as drills, grinders, saws, and more.
• ISO/IEC Directives, Part 2: Provides the drafting principles and requirements used in assembling this and related international standards.

Keywords: IEC 60745-2-12, concrete vibrators safety, electric tools, construction safety standards, hand-held tools, power tool compliance, IEC standards, tool durability, industrial safety.

Standards Content (Sample)

IEC 60745-2-12
Edition 2.1 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hand-held motor-operated electric tools – Safety –
Part 2-12: Particular requirements for concrete vibrators

Outils électroportatifs à moteur – Sécurité –
Partie 2-12: Règles particulières pour les vibreurs à béton

IEC 60745-2-12:2003+A1:2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 60745-2-12
Edition 2.1 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hand-held motor-operated electric tools – Safety –
Part 2-12: Particular requirements for concrete vibrators

Outils électroportatifs à moteur – Sécurité –
Partie 2-12: Règles particulières pour les vibreurs à béton

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CD
CODE PRIX
ICS 25.140.20 ISBN 2-8318-9868-4

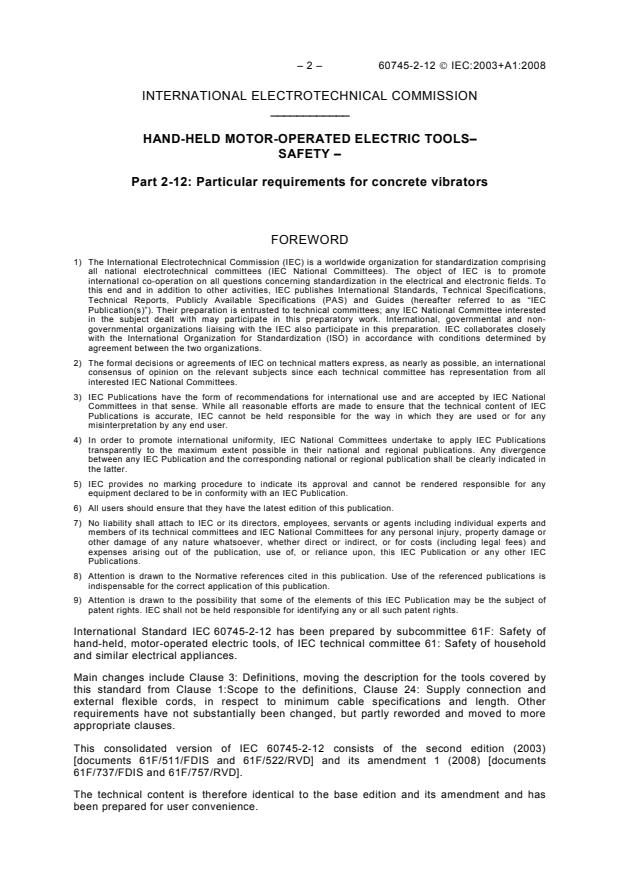

– 2 – 60745-2-12 © IEC:2003+A1:2008
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS–
SAFETY –
Part 2-12: Particular requirements for concrete vibrators

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60745-2-12 has been prepared by subcommittee 61F: Safety of
hand-held, motor-operated electric tools, of IEC technical committee 61: Safety of household
and similar electrical appliances.
Main changes include Clause 3: Definitions, moving the description for the tools covered by
this standard from Clause 1:Scope to the definitions, Clause 24: Supply connection and
external flexible cords, in respect to minimum cable specifications and length. Other
requirements have not substantially been changed, but partly reworded and moved to more
appropriate clauses.
This consolidated version of IEC 60745-2-12 consists of the second edition (2003)
[documents 61F/511/FDIS and 61F/522/RVD] and its amendment 1 (2008) [documents
61F/737/FDIS and 61F/757/RVD].
The technical content is therefore identical to the base edition and its amendment and has
been prepared for user convenience.

60745-2-12 © IEC:2003+A1:2008 – 3 –
It bears the edition number 2.1.
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This Part 2-12 is to be used in conjunction with the third edition of IEC 60745-1: Safety of
hand-held motor-operated electric tools – Part 1: General requirements. When this standard
states “addition”, “modification” or “replacement”, the relevant text in Part 1 is to be adapted
accordingly.
With amendment 1, this Part 2 is established on the basis of the fourth edition (2006) of
IEC 60745-1, Hand-held motor-operated electric tools – Safety – Part 1: General
requirements.
Main changes include editorial modifications to match with the fourth edition of IEC 60745-1
and clarifications in Annex K.
NOTE In this standard, the following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in smaller roman type.
Subclauses, tables and figures which are additional to those in Part 1 are numbered starting from 101; additional
annexes are lettered AA, BB, etc.
IEC 60745 consists of the following parts, under the general title Hand-held motor-operated
electric tools – Safety:
Part 1: General requirements
Part 2-1: Particular requirements for drills and impact drills
Part 2-2: Particular requirements for screwdrivers and impact wrenches
Part 2-3: Particular requirements for grinders, polishers and disk-type sanders
Part 2-4: Particular requirements for sanders and polishers other than disk type
Part 2-5: Particular requirements for circular saws and circular knives
Part 2-6: Particular requirements for hammers
Part 2-7: Particular requirements for spray guns for non-flammable liquids
Part 2-8: Particular requirements for shears and nibblers
Part 2-9: Particular requirements for tappers
Part 2-11: Particular requirements for reciprocating saws (jig and sabre saws)
Part 2-12: Particular requirements for concrete vibrators
Part 2-13: Particular requirements for chain saws
Part 2-14: Particular requirements for planers
Part 2-15: Particular requirements for hedge trimmers
Part 2-16: Particular requirements for tackers
Part 2-17: Particular requirements for routers and trimmers
Part 2-18: Particular requirements for strapping tools
Part 2-19: Particular requirements for jointers
Part 2-20: Particular requirements for band saws
Part 2-21: Particular requirements for drain cleaners

– 4 – 60745-2-12 © IEC:2003+A1:2008
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date,
the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60745-2-12 © IEC:2003+A1:2008 – 5 –
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS–
SAFETY –
Part 2-12: Particular requirements for concrete vibrators

1 Scope
This clause of Part 1 is applicable, except as follows:
Addition:
This standard applies to concrete vibrators.
2 Normative references
This clause of Part 1 is applicable.
3 Terms and definitions
This clause of Part 1 is applicable, except as follows:
3.2.9 Replacement:
normal load
load obtained when the tool is operated continuously, the hose and vibrator bottle being
attached to the tool as for normal use. During the operation the vibrator bottle is immersed
centrally in a container filled with an amount of water corresponding to at least 50 times
the volume of the vibrator bottle.
The dimensions of the container are such that the diameter is about 50 % of the height of the
water inside the container.
The height of the container is such that no water can splash out during the test.
Addition:
3.101
concrete vibrator
tool intended for compacting concrete. The active part (vibrator bottle) of the vibrator performs
low-amplitude vibrations and is immersed into the mass of concrete to be vibrated.
Concrete vibrators may be of one of the following designs:
a) the motor and the vibrating mechanism are inside the vibrator bottle to which the part
containing the mains switch or a power converter and switch handle assembly is
connected by means of a long flexible hose containing the interconnecting cable. The long
flexible hose may be used as the handle (see Figure 101);
b) only the vibrator mechanism is inside the vibrator bottle to which a separate portable unit,
comprising the motor, the handle and the mains switch, is connected by means of a long
flexible hose containing a flexible shaft (see Figure 102)

– 6 – 60745-2-12 © IEC:2003+A1:2008
4 General requirements
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable.
6 Void
7 Classification
This clause of Part 1 is applicable.
8 Marking and instructions
This clause of Part 1 is applicable.
9 Protection against access to live parts
This clause of Part 1 is applicable.
10 Starting
This clause of Part 1 is applicable, except as follows:
10.1 Addition:
The test is made at an ambient temperature of (10 ± 1) °C after the concrete vibrator has
been kept at this temperature for at least 2 h.
11 Input and current
This clause of Part 1 is applicable.
12 Heating
This clause of Part 1 is applicable, except as follows:
12.4 Replacement:
The tool is operated at normal load for 30 min. The temperature rises are measured at the
end of the 30 min.
13 Leakage current
This clause of Part 1 is applicable.

60745-2-12 © IEC:2003+A1:2008 – 7 –
14 Moisture resistance
This clause of Part 1 is applicable, except as follows:
14.1 Replacement of the first paragraph:
For design a) as defined in 3.101, the enclosure of all parts and the cable entry shall be IPX7.
During the relevant test of this subclause, the part containing the switch or the power
converter and switch handle assembly is placed in the normal position of use, the hose, if
any, being attached correctly to it.
For design b) as defined in 3.101, the motor unit shall be IPX4.
During the relevant test of this subclause, the motor unit is placed in the most unfavourable
position occurring during normal use.
The isolating transformer or the motor-generator shall be IPX4.
15 Electric strength
This clause of Part 1 is applicable.
16 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
17 Endurance
This clause of Part 1 is applicable, except as follows:
17.2 Replacement:
The tool is operated under the conditions specified for normal load for two periods of 12 h
at 1,1 times rated voltage and for two periods of 12 h at 0,9 times rated voltage. The resting
time between each of these periods of 12 h shall be at least 2 h.
The tool may be switched on and off by means of a switch other than that incorporated
in the tool.
During this test, replacement of the carbon brushes is allowed, and the tool is oiled and
greased as in normal use.
If the temperature rise of any part of the tool exceeds the temperature rise determined during
the test of 12.1, forced cooling or rest periods are applied, the rest periods being excluded
from the specified operating time.
During these tests, overload protection devices shall not operate.

– 8 – 60745-2-12 © IEC:2003+A1:2008
18 Abnormal operation
This clause of Part 1 is applicable, except as follows:
18.12 This subclause is not applicable.
18.101 The concrete vibrator is assembled as in normal use and is operated at rated voltage
or the at the upper limit of the voltage range, starting from room temperature, the hose and
the vibrator bottle being held vertically in free air.
The period of operation is:
2 min for concrete vibrators provided with a mains switch such that the motor is switched
off automatically as soon the actuating member of the switch is released;
15 min for other concrete vibrators, including those with an arrangement to lock the mains
switch in the ON position.
The test is considered to be terminated when a protective device, if any, operates.
After the concrete vibrator has been allowed to cool down to approximately room temperature,
it shall withstand an electric strength test as specified in 15.2. For concrete vibrators having
the motor in the bottle, the test voltage across basic insulation is, however, reduced to
1 000 V for tools other than those of class III.
19 Mechanical hazards
This clause of Part 1 is applicable.
20 Mechanical strength
This clause of Part 1 is applicable, except as follows:
20.3 Addition:
This test is done only with parts containing the motor or the mains switch which are held in
the hand or are operated by hand in normal use.
20.5 This subclause is not applicable.
20.101 The mechanical connections between the hose and the part containing the mains
switch and those between the hose and the vibrator bottle shall be reliable.
Compliance is checked by applying, on the concrete vibrator assembled as in normal use,
between the vibrator bottle and the part containing the mains switch, for 1 min, a pull in
newtons (N) equal to 200 times the mass of the vibrator bottle in kilograms, but not exceeding
1 200 N.
During the test, the electrical connections shall not be exposed to mechanical stress. After the
test, the hose shall not have moved noticeably at the places where it is fixed to the part
containing the mains switch and to the vibrator bottle.

60745-2-12 © IEC:2003+A1:2008 – 9 –
Moreover, the concrete vibrator shall withstand an electric strength test as specified in 15.2.
For concrete vibrators having the motor in the bottle, the test voltage across basic insulation
is, however, reduced to 1 000 V for tools other than those of class III.
21 Construction
This clause of Part 1 is applicable, except as follows:
21.16 Addition:
The circuits supplying motors and other components inside parts which, in normal use, are
either immersed in the mixture to be vibrated or held in the hand or operated by hand, shall
meet the requirements for tools with water supply.
Instead of an isolating transformer, a motor-generator providing the same degree of isolation
from the electric mains as an isolating transformer may be used.
The rated output voltage of an isolating transformer or a motor generator shall not exceed:
– 120 V at frequencies not exceeding 60 Hz
– 250 V at frequencies exceeding 60 Hz.
Compliance is checked by inspection.
21.32 This subclause is not applicable.
22 Internal wiring
This clause of Part 1 is applicable.
23 Components
This clause of Part 1 is applicable.
24 Supply connection and external flexible cords
This clause of Part 1 is applicable, except as follows:
24.4 Modification:
Instead of the first paragraph, the following applies:
Supply cords shall be at least heavy polychloroprene sheathed flexible cable (60245 IEC 66).
24.101 The supply cable attached to the part containing the mains switch shall have a
length:
– of at least 5 m for designs a) as defined in 3.101;
– of not more than 0,5 m or of at least 5 m for design b) as defined in 3.101.
Compliance is checked by measuring the length of the cable, including any cord guard,
between the plug and the point where the cable enters the part containing the mains switch.

– 10 – 60745-2-12 © IEC:2003+A1:2008
25 Terminals for external conductors
This clause of Part 1 is applicable.
26 Provision for earthing
This clause of Part 1 is applicable.
27 Screws and connections
This clause of Part 1 is applicable.
28 Creepage distances, clearances and distances through insulation
This clause of Part 1 is applicable.
29 Resistance to heat, fire and tracking
This clause of Part 1 is applicable.
30 Resistance to rusting
This clause of Part 1 is applicable.
31 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

60745-2-12 © IEC:2003+A1:2008 – 11 –

IEC  739/08
Key
1 electric supply cable
2 power converter and switch with handle
3 part containing the mains switch
