Mineral oil-filled electrical equipment in service - Guidance on the interpretation of dissolved and free gases analysis

IEC 60599:2015 is available as IEC 60599:2015 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 60599:2015 describes how the concentrations of dissolved gases or free gases may be interpreted to diagnose the condition of oil-filled electrical equipment in service and suggest future action. This standard is applicable to electrical equipment filled with mineral insulating oil and insulated with cellulosic paper or pressboard-based solid insulation. Information about specific types of equipment such as transformers (power, instrument, industrial, railways, distribution), reactors, bushings, switchgear and oil-filled cables is given only as an indication in the application notes. This standard may be applied, but only with caution, to other liquid-solid insulating systems. This third edition cancels and replaces the second edition published in 1999 and Amendment 1:2007. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) revision of 5.5, 6.1, 7, 8, 9, 10, A.2.6, A.3, A.7;
b) addition of new sub-clause 4.3;
c) expansion of the Bibliography;
d) revision of Figure 1;
e) addition of Figure B.4.

Matériels électriques remplis d'huile minérale en service - Lignes directrices pour l'interprétation de l'analyse des gaz dissous et des gaz libres

IEC 60599:2015 est disponible sous forme de IEC 60599:2015 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
IEC 60599:2015 décrit comment les concentrations de gaz dissous ou de gaz libres peuvent être interprétées pour diagnostiquer l'état des matériels électriques remplis d'huile en service et pour proposer une intervention ultérieure. La présente norme s'applique aux matériels électriques remplis d'huile minérale isolante et isolés par des isolants solides constitués de papier ou de carton cellulosiques. Des informations relatives aux types spécifiques de matériels tels que les transformateurs (de puissance, de mesure, industriels, ferroviaires, de distribution), les réactances, les traversées, les appareillages de connexion et les câbles à huile sont données, à titre informatif seulement, dans les notes d'application (voir Annexe A). La présente norme peut être appliquée, mais uniquement avec prudence, à d'autres systèmes d'isolation liquide-solide. Cette troisième édition annule et remplace la deuxième édition parue en 1999 et l'Amendement 1:2007. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) révision de 5.5, 6.1, 7, 8, 9, 10, A.2.6, A.3, A.7 ;
b) ajout d'un nouveau paragraphe 4.3;
c) enrichissement de la Bibliographie;
d) révision de la Figure 1;
e) ajout de la Figure B.4.

General Information

Status
Published
Publication Date
15-Sep-2015
Current Stage
DELPUB - Deleted Publication
Completion Date
25-May-2022
Ref Project

Buy Standard

Standard
IEC 60599:2015 - Mineral oil-filled electrical equipment in service - Guidance on the interpretation of dissolved and free gases analysis
English and French language
78 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60599
Edition 3.0 2015-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE

Mineral oil-filled electrical equipment in service – Guidance on the interpretation

of dissolved and free gases analysis
Matériels électriques remplis d'huile minérale en service – Lignes directrices
pour l'interprétation de l'analyse des gaz dissous et des gaz libres
IEC 60599:2015-09(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2015 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and

Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15

documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International

iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in

variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions

committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries

and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC

en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et

comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus

projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------

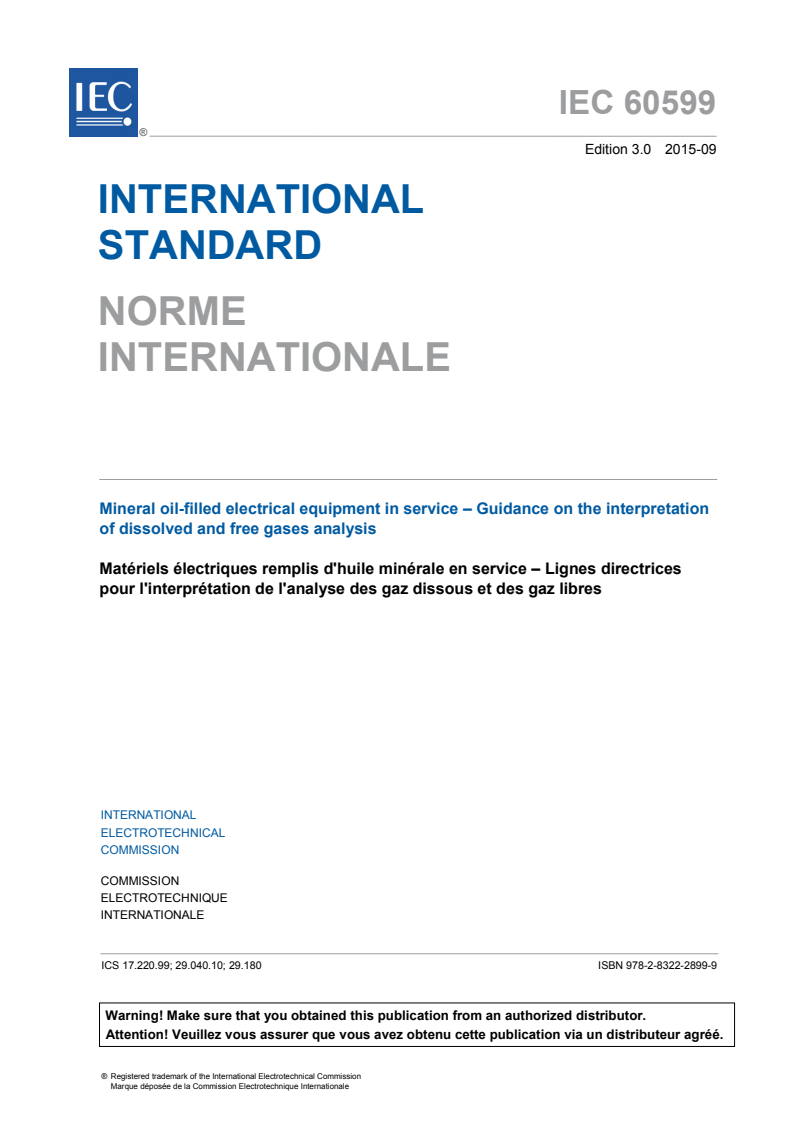

IEC 60599
Edition 3.0 2015-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE

Mineral oil-filled electrical equipment in service – Guidance on the interpretation

of dissolved and free gases analysis
Matériels électriques remplis d'huile minérale en service – Lignes directrices
pour l'interprétation de l'analyse des gaz dissous et des gaz libres
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220.99; 29.040.10; 29.180 ISBN 978-2-8322-2899-9

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 60599:2015 © IEC 2015

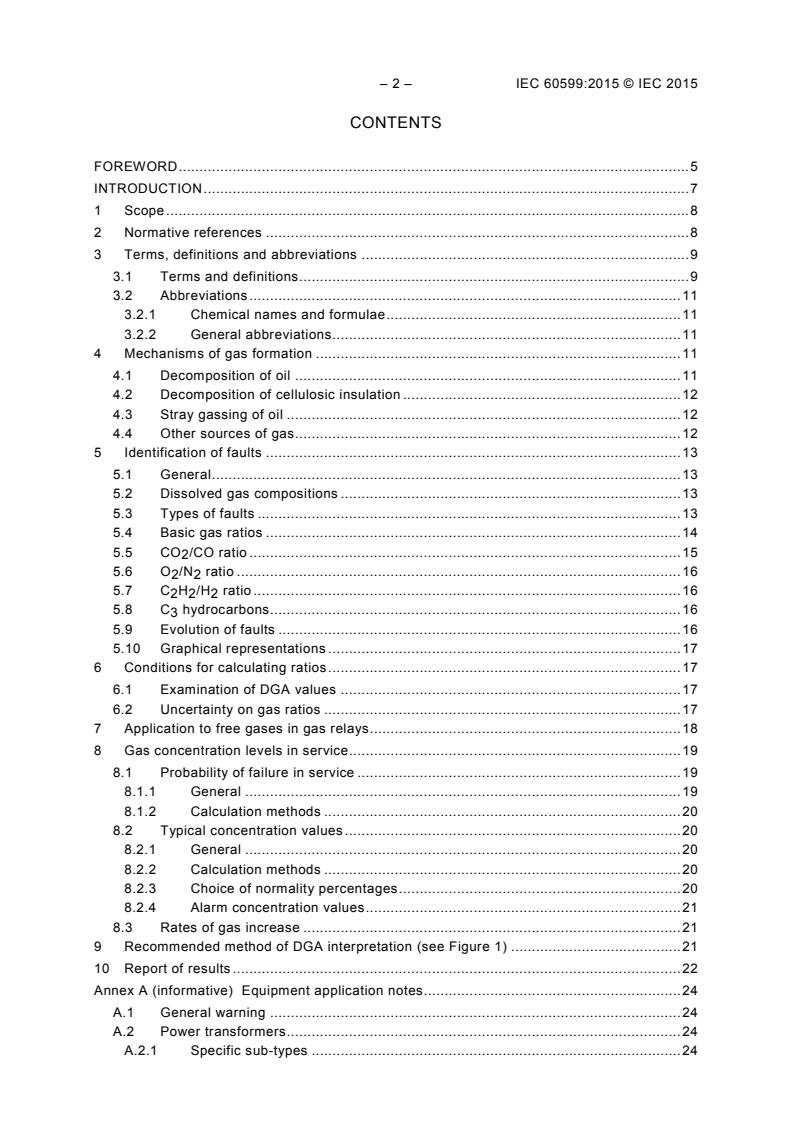

CONTENTS

FOREWORD ........................................................................................................................... 5

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms, definitions and abbreviations ............................................................................... 9

3.1 Terms and definitions .............................................................................................. 9

3.2 Abbreviations ........................................................................................................ 11

3.2.1 Chemical names and formulae ....................................................................... 11

3.2.2 General abbreviations .................................................................................... 11

4 Mechanisms of gas formation ........................................................................................ 11

4.1 Decomposition of oil ............................................................................................. 11

4.2 Decomposition of cellulosic insulation ................................................................... 12

4.3 Stray gassing of oil ............................................................................................... 12

4.4 Other sources of gas ............................................................................................. 12

5 Identification of faults .................................................................................................... 13

5.1 General ................................................................................................................. 13

5.2 Dissolved gas compositions .................................................................................. 13

5.3 Types of faults ...................................................................................................... 13

5.4 Basic gas ratios .................................................................................................... 14

5.5 CO /CO ratio ........................................................................................................ 15

5.6 O /N ratio ........................................................................................................... 16

2 2

5.7 C H /H ratio ....................................................................................................... 16

2 2 2

5.8 C hydrocarbons ................................................................................................... 16

5.9 Evolution of faults ................................................................................................. 16

5.10 Graphical representations ..................................................................................... 17

6 Conditions for calculating ratios ..................................................................................... 17

6.1 Examination of DGA values .................................................................................. 17

6.2 Uncertainty on gas ratios ...................................................................................... 17

7 Application to free gases in gas relays ........................................................................... 18

8 Gas concentration levels in service ................................................................................ 19

8.1 Probability of failure in service .............................................................................. 19

8.1.1 General ......................................................................................................... 19

8.1.2 Calculation methods ...................................................................................... 20

8.2 Typical concentration values ................................................................................. 20

8.2.1 General ......................................................................................................... 20

8.2.2 Calculation methods ...................................................................................... 20

8.2.3 Choice of normality percentages .................................................................... 20

8.2.4 Alarm concentration values ............................................................................ 21

8.3 Rates of gas increase ........................................................................................... 21

9 Recommended method of DGA interpretation (see Figure 1) ......................................... 21

10 Report of results ............................................................................................................ 22

Annex A (informative) Equipment application notes .............................................................. 24

A.1 General warning ................................................................................................... 24

A.2 Power transformers ............................................................................................... 24

A.2.1 Specific sub-types ......................................................................................... 24

---------------------- Page: 4 ----------------------
IEC 60599:2015 © IEC 2015 – 3 –

A.2.2 Typical faults ................................................................................................. 24

A.2.3 Identification of faults by DGA ....................................................................... 25

A.2.4 Typical concentration values .......................................................................... 25

A.2.5 Typical rates of gas increase ......................................................................... 26

A.2.6 Specific information to be added to the DGA report (see Clause 10) .............. 27

A.3 Industrial and special transformers ....................................................................... 27

A.3.1 Specific sub-types ......................................................................................... 27

A.3.2 Typical faults ................................................................................................. 27

A.3.3 Identification of faults by DGA. ...................................................................... 27

A.3.4 Typical concentration values .......................................................................... 27

A.4 Instrument transformers ........................................................................................ 28

A.4.1 Specific sub-types ......................................................................................... 28

A.4.2 Typical faults ................................................................................................. 28

A.4.3 Identification of faults by DGA ....................................................................... 29

A.4.4 Typical concentration values .......................................................................... 29

A.5 Bushings ............................................................................................................... 30

A.5.1 Specific sub-types ......................................................................................... 30

A.5.2 Typical faults ................................................................................................. 30

A.5.3 Identification of faults by DGA ....................................................................... 30

A.5.4 Typical concentration values .......................................................................... 31

A.6 Oil-filled cables ..................................................................................................... 31

A.6.1 Typical faults ................................................................................................. 31

A.6.2 Identification of faults by DGA ....................................................................... 31

A.6.3 Typical concentration values .......................................................................... 31

A.7 Switching equipment ............................................................................................. 32

A.7.1 Specific sub-types ......................................................................................... 32

A.7.2 Normal operation ........................................................................................... 32

A.7.3 Typical faults ................................................................................................. 32

A.7.4 Identification of faults by DGA ....................................................................... 32

A.8 Equipment filled with non-mineral fluids ................................................................ 33

Annex B (informative) Graphical representations of gas ratios (see 5.10) ............................ 34

Bibliography .......................................................................................................................... 38

Figure 1 – Flow chart ............................................................................................................ 23

Figure B.1 – Graphical representation 1 of gas ratios (see [3]) .............................................. 34

Figure B.2 – Graphical representation 2 of gas ratios ............................................................ 35

Figure B.3 – Graphical representation 3 of gas ratios – Duval's triangle 1 for

transformers, bushings and cables(see [4]) ........................................................................... 36

Figure B.4 – Graphical representation 4 of gas ratios – Duval's triangle 2 for OLTCs

(see A.7.2) ............................................................................................................................ 37

Table 1 – DGA interpretation table ........................................................................................ 14

Table 2 – Simplified scheme of interpretation ........................................................................ 15

Table 3 – Ostwald solubility coefficients for various gases in mineral insulating oils ............. 19

Table A.1 – Typical faults in power transformers ................................................................... 25

Table A.2 – Ranges of 90 % typical gas concentration values observed in power

transformers, in µl/l ............................................................................................................... 26

---------------------- Page: 5 ----------------------
– 4 – IEC 60599:2015 © IEC 2015
Table A.3 – Ranges of 90 % typical rates of gas increase observed in power

transformers (all types), in µl/l/year ....................................................................................... 26

Table A.4 – Examples of 90 % typical concentration values observed on individual

networks ............................................................................................................................... 28

Table A.5 – Typical faults in instrument transformers ............................................................ 29

Table A.6 – Ranges of 90 % typical concentration values observed in instrument

transformers ......................................................................................................................... 29

Table A.7 – Maximum admissible values for sealed instrument transformers......................... 30

Table A.8 – Typical faults in bushings ................................................................................... 30

Table A.9 – Simplified interpretation scheme for bushings .................................................... 31

Table A.10 – 95 % typical concentration values in bushings .................................................. 31

Table A.11 – Ranges of 95 % typical concentration values observed on cables .................... 32

Table A.12 – Typical faults in switching equipment ............................................................... 32

---------------------- Page: 6 ----------------------
IEC 60599:2015 © IEC 2015 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MINERAL OIL-FILLED ELECTRICAL EQUIPMENT
IN SERVICE – GUIDANCE ON THE INTERPRETATION
OF DISSOLVED AND FREE GASES ANALYSIS
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60599 has been prepared by IEC technical committee 10: Fluids

for electrotechnical applications.
This third edition cancels and replaces the second edition published in 1999 and
Amendment 1:2007. This edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
a) revision of 5.5, 6.1, 7, 8, 9, 10, A.2.6, A.3, A.7;
b) addition of new sub-clause 4.3;
c) expansion of the Bibliography;
d) revision of Figure 1;
e) addition of Figure B.4.
---------------------- Page: 7 ----------------------
– 6 – IEC 60599:2015 © IEC 2015
The text of this standard is based on the following documents:
FDIS Report on voting
10/967/FDIS 10/973/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 8 ----------------------
IEC 60599:2015 © IEC 2015 – 7 –
INTRODUCTION

Dissolved and free gas analysis (DGA) is one of the most widely used diagnostic tools for

detecting and evaluating faults in electrical equipment filled with insulating liquid. However,

interpretation of DGA results is often complex and should always be done with care, involving

experienced insulation maintenance personnel.

This International Standard gives information for facilitating this interpretation. The first

edition, published in 1978, has served the industry well, but had its limitations, such as the

absence of a diagnosis in some cases, the absence of concentration levels and the fact that it

was based mainly on experience gained from power transformers. The second edition

attempted to address some of these shortcomings. Interpretation schemes were based on

observations made after inspection of a large number of faulty oil-filled equipment in service

and concentrations levels deduced from analyses collected worldwide.
---------------------- Page: 9 ----------------------
– 8 – IEC 60599:2015 © IEC 2015
MINERAL OIL-FILLED ELECTRICAL EQUIPMENT
IN SERVICE – GUIDANCE ON THE INTERPRETATION
OF DISSOLVED AND FREE GASES ANALYSIS
1 Scope

This International Standard describes how the concentrations of dissolved gases or free

gases may be interpreted to diagnose the condition of oil-filled electrical equipment in service

and suggest future action.

This standard is applicable to electrical equipment filled with mineral insulating oil and

insulated with cellulosic paper or pressboard-based solid insulation. Information about

specific types of equipment such as transformers (power, instrument, industrial, railways,

distribution), reactors, bushings, switchgear and oil-filled cables is given only as an indication

in the application notes (see Annex A).

This standard may be applied, but only with caution, to other liquid-solid insulating systems.

In any case, the indications obtained should be viewed only as guidance and any resulting

action should be undertaken only with proper engineering judgment.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

IEC 60050-191:1990, International Electrotechnical Vocabulary – Chapter 191: Dependability

and quality of service (available at http://www.electropedia.org)

IEC 60050-192:2015, International Electrotechnical Vocabulary – Part 192: Dependability

(available at http://www.electropedia.org)

IEC 60050-212:2010, International Electrotechnical Vocabulary – Part 212: Electrical

insulating solids, liquids and gases (available at http://www.electropedia.org)

IEC 60050-604:1987, International Electrotechnical Vocabulary – Chapter 604: Generation,

transmission and distribution of electricity – Operation (available at
http://www.electropedia.org)
IEC 60475, Method of sampling insulating liquids

IEC 60567:2011, Oil-filled electrical equipment – Sampling of gases and analysis of free and

dissolved gases – Guidance

IEC 61198, Mineral insulating oils – Methods for the determination of 2-furfural and related

compounds
---------------------- Page: 10 ----------------------
IEC 60599:2015 © IEC 2015 – 9 –
3 Terms, definitions and abbreviations
3.1 Terms and definitions

For the purposes of this document, the following terms and definitions, some of which are

based on IEC 60050-191, IEC 60050-192, IEC 60050-212 and IEC 60050-604, apply.
3.1.1
fault

unplanned occurrence or defect in an item which may result in one or more failures of the item

itself or of other associated equipment
[SOURCE: IEC 60050-604:1987, 604-02-01]
3.1.2
non-damage fault

fault which does not involve repair or replacement action at the point of the fault

Note 1 to entry: Typical examples are self-extinguishing arcs in switching equipment or general overheating

without paper carbonization or stray gassing of oil.
[SOURCE: IEC 60050-604:1987, 604-02-09]
3.1.3
damage fault
fault that involves repair or replacement action at the point of the fault
[SOURCE: IEC 60050-604:1987, 604-02-08]
3.1.4
incident

event of external or internal origin, affecting equipment or the supply system and which

disturbs its normal operation

Note 1 to entry: For the purposes of the present standard “incidents” are related to internal faults.

Note 2 to entry: For the purposes of the present standard typical examples of “incidents” are gas alarms,

equipment tripping or equipment leakage.
[SOURCE: IEC 60050-604:1987, 604-02-03]
3.1.5
failure
loss of ability to perform as required

Note 1 to entry: In electrical equipment, failure will result from a damage fault or incident necessitating outage,

repair or replacement of the equipment, such as internal breakdown, rupture of tank, fire or explosion.

[SOURCE: IEC 60050-192:2015, 192-03-01]
3.1.6
electrical fault
partial or disruptive discharge through the insulation
3.1.7
partial discharge
electric discharge that only partially bridges the insulation between conductors

Note 1 to entry: A partial discharge may occur inside the insulation or adjacent to a conductor.

---------------------- Page: 11 ----------------------
– 10 – IEC 60599:2015 © IEC 2015

Note 2 to entry: Scintillations of low energy on the surface of insulating materials are often described as partial

discharges but should rather be considered as disruptive discharges of low energy, since they are the

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
