Household and similar electrical appliances - Safety - Part 2-116: Particular requirements for furniture with electrically motorized parts

IEC 60335-2-116:2019 deals with the safety of furniture with electrically motorized parts intended for household and similar purposes, their rated voltage being not more than 250 V.
Furniture incorporating electrically motorised parts not intended for normal household use but which nevertheless may be a source of danger to the public, such as furniture intended to be used by laymen in shops, offices, hotels, restaurants, cinemas, hospitals, schools, in light industry and on farms, are within the scope of this standard.
Examples of furniture incorporating electrically motorised parts, are
– electrically operated/height adjustable tables and desks;
– electrically operated/adjustable stands and wall attachment for e.g.TV sets and monitors;
– electrically operated/adjustable seating;
– beds with incorporated ventilators and filters;
– electrically operated/adjustable beds;
– electrically operated/adjustable storage units including kitchen units;
– electrically operated/adjustable furniture intended to be secured to the wall or ceiling;
– electrically operated extension elements (drawers and doors);
– electric check-out furniture in hotels and shops;
– furniture delivered in parts (ready to assemble or knock-down furniture).
This standard deals with the reasonably foreseeable hazards presented by furniture incorporating electrically motorised parts that are encountered by all persons. However, in general, it does not take into account
– persons whose physical, sensory or mental capabilities; or lack of experience and knowledge prevents them from using the furniture incorporating electric appliances, parts or components safely without supervision or instruction;
– children playing with furniture incorporating electrically motorised parts.
Attention is drawn to the fact that
– for furniture incorporating electrically motorised parts intended to be used in vehicles or on board ships or aircraft, additional requirements can be necessary;
– in many countries, additional requirements are specified by the national health authorities, the national authorities responsible for the protection of labour, the national authorities for fire protection and similar authorities.
This standard does not apply to
– furniture containing heating elements;
– electrically operated hospital beds (IEC 60601-2-52);
– electrical wheel chairs;
– special furniture incorporating electric appliances, parts or components, which are part of industrial production equipment;
– cupboards for building in appliances like a dishwasher;
– electric child care articles except electrical height adjustable changing (nursing) tables;
– furniture especially for use by children;
– furniture for outdoor use.
This standard only covers the risks associated with electrically motorized parts when operated as in normal use taking into account the manufacturer's instructions. It also covers abnormal situations that can be expected in practice and takes into account the way in which electromagnetic phenomena can affect the safe operation of such appliances. It does not cover risks associated with furniture containing heating elements.
Other safety aspects of furniture with and without electrically motorised parts are covered by the standards developed by ISO TC 136.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its amendments. It was established on the basis of the fifth edition (2010) of that standard.

Appareils électrodomestiques et analogues - Sécurité - Partie 2-116: Exigences particulières pour les meubles avec des parties électriquement motorisées

L'IEC 60335-2-116:2019 traite de la sécurité du mobilier avec des parties électriquement motorisées, pour usages domestiques et analogues, dont la tension assignée n'est pas supérieure à 250 V.
Les mobiliers intégrant des parties à motorisation électrique non destinés à un usage domestique normal, mais qui néanmoins peuvent constituer une source de danger pour le public (le mobilier destiné à être utilisé par des usagers non avertis dans des magasins, des bureaux, des hôtels, des restaurants, des cinémas, des hôpitaux, des écoles, chez les artisans et dans des fermes, par exemple) sont compris dans le domaine d'application de la présente norme.
Exemples de mobilier intégrant des parties à motorisation électrique:
– tables et bureaux à fonctionnement/réglage de la hauteur électrique;
– meubles et fixations murales à fonctionnement/réglage électrique, pour les postes de télévision et les moniteurs, par exemple;
– siège à fonctionnement/réglage électrique;
– lits à ventilateurs et filtres incorporés;
– lits à fonctionnement/réglage électrique;
– unités de stockage à fonctionnement/réglage électrique, y compris les blocs-cuisine;
– mobilier à fonctionnement/réglage électrique destiné à être fixé au mur ou au plafond;
– éléments d'extension à fonctionnement électrique (tiroirs et portes);
– mobilier à commande électrique dans les hôtels et les magasins;
– mobilier livré en pièces détachées (mobilier prêt à assembler ou monter).
La présente norme traite des dangers raisonnablement prévisibles que présente le mobilier incorporant des parties à motorisation électrique pour toutes les personnes. Cependant, la présente norme ne tient pas compte en général:
– des personnes dont les capacités physiques, sensorielles ou mentales ou dont le manque d'expérience ou de connaissance les empêchent d'utiliser le mobilier incorporant des appareils, parties ou composants électriques en toute sécurité, sans surveillance ou instruction;
– de l'utilisation du mobilier incorporant des parties à motorisation électrique comme jouet par des enfants.
L'attention est attirée sur le fait que:
– pour le mobilier incorporant des parties à motorisation électrique destiné à être utilisé dans des véhicules ou à bord de navires ou d'avions, des exigences supplémentaires peuvent être nécessaires;
– dans de nombreux pays, des exigences supplémentaires sont spécifiées par les organismes nationaux de la santé, par les organismes nationaux responsables de la protection des travailleurs, par les organismes nationaux responsables de la protection contre les incendies et par des organismes similaires.
La présente norme ne s'applique pas:
– au mobilier comprenant des éléments chauffants;
– aux lits d'hôpital électriques (IEC 60601-2-52);
– aux fauteuils roulants électriques;
– au mobilier particulier intégrant des appareils, parties ou composants électriques, faisant partie intégrante d'un matériel de production industrielle;
– aux armoires pour appareils encastrés (les lave-vaisselle, par exemple);
– aux articles électriques de puériculture, à l'exception des tables à langer (maternités) réglables en hauteur;
– au mobilier spécialement destiné aux enfants;
– au mobilier utilisé à l'extérieur.
La présente norme couvre uniquement les risques liés aux parties électriquement motorisées lorsqu'elles fonctionnent comme en usage normal en tenant compte des instructions du fabricant. Elle couvre également les situations anormales qui peuvent être attendues dans la pratique et prend en considération les phénomènes électromagnétiques qui peuvent affecter le fonctionnement en toute sécurité de tels appareils. Elle ne couvre pas les risques liés au mobilier comprenant des éléments chauffants.
D'autres aspects relatifs à la sécurité du mobilier avec et sans parties électriquement motorisées sont couverts par les normes élaborées par le TC 136 de l'ISO.
La présente partie 2 doit être utilisée conjointement avec la dernière édition de l'IEC 60335-1 et ses a

General Information

Status
Published
Publication Date
21-Nov-2019
Current Stage
PPUB - Publication issued
Completion Date
22-Nov-2019
Ref Project

Buy Standard

Standard
IEC 60335-2-116:2019 - Household and similar electrical appliances - Safety - Part 2-116: Particular requirements for furniture with electrically motorized parts
English and French language
40 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60335-2-116
Edition 1.0 2019-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –

Part 2-116: Particular requirements for furniture with electrically motorised parts

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-116: Exigences particulières pour les meubles avec des parties
électriquement motorisées
IEC 60335-2-116:2019-11(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

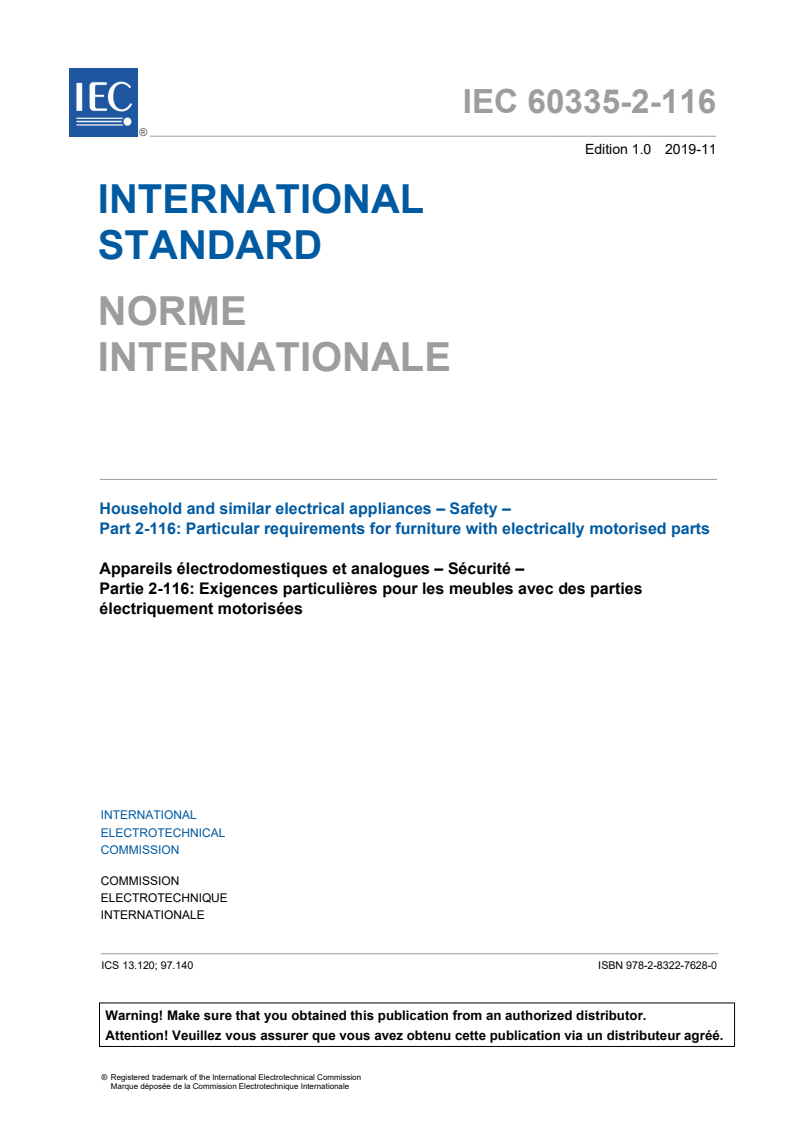

IEC 60335-2-116
Edition 1.0 2019-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –

Part 2-116: Particular requirements for furniture with electrically motorised parts

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-116: Exigences particulières pour les meubles avec des parties
électriquement motorisées
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.140 ISBN 978-2-8322-7628-0

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

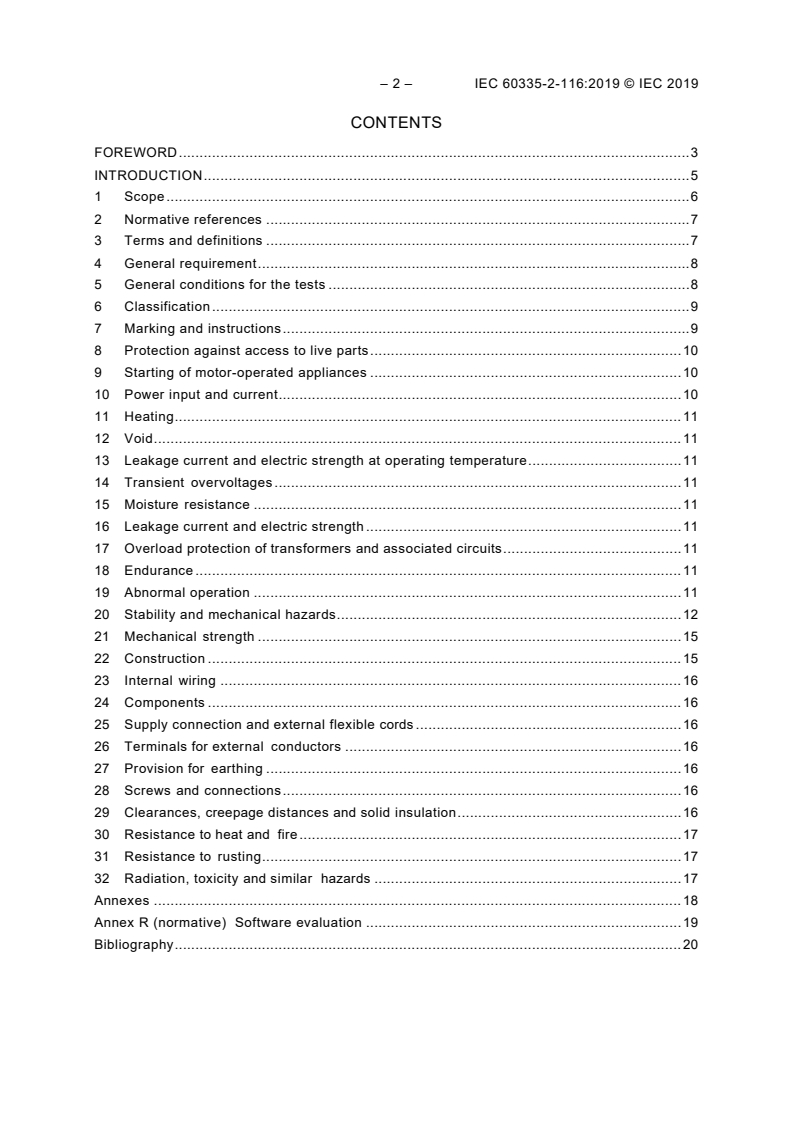

– 2 – IEC 60335-2-116:2019 © IEC 2019
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 7

4 General requirement ........................................................................................................ 8

5 General conditions for the tests ....................................................................................... 8

6 Classification ................................................................................................................... 9

7 Marking and instructions .................................................................................................. 9

8 Protection against access to live parts ........................................................................... 10

9 Starting of motor-operated appliances ........................................................................... 10

10 Power input and current ................................................................................................. 10

11 Heating .......................................................................................................................... 11

12 Void ............................................................................................................................... 11

13 Leakage current and electric strength at operating temperature ..................................... 11

14 Transient overvoltages .................................................................................................. 11

15 Moisture resistance ....................................................................................................... 11

16 Leakage current and electric strength ............................................................................ 11

17 Overload protection of transformers and associated circuits ........................................... 11

18 Endurance ..................................................................................................................... 11

19 Abnormal operation ....................................................................................................... 11

20 Stability and mechanical hazards ................................................................................... 12

21 Mechanical strength ...................................................................................................... 15

22 Construction .................................................................................................................. 15

23 Internal wiring ............................................................................................................... 16

24 Components .................................................................................................................. 16

25 Supply connection and external flexible cords ................................................................ 16

26 Terminals for external conductors ................................................................................. 16

27 Provision for earthing .................................................................................................... 16

28 Screws and connections ................................................................................................ 16

29 Clearances, creepage distances and solid insulation ...................................................... 16

30 Resistance to heat and fire ............................................................................................ 17

31 Resistance to rusting ..................................................................................................... 17

32 Radiation, toxicity and similar hazards .......................................................................... 17

Annexes ............................................................................................................................... 18

Annex R (normative) Software evaluation ............................................................................ 19

Bibliography .......................................................................................................................... 20

---------------------- Page: 4 ----------------------
IEC 60335-2-116:2019 © IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-116: Particular requirements for furniture
with electrically motorised parts
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60335-2-116 has been prepared by IEC technical committee 61:

Safety of household and similar electrical appliances.
The text of this International Standard is based on the following documents:
FDIS Report on voting
61/5929/FDIS 61/5945/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 5 ----------------------
– 4 – IEC 60335-2-116:2019 © IEC 2019

A list of all parts of the IEC 60335 series, under the general title: Household and similar

electrical appliances – Safety, can be found on the IEC website.

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its

amendments. It was established on the basis of the fifth edition (2010) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to

convert that publication into the IEC standard: Safety requirements for furniture with

electrically motorised parts.

When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies

as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,

the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:

− subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;

− unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101,

including those in a replaced clause or subclause;
− additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
− requirements: in roman type;
− test specifications: in italic type;
− notes: in small roman type.

Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the

associated noun are also in bold.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition; or
• amended.

NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing

organizations may need a transitional period following publication of a new, amended or revised IEC publication in

which to make products in accordance with the new requirements and to equip themselves for conducting new or

revised tests.

It is the recommendation of the committee that the content of this publication be adopted for implementation

nationally not earlier than 12 months or later than 36 months from the date of publication.

---------------------- Page: 6 ----------------------
IEC 60335-2-116:2019 © IEC 2019 – 5 –
INTRODUCTION

It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard only covers the risks associated with electrically motorized parts when operated

as in normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of such appliances. It does not

cover risks associated with furniture containing heating elements.

Other safety aspects of furniture with and without electrically motorised parts are covered by

the standards developed by ISO TC 136.

This standard takes into account the requirements of IEC 60364 as far as possible so that

there is compatibility with the wiring rules when the appliance is connected to the supply

mains. However, national wiring rules may differ.

If an appliance within the scope of this standard also incorporates functions that are covered

by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as

far as is reasonable. If applicable, the influence of one function on the other is taken into

account.

When a part 2 standard does not include additional requirements to cover hazards dealt with

in Part 1, Part 1 applies.

NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is

not necessary to specify particular requirements for the appliance in question over and above the general

requirements.

This standard is a product family standard dealing with the safety of appliances and takes

precedence over horizontal and generic standards covering the same subject.

NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into

consideration when developing the general and particular requirements for the IEC 60335 series of standards. For

example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as

ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.

An appliance that complies with the text of this standard will not necessarily be considered to

comply with the safety principles of the standard if, when examined and tested, it is found to

have other features that impair the level of safety covered by these requirements.

---------------------- Page: 7 ----------------------
– 6 – IEC 60335-2-116:2019 © IEC 2019
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-116: Particular requirements for furniture
with electrically motorised parts
1 Scope
This clause of Part 1 is replaced by the following.

This part of IEC 60335 deals with the safety of furniture with electrically motorized parts

intended for household and similar purposes, their rated voltage being not more than 250 V.

Furniture incorporating electrically motorised parts not intended for normal household use but

which nevertheless may be a source of danger to the public, such as furniture intended to be

used by laymen in shops, offices, hotels, restaurants, cinemas, hospitals, schools, in light

industry and on farms, are within the scope of this standard.
NOTE 101 Examples of furniture incorporating electrically motorised parts, are
– electrically operated/height adjustable tables and desks;

– electrically operated/adjustable stands and wall attachment for e.g.TV sets and monitors;

– electrically operated/adjustable seating;
– beds with incorporated ventilators and filters;
– electrically operated/adjustable beds;
– electrically operated/adjustable storage units including kitchen units;

– electrically operated/adjustable furniture intended to be secured to the wall or ceiling;

– electrically operated extension elements (drawers and doors);
– electric check-out furniture in hotels and shops;
– furniture delivered in parts (ready to assemble or knock-down furniture).

This standard deals with the reasonably foreseeable hazards presented by furniture

incorporating electrically motorised parts that are encountered by all persons. However, in

general, it does not take into account

– persons whose physical, sensory or mental capabilities; or lack of experience and

knowledge prevents them from using the furniture incorporating electric appliances, parts

or components safely without supervision or instruction;
– children playing with furniture incorporating electrically motorised parts.
NOTE 102 Attention is drawn to the fact that

– for furniture incorporating electrically motorised parts intended to be used in vehicles or on board ships or

aircraft, additional requirements can be necessary;

– in many countries, additional requirements are specified by the national health authorities, the national

authorities responsible for the protection of labour, the national authorities for fire protection and similar

authorities.
NOTE 103 This standard does not apply to
– furniture containing heating elements;
– electrically operated hospital beds (IEC 60601-2-52);
– electrical wheel chairs;

– special furniture incorporating electric appliances, parts or components, which are part of industrial production

equipment;
– cupboards for building in appliances like a dishwasher;
---------------------- Page: 8 ----------------------
IEC 60335-2-116:2019 © IEC 2019 – 7 –

– electric child care articles except electrical height adjustable changing (nursing) tables;

– furniture especially for use by children;
– furniture for outdoor use.
2 Normative references
This clause of Part 1 is applicable.
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1 Definitions relating to physical characteristics
Replacement:
3.1.9
normal operation

operation with the appliance operating with its rated load and under the most unfavourable

conditions specified in the instructions
Where applicable, the rated load is distributed as follows.

For adjustable beds with a non-articulating frame, the rated load is evenly distributed over

the bed surface.

For adjustable articulating beds, the rated load is evenly distributed over the three separate

bed surface areas with 45 % for the head part, 25 % for the middle part and 30 % for the foot

part.

For adjustable articulating chairs without a leg rest, the rated load is evenly distributed over

the two separate chair surface areas with 35 % for the back-rest part and 65 % the seating

surface part.

For adjustable articulating chairs with a leg rest, the rated load is evenly distributed over the

three separate chair surface areas with 35 % for the back-rest part, 55 % for the seating

surface part and 10 % for the leg rest part.

For other furniture or parts of the furniture with electrically motorized parts the rated load is

evenly distributed over the load bearing surface.
3.1.101
rated duty cycle

maximum activation time (x seconds ON) followed by a minimum deactivation time (y seconds

OFF) necessary for the safe operation of the furniture assigned by the manufacturer

3.1.102
rated load
load assigned to the appliance by the manufacturer

Note 1 to entry: For beds, the mattress is considered a part of the bed construction.

3.5 Definitions relating to types of appliances
3.5.101
furniture

article intended to support human activities such as seating, eating, sleeping, working or

storing things
---------------------- Page: 9 ----------------------
– 8 – IEC 60335-2-116:2019 © IEC 2019

Note 1 to entry: Examples are chairs, desks, tables, work benches, cupboards, shelves and beds.

3.6 Definitions relating to parts of an appliance
Replacement:
3.6.3
accessible part

part or surface that can be touched by means of test probe B or test probe 18 of IEC 61032,

and if the part or surface is metal, any conductive part connected to it

Note 1 to entry: Accessible non-metallic parts with conductive coatings are considered to be accessible metal

parts.
3.7 Definitions relating to safety components
3.7.101
biased-off switch

hold-to-run device which initiates and maintains the movement only as long as the manual

control is actuated
3.7.102
entrapment protection system

part of the appliance that protects against shearing, crushing or being held captive

3.7.103
impulse activation device

device which initiates the movement or terminates the movement or causes a change of the

direction of the movement
3.7.104
manual release
handle or the like which initiates manual operation of the moving parts
3.8 Definitions relating to miscellaneous matters
3.8.101
limited movement

operation where movement of a part of the appliance is made in very small steps in order to

inform the user that they have to shift their position for ergonomic reason

Note 1 to entry: This movement can be programmable and can be repeated in several series.

Note 2 to entry: When limited movement activates, the first movement and the consecutive movement does not

result in a change from the original position.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.101 Furniture is tested as a motor-operated appliance.
---------------------- Page: 10 ----------------------
IEC 60335-2-116:2019 © IEC 2019 – 9 –
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances shall be of type class I, class II or class III.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
Appliances shall be marked with their rated load in kg.

If different parts support loads within the same furniture, the rated load for each part shall be

marked.

Appliances shall be marked with symbol IEC 60417-5957 (2004-12) or with the substance of

the following:
For indoor use only

Appliances not intended for continuous operation shall be marked with their rated duty-cycle.

7.6 Addition:
[symbol IEC 60417-5957
for indoor use only
(2004-12)]
7.12 Addition:
The instructions shall state the substance of the following:
– disconnect the supply when carrying out maintenance and cleaning;

– examine the appliance frequently for signs of wear or damage. If there are such signs or if

the appliance has been misused or does not work, contact the supplier for further

information;
– do not allow children to play with fixed controls;
– keep remote controls away from children;

– when operating a switch that initiates and maintains the movement of the furniture or

terminates the movement of the furniture or causes a change of the direction of the

movement of the furniture, make sure that other persons are kept away.
The instructions shall also include information on the following:

– placement of furniture to avoid creating entrapment hazards with other furniture;

– details on how to use a manual release, if any;
– an explanation of different ways of controlling the movement;
---------------------- Page: 11 ----------------------
– 10 – IEC 60335-2-116:2019 © IEC 2019

– information relating to cleaning and user maintenance including use of chemical cleaning

agents.
If symbol IEC 60417-5957 (2004-12) is used, its meaning shall be explained.
8 Protection against access to live parts
This clause of Part 1 is applicable, except as follows.
8.1.1 Modification:

Test probe B and test probe 18 of IEC 61032 are applied with a force not exceeding 1 N, the

appliance being in every possible position, except that appliances normally used on the floor

and having a mass exceeding 40 kg are not tilted.

Through openings, the test probe is applied to any depth that the probe will permit and is

rotated or angled before, during and after insertion to any position. If the opening does not

allow the entry of the probe, the force on the probe in the straight position is increased to

20 N when probe B is used or 10 N when probe 18 is used. If the probe then enters the

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
