IEC 60404-3:1992/AMD2:2009
(Amendment)Amendment 2 - Magnetic materials - Part 3: Methods of measurement of the magnetic properties of electrical steel strip and sheet by means of a single sheet tester
Amendment 2 - Magnetic materials - Part 3: Methods of measurement of the magnetic properties of electrical steel strip and sheet by means of a single sheet tester
The contents of the corrigendum of December 2009 have been included in this copy.
Amendement 2 - Matériaux magnétiques - Partie 3: Méthodes de mesure des caractéristiques magnétiques des bandes et tôles magnétiques en acier à l'aide de l'essai sur tôle unique
Le contenu du corrigendum de décembre 2009 a été pris en considération dans cet exemplaire.
General Information
Relations
Standards Content (Sample)

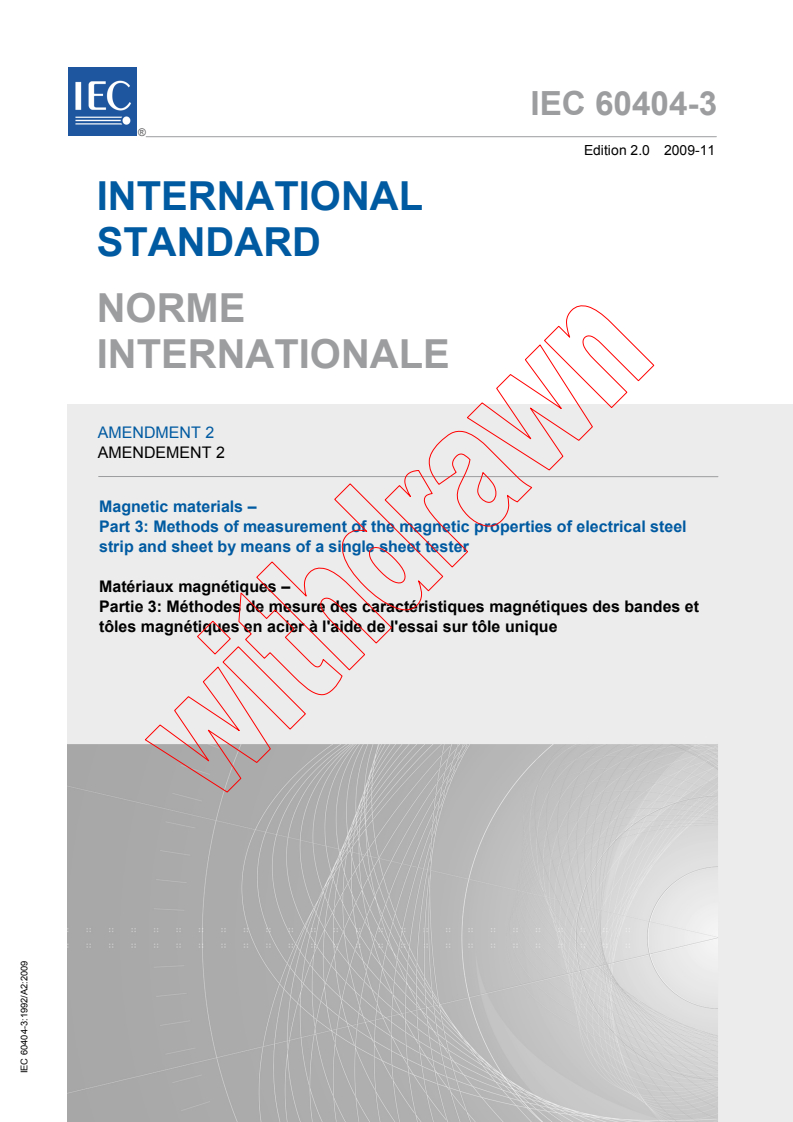

IEC 60404-3 ®
Edition 2.0 2009-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 2
AMENDEMENT 2
Magnetic materials –
Part 3: Methods of measurement of the magnetic properties of electrical steel
strip and sheet by means of a single sheet tester
Matériaux magnétiques –
Partie 3: Méthodes de mesure des caractéristiques magnétiques des bandes et
tôles magnétiques en acier à l'aide de l'essai sur tôle unique
IEC 60404-3:1992/A2:2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00

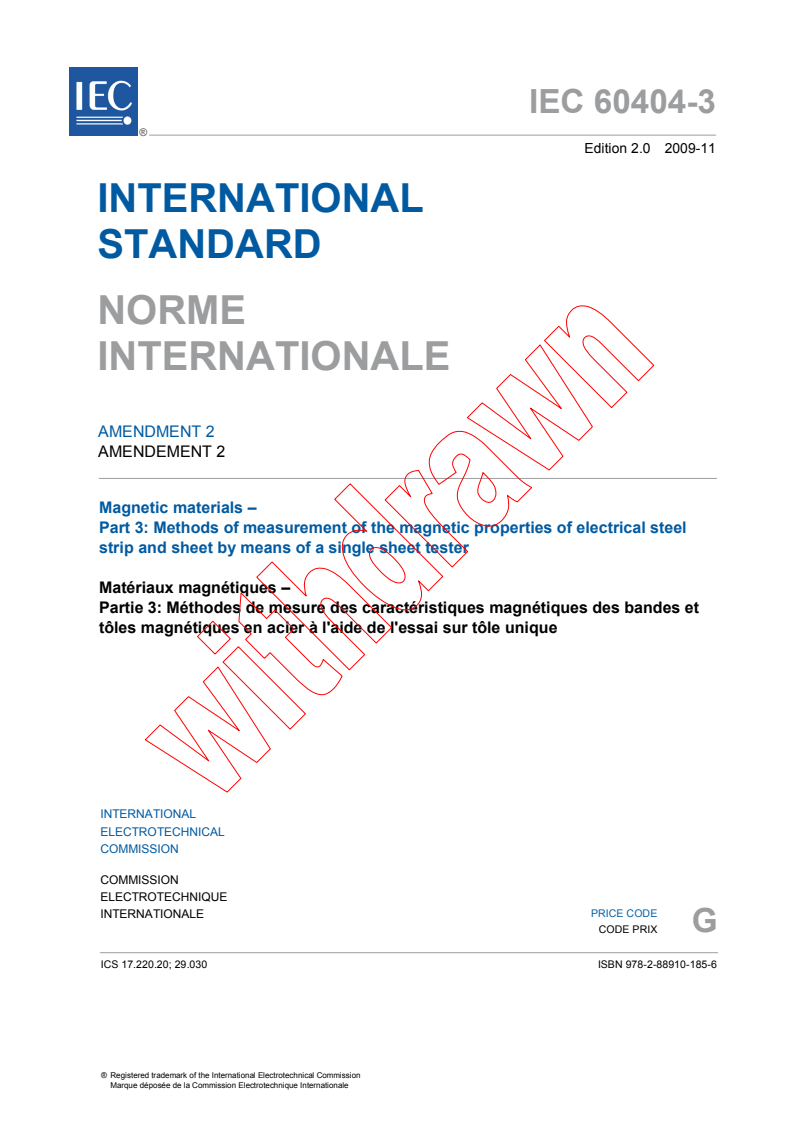

IEC 60404-3 ®
Edition 2.0 2009-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 2
AMENDEMENT 2
Magnetic materials –
Part 3: Methods of measurement of the magnetic properties of electrical steel
strip and sheet by means of a single sheet tester
Matériaux magnétiques –
Partie 3: Méthodes de mesure des caractéristiques magnétiques des bandes et
tôles magnétiques en acier à l'aide de l'essai sur tôle unique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
G
CODE PRIX
ICS 17.220.20; 29.030 ISBN 978-2-88910-185-6
– 2 – 60404-3 Amend. 2 © IEC:2009

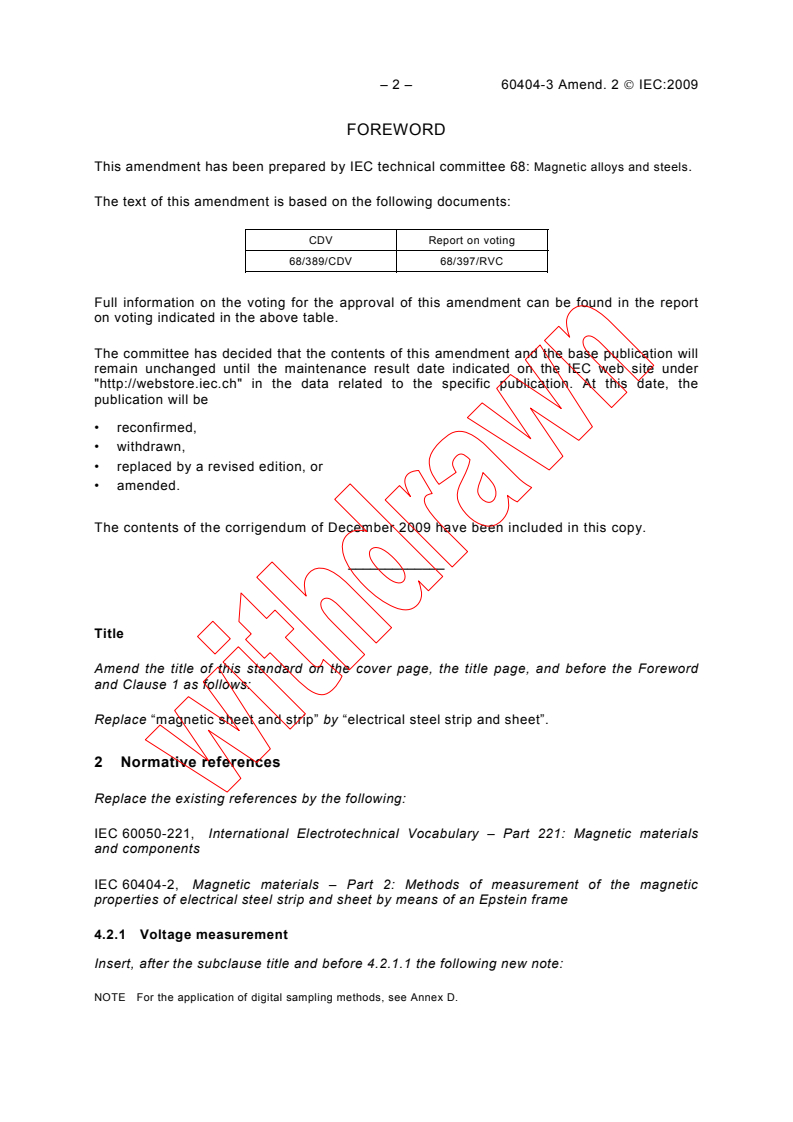

FOREWORD
This amendment has been prepared by IEC technical committee 68: Magnetic alloys and steels.
The text of this amendment is based on the following documents:
CDV Report on voting
68/389/CDV 68/397/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
The contents of the corrigendum of December 2009 have been included in this copy.
_____________
Title
Amend the title of this standard on the cover page, the title page, and before the Foreword
and Clause 1 as follows:
Replace “magnetic sheet and strip” by “electrical steel strip and sheet”.
2 Normative references
Replace the existing references by the following:
IEC 60050-221, International Electrotechnical Vocabulary – Part 221: Magnetic materials
and components
IEC 60404-2, Magnetic materials – Part 2: Methods of measurement of the magnetic
properties of electrical steel strip and sheet by means of an Epstein frame
4.2.1 Voltage measurement
Insert, after the subclause title and before 4.2.1.1 the following new note:
NOTE For the application of digital sampling methods, see Annex D.
60404-3 Amend. 2 © IEC:2009 – 3 –
4.2.2 Frequency measurement
Introduce the following note after the paragraph:
NOTE For the application of digital sampling methods, see Annex D.
4.2.3 Power measurement
Introduce the following note after the first paragraph:
NOTE For the application of digital sampling methods, see Annex D.
4.3 Measurement procedure
Replace the existing title by the following new title:
4.3 Measurement procedure of the specific total loss
Introduce the following note after the clause heading:
NOTE For the application of digital sampling methods, see Annex D.
Add the following new Annex D:
– 4 – 60404-3 Amend. 2 © IEC:2009
Annex D
(informative)
Digital sampling methods for the determination
of the magnetic properties
D.1 General
The digital sampling method is an advanced technique that is becoming almost exclusively
applied to the electrical part of the measurement procedure of this standard. It is
characterized by the digitalization of the secondary voltage, U (t), the voltage drop across the
non-inductive precision resistor in series with the primary winding (see Figures 4 and 6),
U (t), and the evaluation of the data for the determination of the magnetic properties of the
test specimen. For this purpose, instantaneous values of these voltages having index j, u
2j
and u respectively, are sampled and held simultaneously from the time-dependent voltage
1j
functions during a narrow and equidistant time period each by sample-and-hold circuits. They
are then immediately converted to digital values by analog-to-digital converters (ADC). The
data pairs sampled over one or more periods together with the specimen and the set-up
parameters, provide the complete information for one measurement. This data set enables
computer processing for the determination of all magnetic properties required in this standard.
The digital sampling method may be applied to the measurement procedures which are
described in the main part of this standard. The block diagram in Figure 4 applies equally to
the analogue methods and the digital sampling method; the digital sampling method allows all
functions of the measurement equipments in Figure 4 to 6 to be realized by a combined
system of a data acquisition equipment and software. The control of the sinusoidal waveform
of the secondary voltage can also be realized by a digital method. However, the purpose and
procedure of this technique are different from those of this annex and are not treated here.
More information can be found in [3] and [4].
This annex is helpful in understanding the impact of the digital sampling method on the
precision achievable by the methods of this standard. This is particularly important because
ADC circuits, transient recorders and supporting software are easily available thus
encouraging one to build one’s own wattmeter. The digital sampling method can offer low
uncertainty, but it leads to large errors if improperly used.
D.2 Technical details and requirements
The principle of the digital sampling method is the discretization of voltage and time, i.e. the
replacement of the infinitesimal time interval dt by the finite time interval Δt:
T 1 1
(D.1)
Δt = = =
n f ⋅ n f
s
where
Δt is the time interval between the sampled points, in seconds;
T is the length of the period of the magnetization, in seconds;
n is the number of instantaneous values sampled over one period;
f is the frequency of the magnetization, in hertz;
f is the sampling frequency, in points per seconds.
s
60404-3 Amend. 2 © IEC:2009 – 5 –
In order to achieve lower uncertainties, the length of the period of the magnetization divided
by the time interval between the sampled points, i.e. the ratio f /f, should be an integer
s
(Nyquist condition [7]) and the sampling frequency, f , should be greater than twice the input
s
signal bandwidth.
According to an average-sensing voltmeter, the peak value of the flux density can be
calculated by the sum of the u values sampled over one period as follows:
2j
T
n −1
1 1 1
ˆ
(D.2)
J = U (t )dt ≅ u
2 ∑ 2 j
∫
4fN A T 4f N A
2 s 2
j =0
t =0
The calculation of the specific total loss is carried out by point-by-point multiplication of the u
2j
and u values and summation over one period as follows :
1j
T
n −1
N 1 N 1
1 1
(D.3)
P = U ()t U (t)dt ≅ u u
s 1 2 1j 2 j
∑
∫
l RN Aρ T l RN Aρ n
m 2 m m 2 m
j =0
t =0
where
ˆ
J is the peak value of the magnetic polarization, in teslas;
P is the specific total loss of the specimen, in watts per kilogram;
s
T is the length of the period of the magnetization, in seconds;
f is the frequency of the magnetization, in hertz;
f is the sampling frequency, in points per second;
s
N is the number of turns of the primary winding;
N is the number of turns of the secondary winding;
A is the cross-sectional area of the test specimen, in square metres;
R is the resistance of the non-inductive precision resistor R in series with the primary
winding (see Figure 6), in ohms;
U is the voltage drop across the non-inductive precision resistor R, in volts;
U is the secondary voltage, in volts;
n is the number of instantaneous values sampled over one period;
j is the index of instantaneous values;
l is the conventional effective magnetic path length, in metres (l = 0,45 m; for
m m
measurements in connection with a calibration by means of Epstein measurements, see
Annex B);
ρ is the conventional density of the test material, in kilograms per cubic metre.
m
—————————
The peak value of the magnetic field strength and the apparent power can be calculated correspondingly by
using
n n
N
N 1 1
ˆ ˆ
1 1 2 2
and
H = U
S ≅ u u
s ∑ 1j ∑ 2 j
Rl
l RN Aρ n n
m
m 2 m
j = 0 j = 0
– 6 – 60404-3 Amend. 2 © IEC:2009
The pairs of values, u and u , can then be processed by a computer or, for real time
2j 1j
processing, by a digital signal processor (DSP) using a sufficiently fast digital multiplier and
adder without intermediate storage being required. Keeping the Nyquist condition is possible
only where the sampling frequency f and the frequency f of the magnetization are derived
s
from a common high frequency clock and thus, have an integer ratio f /f. In that case, U (t)
s
and U (t) may be scanned using 128 samples per period with sufficient accuracy. This figure
is, according to the Shannon theorem, determined by the highest relevant frequency in the
st
H(t) signal, which is normally not higher than that of the 41 harmonic [5]. However, some
commercial data acquisition equipment cannot be synchronized with the frequency of the
magnetization and, as a consequence, the ratio f /f is not an integer, i.e. the Nyquist condition
s
is not met. In that case, the sampling frequency must be considerably higher (500 samples
per period or more) in order to keep the deviation of the true period length from the nearest
time of sampled point small. Keeping the Nyquist condition becomes a decisive advantage in
the case of higher frequency applications (for instance at 400 Hz which is within the scope of
this standard). The use of a low-pass anti-aliasing filter [7] is recommended in order to
eliminate irrelevant higher frequency components which would otherwise interact with the
digital sampling process producing aliasing noise.
Regarding
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
