INTERNATIONAL STANDARD 2632 /II
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION *MEX,lYHAPOnHAR OPiAHM3AUHR no CTAHIIAPTH3AUCIH .ORGANISATION INTERNATIONALE DE NORMALISATION
Roughness comparison specimens -
Part II - Spark-eroded, shot blasted and grit blasted, and
polished .
Échantillons de comparaison Viso-tactile de rugosité -
Partie Il : Électroérosion, grenaillage sphérique et angulaire, et polissage
First edition - 1977-07-01
UDC 620.179.1 18 Ref. No. IS0 2632/11-1977 (E)
Descriptors : test equipment, machining, surface condition, roughness, sensory analysis, visual inspection, visual-tactile comparison speci.
mens.
Price based on 3 pages
---------------------- Page: 1 ----------------------

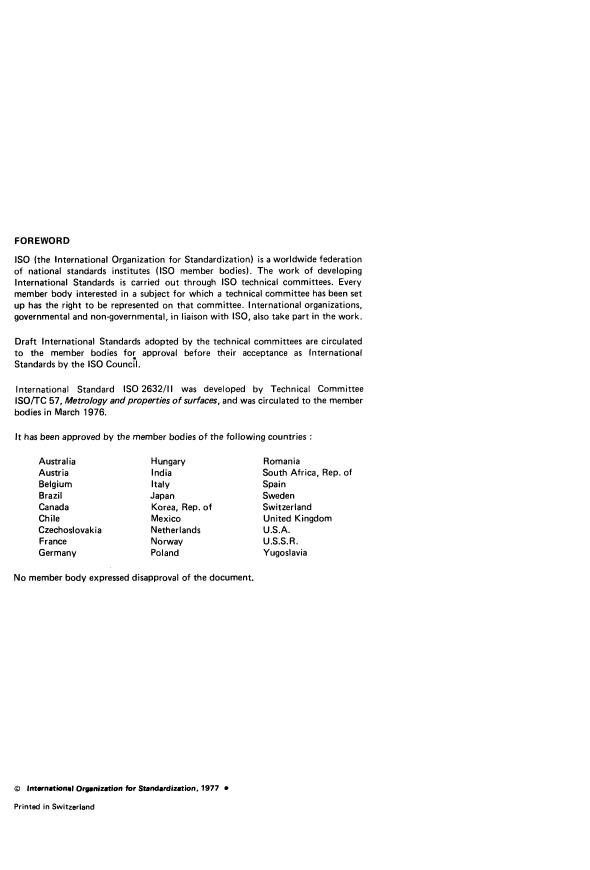

FOREWORD
IS0 (the International Organization for Standardization) is a worldwide federation
of national standards institutes (IS0 member bodies). The work of developing
International Standards is carried out through IS0 technical committees. Every
member body interested in a subject for which a technical committee has been set
up has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the technical committees are circulated
to the member bodies foi; approval before their acceptance as International
Standards by the IS0 Council.
International Standard IS0 2632/l I was developed by Technical Committee
iSO/TC 57, Metrology and properties of surfaces, and was circulated to the member
1976.
bodies in March
It has been approved by the member bodies of the following countries :
Romania
Australia Hungary
Austria India South Africa, Rep. of
Belgium Italy Spain
Brazil Japan Sweden
Canada Korea, Rep. of Switzerland
Chile Mexico United Kingdom
Netherlands
Czechoslovakia U.S.A.
France U.S.S. R.
Norway
Poland Yugoslavia
Germany
No member body expressed disapproval of the document.
O Intwnationrl Orginiution for Standardization, 1977 e
Printed in Switzerland
---------------------- Page: 2 ----------------------
~~~~ ~
IS0 2632/11-1977 (E)
I NTE RNATl ON AL STAN DARD
Roughness comparison specimens -
Part II - Spark-eroded, shot blasted and grit blasted, and
polished
1 SCOPE AND FIELD OF APPLICATION 4 METHODS OF MANUFACTURE
This International Standard specifies the characteristics of The specimens shall be manufactured as follows
specimens of spark-eroded, shot blasted and grit blasted,
and polished surfaces which are intended for tactile and
4.1 By electro-forming positive replicas of master surfaces.
visual comparison with workpiece surfaces of similar lay,
produced by similar manufacturing methods.
4.2 By making positive replicas in plastics of master
It is complementary to IS0 2632/1, Roughness comparison
surfaces. By coating or otherwise, the feel and appearance
specimens - Part I : Turned, ground, bored, milled, shaped
of the natural manufactured surface should be represented.
and planed.
4.3 By direct application of the production process which
2 REFERENCES the specimen is intended to represent (individually
manufactured specimens).
IS0 3, Preferred numbers - Series of preferred numbers.
ISOIR 468, Surface roughness.
5 SURFACE CHARACTERISTICS
IS0 1302, Technical drawings - Method of indicating
Master surfaces for reproduction, their resultant
surface texture on drawings.
electro-formed and plastics replicas, and individually
manufactured specimens (see 4.1,4.2 and 4.3) shall exhibit
only the characteristics resulting from the natural action
3 DEFINITIONS
to
of the manufacturing process which they are intended
3.1 roughness comparison specimen : A specimen surface
represent.
of known average roughness height (Ra) representing a
particular machining or other production process. The
6 RANGES OF ROUGHNESS GRADES
specimen is used to give design personnel guidance on the
feel and appearance of the particular production process

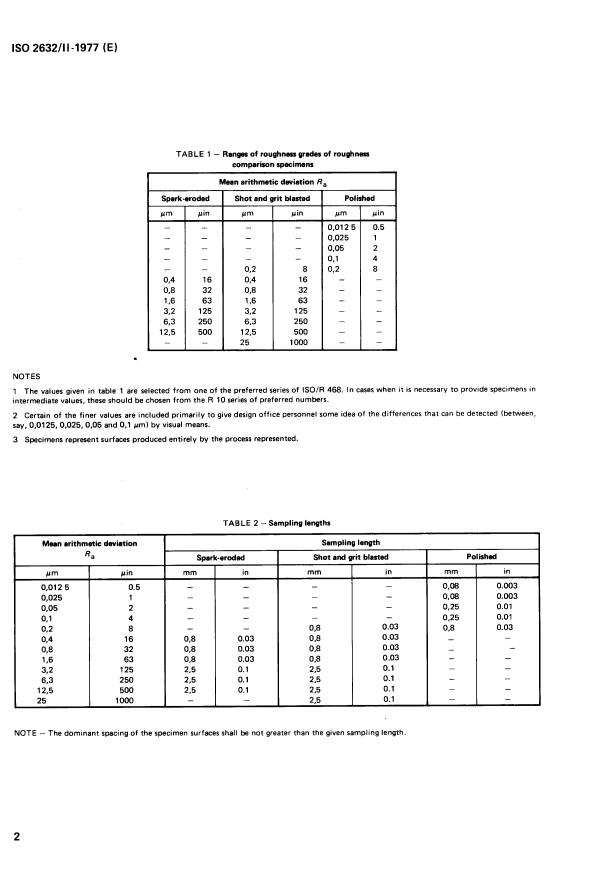

The ranges of roughness grades shall be as given in table 1,
and roughness grade, and to enable workshop personnel to
overleaf.
evaluate and control workpiece surfaces by tactile and
visual comparison with the specimen surface.
7 SAMPLING LENGTHS
3.2 lay : The direction of the predominant surface
The sampling lengths given in table 2 overleaf shall be used
pattern, ordinarily determined by the process used in
in evaluating the specimens. In the case of repetitive
producing the surface.
profiles, the sampling length shall be increased to include
Other terms used to describe surface characteristics or the nearest greater whole number of cycles (see note under
measurement are defined in ISO/R 468.
table 2).
1
---------------------- Page: 3 ---
...
e
‘3
NORME INTERNATIONALE 2632 / II
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION .MEXDYHAPOIIHAR OPTAHWAUHR IiO CTAHDAPTH3AUAH .ORGANISATION INTERNATIONALE DE NORMALISATION
Échantillons de comparaison Viso-tactile de rugosité -
Partie I I : Électro-érosion, grenaillage sphérique et angulaire,
et polissage -
Roughness comparison specimens -
Part II - Sparkeroded, shot blasted and grit blasted, and polished
Premiere édition - 1977-07-01
CDU 620.179.1 18 Réf. no : IS0 2632/11-1977 (FI
Descripteurs : matériel d’essai, usinage, état de surface, rugosité, analyse sensorielle, examen visuel, échantillon comparaison Viso-tactile.
Prix basé sur 3 pages
---------------------- Page: 1 ----------------------

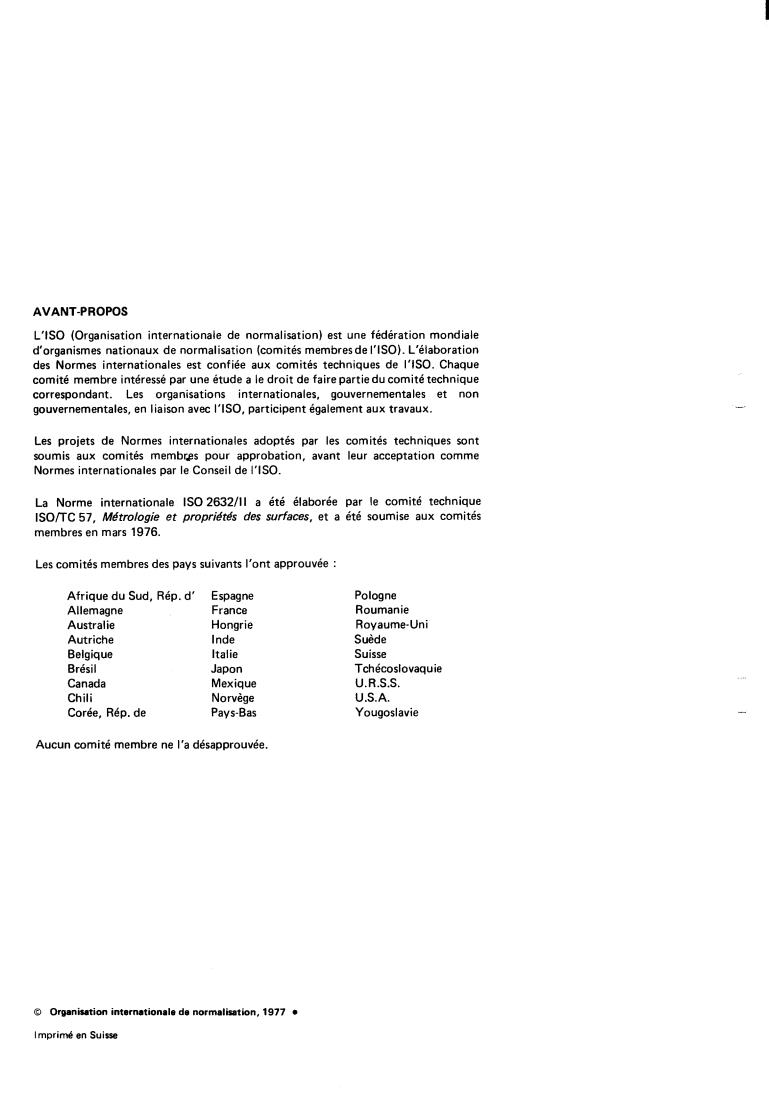

AVANT-PROPOS
L'ISO (Organisation internationale de normalisation) est une fédération mondiale
d'organismes nationaux de normalisation (comités membres de I'ISO). L'élaboration
des Normes internationales est confiée aux comités techniques de I'ISO. Chaque
comité membre intéressé par une étude a le droit de faire partie du comité technique
correspondant. Les organisations internationales, gouvernementales et non
.-
gouvernementales, en liaison avec I'ISO, participent également aux travaux.
Les projets de Normes internationales adoptés par les comités techniques sont
soumis aux comités membws pour approbation, avant leur acceptation comme
Normes internationales par le Conseil de I'ISO.
La Norme internationale IS0 2632/11 a été élaborée par le comité technique
lSO/rC 57, Métrologie et propriétés des surfaces, et a été soumise aux comités
membres en mars 1976.
Les comités membres des pays suivants l'ont approuvée :
Po log ne
Afrique du Sud, Rép. d' Espagne
Allemagne France Roumanie
Australie Hongrie Royaume-Uni
Autriche Inde Suède
Belgique Italie Suisse
Brésil Japon Tchécoslovaquie
Canada Mexique U.R.S.S.
Chili Norvège U.S.A.
Corée, Rép. de Pays-Bas Yougoslavie
Aucun comité membre ne l'a désapprouvée.
O Organisation internationale de normalisation, 1977 O
Imprimé en Suisse
---------------------- Page: 2 ----------------------
~
IS0 2632/l I -1 977 ( F)
NORME INTERNATIONALE
Échantillons de comparaison Viso-tactile de rugosité -
Partie I I : Électro-érosion, grenaillage sphérique et angulaire,
et polissage
1 OBJET ET DOMAINE D'APPLICATION 4 PROCÉDÉS DE FABRICATION
La présente Norme internationale spécifie les caractéris- Les échantillons doivent être fabriqués selon les procédés
tiques des échantillons de surfaces pour I'électro-érosion, le suivants :
grenaillage sphérique et angulaire, et le polissage, destinés à
la comparaison Viso-tactile avec des surfaces de pièces
4.1 Reproductions positives obtenues par électro-formage
usinées dont les stries sont semblables et qui sont produites
à partir de matrices.
par des modes de fabrication semblables.
4.2 Reproductions positives à partir de matrices en
Elle complète 1'1S0 2632/1, Échantillons de comparaison
à un revêtement OU
matières plastiques qui ont, grâce
Viso-tactile de rugosité - Partie I : Tournage, rectification,
autrement, le même toucher et le même aspect qu'une
alésage, fraisage, rabotage er planage.
surface usinée naturelle.
2 RÉFÉRENCES 4.3 Application directe du procédé de fabrication que
l'échantillon est destiné à représenter (échantillons usines
IS0 3, Nombres normaux - Séries de nombres normaux.
individuellement).
ISO/R 468, Rugosité de surface.
5 CARACTÉRISTIQUES DES SURFACES
IS0 1302, Dessins techniques - Indication des états de sur-
face sur les dessins.
Les matrices servant à la reproduction, les reproductions
obtenues électriquement, les reproductions en matières
plastiques et les échantillons fabriqués individuellement
3 DEFINITIONS
(voir 4.1, 4.2 et 4.31, ne doivent présenter que les carac-
3.1 échantillon de comparaison Viso-tactile de rugosité :
téristiques résultant de l'action normale du procédé
Surface échantillon dont la hauteur moyenne de rugosité
d'usinage qu'ils sont destinés à représenter.
(Ra) est connue et qui représente un usinage particulier ou
d'autres procédés de fabrication. L'échantillon est utilise
6 SÉRIES DE VALEURS DE RUGOSITÉ
pour donner au personnel des bureaux de dessin des
indications, quant au toucher et à l'aspect d'un procédé

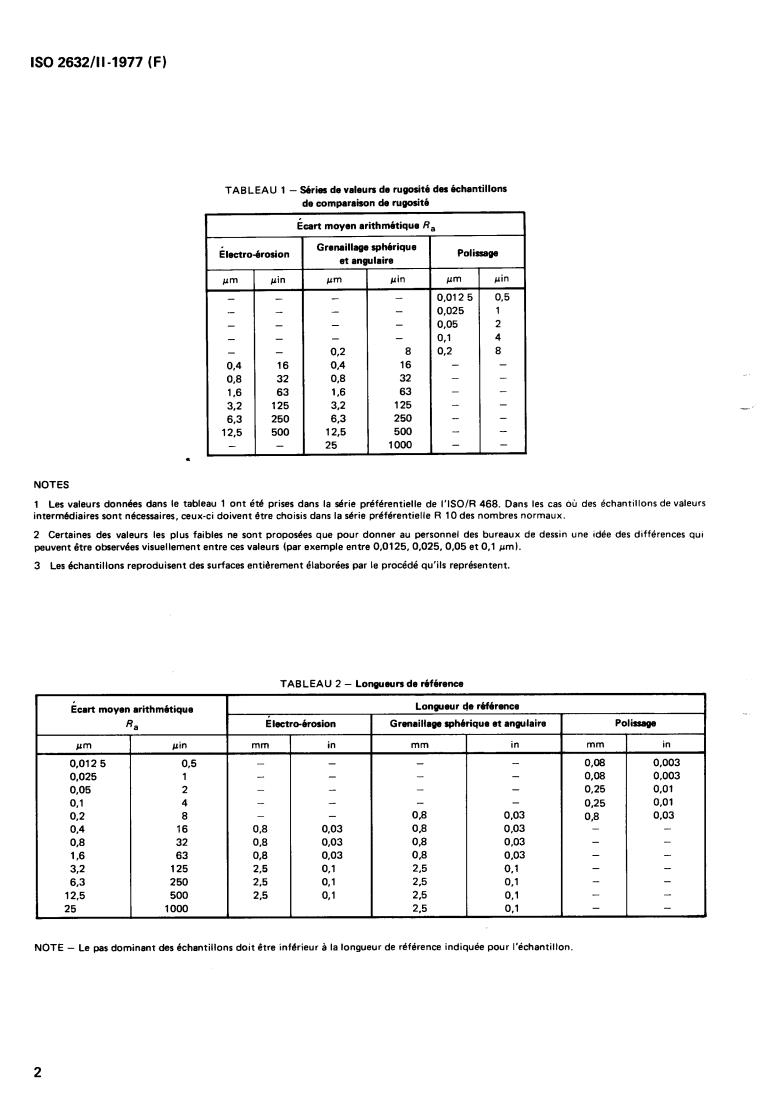

Les séries de valeurs de rugosité doivent être celles données
particulier de fabrication et au degré de rugosité. et pour
dans le tableau 1, au verso.
permettre au personnel des ateliers d'évaluer et de vérifier
les surfaces des pieces usinées par comparaison Viso-tactile
avec la surface échantillon.
7 LONGUEURS DE RÉFÉRENCE
Les longueurs d'onde limite du filtre données dans le
3.2 stries: Sens du dessin prédominant sur la surface,
tableau 2 au verso doivent être utilisées pour l'évaluation
généralement détermine par le procédé utilisé pour la
des échantillons. Dans le cas de profils répétitifs, la
production de la surface.
longueur de reference doit être augmentée pour compren-
Les autres termes utilisés pour décrire les Caractéristiques le nombre entier supérieur de cycles le plus voisin
dre
ou le mesurage des surfaces sont définis dans l'lSO/R 468. (voir note sous tableau 2).
1
---------------------- Page: 3 ----------------------
IS0 2632hI-1977 (FI
TABLEAU 1 - Séries de valeurs de
...
