ISO 13110:2025
(Main)Cigarettes — Determination of menthol in total particulate matter from mainstream cigarette smoke with a smoking regime according to ISO 3308 (standard smoking regime) — Gas chromatographic method
Cigarettes — Determination of menthol in total particulate matter from mainstream cigarette smoke with a smoking regime according to ISO 3308 (standard smoking regime) — Gas chromatographic method
This document specifies a method for the gas chromatographic determination of menthol in the total particulate matter (TPM) of mentholated cigarette mainstream smoke with a smoking regime according to ISO 3308 (standard smoking regime). The smoking of cigarettes and the collection of TPM from the mainstream smoke are carried out in accordance with ISO 4387 with some exceptions (see Annex A). Encapsulated menthol in specific products can lead to specific handling not described in this document.
Cigarettes — Dosage du menthol dans la matière particulaire totale du courant principal de la fumée de cigarette avec un régime de fumage selon l'ISO 3308 (régime de fumage normalisé) — Méthode par chromatographie en phase gazeuse
L'ISO 13110:2012 spécifie une méthode de dosage par chromatographie en phase gazeuse du menthol dans la matière particulaire totale (MPT) des condensats de fumée de cigarettes mentholées. Le fumage des cigarettes et la collecte du courant principal de la fumée sont effectués conformément à l'ISO 4387 à quelques exceptions près. Le menthol encapsulé dans certains produits spécifiques peut donner lieu à une manipulation particulière non décrite dans l'ISO 13110:2012.
General Information
Relations
Buy Standard
Standards Content (Sample)

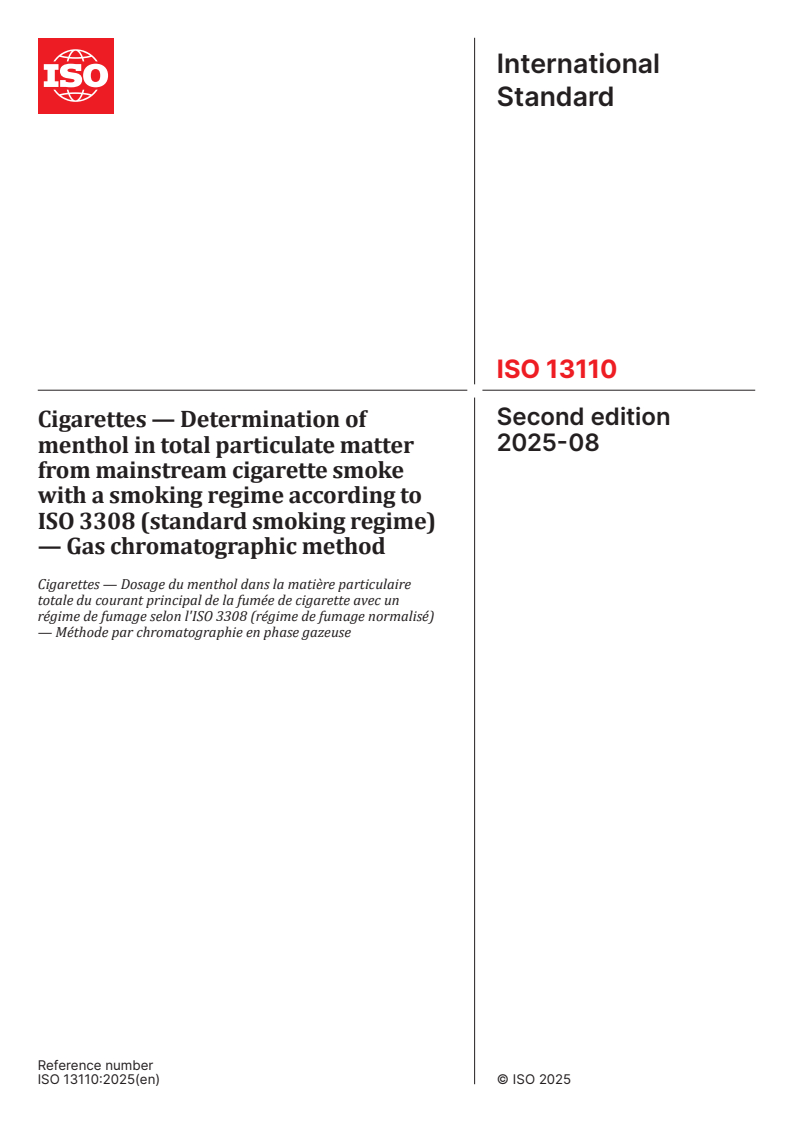

International
Standard
ISO 13110
Second edition
Cigarettes — Determination of
2025-08
menthol in total particulate matter
from mainstream cigarette smoke
with a smoking regime according to
ISO 3308 (standard smoking regime)
— Gas chromatographic method
Cigarettes — Dosage du menthol dans la matière particulaire
totale du courant principal de la fumée de cigarette avec un
régime de fumage selon l'ISO 3308 (régime de fumage normalisé)
— Méthode par chromatographie en phase gazeuse
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

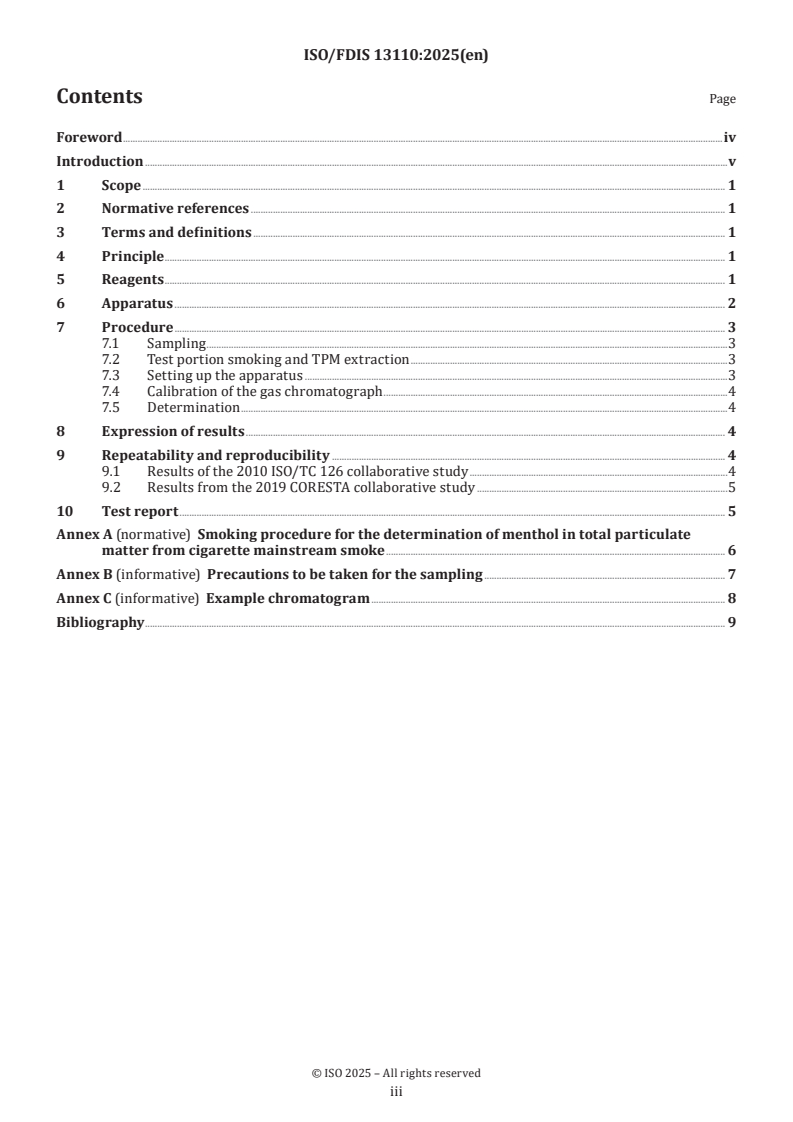

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 2
7 Procedure . 3
7.1 Sampling .3
7.2 Test portion smoking and TPM extraction .3
7.3 Setting up the apparatus .3
7.4 Calibration of the gas chromatograph .4
7.5 Determination .4
8 Expression of results . 4
9 Repeatability and reproducibility . 4
9.1 Results of the 2010 ISO/TC 126 collaborative study .4
9.2 Results from the 2019 CORESTA collaborative study .5
10 Test report . 5
Annex A (normative) Smoking procedure for the determination of menthol in total particulate
matter from cigarette mainstream smoke . 6
Annex B (normative) Precautions to be taken for the sampling . 7
Annex C (informative) Example chromatogram . 8
Bibliography . 9
iii

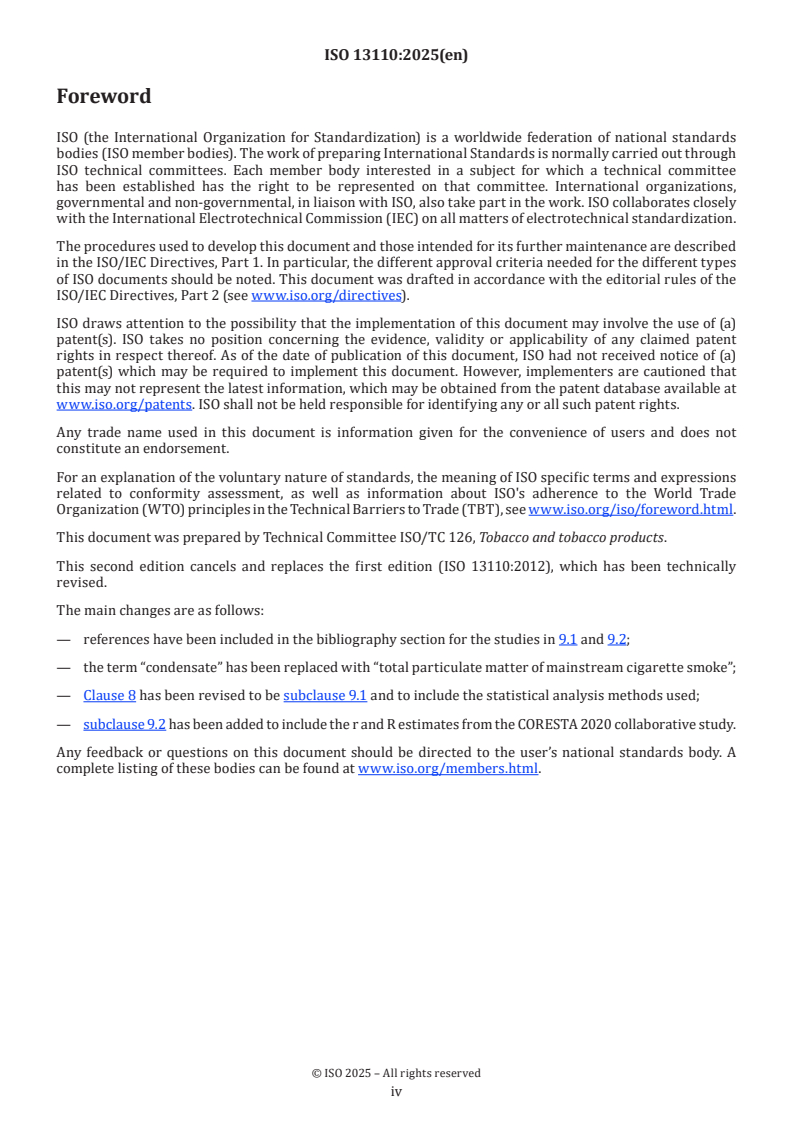

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 126, Tobacco and tobacco products.
This second edition cancels and replaces the first edition (ISO 13110:2012), which has been technically
revised.
The main changes are as follows:
— references have been included in the bibliography section for the studies in 9.1 and 9.2;
— the term “condensate” has been replaced with “total particulate matter of mainstream cigarette smoke”;
— Clause 8 has been revised to be subclause 9.1 and to include the statistical analysis methods used;
— subclause 9.2 has been added to include the r and R estimates from the CORESTA 2020 collaborative study.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
Technical Committee ISO/TC 126 coordinated a collaborative study in 2010 for the determination of menthol
in mainstream cigarette smoke under ISO 4387.
The Cooperation Centre for Scientific Research Relative to Tobacco (CORESTA) Routine Analytical
Chemistry (RAC) Sub-Group conducted a collaborative study in 2019 that used the gas chromatographic
method identified in this document for the determination of menthol in mainstream cigarette smoke under
[1]
ISO 3308 and ISO 4387. A CORESTA technical report was published in 2020 for this collaborative study
[2]
involving 18 laboratories and four samples.
No machine smoking regimen can represent all human smoking behaviour:
— it is recommended that cigarettes also be tested under conditions of a different intensity of machine
smoking than those specified in this document;
— machine smoking testing is useful to characterize cigarette emissions for design and regulatory
purposes, but communication of machine measurements to smokers can result in misunderstandings
about differences in exposure and risk across brands;
— smoke emission data from machine measurements may be used as inputs for product hazard assessment,
but they are not intended to be nor are they valid as measures of human exposure or risks. Communicating
differences between products in machine measurements as differences in exposure or risk is a misuse of
testing using ISO standards.
v
International Standard ISO 13110:2025(en)
Cigarettes — Determination of menthol in total particulate
matter from mainstream cigarette smoke with a smoking
regime according to ISO 3308 (standard smoking regime) —
Gas chromatographic method
WARNING — The use of this document can involve hazardous materials, operations, and equipment.
This document does not purport to address all the safety problems associated with its use. It is the
responsibility of the user of this document to establish appropriate safety and health practices and
determine the applicability of any other restrictions prior to use.
1 Scope
This document specifies a method for the gas chromatographic determination of menthol in the total
particulate matter (TPM) of mentholated cigarette mainstream smoke with a smoking regime according
to ISO 3308 (standard smoking regime). The smoking of cigarettes and the collection of TPM from the
mainstream smoke are carried out in accordance with ISO 4387 with some exceptions (see Annex A).
Encapsulated menthol in specific products can lead to specific handling not described in this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 4387, Cigarettes — Determination of total and nicotine-free dry particulate matter using a routine
analytical smoking machine
ISO 8243, Cigarettes — Sampling
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Principle
The TPM from the mainstream smoke is dissolved in a solvent containing an internal standard. The menthol
content of an aliquot of the solution is determined by gas chromatography, and the menthol content of the
TPM of the mainstream smoke is calculated and expressed as milligram per cigarette.
5 Reagents
Use only reagents of recognized analytical grade.
5.1 Carrier gas, helium (CAS 7440-59-7), nitrogen (CAS 7727-37-9) or hydrogen (CAS 1333-74-0) of
high purity.
5.2 Auxiliary gases, air and hydrogen (CAS 1333-74-0) of high purity for the flame ionization detector.
5.3 Propan-2-ol (CAS 67-63-0), methanol or ethanol may also be used.
5.4 Internal standard, n-heptadecane (CAS 629-78-7) of purity at least 99 %. Other appropriate internal
standards (such as, but not limited to, carvone, anethole) may be used after assessment of their stability,
purity and confirmation that the internal standard does not co-elute with other components of the smoke
extract from the gas chromatographic column.
The peak area of internal standard in the smoke extract of samples and standards should be consistent.
In cases where inconsistencies are found, analysis of an extraction of a smoke sample without the internal
standard in the extraction solution should be performed to confirm the absence of a peak in the smoke
extract eluting at the same time as the internal standard.
5.5 Extraction solvent, propan-2-ol (5.3) containing an appropriate mass concentration of internal
standard (5.4); this is normally in the range of 0,2 mg/ml to 0,5 mg/ml. Other appropriate solvents (such as,
but not limited to, ethanol, methanol) may be used after assessment of their extraction efficiency. Solvent not
stored in a temperature-controlled laboratory shall be allowed to equilibrate to room temperature before use.
Room t
...

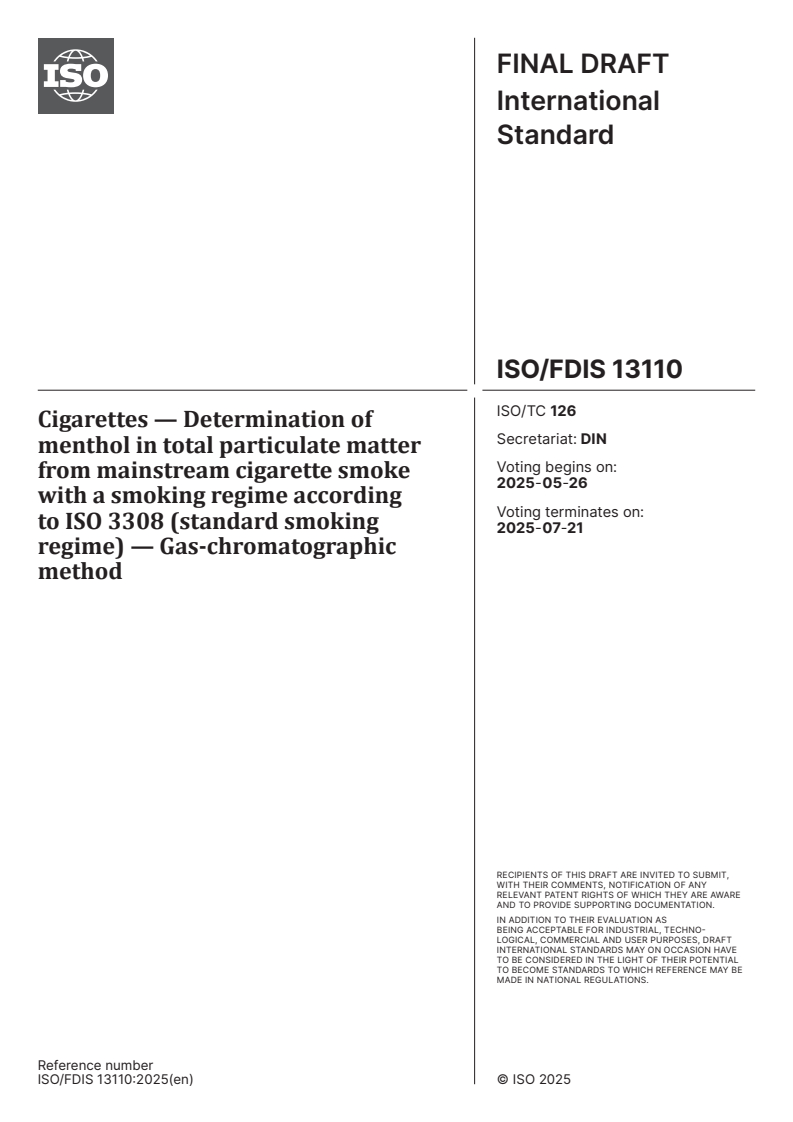

FINAL DRAFT
International
Standard
ISO/FDIS 13110
ISO/TC 126
Cigarettes — Determination of
Secretariat: DIN
menthol in total particulate matter
Voting begins on:
from mainstream cigarette smoke
2025-05-26
with a smoking regime according
Voting terminates on:
to ISO 3308 (standard smoking
2025-07-21
regime) — Gas-chromatographic
method
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
ISO/FDIS 13110:2025(en) © ISO 2025
FINAL DRAFT
ISO/FDIS 13110:2025(en)
International
Standard
ISO/FDIS 13110
ISO/TC 126
Cigarettes — Determination of
Secretariat: DIN
menthol in total particulate matter
Voting begins on:
from mainstream cigarette smoke
with a smoking regime according to
Voting terminates on:
ISO 3308 (standard smoking regime)
— Gas-chromatographic method
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO 2025
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ISO/FDIS 13110:2025(en) © ISO 2025
ii
ISO/FDIS 13110:2025(en)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 2
7 Procedure . 3
7.1 Sampling .3
7.2 Test portion smoking and TPM extraction .3
7.3 Setting up the apparatus .3
7.4 Calibration of the gas chromatograph .4
7.5 Determination .4
8 Expression of results . 4
9 Repeatability and reproducibility . 4
9.1 Results of the 2010 ISO/TC 126 collaborative study .4
9.2 Results from the 2019 CORESTA collaborative study .5
10 Test report . 5
Annex A (normative) Smoking procedure for the determination of menthol in total particulate
matter from cigarette mainstream smoke . 6
Annex B (informative) Precautions to be taken for the sampling . 7
Annex C (informative) Example chromatogram . 8
Bibliography . 9
iii
ISO/FDIS 13110:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 126, Tobacco and tobacco products.
This second edition cancels and replaces the first edition (ISO 13110:2012), which has been technically
revised.
The main changes are as follows:
— references have been included in the bibliography section for the studies in 9.1 and 9.2;
— the term “condensate” has been replaced with “total particulate matter of mainstream cigarette smoke”;
— Clause 8 has been revised to be subclause 9.1 and to include the statistical analysis methods used;
— subclause 9.2 has been added to include the r and R estimates from the CORESTA 2020 collaborative study.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
ISO/FDIS 13110:2025(en)
Introduction
Technical Committee ISO/TC 126 coordinated a collaborative study in 2010 for the determination of menthol
in mainstream cigarette smoke under ISO 4387.
The Cooperation Centre for Scientific Research Relative to Tobacco (CORESTA) Routine Analytical
Chemistry (RAC) Sub-Group conducted a collaborative study in 2019 that used the gas-chromatographic
method identified in this document for the determination of menthol in mainstream cigarette smoke under
[1]
ISO 3308 and ISO 4387. A CORESTA technical report was published in 2020 for this collaborative study
[2]
involving 18 laboratories and four samples.
No machine smoking regimen can represent all human smoking behaviour:
— it is recommended that cigarettes also be tested under conditions of a different intensity of machine
smoking than those specified in this document;
— machine smoking testing is useful to characterize cigarette emissions for design and regulatory
purposes, but communication of machine measurements to smokers can result in misunderstandings
about differences in exposure and risk across brands;
— smoke emission data from machine measurements may be used as inputs for product hazard assessment,
but they are not intended to be nor are they valid as measures of human exposure or risks. Communicating
differences between products in machine measurements as differences in exposure or risk is a misuse of
testing using ISO standards.
v
FINAL DRAFT International Standard ISO/FDIS 13110:2025(en)
Cigarettes — Determination of menthol in total particulate
matter from mainstream cigarette smoke with a smoking
regime according to ISO 3308 (standard smoking regime) —
Gas-chromatographic method
WARNING — The use of this document can involve hazardous materials, operations, and equipment.
This document does not purport to address all the safety problems associated with its use. It is the
responsibility of the user of this document to establish appropriate safety and health practices and
determine the applicability of any other restrictions prior to use.
1 Scope
This document specifies a method for the gas-chromatographic determination of menthol in the total
particulate matter (TPM) of mentholated cigarette mainstream smoke with a smoking regime according
to ISO 3308 (standard smoking regime). The smoking of cigarettes and the collection of TPM from the
mainstream smoke are carried out in accordance with ISO 4387 with some exceptions (see Annex A).
Encapsulated menthol in specific products can lead to specific handling not described in this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 4387, Cigarettes — Determination of total and nicotine-free dry particulate matter using a routine
analytical smoking machine
ISO 8243, Cigarettes — Sampling
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Principle
The TPM from the mainstream smoke is dissolved in a solvent containing an internal standard. The menthol
content of an aliquot of the solution is determined by gas chromatography, and the menthol content of the
TPM of the mainstream smoke is calculated and expressed as milligram per cigarette.
5 Reagents
Use only reagents of recognized analytical grade.
ISO/FDIS 13110:2025(en)
5.1 Carrier gas, helium (CAS 7440-59-7), nitrogen (CAS 7727-37-9) or hydrogen (CAS 1333-74-0) of
high purity.
5.2 Auxiliary gases, air and hydrogen (CAS 1333-74-0) of high purity for the flame ionization detector.
5.3 Propan-2
...
Formatted: Left
Style Definition
ISO/DISFDIS 13110:2025(en) .
Formatted: Font: Bold, English (United Kingdom)
ISO/TC 126
Formatted: zzCover large
Secretariat: DIN
Formatted: Top: 1.4 cm, Bottom: 1 cm, Section start:
New page, Header distance from edge: 1.27 cm, Footer
Date: 2025-04-2905-12 distance from edge: 1.27 cm
Formatted
...
Formatted: Font color: Auto, English (United Kingdom)
Formatted
...
Formatted: Cover Title_A1, Adjust space between Latin

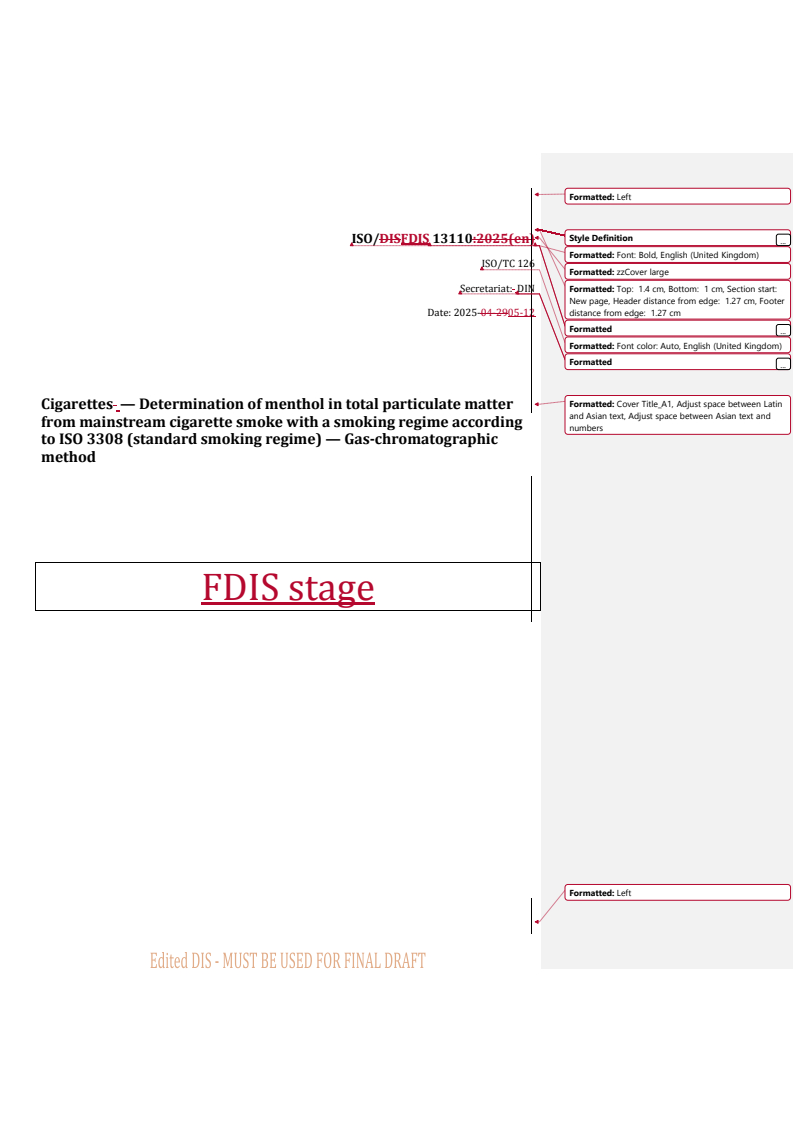

Cigarettes — Determination of menthol in total particulate matter
and Asian text, Adjust space between Asian text and
from mainstream cigarette smoke with a smoking regime according
numbers
to ISO 3308 (standard smoking regime) — Gas-chromatographic
method
FDIS stage
Formatted: Left
ISO/FDIS 13110:2025(en)
Formatted: HeaderCentered
Formatted: Font: Bold
Formatted: Default Paragraph Font
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
Formatted: French (Switzerland)
EmailE-mail: copyright@iso.org
Formatted: French (Switzerland)
Website: www.iso.orgwww.iso.org
Formatted: French (Switzerland)
Published in Switzerland
Formatted: French (Switzerland)
Formatted: English (United Kingdom)
Formatted: FooterPageRomanNumber
ii
ISO/DISFDIS 13110:2025(en)
Formatted: Font: 11 pt, Bold
Formatted: HeaderCentered, Left
Formatted: Font: Bold

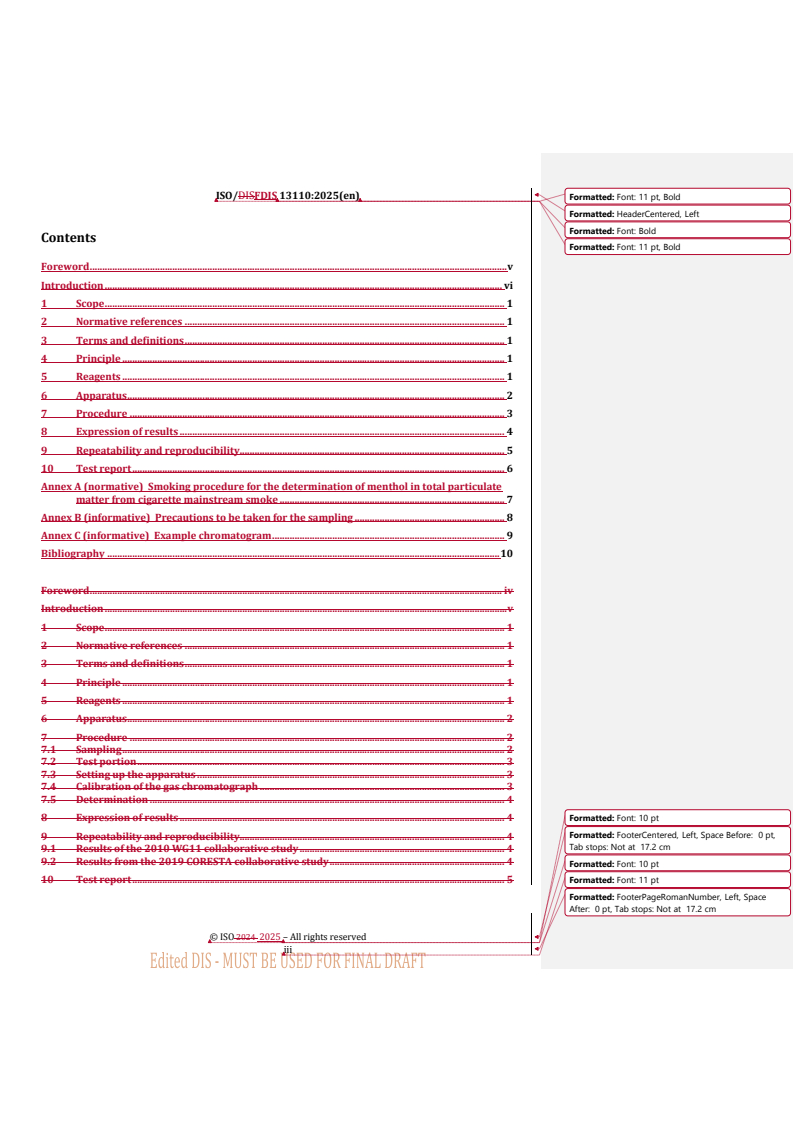

Contents
Formatted: Font: 11 pt, Bold
Foreword . v
Introduction . vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 2
7 Procedure . 3
8 Expression of results . 4
9 Repeatability and reproducibility. 5
10 Test report . 6
Annex A (normative) Smoking procedure for the determination of menthol in total particulate
matter from cigarette mainstream smoke . 7
Annex B (informative) Precautions to be taken for the sampling . 8
Annex C (informative) Example chromatogram . 9
Bibliography . 10
Foreword . iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 2
7 Procedure . 2
7.1 Sampling . 2
7.2 Test portion . 3
7.3 Setting up the apparatus . 3
7.4 Calibration of the gas chromatograph . 3
7.5 Determination . 4
8 Expression of results . 4 Formatted: Font: 10 pt
Formatted: FooterCentered, Left, Space Before: 0 pt,
9 Repeatability and reproducibility. 4
Tab stops: Not at 17.2 cm
9.1 Results of the 2010 WG11 collaborative study . 4
9.2 Results from the 2019 CORESTA collaborative study . 4
Formatted: Font: 10 pt
10 Test report . 5 Formatted: Font: 11 pt
Formatted: FooterPageRomanNumber, Left, Space
After: 0 pt, Tab stops: Not at 17.2 cm
iii
ISO/FDIS 13110:2025(en)
Formatted: HeaderCentered
Formatted: Font: Bold
Annex A (normative) Smoking procedure for the determination of menthol in total particulate
matter from cigarette mainstream smoke . 6
Annex B (informative) Precautions to be taken for the sampling . 7
Annex C (informative) Example chromatogram . 8
Bibliography . 9
Formatted: FooterPageRomanNumber
iv
ISO/DISFDIS 13110:2025(en)
Formatted: Font: 11 pt, Bold
Formatted: HeaderCentered, Left
Formatted: Font: 11 pt, Bold
Foreword
Formatted: Font: Bold
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Formatted: English (United Kingdom)
Field Code Changed
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO had not received notice of (a) patent(s)
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents.www.iso.org/patents. ISO shall not be held responsible for identifying any or all such
patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
Field Code Changed
Formatted: English (United Kingdom)
This document was prepared by Technical Committee ISO/TC 126, Tobacco and tobacco products.
This second edition cancels and replaces the first edition (ISO 13110:2012), which has been technically
revised.
The main changes are as follows:
— — references have been included in the bibliography section for the studies in 9.19.1 and 9.2;0;
— — the term “condensate” has been replaced with “total particulate matter of mainstream cigarette
smoke.”;”;
— — Clause 88 has been revised to be subclause 9.19.1 and to include the statistical analysis methods used;
— — subclause 9.20 has been added to include the r and R estimates from the CORESTA 2020 collaborative
study.
Field Code Changed
Formatted: English (United Kingdom)
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
Formatted: Font: 10 pt
Formatted: FooterCentered, Left, Space Before: 0 pt,
Tab stops: Not at 17.2 cm
Formatted: Font: 10 pt
Formatted: Font: 11 pt
Formatted: FooterPageRomanNumber, Left, Space
After: 0 pt, Tab stops: Not at 17.2 cm
v
ISO/FDIS 13110:2025(en)
Formatted: HeaderCentered
Formatted: Font: Bold
Introduction
Technical Committee ISO/TC 126, Tobacco and tobacco products coordinated a collaborative study in 2010 for
the determination of menthol in mainstream cigarette smoke under ISO 4387.
The Cooperation Centre for Scientific Research Relative to Tobacco (CORESTA) Routine Analytical Chemistry
(RAC) Sub-Group conducted a collaborative study in 2019 that used the gas-chromatographic method
identified in this document for the determination of menthol in mainstream cigarette smoke under
[1][ ]
ISO 3308 0 and ISO 4387. A CORESTA technical report was published in 2020 for this collaborative study
[2] [ ]
involving 18 laboratories and four samples . 0
No machine smoking regimen can represent all human smoking behaviour:
— — it is recommended that cigarettes also be tested under conditions of a different intensity of machine
smoking than those specified in this International Standarddocument;
— — machine smoking testing is useful to characterize cigarette emissions for design and regulatory
purposes, but communication of machine measurements to smokers can result in misunderstandings
about differences in exposure and risk across brands;
— — smoke emission data from machine measurements may be used as inputs for product hazard
assessment, but they are not intended to be nor are they valid as measures of human exposure or risks.
Communicating differences between products in machine measurements as differences in exposure or
risk is a misuse of testing using ISO standards.
Formatted: FooterPageRomanNumber
vi
DRAFT International Standard ISO/DIS 13110:2024(en)
Formatted: Left
Cigarettes — Determination of menthol in total particulate matter
from mainstream cigarette smoke with a smoking regime according to
ISO 3308 (standard smoking regime) — Gas-chromatographic method
WARNING — The use of this document can involve hazardous materials, operations, and equipment.
Formatted: Notice
This document does not purport to address all the safety problems associated with its use. It is the
responsibility of the user of this document to establish appropriate safety and health practices and
determine the applicability of any other restrictions prior to use.
1 Scope
Formatted: Adjust space between Latin and Asian text,
Adj
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
