Steel wire ropes -- Test method -- Determination of measured breaking force

ISO 3108:2017 specifies a method of tensile test to destruction for determining the actual breaking force of steel wire ropes as given in ISO 2408. It is also applicable for other ropes, unless the International Standard concerned specifically excludes its use, or gives another method.

Câbles en acier -- Méthode d'essai -- Détermination de la force de rupture mesurée

General Information

Status
Published
Publication Date
24-Oct-2017
Technical Committee
Current Stage
6060 - International Standard published
Start Date
05-Oct-2017
Completion Date
25-Oct-2017
Ref Project

RELATIONS

Buy Standard

Standard
ISO 3108:2017 - Steel wire ropes -- Test method -- Determination of measured breaking force
English language
6 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 3108
Second edition
2017-10
Steel wire ropes — Test method —
Determination of measured breaking
force
Câbles en acier — Méthode d'essai — Détermination de la force de
rupture mesurée
Reference number
ISO 3108:2017(E)
ISO 2017
---------------------- Page: 1 ----------------------
ISO 3108:2017(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 3108:2017(E)

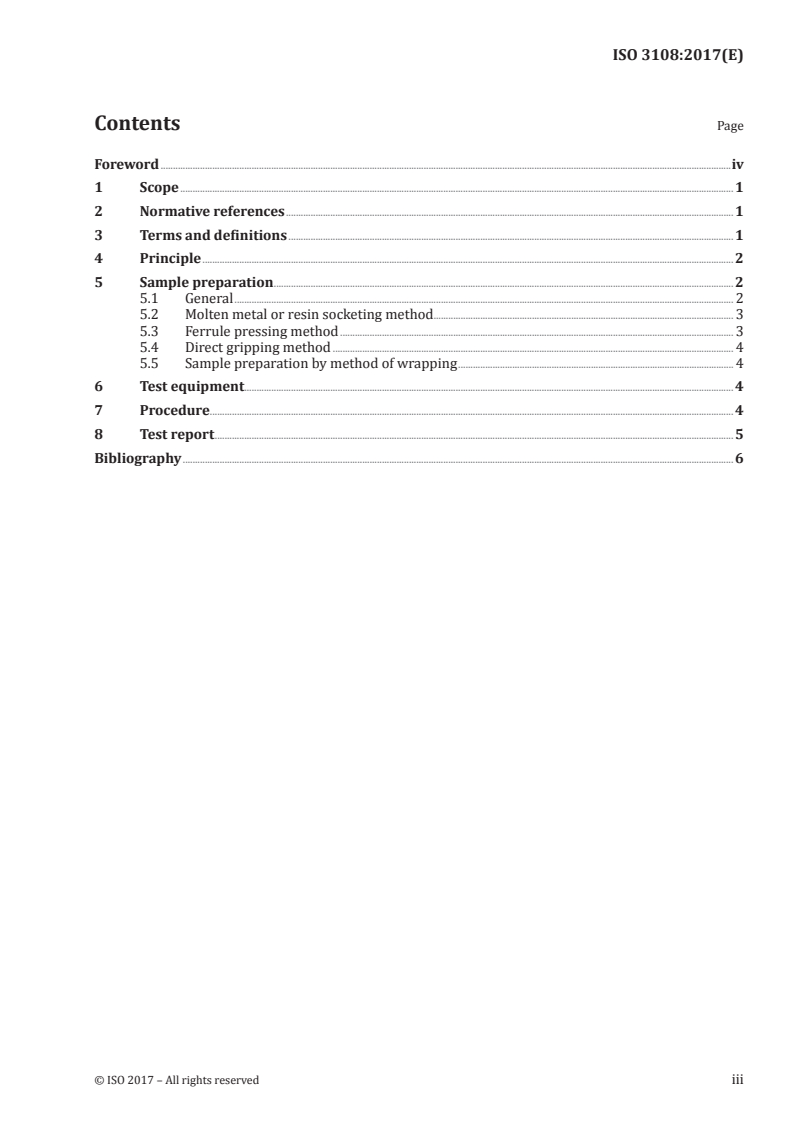

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Principle ........................................................................................................................................................................................................................ 2

5 Sample preparation ........................................................................................................................................................................................... 2

5.1 General ........................................................................................................................................................................................................... 2

5.2 Molten metal or resin socketing method ......... ................................................................................................................. 3

5.3 Ferrule pressing method ................................................................................................................................................................ 3

5.4 Direct gripping method ................................................................................................................................................................... 4

5.5 Sample preparation by method of wrapping ................................................................................................................ 4

6 Test equipment....................................................................................................................................................................................................... 4

7 Procedure..................................................................................................................................................................................................................... 4

8 Test report ................................................................................................................................................................................................................... 5

Bibliography ................................................................................................................................................................................................................................ 6

© ISO 2017 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 3108:2017(E)

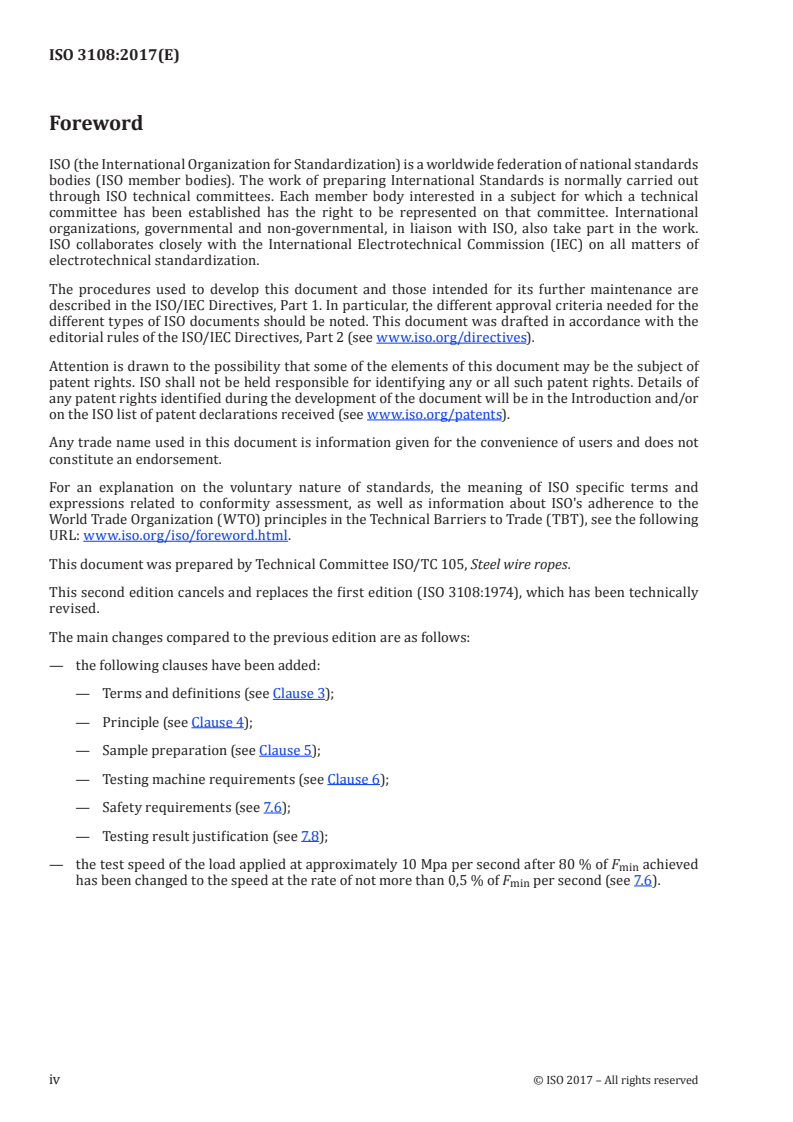

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see the following

URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 105, Steel wire ropes.

This second edition cancels and replaces the first edition (ISO 3108:1974), which has been technically

revised.
The main changes compared to the previous edition are as follows:
— the following clauses have been added:
— Terms and definitions (see Clause 3);
— Principle (see Clause 4);
— Sample preparation (see Clause 5);
— Testing machine requirements (see Clause 6);
— Safety requirements (see 7.6);
— Testing result justification (see 7.8);

— the test speed of the load applied at approximately 10 Mpa per second after 80 % of F achieved

min

has been changed to the speed at the rate of not more than 0,5 % of F per second (see 7.6).

min
iv © ISO 2017 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 3108:2017(E)
Steel wire ropes — Test method — Determination of
measured breaking force
1 Scope

This document specifies a method of tensile test to destruction for determining the actual breaking

force of steel wire ropes as given in ISO 2408.

It is also applicable for other ropes, unless the International Standard concerned specifically excludes

its use, or gives another method.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 7500-1, Metallic materials — Calibration and verification of static uniaxial testing machines — Part 1:

Tension/compression testing machines — Calibration and verification of the force-measuring system

ISO 17558, Steel wire ropes — Socketing procedures — Molten metal and resin socketing

ISO 17893, Steel wire ropes — Vocabulary, designation and classification
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 17558, ISO 17893 and the

following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at http://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
force at first wire breaking
force value measured when break
...
