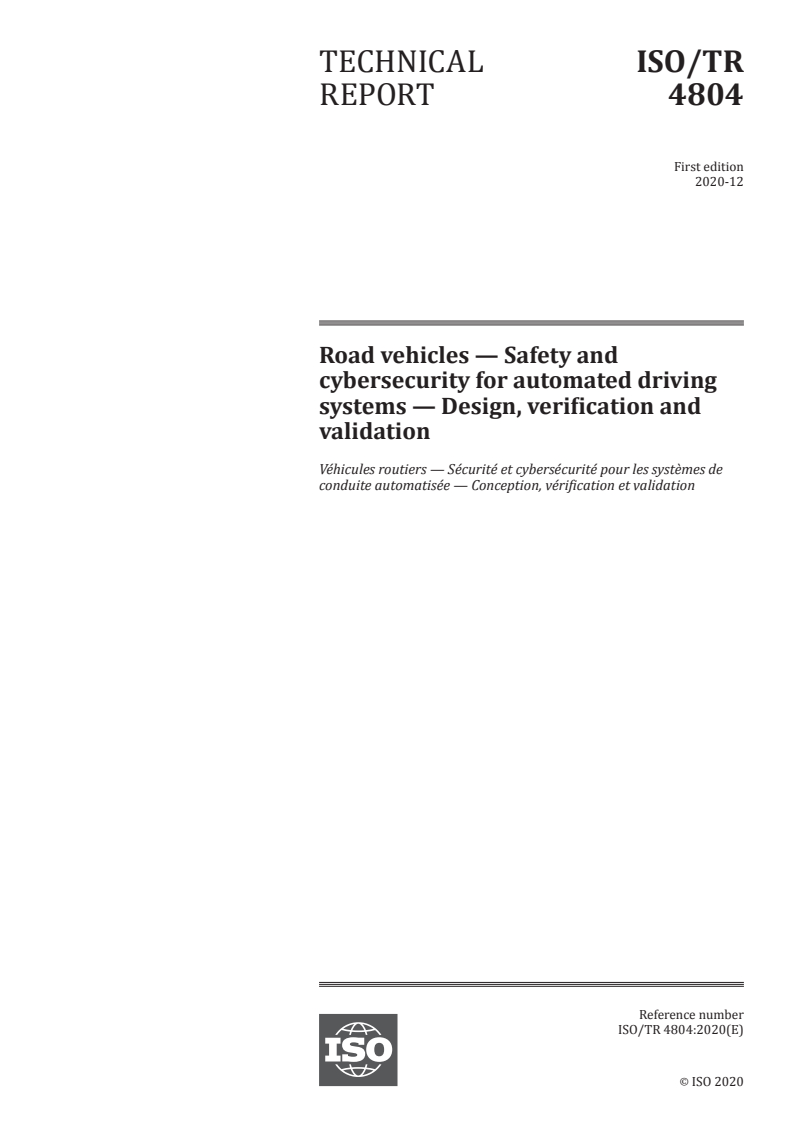

TECHNICAL ISO/TR
REPORT 4804
First edition
2020-12
Road vehicles — Safety and
cybersecurity for automated driving
systems — Design, verification and
validation
Véhicules routiers — Sécurité et cybersécurité pour les systèmes de
conduite automatisée — Conception, vérification et validation
Reference number
ISO/TR 4804:2020(E)
ISO 2020
---------------------- Page: 1 ----------------------
ISO/TR 4804:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 4804:2020(E)

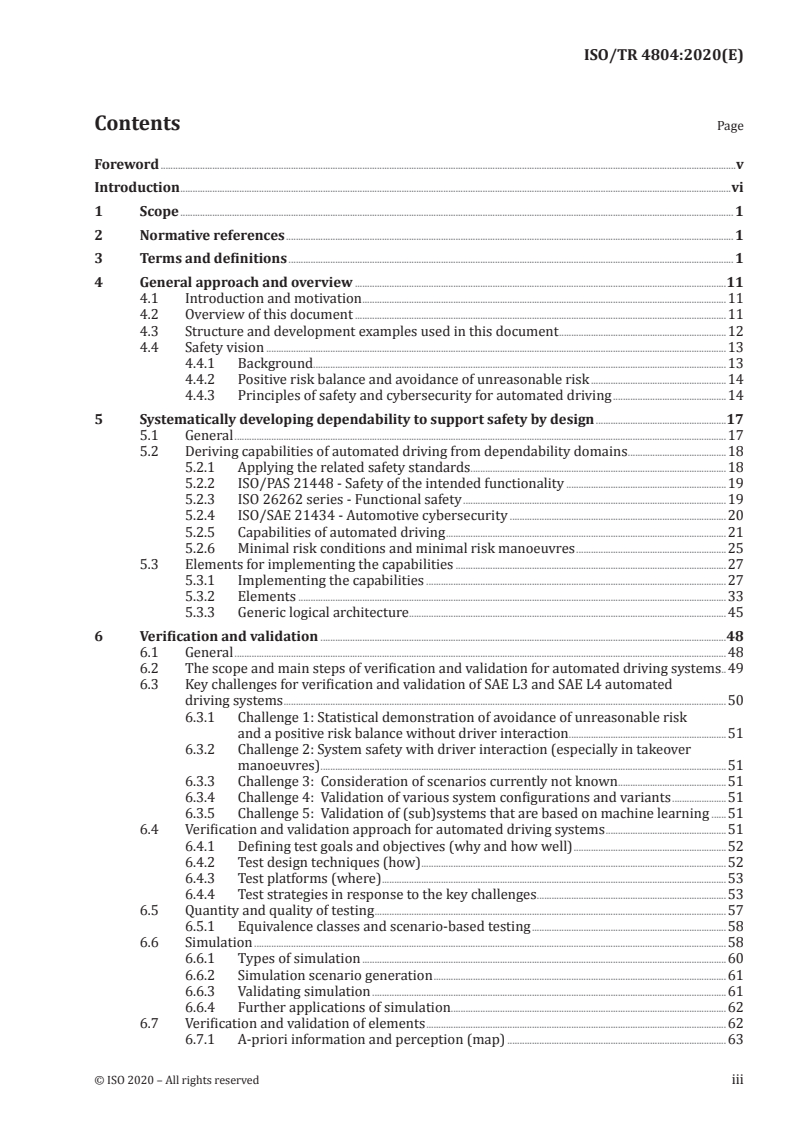

Contents Page

Foreword ..........................................................................................................................................................................................................................................v

Introduction ................................................................................................................................................................................................................................vi

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 General approach and overview .......................................................................................................................................................11

4.1 Introduction and motivation ....................................................................................................................................................11

4.2 Overview of this document .......................................................................................................................................................11

4.3 Structure and development examples used in this document ....................................................................12

4.4 Safety vision ...........................................................................................................................................................................................13

4.4.1 Background........................................................................................................................................................................13

4.4.2 Positive risk balance and avoidance of unreasonable risk .......................................................14

4.4.3 Principles of safety and cybersecurity for automated driving ..............................................14

5 Systematically developing dependability to support safety by design .....................................................17

5.1 General ........................................................................................................................................................................................................17

5.2 Deriving capabilities of automated driving from dependability domains ........................................18

5.2.1 Applying the related safety standards ........................................................................................................18

5.2.2 ISO/PAS 21448 - Safety of the intended functionality .................................................................19

5.2.3 ISO 26262 series - Functional safety ...........................................................................................................19

5.2.4 ISO/SAE 21434 - Automotive cybersecurity ........................................................................................20

5.2.5 Capabilities of automated driving ..................................................................................................................21

5.2.6 Minimal risk conditions and minimal risk manoeuvres .............................................................25

5.3 Elements for implementing the capabilities ..............................................................................................................27

5.3.1 Implementing the capabilities ..........................................................................................................................27

5.3.2 Elements ..............................................................................................................................................................................33

5.3.3 Generic logical architecture.................................................................................................................................45

6 Verification and validation .....................................................................................................................................................................48

6.1 General ........................................................................................................................................................................................................48

6.2 The scope and main steps of verification and validation for automated driving systems..49

6.3 Key challenges for verification and validation of SAE L3 and SAE L4 automated

driving systems ....................................................................................................................................................................................50

6.3.1 Challenge 1: Statistical demonstration of avoidance of unreasonable risk

and a positive risk balance without driver interaction ................................................................51

6.3.2 Challenge 2: System safety with driver interaction (especially in takeover

manoeuvres) ........................................................................................................................................... ..........................51

6.3.3 Challenge 3: Consideration of scenarios currently not known............................................51

6.3.4 Challenge 4: Validation of various system configurations and variants ......................51

6.3.5 Challenge 5: Validation of (sub)systems that are based on machine learning ......51

6.4 Verification and validation approach for automated driving systems .................................................51

6.4.1 Defining test goals and objectives (why and how well) ..............................................................52

6.4.2 Test design techniques (how) ............................................................................................................................52

6.4.3 Test platforms (where) ............................................................................................................................................53

6.4.4 Test strategies in response to the key challenges .............................................................................53

6.5 Quantity and quality of testing ...............................................................................................................................................57

6.5.1 Equivalence classes and scenario-based testing ...............................................................................58

6.6 Simulation ................................................................................................................................................................................................58

6.6.1 Types of simulation ....................................................................................................................................................60

6.6.2 Simulation scenario generation .......................................................................................................................61

6.6.3 Validating simulation ................................................................................................................................................61

6.6.4 Further applications of simulation................................................................................................................62

6.7 Verification and validation of elements ..........................................................................................................................62

6.7.1 A-priori information and perception (map) .........................................................................................63

© ISO 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------

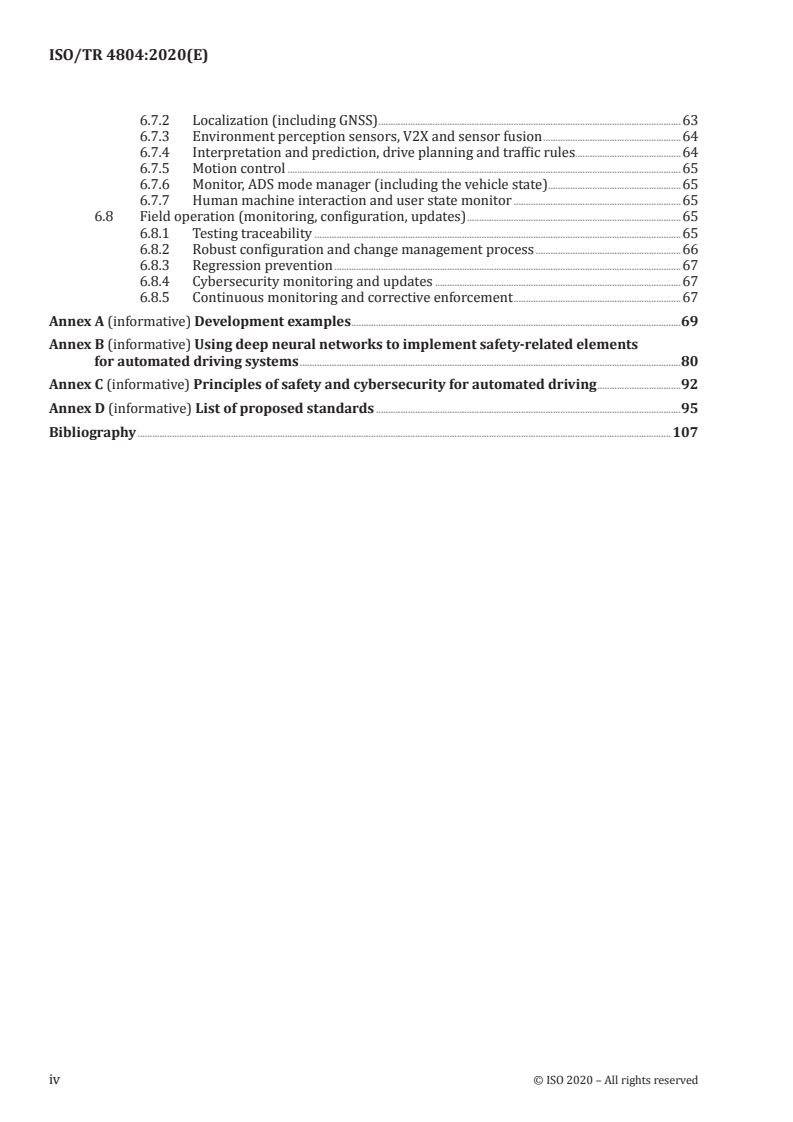

ISO/TR 4804:2020(E)

6.7.2 Localization (including GNSS) ...........................................................................................................................63

6.7.3 Environment perception sensors, V2X and sensor fusion ........................................................64

6.7.4 Interpretation and prediction, drive planning and traffic rules...........................................64

6.7.5 Motion control ................................................................................................................................................................65

6.7.6 Monitor, ADS mode manager (including the vehicle state) ......................................................65

6.7.7 Human machine interaction and user state monitor ....................................................................65

6.8 Field operation (monitoring, configuration, updates) .......................................................................................65

6.8.1 Testing traceability .....................................................................................................................................................65

6.8.2 Robust configuration and change management process ...........................................................66

6.8.3 Regression prevention .............................................................................................................................................67

6.8.4 Cybersecurity monitoring and updates ....................................................................................................67

6.8.5 Continuous monitoring and corrective enforcement ....................................................................67

Annex A (informative) Development examples ......................................................................................................................................69

Annex B (informative) Using deep neural networks to implement safety-related elements

for automated driving systems ...........................................................................................................................................................80

Annex C (informative) Principles of safety and cybersecurity for automated driving ..................................92

Annex D (informative) List of proposed standards ............................................................................................................................95

Bibliography .........................................................................................................................................................................................................................107

iv © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TR 4804:2020(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 22, Road Vehicles.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2020 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/TR 4804:2020(E)
Introduction

Automated driving is one of the key modern technologies. In addition to offering broader access to

mobility, it may also help to reduce the number of road traffic related accidents and crashes. When

doing so, the safe operation of automated driving vehicles is one of the most important factors. Designed

to supplement existing standards and publications on various aspects of safety, this document presents

a more technical overview of the recommendations, guidance and methods to achieve a positive risk

balance and to avoid unreasonable risk and cybersecurity related threats, emphasizing the importance

of safety by design. This document closes the loop to provide a discussion with recommendations and

methods on the verification and validation of automated driving systems.

Set forth are a proposed framework and guidelines focused on the safety and cybersecurity during the

development, verification, validation, production and operation of automated driving systems for all

stakeholders in the automotive and mobility world – from technology start-ups through to established

OEMs and the tiered suppliers of key technologies.
vi © ISO 2020 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL REPORT ISO/TR 4804:2020(E)
Road vehicles — Safety and cybersecurity for automated
driving systems — Design, verification and validation
1 Scope

This document describes steps for developing and validating automated driving systems based on

basic safety principles derived from worldwide applicable publications. It considers safety- and

cybersecurity-by-design, as well as verification and validation methods for automated driving systems

focused on vehicles with level 3 and level 4 features according to SAE J3016: 2018. In addition, it outlines

cybersecurity considerations intersecting with objectives for safety of automated driving systems.

2 Normative references
There are no normative references in this document
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
automated driving system
ADS

set of elements (3.14) that offer a specific conditional or higher automated driving use case (3.63) in or

for a specific ODD (3.37)
3.2
automated vehicle

vehicle equipped with at least one conditional (SAE level 3) or higher (SAE level 4/level 5) automated

driving system (3.1)
3.3
availability

capability (3.4) of a product to provide a stated function if demanded, under given conditions over its

defined lifetime

Note 1 to entry: In the context of this document the product is the automated driving system (3.1).

Note 2 to entry: In the context of this document “availability” is defined solely referring to the automated driving

system aspects and does not include human factor aspects.
[SOURCE: ISO 26262-1:2018, 3.7]
3.4
capability
ability of a product to deliver a function, feature or service

Note 1 to entry: In the context of this document the product is the automated driving system (3.1).

© ISO 2020 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/TR 4804:2020(E)
3.5
conventional driver

driver (3.11) who manually exercises in-vehicle braking, accelerating, steering and transmission gear

selection input devices in order to operate the vehicle
[SOURCE: SAE J3016: 2018, 3.29.1.1]
3.6
corner case

scenario (3.53) in which two or more parameter values are each within the capabilities (3.4) of the

system, but together constitute a rare condition that challenges its capabilities

Note 1 to entry: In the context of this document the system is the automated driving system (3.1).

[SOURCE: ISO/PAS 21448:2019, Table 11]
3.7
crash

undesirable, unplanned event that leads to an unrecoverable loss due to unfavourable external

conditions (e.g. human error), typically involving material damage, financial loss or human injuries

and/or fatalities
3.8
cybersecurity

condition in which assets are sufficiently protected against threat scenarios (3.53) to electrical or

electronic components of road vehicles and their functions
[SOURCE: ISO/SAE 21434]
3.9
degradation

state or transition to a state of the item (3.26) or element (3.14) with reduced functionality,

performance, or both

Note 1 to entry: In the context of this document the item is the automated driving system (3.1).

[SOURCE: ISO 26262-1:2018, 3.28, modified — Note 1 to entry added.]
3.10
dependability

ability of a system to provide a service or function regarding the attributes of reliability (3.44),

availability (3.3), maintainability, safety (3.51) and security (RAMSS)

Note 1 to entry: In the context of this document the system is the automated driving system (3.1).

3.11
driver

user (3.64) who performs in real-time part or all of the DDT (3.13) and/or DDT fallback for a

particular vehicle

[SOURCE: SAE J3016: 2018, 3.29.1, modified — The word "human" was removed from the term and the

note was deleted.]
3.12
driver in the loop
DiL

execution of the target software on prototype or target hardware in the target vehicle or a mock-up,

in which the environment is modified with virtual stimuli, and the driver’s reaction influences the

vehicle’s behaviour

EXAMPLE Driving simulator or vehicle in the loop (ViL) (augmented reality for safety-related manoeuvres

in real vehicles).
2 © ISO 2020 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TR 4804:2020(E)
3.13
dynamic driving task
DDT

all of the real-time operational and tactical functions required to operate a vehicle in on-road traffic

Note 1 to entry: This excludes the strategic functions such as trip scheduling and selecting destinations and

waypoints, and includes without limitation:
— lateral vehicle motion control via steering (operational);

— longitudinal vehicle motion control via acceleration and deceleration (operational);

— monitoring the driving environment via object and event detection, recognition, classification, and response

preparation (operational and tactical);
— object and event response execution (operational and tactical);
— manoeuvre planning (tactical); and
— enhancing conspicuity via lighting, signalling or gesturing, etc. (tactical).

[SOURCE: SAE J3016: 2018, 3.13, modified — Note 1 to entry was previously part of the definition, the

notes, figure and additional information were removed.]
3.14
element

at least first-level decomposition of capabilities (3.4) to a logical system architecture

Note 1 to entry: One or more elements realize one or more capabilities.
3.15
equivalence class

class being identified based on the division of inputs and outputs, such that a representative test value

can be selected for each class
Note 1 to entry: See ISO 26262-6:2018, Table 8.
3.16
fail-degraded

property of the item (3.26) to operate with reduced functionality in the presence of a fault (3.20)

Note 1 to entry: This property can be realized as fail-degraded capability (3.4) of fail-degraded mode.

Note 2 to entry: In the context of this document the item is the automated driving system (3.1).

Note 3 to entry: This means that the item is fault-tolerant for a subset of its intended functionality.

Note 4 to entry: The absence of unreasonable risk (3.62) can require the duration of the presence of the fault to be

time limited and/or system maintenance in a limited time frame.

Note 5 to entry: The absence of unreasonable risk in the presence of the fault can require limitations of the item

behaviour.
3.17
fail-operational

property of the item (3.26) to maintain its full intended functionality in the presence of a fault (3.20)

Note 1 to entry: In the context of this document the item is the automated driving system (see 3.1).

Note 2 to entry: This means that the item is fault-tolerant for its intended functionality.

Note 3 to entry: The absence of unreasonable risk (3.62) can require the duration of the presence of the fault to be

time limited and/or system maintenance in a limited time frame.
© ISO 2020 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/TR 4804:2020(E)
3.18
fail-safe

property of an automated driving system (3.1) to achieve a minimal risk condition (3.29) and to achieve a

safe state (3.50) in the event of a failure (3.19)

Note 1 to entry: A fail-safe condition is to be reached for example, by means of: demanding the vehicle control to

driver/vehicle operator (3.39) and/or switching off the automated driving function.

3.19
failure

termination of an intended behaviour of an element (3.14) or the automated driving systems (3.1) due to

a fault (3.20) manifestation

[SOURCE: ISO 26262-1:2018, 3.50, modified — The term "automated driving system" replaces "item"

and Note 1 to entry is not included here.]
3.20
fault

abnormal condition that can cause an element (3.14) or the automated driving system (3.1) to fail

[SOURCE: ISO 26262-1:2018, 3.54, modified — The term "automated driving system" replaces "item"

and Notes to entry are not included here.]
3.21
field operational testing
FOT

use of large-scale testing programs aimed at generating a comprehensive assessment of the efficiency,

quality, robustness and acceptance of transport solutions
3.22
high definition map
HD map

maps with high level precision mostly used in the context of automated driving system (3.1) to give the

vehicle precise information about the road environment
3.23
hardware in the closed loop
HiL

execution of target software on target hardware, whereby the hardware outputs influence the

hardware inputs
Note 1 to entry: HiL executes the target software in real time.
EXAMPLE AUTOSAR stack on radar with no frontend.
3.24
hardware open loop
HoL

execution of target software on target hardware, whereby the hardware outputs do not influence the

hardware inputs
EXAMPLE Monitor hardware testbench.
3.25
human-machine interaction

interdisciplinary interaction between a human and an automated vehicle (3.2), considering the human-

machine interface (HMI) with the aim to develop a user interface that satisfies requirements regarding

mental, cognitive and manual abilities of the user (3.64)
4 © ISO 2020 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TR 4804:2020(E)
3.26
item

system or combination of systems, that implements a function or part of a function at the vehicle level

[SOURCE: ISO 26262-1:2018, 3.84, modified — The phrase “to which ISO 26262 is applied” and the

Note 1 to entry were deleted.]
3.27
lagging measure

metrics that are assessed after deployment of an automated driving system (3.1) and provide

confirmation that the positive risk balance (3.42) as well as the conformance with the safety-by-design

techniques have been achieved
EXAMPLE Statistics for crashes (3.7) or other safety (3.51) events.
Note 1 to entry: See Reference [1].
3.28
leading measure

metrics that are derived from data that is assessed prior to deployment of an automated driving system

(3.1) indicating that the automated driving system conforms with safety-by-design techniques to

achieve a positive risk balance (3.42) and avoidance of unreasonable risk (3.62)

EXAMPLE A design verification (3.67) that the HMI guidelines were incorporated into the vehicle’s design.

Note 1 to entry: See Reference [1].
3.29
minimal risk condition
MRC

condition to which a user (3.64) or an automated driving system (3.1) may bring a vehicle after

performing the minimal risk manoeuvre (3.30) in order to reduce the risk of a crash (3.7) when a given

trip cannot be completed

Note 1 to entry: The minimal risk condition integrates the meaning of avoidance of unreasonable risk (3.62),

according to the ISO 26262:2018 series. They can be combined but they never exclude one each other.

[SOURCE: SAE J3016: 2018, 3.17, modified — The term “minimal risk manoeuvre” replaces “DDT

fallback”, the notes and examples were deleted and the Note 1 to entry was added.]

3.30
minimal risk manoeuvre
MRM

automated driving system’s (3.1) capability (3.4) of transitioning the vehicle between nominal and

minimal risk conditions (3.29)
3.31
operating mode awareness

driver’s (3.11) capability (3.4) to identify the current automation mode and his/her driving responsibility

3.32
naturalistic driving study
NDS

driving study where research subjects are recruited to drive on public roads (not in a simulator or

on a test track), where there is no in-vehicle experimenter or confederate vehicles, and where driving

conditions are not experimentally controlled or manipulated

Note 1 to entry: Subjects are not instructed to drive differently than they normally would and the data collection

instrumentation is unobtrusive.

Note 2 to entry: Typically, these studies last a minimum of several weeks for each subject and can go much longer.

© ISO 2020 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/TR 4804:2020(E)

Note 3 to entry: An approach during which the driver becomes unaware of observation as data is collected as

discreetly as possible. This data is then used to examine the relationship between the driver, vehicle and/or

environment.
3.33
nominal performance

performance of the system free from fault (3.20) and that meets its defined performance criteria

3.34
non-vulnerable road user

protected road users (3.46) such as users (3.64) in other vehicles, trucks, construction and agricultural

machines
3.35
object under test
OuT
item (3.26) or element (3.14) to be tested as planned and specified
Note 1 to entry: Similar usage as ISO 16750 for device under test.
3.36
open road testing

execution of target software on target hardware in the target vehicle with a driver (3.11), whereby the

driving environment is real, road infrastructures are public and can be only partially controlled

EXAMPLE Field operational testing (3.21) or naturalistic driving studies (3.32), testing in the development

vehicles.
3.37
operational design domain
ODD

operating conditions under which a given automated driving system (3.1) or feature thereof is specifically

designed to function, including, but not limited to, environmental, geographical, and time-of-day

restrictions, and/or the requisite presence or absence of certain traffic or roadway characteristics

Note 1 to entry: These limitations, as from constraints as specified in operating conditions, reflect the

technological capability (3.4) of the automated driving system.

[SOURCE: SAE J3016: 2018, 3.22, modified — Note 1 to entry is added, and the note and examples are

not included here.]
3.38
ODD functional adaptation
operational design domain functional adaptation

property of a system to operate safely with reduced performance in the case of detected functional

insufficiencies inside the ODD (3.37)

EXAMPLE Speed adaptation because of low fuel level, or dense fog, or sensor performance insufficiencies.

3.39
operator
designated person, appropriately trained and authorized, to operate the vehicle
3.40
other road user

vulnerable road users (3.68) and non-vulnerable road users (3.34) with no role in the ego automated

vehicle (3.2)
3.41
passenger
...

TECHNICAL ISO/TR
REPORT 4804
First edition
Road vehicles — Safety and
cybersecurity for automated driving
systems — Design, verification and
validation
Véhicules routiers - Sécurité et cybersécurité pour les systèmes de
conduite automatisée - Conception, vérification et validation
PROOF/ÉPREUVE
Reference number
ISO/TR 4804:2020(E)
ISO 2020
---------------------- Page: 1 ----------------------
ISO/TR 4804:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 4804:2020(E)
Contents Page

Foreword ..........................................................................................................................................................................................................................................v

Introduction ................................................................................................................................................................................................................................vi

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 General approach and overview .......................................................................................................................................................11

4.1 Introduction and motivation ....................................................................................................................................................11

4.2 Overview of this document .......................................................................................................................................................11

4.3 Structure and development examples used in this document ....................................................................12

4.4 Safety vision ...........................................................................................................................................................................................13

4.4.1 Background........................................................................................................................................................................13

4.4.2 Positive risk balance and avoidance of unreasonable risk .......................................................14

4.4.3 Principles of safety and cybersecurity for automated driving ..............................................14

5 Systematically developing dependability to support safety by design .....................................................17

5.1 General ........................................................................................................................................................................................................17

5.2 Deriving capabilities of automated driving from dependability domains ........................................18

5.2.1 Applying the related safety standards ........................................................................................................18

5.2.2 ISO/PAS 21448 - Safety of the intended functionality .................................................................19

5.2.3 ISO 26262 series - Functional safety ...........................................................................................................19

5.2.4 ISO/SAE 21434 - Automotive cybersecurity ........................................................................................20

5.2.5 Capabilities of automated driving ..................................................................................................................21

5.2.6 Minimal risk conditions and minimal risk manoeuvres .............................................................25

5.3 Elements for implementing the capabilities ..............................................................................................................27

5.3.1 Implementing the capabilities ..........................................................................................................................27

5.3.2 Elements ..............................................................................................................................................................................33

5.3.3 Generic logical architecture.................................................................................................................................45

6 Verification and validation .....................................................................................................................................................................48

6.1 General ........................................................................................................................................................................................................48

6.2 The scope and main steps of verification and validation for automated driving systems..49

6.3 Key challenges for verification and validation of SAE L3 and SAE L4 automated

driving systems ....................................................................................................................................................................................50

6.3.1 Challenge 1: Statistical demonstration of avoidance of unreasonable risk

and a positive risk balance without driver interaction ................................................................51

6.3.2 Challenge 2: System safety with driver interaction (especially in takeover

manoeuvres) ........................................................................................................................................... ..........................51

6.3.3 Challenge 3: Consideration of scenarios currently not known............................................51

6.3.4 Challenge 4: Validation of various system configurations and variants ......................51

6.3.5 Challenge 5: Validation of (sub)systems that are based on machine learning ......51

6.4 Verification and validation approach for automated driving systems .................................................51

6.4.1 Defining test goals and objectives (why and how well) ..............................................................52

6.4.2 Test design techniques (how) ............................................................................................................................52

6.4.3 Test platforms (where) ............................................................................................................................................53

6.4.4 Test strategies in response to the key challenges .............................................................................53

6.5 Quantity and quality of testing ...............................................................................................................................................57

6.5.1 Equivalence classes and scenario-based testing ...............................................................................58

6.6 Simulation ................................................................................................................................................................................................58

6.6.1 Types of simulation ....................................................................................................................................................60

6.6.2 Simulation scenario generation .......................................................................................................................61

6.6.3 Validating simulation ................................................................................................................................................61

6.6.4 Further applications of simulation................................................................................................................62

6.7 Verification and validation of elements ..........................................................................................................................62

6.7.1 A-priori information and perception (map) .........................................................................................63

© ISO 2020 – All rights reserved PROOF/ÉPREUVE iii
---------------------- Page: 3 ----------------------
ISO/TR 4804:2020(E)

6.7.2 Localization (including GNSS) ...........................................................................................................................63

6.7.3 Environment perception sensors, V2X and sensor fusion ........................................................64

6.7.4 Interpretation and prediction, drive planning and traffic rules...........................................64

6.7.5 Motion control ................................................................................................................................................................65

6.7.6 Monitor, ADS mode manager (including the vehicle state) ......................................................65

6.7.7 Human machine interaction and user state monitor ....................................................................65

6.8 Field operation (monitoring, configuration, updates) .......................................................................................65

6.8.1 Testing traceability .....................................................................................................................................................65

6.8.2 Robust configuration and change management process ...........................................................66

6.8.3 Regression prevention .............................................................................................................................................67

6.8.4 Cybersecurity monitoring and updates ....................................................................................................67

6.8.5 Continuous monitoring and corrective enforcement ....................................................................67

Annex A (informative) Development examples ......................................................................................................................................69

Annex B (informative) Using deep neural networks to implement safety-related elements

for automated driving systems ...........................................................................................................................................................80

Annex C (informative) Principles of safety and cybersecurity for automated driving ..................................92

Annex D (informative) List of proposed standards ............................................................................................................................95

Bibliography .........................................................................................................................................................................................................................106

iv PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TR 4804:2020(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 22, Road Vehicles.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2020 – All rights reserved PROOF/ÉPREUVE v
---------------------- Page: 5 ----------------------
ISO/TR 4804:2020(E)
Introduction

Automated driving is one of the key modern technologies. In addition to offering broader access to

mobility, it may also help to reduce the number of road traffic related accidents and crashes. When

doing so, the safe operation of automated driving vehicles is one of the most important factors. Designed

to supplement existing standards and publications on various aspects of safety, this document presents

a more technical overview of the recommendations, guidance and methods to achieve a positive risk

balance and to avoid unreasonable risk and cybersecurity related threats, emphasizing the importance

of safety by design. This document closes the loop to provide a discussion with recommendations and

methods on the verification and validation of automated driving systems.

Set forth are a proposed framework and guidelines focused on the safety and cybersecurity during the

development, verification, validation, production and operation of automated driving systems for all

stakeholders in the automotive and mobility world – from technology start-ups through to established

OEMs and the tiered suppliers of key technologies.
vi PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL REPORT ISO/TR 4804:2020(E)
Road vehicles — Safety and cybersecurity for automated
driving systems — Design, verification and validation
1 Scope

This document describes steps for developing and validating automated driving systems based on

basic safety principles derived from worldwide applicable publications. It considers safety- and

cybersecurity-by-design, as well as verification and validation methods for automated driving systems

focused on vehicles with level 3 and level 4 features according to SAE J3016: 2018. In addition, it outlines

cybersecurity considerations intersecting with objectives for safety of automated driving systems.

2 Normative references
There are no normative references in this document
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
automated driving system
ADS

set of elements (3.14) that offer a specific conditional or higher automated driving use case (3.63) in or

for a specific ODD (3.37)
3.2
automated vehicle

vehicle equipped with at least one conditional (SAE level 3) or higher (SAE level 4/level 5) automated

driving system (3.1)
3.3
availability

capability (3.4) of a product to provide a stated function if demanded, under given conditions over its

defined lifetime

Note 1 to entry: In the context of this document the product is the automated driving system (3.1).

Note 2 to entry: In the context of this document “availability” is defined solely referring to the automated driving

system aspects and does not include human factor aspects.
[SOURCE: ISO 26262-1:2018, 3.7]
3.4
capability
ability of a product to deliver a function, feature or service

Note 1 to entry: In the context of this document the product is the automated driving system (3.1).

© ISO 2020 – All rights reserved PROOF/ÉPREUVE 1
---------------------- Page: 7 ----------------------
ISO/TR 4804:2020(E)
3.5
conventional driver

driver (3.11) who manually exercises in-vehicle braking, accelerating, steering and transmission gear

selection input devices in order to operate the vehicle
[SOURCE: SAE J3016: 2018, 3.29.1.1]
3.6
corner case

scenario (3.53) in which two or more parameter values are each within the capabilities (3.4) of the

system, but together constitute a rare condition that challenges its capabilities

Note 1 to entry: In the context of this document the system is the automated driving system (3.1).

[SOURCE: ISO/PAS 21448:2019, Table 11]
3.7
crash

undesirable, unplanned event that leads to an unrecoverable loss due to unfavourable external

conditions (e.g. human error), typically involving material damage, financial loss or human injuries

and/or fatalities
3.8
cybersecurity

condition in which assets are sufficiently protected against threat scenarios (3.53) to electrical or

electronic components of road vehicles and their functions
[SOURCE: ISO/SAE 21434]
3.9
degradation

state or transition to a state of the item (3.26) or element (3.14) with reduced functionality,

performance, or both

Note 1 to entry: In the context of this document the item is the automated driving system (3.1).

[SOURCE: ISO 26262-1:2018, 3.28, modified — Note 1 to entry added.]
3.10
dependability

ability of a system to provide a service or function regarding the attributes of reliability (3.44),

availability (3.3), maintainability, safety (3.51) and security (RAMSS)

Note 1 to entry: In the context of this document the system is the automated driving system (3.1).

3.11
driver

user (3.64) who performs in real-time part or all of the DDT (3.13) and/or DDT fallback for a

particular vehicle

[SOURCE: SAE J3016: 2018, 3.29.1, modified — The word "human" was removed from the term and the

note was deleted.]
3.12
driver in the loop
DiL

execution of the target software on prototype or target hardware in the target vehicle or a mock-up,

in which the environment is modified with virtual stimuli, and the driver’s reaction influences the

vehicle’s behaviour

EXAMPLE Driving simulator or vehicle in the loop (ViL) (augmented reality for safety-related manoeuvres

in real vehicles).
2 PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TR 4804:2020(E)
3.13
dynamic driving task
DDT

all of the real-time operational and tactical functions required to operate a vehicle in on-road traffic

Note 1 to entry: This excludes the strategic functions such as trip scheduling and selecting destinations and

waypoints, and includes without limitation:
— lateral vehicle motion control via steering (operational);

— longitudinal vehicle motion control via acceleration and deceleration (operational);

— monitoring the driving environment via object and event detection, recognition, classification, and response

preparation (operational and tactical);
— object and event response execution (operational and tactical);
— manoeuvre planning (tactical); and
— enhancing conspicuity via lighting, signalling or gesturing, etc. (tactical).

[SOURCE: SAE J3016: 2018, 3.13, modified — Note 1 to entry was previously part of the definition, the

notes, figure and additional information were removed.]
3.14
element

at least first-level decomposition of capabilities (3.4) to a logical system architecture

Note 1 to entry: One or more elements realize one or more capabilities.
3.15
equivalence class

class being identified based on the division of inputs and outputs, such that a representative test value

can be selected for each class
Note 1 to entry: See ISO 26262-6:2018, Table 8.
3.16
fail-degraded

property of the item (3.26) to operate with reduced functionality in the presence of a fault (3.20)

Note 1 to entry: This property can be realized as fail-degraded capability (3.4) of fail-degraded mode.

Note 2 to entry: In the context of this document the item is the automated driving system (3.1).

Note 3 to entry: This means that the item is fault-tolerant for a subset of its intended functionality.

Note 4 to entry: The absence of unreasonable risk (3.62) can require the duration of the presence of the fault to be

time limited and/or system maintenance in a limited time frame.

Note 5 to entry: The absence of unreasonable risk in the presence of the fault can require limitations of the item

behaviour.
3.17
fail-operational

property of the item (3.26) to maintain its full intended functionality in the presence of a fault (3.20)

Note 1 to entry: In the context of this document the item is the automated driving system (see 3.1).

Note 2 to entry: This means that the item is fault-tolerant for its intended functionality.

Note 3 to entry: The absence of unreasonable risk (3.62) can require the duration of the presence of the fault to be

time limited and/or system maintenance in a limited time frame.
© ISO 2020 – All rights reserved PROOF/ÉPREUVE 3
---------------------- Page: 9 ----------------------
ISO/TR 4804:2020(E)
3.18
fail-safe

property of an automated driving system (3.1) to achieve a minimal risk condition (3.29) and to achieve a

safe state (3.50) in the event of a failure (3.19)

Note 1 to entry: A fail-safe condition is to be reached for example, by means of: demanding the vehicle control to

driver/vehicle operator (3.39) and/or switching off the automated driving function.

3.19
failure

termination of an intended behaviour of an element (3.14) or the automated driving systems (3.1) due to

a fault (3.20) manifestation

[SOURCE: ISO 26262-1:2018, 3.50, modified – The term "automated driving system" replaces "item" and

Note 1 to entry is not included here.]
3.20
fault

abnormal condition that can cause an element (3.14) or the automated driving system (3.1) to fail

[SOURCE: ISO 26262-1:2018, 3.54, modified – The term "automated driving system" replaces "item" and

Notes to entry are not included here.]
3.21
field operational testing
FOT

use of large-scale testing programs aimed at generating a comprehensive assessment of the efficiency,

quality, robustness and acceptance of transport solutions
3.22
high definition map
HD map

maps with high level precision mostly used in the context of automated driving system (3.1) to give the

vehicle precise information about the road environment
3.23
hardware in the closed loop
HiL

execution of target software on target hardware, whereby the hardware outputs influence the

hardware inputs
Note 1 to entry: HiL executes the target software in real time.
EXAMPLE AUTOSAR stack on radar with no frontend.
3.24
hardware open loop
HoL

execution of target software on target hardware, whereby the hardware outputs do not influence the

hardware inputs
EXAMPLE Monitor hardware testbench.
3.25
human-machine interaction

interdisciplinary interaction between a human and an automated vehicle (3.2), considering the human-

machine interface (HMI) with the aim to develop a user interface that satisfies requirements regarding

mental, cognitive and manual abilities of the user (3.64)
4 PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TR 4804:2020(E)
3.26
item

system or combination of systems, that implements a function or part of a function at the vehicle level

[SOURCE: ISO 26262-1:2018, 3.84, modified — The phrase “to which ISO 26262 is applied” and the

Note 1 to entry are deleted.]
3.27
lagging measure

metrics that are assessed after deployment of an automated driving system (3.1) and provide

confirmation that the positive risk balance (3.42) as well as the conformance with the safety-by-design

techniques have been achieved
EXAMPLE Statistics for crashes (3.7) or other safety (3.51) events.
Note 1 to entry: See Reference [1].
3.28
leading measure

metrics that are derived from data that is assessed prior to deployment of an automated driving system

(3.1) indicating that the automated driving system conforms with safety-by-design techniques to

achieve a positive risk balance (3.42) and avoidance of unreasonable risk (3.62)

EXAMPLE A design verification (3.67) that the HMI guidelines were incorporated into the vehicle’s design.

Note 1 to entry: See Reference [1].
3.29
minimal risk condition
MRC

condition to which a user (3.64) or an automated driving system (3.1) may bring a vehicle after

performing the minimal risk manoeuvre (3.30) in order to reduce the risk of a crash (3.7) when a given

trip cannot be completed

Note 1 to entry: The minimal risk condition integrates the meaning of avoidance of unreasonable risk (3.62),

according to the ISO 26262:2018 series. They can be combined but they never exclude one each other.

[SOURCE: SAE J3016: 2018, 3.17, modified — The term “minimal risk manoeuvre” replaces “DDT

fallback”, the notes and examples were deleted and the Note 1 to entry was added.]

3.30
minimal risk manoeuvre
MRM

automated driving system’s (3.1) capability (3.4) of transitioning the vehicle between nominal and

minimal risk conditions (3.29)
3.31
operating mode awareness

driver’s (3.11) capability (3.4) to identify the current automation mode and his/her driving responsibility

3.32
naturalistic driving study
NDS

driving study where research subjects are recruited to drive on public roads (not in a simulator or

on a test track), where there is no in-vehicle experimenter or confederate vehicles, and where driving

conditions are not experimentally controlled or manipulated

Note 1 to entry: Subjects are not instructed to drive differently than they normally would and the data collection

instrumentation is unobtrusive.

Note 2 to entry: Typically, these studies last a minimum of several weeks for each subject and can go much longer.

© ISO 2020 – All rights reserved PROOF/ÉPREUVE 5
---------------------- Page: 11 ----------------------
ISO/TR 4804:2020(E)

Note 3 to entry: An approach during which the driver becomes unaware of observation as data is collected as

discreetly as possible. This data is then used to examine the relationship between the driver, vehicle and/or

environment.
3.33
nominal performance

performance of the system free from fault (3.20) and that meets its defined performance criteria

3.34
non-vulnerable road user

protected road users (3.46) such as users (3.64) in other vehicles, trucks, construction and agricultural

machines
3.35
object under test
OuT
item (3.26) or element (3.14) to be tested as planned and specified
Note 1 to entry: Similar usage as ISO 16750 for device under test.
3.36
open road testing

execution of target software on target hardware in the target vehicle with a driver (3.11), whereby the

driving environment is real, road infrastructures are public and can be only partially controlled

EXAMPLE Field operational testing (3.21) or naturalistic driving studies (3.32), testing in the development

vehicles.
3.37
operational design domain
ODD

operating conditions under which a given automated driving system (3.1) or feature thereof is specifically

designed to function, including, but not limited to, environmental, geographical, and time-of-day

restrictions, and/or the requisite presence or absence of certain traffic or roadway characteristics

Note 1 to entry: These limitations, as from constraints as specified in operating conditions, reflect the

technological capability (3.4) of the automated driving system.

[SOURCE: SAE J3016: 2018, 3.22, modified — Note 1 to entry is added, and the note and examples are

not included here.]
3.38
ODD functional adaptation
operational design domain functional adaptation

property of a system to operate safely with reduced performance in the case of detected functional

insufficiencies inside the ODD (3.37)

EXAMPLE Speed adaptation because of low fuel level, or dense fog, or sensor performance insufficiencies.

3.39
operator
designated person, appropriately trained and authorized, to operate the vehicle
3.40
other road us
...
