INTERNATIONAL ISO
STANDARD 15689
First edition
2003-09-01
Road construction and maintenance
equipment — Powder binder spreaders —
Terminology and commercial
specifications
Équipement pour la construction et l'entretien des routes — Épandeurs
de liants pulvérulents — Terminologie et spécifications commerciales

Reference number
©
ISO 2003
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2003
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2003 — All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope. 1
2 Normative references. 1
3 Terms and definitions. 1
4 Types and designs of powder binder spreaders . 2
4.1 General. 2
4.2 Propulsion type. 2
4.3 Transfer method of binder from tank to ground. 2
4.4 Proportioner type. 2
5 Commercial specifications. 3
5.1 Main assemblies of powder binder spreader. 3
5.2 Main measuring and control equipment. 3
5.3 Additional special devices . 4
5.4 Main characteristics of spreaders. 4
Annex A (informative) Examples of structures and dimensional characteristics of binder powder
spreaders . 8

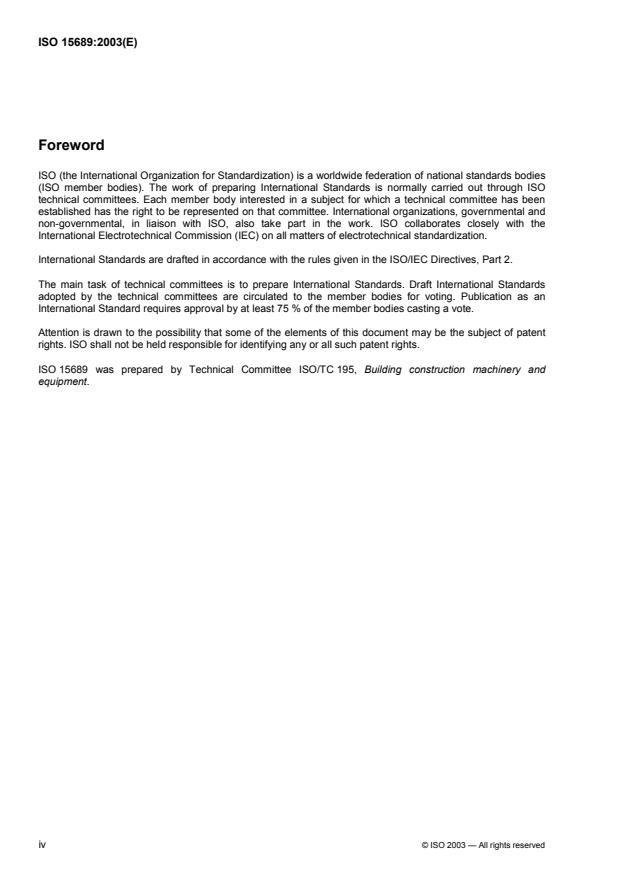

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 15689 was prepared by Technical Committee ISO/TC 195, Building construction machinery and
equipment.
iv © ISO 2003 — All rights reserved

Introduction
This International Standard deals with powder binder spreaders used in road construction and maintenance
processes. It specifies terminology for the machine and its components, and also the definitions of operation
principles and parameters.
Dealing with commercial specifications, this International Standard establishes the parameters required for
technical characteristics of the whole machine and its components, such as vehicle, powder tank, transfer unit,
distributing system and control instruments. Figures are included to show the design of powder binder
spreaders.
INTERNATIONAL STANDARD ISO 15689:2003(E)

Road construction and maintenance equipment — Powder
binder spreaders — Terminology and commercial
specifications
1 Scope
This International Standard establishes the terminology, functions, types and characteristics of powder binder
spreaders used in road construction and maintenance processes.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 3911, Wheels and rims for pneumatic tyres — Vocabulary, designation and marking
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
powder binder spreader
mobile machine intended for stabilization, treatment or retreating of pavement materials and soils in
earthworks, subgrade or road foundations
NOTE The spreaders are designed so that the output is controlled by travel speed and proportioning devices.
3.2
spreader with proportioning by volume
machine whose binder output is proportioned by volume using, for example, a rotary vane feeder or delivery
conveyor
NOTE 1 The spreader with proportioning by volume may be also equipped with a control device able to indicate at any
given time the mass of the spread binder and the corresponding area covered.
NOTE 2 See Figure A.3 and Figure A.4.
3.3
spreader with proportioning by mass
machine equipped with a proportioning system that constantly controls the mass of binder delivered by the
proportioner
4 Types and designs of powder binder spreaders
4.1 General
The design of powder binder spreaders is determined by using the following criteria:
 propulsion type;
 transfer method of binder from tank to ground;
 proportioner type.
4.2 Propulsion type
The spreaders are classified according to the propulsion type, as follows:
a) by transport machine: transported spreader (Figures A.1 and A.2);
b) by the spreader itself: self-propelled spreader (Figures A.5, A.6 and A.7);
c) by tractor: towed spreader (Figure A.3).
4.3 Transfer method of binder from tank to ground
The foll
...
