ISO 4190-3:1982

Passenger lift installations - Part 3: Service lifts class V

Establishes the dimensions relating to the installation of lifts comprising a car the interior of which is inaccessible to persons due to its dimensions and means of construction, running at least partially between rigid guides which are vertical or whose inclination to the vertical is less than 15 . Part 1 covers the lifts of classes I, II and III, part 2 the lifts of class IV, part 5 control devices, signals and additional fittings, and part 6 planning and selection of passenger lifts.

Installation d'ascenseurs — Partie 3: Monte-charge classe V

La présente Norme internationale fixe les dimensions nécessaires pour l'installation des monte-charge de la classe V, définis au chapitre 3 «Définitions», préconisés pour les utilisations courantes.

Dvigala (lifti) - 3. del: Mala tovorna dvigala razreda V

General Information

• Status: Published
• Publication Date: 28-Feb-1982
• ICS: 91.140.90 - Lifts. Escalators
• Technical Committee: ISO/TC 178 - Lifts, escalators and moving walks
• Drafting Committee: ISO/TC 178 - Lifts, escalators and moving walks
• Current Stage: 9093 - International Standard confirmed
• Start Date: 26-Feb-2025
• Completion Date: 13-Dec-2025
• Ref Project: SIST ISO 4190-3:1997 - Passenger lift installations -- Part 3: Service lifts class V

Relations

• Consolidated By: ISO 17510-1:2002 - Sleep apnoea breathing therapy - Part 1: Sleep apnoea breathing therapy devices
• Effective Date: 06-Jun-2022

Overview

ISO 4190-3:1982 is an international standard developed by the International Organization for Standardization (ISO) that specifies the essential dimensions and installation requirements for Service lifts class V. These lifts are characterized by having a car interior that is inaccessible to passengers due to its size and construction, typically used for transporting goods or materials. The standard ensures consistency and safety in the installation of these lifts, which operate between rigid guides that are vertical or inclined less than 15 degrees to the vertical.

Part 3 of the ISO 4190 series focuses specifically on service lifts class V, complementing other parts of the series that cover passenger lifts of different classes, control devices, signaling, and planning guidelines. This document was first published in 1982 and serves as a key guideline for manufacturers, architects, engineers, and building planners involved in lift design and installation.

Key Topics

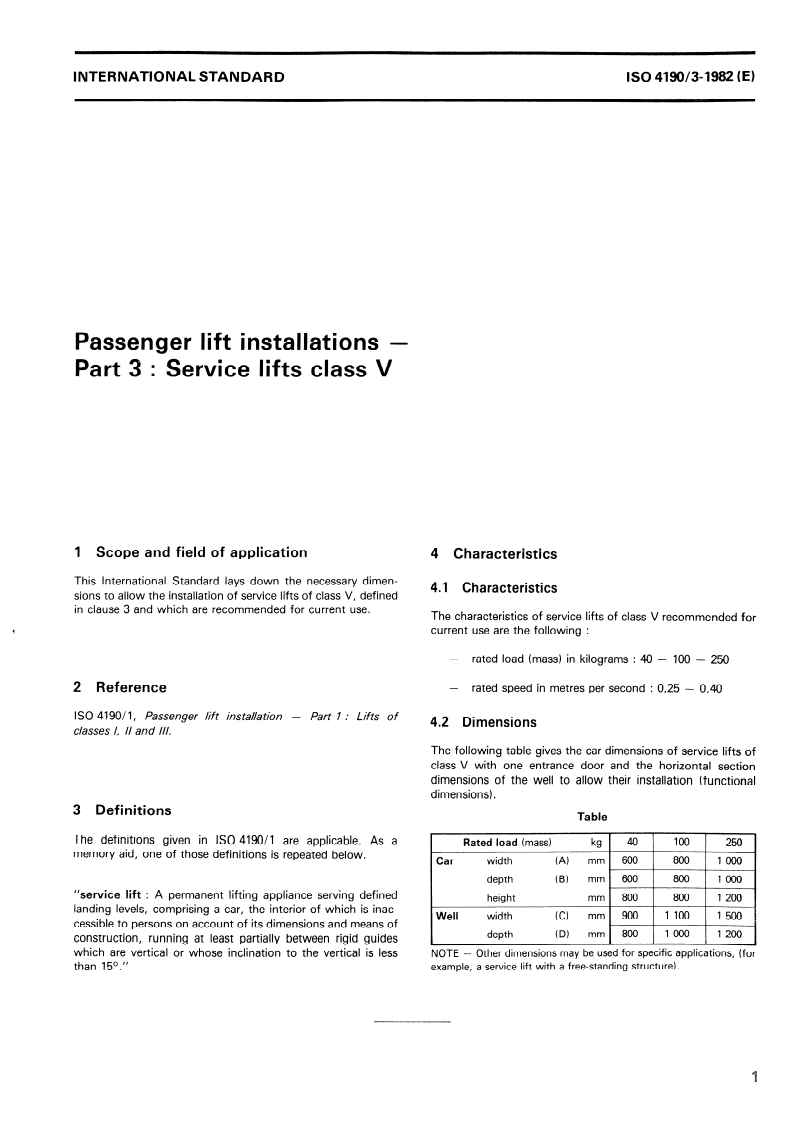

• Scope and Purpose
  ISO 4190-3 defines the minimum functional dimensions required to install service lifts class V, facilitating safe and effective lift constructions for freight or service purposes.

• Lift Characteristics
  Service lifts covered by this standard have rated loads typically ranging from 40 kg to 250 kg and operate at speeds between 0.25 m/s and 0.40 m/s. These parameters ensure they serve intended service applications, such as material transport within buildings.

• Dimensional Requirements

  • Car width and depth tailored for non-passenger use
  • Well dimensions designed to accommodate the service lift with one entrance door
  • Structural requirements for vertical or near-vertical rigid guide rails

• Relevant Definitions
  The standard uses definitions consistent with ISO 4190-1, including the description of a service lift as a device with a car inaccessible to persons due to its size and construction.

Applications

ISO 4190-3 is essential for industries and contexts requiring reliable service lifts with non-passenger cars, including:

• Commercial and Industrial Buildings
  Transporting goods, parts, and equipment between floors, such as in warehouses, factories, and retail environments.

• Hospital and Laboratory Facilities
  Moving materials or supplies securely without passenger access, maintaining sanitary or safety standards.

• Maintenance and Service Areas
  Facilitating the movement of tools, machinery components, or service items in multi-level building infrastructure.

This standard enables architects and engineers to design building lifts that comply with internationally accepted dimensions and safety considerations, helping to streamline installation processes and enhance user safety.

Related Standards

• ISO 4190-1: Covers dimensions and requirements for passenger lifts classes I, II, and III, including essential definitions applicable to service lifts.
• ISO 4190-2: Addresses lifts of class IV, complementing the classification covered by part 3.
• ISO 4190-5: Specifies control devices, signals, and additional fittings for lift systems to ensure operational safety and performance.
• ISO 4190-6: Provides guidance on planning and selecting passenger lifts, relevant for integrated lift installation projects.

These interrelated parts form a comprehensive framework for lift installation standards, ensuring safety, consistency, and interoperability in passenger and service lift design internationally.

---

Keywords: ISO 4190-3, service lifts class V, passenger lift installations, lift dimensions, goods lifts, lift standards, ISO passenger lifts, service lift specifications, industrial lift installation, elevator safety standards.

Standards Content (Sample)

SLOVENSKI STANDARD
01-avgust-1997
Dvigala (lifti) - 3. del: Mala tovorna dvigala razreda V
Passenger lift installations -- Part 3: Service lifts class V
Installation d'ascenseurs -- Partie 3: Monte-charge classe V
Ta slovenski standard je istoveten z: ISO 4190-3:1982
ICS:
91.140.90 'YLJDOD7HNRþHVWRSQLFH Lifts. Escalators
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

International Standard
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION.ME)I(LLYHAPO~HAR OPf-AHM3AL&lR l-IO CTAHAAPTL43A~MM.ORGA~lSATION INTERNATIONALE DE hORMAL1SATION
Passenger lift installations -
Part 3 : Service lifts class V
Ins tala tion d ‘ascenseurs - Partie 3 : Man te-Charge classe V
First edition - 1982-03-15
UDC 621.876.113 Ref. No. ISO 4190/3-1982 (E)
Descriptors : lifts, goods lifts, characteristics, dimensions.
Price based on 1 page
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of
national Standards institutes (ISO member bodies). The work of developing Inter-
national Standards is carried out through ISO technical committees. Every member
body interested in a subject for which a technical committee has been set up has the
right to be represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the technical committees are circulated to
the member bodies for approval before their acceptance as International Standards by
the ISO Council.
International Standard ISO 4190/3 was developed by Technical Committee
ISO/TC 178, Lifts, escalators, passenger conveyors, and was circulated to the
member bodies in November 1980.
lt has been approved by the member bodies of the following countries :
Austri
...

International Standard
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION.ME)I(LLYHAPO~HAR OPf-AHM3AL&lR l-IO CTAHAAPTL43A~MM.ORGA~lSATION INTERNATIONALE DE hORMAL1SATION
Passenger lift installations -
Part 3 : Service lifts class V
Ins tala tion d ‘ascenseurs - Partie 3 : Man te-Charge classe V
First edition - 1982-03-15
UDC 621.876.113 Ref. No. ISO 4190/3-1982 (E)
Descriptors : lifts, goods lifts, characteristics, dimensions.
Price based on 1 page

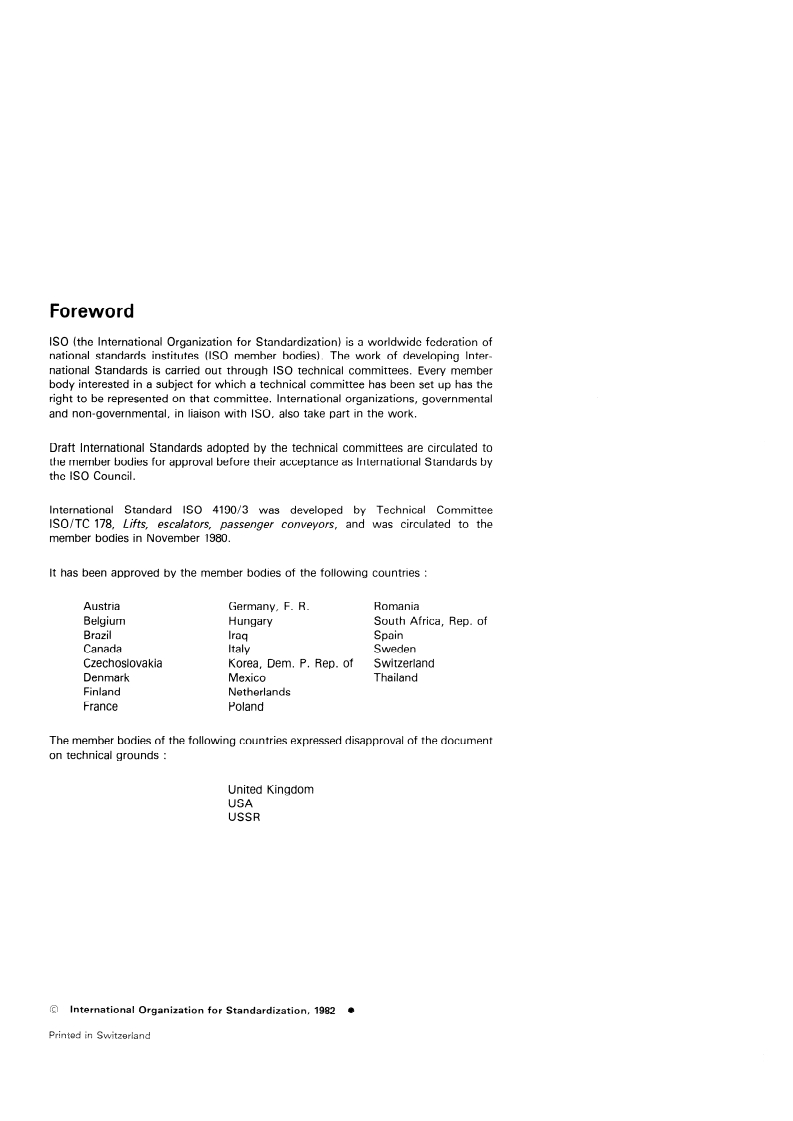

Foreword
