ISO 13007-3:2010

Ceramic tiles - Grouts and adhesives - Part 3: Terms, definitions and specifications for grouts

ISO 13007-3:2010 defines terms concerning the products, working methods and application properties for ceramic tile grouts. It specifies values of performance requirements for all ceramic tile grouts [cementitious (CG) and reaction resin (RG) grouts]. ISO 13007-3:2010 is applicable to ceramic tile grouts for internal and external tile installations on walls and floors.

Carreaux céramiques — Mortiers de joints et colles — Partie 3: Termes, définitions et spécifications relatives aux mortiers de joints

General Information

• Status: Published
• Publication Date: 05-Sep-2010
• ICS: 91.100.10 - Cement. Gypsum. Lime. Mortar
• ICS: 91.100.23 - Ceramic tiles
• Technical Committee: ISO/TC 189 - Ceramic tile
• Drafting Committee: ISO/TC 189 - Ceramic tile
• Current Stage: 9093 - International Standard confirmed
• Start Date: 17-Dec-2025
• Completion Date: 27-Dec-2025

Relations

• Revises: ISO 13007-3:2004 - Ceramic tiles - Grouts and adhesives - Part 3: Terms, definitions and specifications for grouts
• Effective Date: 20-Jun-2009

Overview

ISO 13007-3:2010 - "Ceramic tiles - Grouts and adhesives - Part 3: Terms, definitions and specifications for grouts" is an international standard that defines terminology and sets performance specifications for ceramic tile grouts. It covers both cementitious grouts (CG) and reaction resin grouts (RG) used for internal and external tile installations on walls and floors. The standard is focused on product properties and test-based performance requirements, not on tile design or installation techniques.

Key topics and technical requirements

ISO 13007-3:2010 organizes grout requirements around clearly defined terms and measurable characteristics:

• Defined terms: grout, grouting, cementitious grout (CG), reaction resin grout (RG), liquid admix, pot life, maturing time, service time, cleaning time, shrinkage, water absorption, flexural and compressive strength, abrasion resistance, chemical resistance, etc.
• Performance thresholds (examples given in the standard):
  • Cementitious grouts (CG): flexural strength ≥ 2.5 N/mm², compressive strength ≥ 15 N/mm², shrinkage ≤ 3 mm/m, specified limits for water absorption (e.g., ≤ 5 g after 30 min, ≤ 10 g after 240 min).
  • Reaction resin grouts (RG): flexural strength ≥ 30 N/mm², compressive strength ≥ 45 N/mm², shrinkage ≤ 1.5 mm/m, water absorption ≤ 0.1 g after 240 min.
  • Abrasion, chemical resistance and freeze–thaw requirements are also specified or referenced to test methods.
• Classification and designation: grout types and classes (e.g., CG1 normal, CG2 improved with W = reduced water absorption, A = high abrasion resistance, F = fast‑setting).
• Marking and labelling: required product information includes reference to ISO 13007-3:2010, product name, manufacturer, shelf life, grout designation, mix proportions, pot life, cleaning and service times, and field of application.

(Actual test methods and detailed procedures are referenced in ISO 13007-4:2010.)

Applications and users

ISO 13007-3 is practical for:

• Tile and grout manufacturers - to formulate and declare performance, classify products (CG/RG) and label packaging.
• Specifiers, architects and engineers - to select grout types and performance classes for interior/exterior walls and floors, and for environments needing chemical or abrasion resistance.
• Contractors and installers - to understand pot life, maturing time, cleaning time and service time requirements for job planning.
• Quality assurance and testing laboratories - to verify product conformity against the specified performance thresholds.

This standard supports reliable material selection, performance claims, procurement specifications, and compliance checks in tiling projects.

Related standards

• ISO 13007-1:2010 - adhesives terminology/specifications
• ISO 13007-4:2010 - test methods for grouts
• ISO 13006 - ceramic tile definitions and classification

Keywords: ISO 13007-3, ceramic tile grouts, cementitious grout, reaction resin grout, grout classification, grout specifications, grout performance, tile installation.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 13007-3
Second edition
2010-09-15
Ceramic tiles — Grouts and adhesives —
Part 3:
Terms, definitions and specifications
for grouts
Carreaux céramiques — Mortiers de joints et colles —
Partie 3: Termes, définitions et spécifications relatives aux mortiers
de joints
Reference number
©
ISO 2010

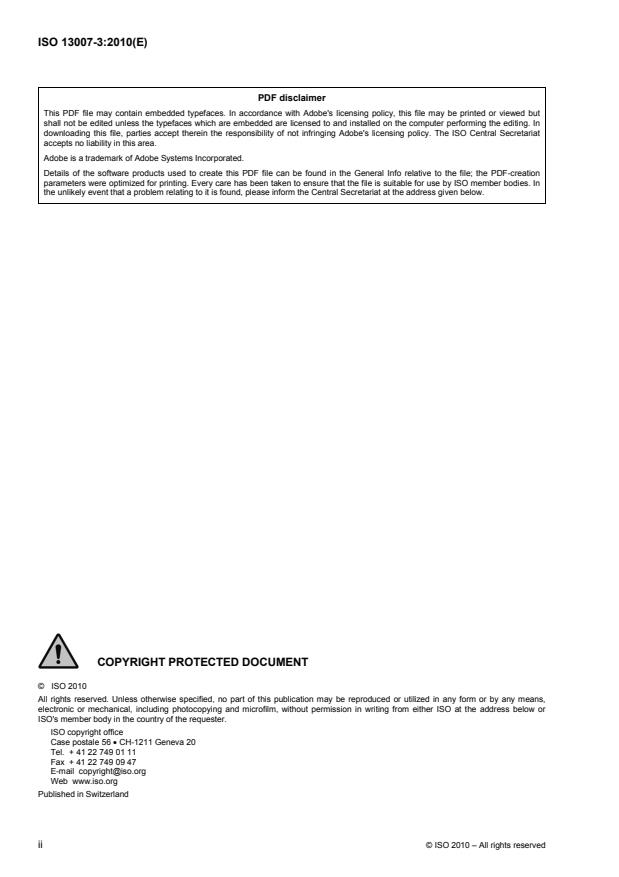

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2010 – All rights reserved

Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Normative references.1
3 Terms and definitions .2
4 Requirements.4
4.1 Cementitious grouts.4
4.2 Reaction resin grouts.5
4.3 Chemical resistance.5
5 Classification and designation .6
6 Marking, labelling and packaging.7

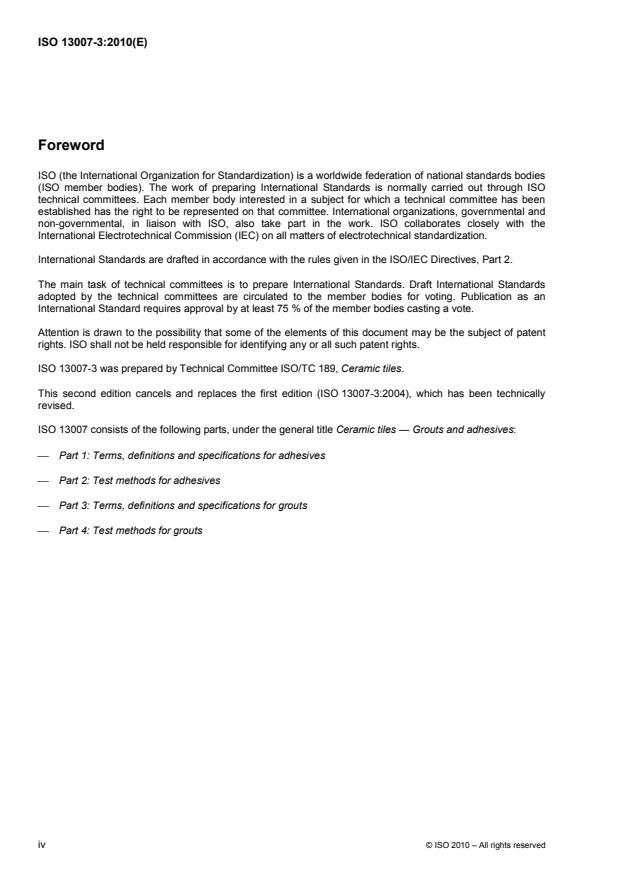

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 13007-3 was prepared by Technical Committee ISO/TC 189, Ceramic tiles.
This second edition cancels and replaces the first edition (ISO 13007-3:2004), which has been technically
revised.
ISO 13007 consists of the following parts, under the general title Ceramic tiles — Grouts and adhesives:
⎯ Part 1: Terms, definitions and specifications for adhesives
⎯ Part 2: Test methods for adhesives
⎯ Part 3: Terms, definitions and specifications for grouts
⎯ Part 4: Test methods for grouts

iv © ISO 2010 – All rights reserved

Introduction
The characteristics of the construction products defined in this part of ISO 13007 have been developed to
accommodate the stresses due to the structure for which they are intended. Some special characteristics take
into account the type of substrate and the necessity for the grouts to resist degradation due to climatic
conditions, etc. Many properties of grouts for tiling are mainly determined by the type of binder used.
Tile grouts are classified in different types depending on the chemical nature of their binders. The types have
specific characteristics in terms of application properties and final performance. The relationship between the
characteristics and the working conditions (dry or humid conditions, hot climate, fast-setting, etc.) is not given
in this part of ISO 13007.
INTERNATIONAL STANDARD ISO 13007-3:2010(E)

Ceramic tiles — Grouts and adhesives —
Part 3:
Terms, definitions and specifications for grouts
1 Scope
This part of ISO 13007 defines terms concerning the products, working methods and application properties for
ceramic tile grouts. It specifies values of performance requirements for all ceramic tile grouts [cementitious
(CG) and reaction resin (RG) grouts].
This part of ISO 13007 is applicable to ceramic tile grouts for internal and external tile installations on walls
and floors.
It is not applicable to criteria or recommendations for the design and installation of ceramic tiles.
NOTE Ceramic tile grouts can also be used for other types of tiles (natural and agglomerated stones, etc.), where
these do not adversely affect the materials.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 13006, Ceramic tiles — Definitions, classification, characteristics and marking
ISO 13007-1:2010, Ceramic tiles — Grouts and adhesives — Part 1: Terms, definitions and specifications for
adhesives
ISO 13007-4, Ceramic tiles — Grouts and adhesives — Part 4: Test methods for grouts
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 13006 and the following apply.
3.1
wall and floor tile
tile made out of ceramic or natural and agglomerated stones
See ISO 13006 for definitions and specifications of ceramic tile.
3.2
grouting a tile surface
process of filling the joints between all types of tiles, with the exception of movement joints
3.3
tile grout
any suitable product used to fill the joints between all types of tile
3.4
cementitious g
...
