INTERNATIONAL STANDARD ISO 13007-6:2020(E)
Ceramic tiles — Grouts and adhesives —
Part 6:
Requirements, test methods, evaluation of conformity,
classification and designation for waterproof membranes
used with the installation of ceramic tiles
1 Scope

This document applies to all bonded sheet waterproofing membranes that are used beneath ceramic

tiling for internal and external tile installations on walls and floors.

This document provides the terminology concerning the products and specifies the test methods and

the values of performance requirements for bonded sheet waterproofing products associated with tile

adhesives.

Furthermore, this document specifies the evaluation of conformity and the classification and

designation of all bonded sheet waterproofing products beneath ceramic tiling.

NOTE 1 Bonded sheet waterproofing products can also be used beneath other types of tiles (natural and

agglomerated stones etc.), where they do not adversely affect these materials.

NOTE 2 This document does not address crack isolation, decoupling, sound control, thermal properties, or any

aspect of membranes apart from waterproofing.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 13006, Ceramic tiles — Definitions, classification, characteristics and marking

ISO 13007-1, Ceramic tiles — Grouts and adhesives — Part 1: Terms, definitions and specifications for

adhesives

ISO 13007-2, Ceramic tiles — Grouts and adhesives — Part 2: Test methods for adhesives

ISO 15605, Adhesives — Sampling

EN 197-1, Cement — Part 1: Composition, specifications and conformity criteria for common cements

EN 480-1:2014, Admixture for concrete, mortar and grout — Test methods — Part 1: Reference concrete

and mortar for testing

EN 1008, Mixing water for concrete — Specification for sampling, testing and assessing the suitability of

water, including water recovered from processes in the concrete industry, as mixing water for concrete

EN 1067, Adhesives — Examination and preparation of samples for testing

EN 1931, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing —

Determination of water vapour transmission properties

EN 12390-2, Testing hardened concrete — Part 2: Making and curing specimens for strength tests

© ISO 2020 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 13007-6:2020(E)
EN 12620, Aggregates for concrete
ASTM E96, Standard Test Methods for Water Vapor Transmission of Materials
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
bonded sheet waterproofing membrane

single- or multi component waterproofing membrane applied as a preformed sheet in a uniform layer

or layers, beneath ceramic tiling in such a manner as to be bonded to the substrate as well as the tile

according to manufacturer’s instructions

Note 1 to entry: The final waterproofing membrane may include a separately applied seam sealer.

Note 2 to entry: The bonded sheet waterproofing membrane can be flat or structured with a geometric

configuration.
3.2
primer

liquid coating applied to the surface, prior to the application of a bonded sheet waterproofing product,

to improve adhesion and durability of the bond between the substrate and the membrane

4 Requirements

The bonded sheet waterproofing membrane products shall comply with the characteristics specified in

Table 1.

Table 2 gives the additional characteristics that might be required for special service conditions.

The tile adhesive used for evaluation should be the same for all testing performed in a series, a C2S1

adhesive being recommended. The amount of water and/or liquid admixture required for preparing the

adhesives used to affix to the sheet membrane shall be the same for all tests.
2 © ISO 2020 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 13007-6:2020(E)
Table 1 — Product requirements — Fundamental characteristics
Characteristic Requirement Test method
Initial tensile adhesion strength ≥0,2 N/mm A.6.2
Tensile adhesion strength after water contact ≥0,2 N/mm A.6.3 or A.6.4
Tensile adhesion strength after heat ageing ≥0,2 N/mm A.6.5
Tensile adhesion strength after freeze-thaw cycles ≥0,2 N/mm A.6.6
Tensile adhesion strength after contact with lime water ≥0,2 N/mm A.6.9
Water permeability No visual A.7
penetration below
membrane
and
≤3,0 g weight gain
when tested at a
seam

Fundamental characteristics are the characteristics that a bonded sheet waterproofing membrane product always needs

to have.
Table 2 — Product requirements — Optional characteristics
Characteristic Requirement Test method
Enhanced adhesion (BM2 rating) – All tensile strengths listed above ≥0,5 N/mm
Low water vapour permeance (W rating) <1,0 Perm A.8

Tensile adhesion strength after contact with chlorinated water (P ≥0,5 N/mm A.6.7 or A.6.8

rating)

Optional characteristics are characteristics for specific service conditions where enhanced levels of performance are

required, or which provide further information about its general performance.
5 Classification and designation

The bonded sheet waterproofing membranes are classified according to the conformity with

fundamental or optional characteristics from Tables 1 and 2:
BM1 Bonded sheet waterproofing membrane;
OR
BM2 Enhanced adhesion bonded sheet waterproofing membrane.

NOTE Membranes not meeting the minimum tensile adhesion requirements of Tables 1 and 2 are considered

unbonded membranes.

It is possible to have different classes, related to the different optional characteristics given in Table 2.

These classes are designated by the following abbreviations:
P resistant to contact with chlorinated water (i.e. for use in swimming pools);
W resistant to water vapour permeation.

The product is designated by the symbol BM1 or BM2, followed by the abbreviation of the optional

characteristics it has. Table 3 describes the designation of the products types and classes which shall

be used.
© ISO 2020 – All rights reserved 3
---------------------- Page: 7 ----------------------
ISO 13007-6:2020(E)
Table 3 — Classification and designation of bonded sheet waterproofing membranes
SYMBOL DESCRIPTION
TYPE CLASS
BM1 or 2 Normal or enhanced adhesion bonded sheet waterproofing membrane

BM1 or 2 P Normal or enhanced adhesion bonded sheet waterproofing membrane resistant to con-

tact with chlorinated water

BM1 or 2 W Normal or enhanced adhesion bonded sheet waterproofing membrane with low water

vapour permeance

BM1 or 2 PW Normal or enhanced adhesion bonded sheet waterproofing membrane with low water

vapour permeance and resistance to contact with chlorinated water
6 Marking and labelling

Products conforming with the requirements of this document shall be clearly marked with the following

information:
a) name of the product;
b) manufacturer’s mark and place of origin;
c) date or code of production, shelf life and conditions of storage;
d) number of this document, i.e. ISO 13007-6, and date of issue;
e) type of product according to Clause 6 (using symbols given in Clause 6);
f) instructions for use:
— substrate bonding materials required to adhere sheet membrane to substrate;
— mode of application (including recommended primer and/or surface preparation);
— minimum quantity or thickness of the adhesive product;
— maturing time for initial membrane bonding to substrate (where applicable);
— delay for installing ceramic tiles;
— suitable tile adhesive(s) (type and class in accordance with ISO 13007-1);
— field of application (internal, external, wall, floor etc.).

NOTE In the designation of a sheet waterproofing membrane, information about special properties can be

included when the product is intended for use in specific applications.

This information shall be marked on the packaging and/or on the product’s technical data sheet.

This does not remove the requirement that all manufacturers claiming conformity with this document

should state declared values for the properties of their products, when required.

4 © ISO 2020 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 13007-6:2020(E)
Annex A
(normative)
Test methods
A.1 Sampling
A.1.1 Tile adhesive

Take a sample of at least 2 kg of the product to be tested in accordance with ISO 15605 and EN 1067.

A.1.2 Membrane

Cut a sample of at least 1 m of the membrane to be tested. Avoid using membrane material from too

close to the edge of the sheet.

A.1.3 Other: membrane adhesive (if required), primer (if required), seam sealer (if

required)
Obtain a full unit of any of these materials if required.
A.2 Test conditions

Standard conditions shall be (23 ± 2) °C and (50 ± 5) % relative humidity (RH) and a circulation of air in

the working area less than 0,2 m/s.

When the test specimens have to be conditioned according to the test method, the tolerances in the

time of conditioning for all test specimens shall be as follows:
Conditioning Tolerance
24 h ±0,5 h
7 d ±3 h
14 d ±6 h
21 d ±9 h
28 d ±12 h
A.3 Test materials
A.3.1 General

Condition all test materials for at least 24 h under standard conditions. The materials to be tested shall

be within their shelf life.
A.3.1.1 Sheet waterproofing membrane

The sheet waterproofing membrane is any self-bonded (peel and stick) or bonded sheet waterproofing

membrane to be evaluated within this document.
A.3.1.2 Membrane adhesive

The membrane adhesive used is as recommended by the waterproofing membrane manufacturer.

© ISO 2020 – All rights reserved 5
---------------------- Page: 9 ----------------------
ISO 13007-6:2020(E)
A.3.1.3 Primer

The primer is used if applicable and requested by the manufacturer of the sheet waterproofing

membrane.
A.3.1.4 Seam sealer

The seam sealer is used if applicable and requested by the manufacturer of the sheet waterproofing

membrane.
A.3.1.5 Tile adhesive

The tile adhesive used for evaluation should be the same for all testing performed in a series, a C2S1

adhesive being recommended.
A.3.2 Ceramic tiles
The tiles shall be clean and dry.
The tiles used for this method shall be of:

— type BI : fully vitrified tile conforming to ISO 13006 with one side visually flat and no surface

treatment, with a water absorption ≤0,5 % by mass, unglazed and with a plain adhering surface,

with facial dimensions of (50 ± 1) mm × (50 ± 1) mm for testing flat membranes.

— type BI : fully vitrified tile conforming to ISO 13006 with one side visually flat and no surface

treatment, with a water absorption ≤0,5 % by mass, unglazed and with a plain adhering surface, with

facial dimension of (100 ± 1) mm × (100 ± 1) mm for testing geometrically configured membranes.

A.3.3 Test substrate
A.3.3.1 Concrete slab
The concrete slab shall comply with ISO 13007-2.
A.3.3.2 Other substrates (optional)

Other substrates may be used upon agreement if the substrate is recommended for the ceramic tile

application by the membrane manufacturer. To demonstrate compatibility with other optional

substrates, the product shall be applied to the selected substrate in accordance with the initial adhesion

test method (A.6.2). When a result of more or equal to ≥0,2 N/mm is achieved or cohesive failure occurs

in the substrate, the requirement is considered satisfied.
A.3.4 Ceramic tile adhesive
The ceramic tile adhesive shall comply with ISO 13007-1.
A.3.5 Sodium hypochlorite
Analytical or technical grade sodium hypochlorite is used.
A.4 Apparatus
A.4.1 Weight

A weight with a cross sectional area less than or equal to 100 mm × 100 mm, capable of exerting a force

of (20 ± 0,05) N.
6 © ISO 2020 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 13007-6:2020(E)
A.4.2 Pull head plates

Square metallic plates, with dimensions of less than or equal to 100 mm × 100 mm and a minimum

thickness of 10 mm with a suitable fitting for connection to the test machine.
A.4.3 Machine for pull testing

A test machine for direct pull tensile force test and with suitable capacity and sensitivity for the test.

The machine shall be capable of applying the load to the pull-head plate at the rate of (250 ± 50) N/s

through a suitable fitting that does not exert any bending force.
A.4.4 Air-circulating oven
An air-circulating oven capable of controlling the temperature to within ±3 °C.
A.4.5 Equipment for water pressure permeability test

Any equipment which permits the specified specimen (A.7) to be placed in such a way that the water

pressure acts from above the specimen. The machine shall permit the unexposed faces to be observed

to detect any possible sign of water permeation (see Figure A.1). The internal diameter of the sealing

ring shall be (100 ± 1) m
...

DRAFT INTERNATIONAL STANDARD
ISO/DIS 13007-6
ISO/TC 189 Secretariat: ANSI
Voting begins on: Voting terminates on:
2019-12-09 2020-03-02
Ceramic tiles — Grouts and adhesives —
Part 6:
Requirements, test methods, evaluation of conformity,
classification and designation for waterproof membranes
used with the installation of ceramic tiles
ICS: 91.100.10; 91.100.23
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
This document is circulated as received from the committee secretariat.
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 13007-6:2019(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION. ISO 2019
---------------------- Page: 1 ----------------------
ISO/DIS 13007-6:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/DIS 13007-6:2019(E)

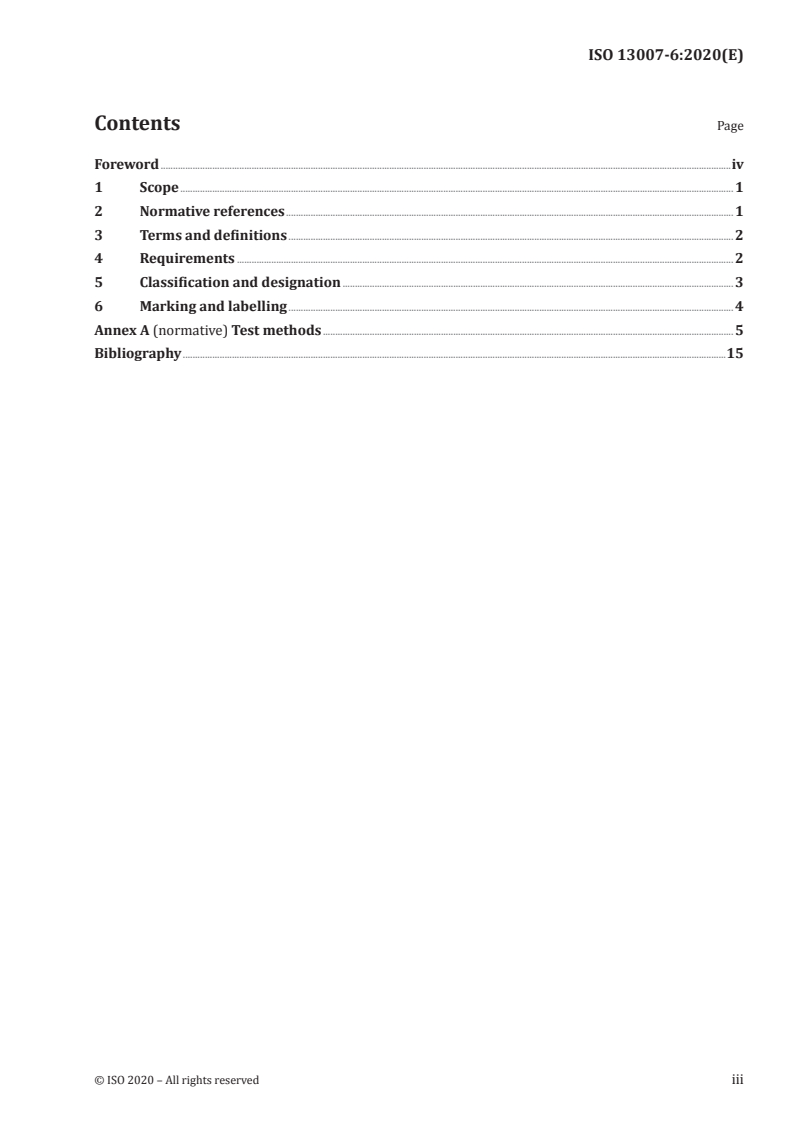

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Requirements .......................................................................................................................................................................................................... 2

5 Classification and designation ............................................................................................................................................................... 3

6 Marking and labelling ..................................................................................................................................................................................... 4

Annex A (normative) Test methods ....................................................................................................................................................................... 5

Bibliography .............................................................................................................................................................................................................................17

© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/DIS 13007-6:2019(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International

Standards adopted by the technical committees are circulated to the member bodies for voting.

Publication as an International Standard requires approval by at least 75 % of the member bodies

casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 13007-6 was prepared by Technical Committee ISO/TC 189, Ceramic Tiles.

ISO 13007 consists of the following parts, under the general title Ceramic tiles — Grouts and adhesives:

— Part 1: Terms, definitions and specifications for adhesives
— Part 2: Test methods for adhesives
— Part 3: Terms, definitions and specifications for grouts
— Part 4: Test methods for grouts

— Part 5: Liquid-applied waterproofing products for use beneath ceramic tiling bonded with adhesives

Requirements, test methods, evaluation of conformity, classification and designation

— Part 6: Requirements, test methods, evaluation of conformity, classification, and designation for

bonded sheet waterproofing membranes for use beneath ceramic tiling bonded with adhesives

iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/DIS 13007-6:2019(E)
Introduction
© ISO 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 13007-6:2019(E)
Ceramic tiles — Grouts and adhesives —
Part 6:
Requirements, test methods, evaluation of conformity,
classification and designation for waterproof membranes
used with the installation of ceramic tiles
1 Scope

This part of ISO 13007-6 applies to all bonded sheet waterproofing membranes that are used beneath

ceramic tiling for internal and external tile installations on walls and floors.

This ISO standard gives the terminology concerning the products and specifies the test methods and

the values of performance requirements for bonded sheet waterproofing products associated with tile

adhesives.

Further, this ISO specifies the evaluation of conformity and the classification and designation of all

bonded sheet waterproofing products beneath ceramic tiling.

NOTE 1 Bonded sheet waterproofing products may also be used beneath other types of tiles (natural and

agglomerated stones etc.), where they do not adversely affect these materials.

NOTE 2 This standard does not address crack isolation, decoupling, sound control, thermal properties, or any

aspect of membranes apart from waterproofing.
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

ISO 13006, Ceramic tiles — Definitions, classification, characteristics and marking

ISO 13007-1, Ceramic tiles — Grouts and adhesives — Part 1: Terms, definitions and specifications for

adhesives

ISO 13007-2, Ceramic tiles — Grouts and adhesives — Part 2: Test methods for adhesives

EN 197-1, Cement — Part 1: Composition, specifications and conformity criteria for common cements

EN 480-1, Admixture for concrete, mortar and grout — Test methods — Part 1: Reference concrete and

mortar for testing

EN 1008, Mixing water for concrete — Specification for sampling, testing and assessing the suitability of

water, including water recovered from processes in the concrete industry, as mixing water for concrete

EN 1067, Adhesives — Examination and preparation of samples for testing
EN 12620, Aggregates for concrete

ISO 7393-3, Water quality — Determination of free chlorine and total chlorine — Part 3: Iodometric

titration method for the determination of total chlorine
ISO 15605, Adhesives — Sampling
© ISO 2019 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/DIS 13007-6:2019(E)
ASTM E-96Standard Test Methods for Water Vapor Transmission of Materials

EN 14891, Liquid-applied water impermeable products for use beneath ceramic tiling bonded with

adhesives - Requirements, test methods, evaluation of conformity, classification and designation

EN 934-2, Admixtures for concrete, mortar and grout – Part 2: Concrete admixtures – Definitions,

requirements, conformity, marking and labelling

EN 12390-2, Testing hardened concrete. Making and curing specimens for strength tests

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
bonded sheet waterproofing membrane

single- or multi component waterproofing membrane applied as a preformed sheet in a uniform layer

or layers, beneath ceramic tiling in such a manner as to be bonded to the substrate as well as the tile

according to manufacturer’s instructions. Can be flat or structured with a geometric configuration

Note 1 to entry: The final waterproofing membrane may include a separately applied seam sealer

3.2
primer

liquid coating applied to the surface, prior to the application of a bonded sheet waterproofing product,

to improve adhesion and durability of the bond between the substrate and the membrane

3.3
fundamental characteristics

characteristics that a bonded sheet waterproofing membrane product always needs to have

3.4
optional characteristics

characteristics for specific service conditions where enhanced levels of performance are required, or

which provide further information about its general performance
4 Requirements

The bonded sheet waterproofing membrane products shall comply with the characteristics specified in

Section 1a of Table 1.

Table 1 section 1b gives the additional characteristics that might be required for special service

conditions.

The Tile adhesive used for evaluation should be the same for all testing performed in a series, a C2S1

adhesive being recommended. The amount of water and/or liquid admixture required for preparing the

adhesives used to affix to the sheet membrane shall be the same for all tests
Table 1 — Product requirements
1 a FUNDAMENTAL CHARACTERISTICS
Characteristic Requirement Test method
Initial tensile adhesion strength ≥ 0,2 N/mm A.6.2
Tensile adhesion strength after water contact ≥ 0,2 N/mm A.6.3 or A.6.4
Tensile adhesion strength after heat ageing ≥ 0,2 N/mm A.6.5
Tensile adhesion strength after freeze-thaw cycles ≥ 0,2 N/mm A.6.6
Tensile adhesion strength after contact with lime water ≥ 0,2 N/mm A.6.9
2 © ISO 2019 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/DIS 13007-6:2019(E)
Table 1 (continued)
Waterproofing No visual A.7
penetration below
membrane
and
≤ 3,0 g weight gain
when tested at a
seam
1 b OPTIONAL CHARACTERISTICS
Characteristic Requirement Test method
Enhanced adhesion (BM2 rating) – All Tensile Strengths Listed Above ≥ 0,5 N/mm
Low water vapour permeance (W rating) <1,0 Perm A.8

Tensile adhesion strength after contact with chlorinated water (P ≥ 0,5 N/mm A.6.7 or A.6.8

rating)
5 Classification and designation

The bonded sheet waterproofing membranes are classified according to the definitions given in Clause

3 “Terms and definitions”:
BM1 Bonded sheet waterproofing membrane;
BM2 Enhanced Adhesion bonded sheet waterproofing membrane;

Note: Membranes not meeting the minimum tensile adhesion requirements of table 1 are considered

Unbonded Membranes.

It is possible to have different classes, related to the different optional characteristics given in Table 1

section 1b. These classes are designated by the following abbreviations:
P resistant to contact with chlorinated water (i.e. for use in swimming pools)
W resistant to water vapour permeation

The product is designated by the symbol BM1 or BM2, followed by the abbreviation of the optional

characteristics it has. Table 2 describes the designation of the products types and classes which shall

be used.
Table 2 — Classification and designation of bonded sheet waterproofing membranes
SYMBOL DESCRIPTION
TYPE CLASS
BM1 or 2 Normal or Enhanced Adhesion bonded sheet waterproofing membrane

BM1 or 2 P Normal or Enhanced Adhesion bonded sheet waterproofing membrane resistant to con-

tact with chlorinated water

BM1 or 2 W Normal or Enhanced Adhesion bonded sheet waterproofing membrane with low water

vapour permeance
© ISO 2019 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/DIS 13007-6:2019(E)
Table 2 (continued)
SYMBOL DESCRIPTION
TYPE CLASS

BM1 or 2 PW Normal or Enhanced Adhesion bonded sheet waterproofing membrane with low water

vapour permeance and resistance to contact with chlorinated water
6 Marking and labelling

Products complying with the requirements of this ISO Standard shall be clearly marked with the

following information:
a) name of the product;
b) manufacturer’s mark and place of origin;
c) date or code of production, shelf life and conditions of storage;
d) number of this ISO Standard, i.e. ISO 13007-6, and date of issue;
e) type of product according to Clause 6 (using symbols given in Clause 6);
f) instructions for use:
— substrate bonding materials required to adhere sheet membrane to substrate
— mode of application (including recommended primer and/or surface preparation);
— minimum quantity or thickness of the adhesive product
— maturing time for initial membrane bonding to substrate (where applicable);
— delay for installing ceramic tiles;
— suitable tile adhesive(s), type and class in accordance with ISO 13007-1;
— field of application (internal, external, wall, floor etc.)

NOTE 1 In the designation of a sheet waterproofing membrane, information about special properties may

be included when the product is intended for use in specific applications.

This information shall be marked on the packaging and/or on the product’s technical data sheet.

NOTE 2 This does not remove the requirement that all manufacturers claiming compliance with this ISO

Standard should state declared values for the properties of their products, when required.

4 © ISO 2019 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/DIS 13007-6:2019(E)
Annex A
(normative)
Test methods
A.1 Sampling
A.1.1 Tile adhesive

Take a sample of at least 2 kg of the product to be tested in accordance with ISO 15605 and EN 1067.

A.1.2 Membrane
Cut a sample of at least 1 m of the membrane to be tested

A.1.3 Other. Membrane adhesive (if required), primer (if required), seam sealer (if required)

Obtain a full unit of any of these materials if required
A.2 Test conditions

Standard conditions shall be (23 ± 2) °C and (50 ± 5) % Relative Humidity and a circulation of air in the

working area less than 0,2 m/s.

When the test specimens have to be conditioned according to the test method, the tolerances in the

time of conditioning for all test specimens shall be as follows:
Conditioning Tolerance
24 h ± 0,5 h
7 days ± 3 h
14 days ± 6 h
21 days ± 9 h
28 days ± 12 h
A.3 Test materials
A.3.1 General

Condition all test materials for at least 24 h under standard conditions. The materials to be tested shall

be within their shelf life.
A.3.1.1 Sheet waterproofing membrane

Any self-bonded (peel and stick) or bonded sheet waterproofing membrane to be evaluated within this

standard
© ISO 2019 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/DIS 13007-6:2019(E)
A.3.1.2 Membrane adhesive
Membrane adhesive as recommended by the waterproofing membrane manufacturer
A.3.1.3 Primer

If applicable and requested by the manufacturer of the sheet waterproofing membrane

A.3.1.4 Seam Sealer

If applicable and requested by the manufacturer of the sheet waterproofing membrane

A.3.1.5 Tile adhesive

The Tile adhesive used for evaluation should be the same for all testing performed in a series, a C2S1

adhesive being recommended.
A.3.2 Ceramic tiles
The tiles shall be clean and dry.
The tiles used for this method shall be of:

type BI : fully vitrified tile complying with ISO 13006 with one side visually flat and no surface

treatment, with a water absorption ≤ 0,5 % by mass, unglazed and with a plain adhering surface, with

facial dimensions of (50 ± 1) mm × (50 ± 1) mm for testing flat membranes

type BL : fully vitrified tile complying with ISO 13006 with one side visually flat and no surface

treatment, with a water absorption

facial dimension of (100 +/- 1) mm x (100 +/- 1) mm for testing geometrically configured membranes.

A.3.3 Test substrate
A.3.3.1 Concrete slab
The concrete slab shall comply with ISO 13007-2.
A.3.3.2 Other substrates (optional)

Other substrates may be used upon agreement if the substrate is recommended for the ceramic tile

application by the membrane manufacturer. To demonstrate compatibility with other optional

substrates, the product shall be applied to the selected substrate in accordance with the initial adhesion

test method (A 4.6.2). When a result of more or equal to

0,2 N/mm is achieved or cohesive failure occurs in the substrate, the requirement is considered

satisfied.
A.3.4 Ceramic tile adhesive
The ceramic tile adhesive shall comply with ISO 13007-1.
A.3.5 Sodium hypochlorite
Analytical grade sodium hypochlorite.
6 © ISO 2019 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/DIS 13007-6:2019(E)
A.4 Apparatus
A.4.1 Weight

A weight with a cross sectional area less than or equal to 100 mm x 100 mm, capable of exerting a force

of (20 ± 0,05) N.
A.4.2 Pull head plates

Square metallic plates, with dimensions of less than or equal to 100 mm x 100 mm and a minimum

thickness of 10 mm with a suitable fitting for connection to the test machine.
A.4.3 Machine for pull testing

A test machine for direct pull tensile force test and with suitable capacity and sensitivity for the

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
