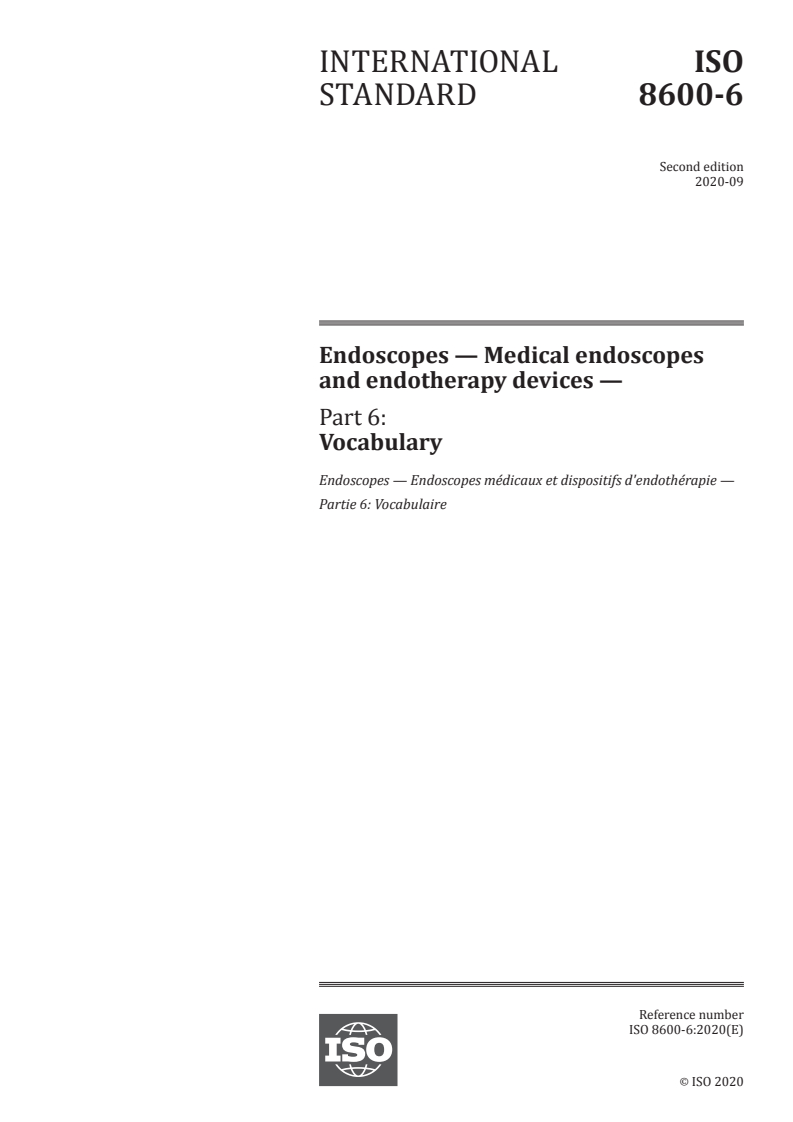

INTERNATIONAL ISO
STANDARD 8600-6
Second edition
2020-09
Endoscopes — Medical endoscopes
and endotherapy devices —
Part 6:
Vocabulary
Endoscopes — Endoscopes médicaux et dispositifs d'endothérapie —
Partie 6: Vocabulaire
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

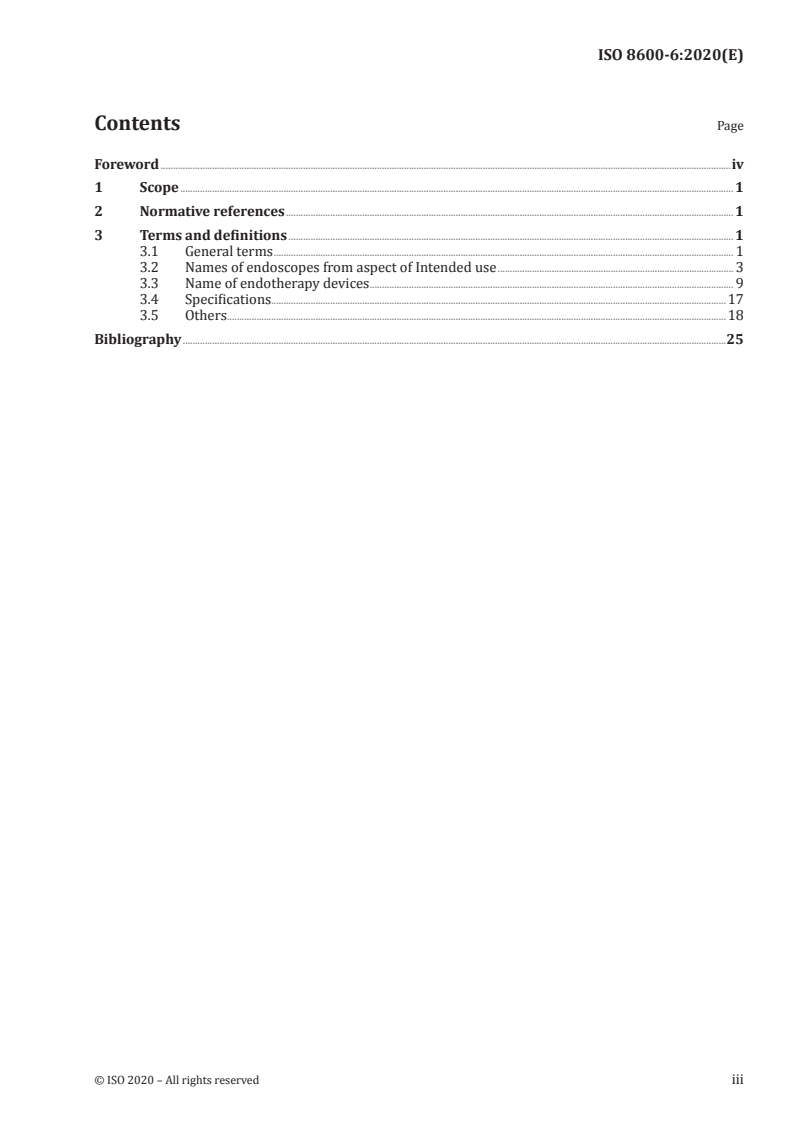

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
3.1 General terms . 1
3.2 Names of endoscopes from aspect of Intended use . 3
3.3 Name of endotherapy devices . 9
3.4 Specifications.17
3.5 Others .18
Bibliography .25

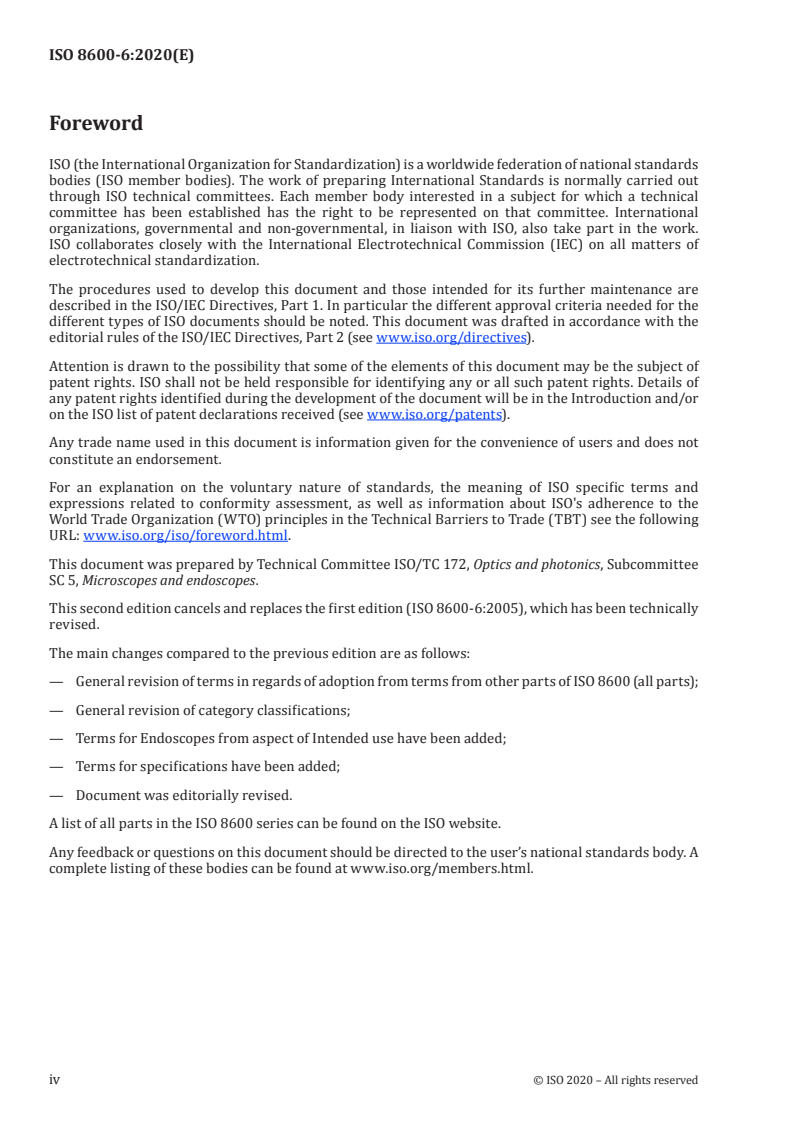

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 172, Optics and photonics, Subcommittee
SC 5, Microscopes and endoscopes.
This second edition cancels and replaces the first edition (ISO 8600-6:2005), which has been technically
revised.
The main changes compared to the previous edition are as follows:
— General revision of terms in regards of adoption from terms from other parts of ISO 8600 (all parts);
— General revision of category classifications;
— Terms for Endoscopes from aspect of Intended use have been added;
— Terms for specifications have been added;
— Document was editorially revised.
A list of all parts in the ISO 8600 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
INTERNATIONAL STANDARD ISO 8600-6:2020(E)
Endoscopes — Medical endoscopes and endotherapy
devices —
Part 6:
Vocabulary
1 Scope
This document defines terms for endoscopes and endotherapy devices commonly used in the endoscopic
area. This document does not define general medical terms or other general terms. This document does
not define terms that should be defined in other ISO 8600 (all parts).
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1 General terms
3.1.1
active endotherapy device
device, consists of a probe/electrode (3.3.24) which is inserted through the working channel of
an endoscope into natural or surgically created body cavities or instrument channels (3.5.43), and
a generator which supplies the energy to be transmitted to the distal end of the device, used for
endotherapy, e.g. cutting/coagulating/vaporizing/ablation of tissue, by using energy, including, e.g.
high frequency, electromagnetic, ultrasonic or laser energy sources
3.1.2
capsule endoscope
capsule shaped endoscope which is introduced into a digestive tract by swallowing by the patient
through the mouth
3.1.3
endoscope
medical instrument having viewing means, with or without optics, introduced into a body cavity
through a natural or surgically created body opening for examination, diagnosis or therapy
Note 1 to entry: It may be of rigid or flexible type; all types may have different image-transmitting systems
(e.g., optical, via lenses, or fibre bundles) and image pick-up systems (e.g., video or ultrasonic sensors).
Note 2 to entry: An endoscope can also be tube with illumination.
3.1.4
endotherapy device
medical device intended to be inserted into a natural or surgically created body opening during
endoscopic procedures, whether through the same or a different orifice from the endoscope (3.1.3) for
examination, diagnosis or therapy
Note 1 to entry: Endotherapy devices include the instrument to create the body opening through which an
endoscope or endotherapy device is inserted, such as a guide tube, trocar pin (3.3.79), trocar sleeve (3.3.80) or
sliding tube. Endotherapy devices include the devices to be inserted through the openings other than the opening
for an endoscope to ensure the safety of the devices for the intended use under the endoscopic view.
[SOURCE: IEC 60601-2-18:2009, 201.3.205]
3.1.5
fibrescope
endoscope (3.1.3) in which the image is transmitted via a fibre bundle
3.1.6
flexible endoscope
endoscope (3.1.3) device whose insertion portion (3.5.41) is intended to conform to natural or surgically
created body cavities or instrument channels (3.5.43)
Note 1 to entry: The image-transmitting systems may be optical via fibre bundles, or electrical via image sensors.
3.1.7
flexible endotherapy device
endotherapy device (3.1.4) whose insertion portion (3.5.41) is intended to conform to natural or
surgically created body cavities or instrument channels (3.5.43)
3.1.8
rigid endoscope
endoscope (3.1.3) device whose insertion portion (3.5.41) is intended to be unyielding to natural or
surgically created body cavities or instrument channels (3.5.43)
Note 1 to entry: The image-transmitting systems may be optical via lenses or fibre bundles, or electrical via
image sensors.
3.1.9
rigid endotherapy device
endotherapy device (3.1.4) whose insertion portion (3.5.41) is intended to be unyielding to natural or
surgically created body cavities or instrument channels (3.5.43)
3.1.10
speculum
surgical instrument with blunt distal tip (3.5.15) usually made of stainless steel or plastic, used for
examination or the insertion of other instrumentation by expanding or stretching a lumen, body orifice
or canal when inserted and opened; a pivot point joints two arms whose portion proximal to the pivot
point usually forms the handle (3.5.36) of the device while those distal to the pivot point open when
force is exerted, some of which have their own built-in illumination transmitting mechanism, e.g.,
fibreoptic bundle
3.1.11
telescope
component of an endoscope (3.1.3) introduced into the sheath (3.3.66) which consists of several
elements including a connector to a fibre cable to transport light from a light source (3.5.52) and an
image-transmission system synonymous to an endoscope (3.1.3)
3.1.12
ultrasonic endoscope
endoscope (3.1.3) with an electro-acoustical image pick-up system
2 © ISO 2020 – All rights reserved
3.1.13
ultrasound endoscope
endoscope (3.1.3) with an electro-acoustical image pick-up system
3.1.14
video endoscope
endoscope (3.1.3) in which the image is transmitted by a solid-state imaging device
3.2 Names of endoscopes from aspect of Intended use
3.2.1
adenoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the nasal cavity, e.g., during the
removal of the adenoids
3.2.2
angioscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the lumen and patency of the veins
or arteries, which is inserted percutaneously
3.2.3
anoproctoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the rectum and anus, which is
inserted into the body through the anus during the procedure called proctoscopy and anoscopy
3.2.4
anoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the anus and rectum
3.2.5
antroscope
endoscope (3.1.3) used for observation, diagnosis, and treatment mainly of the maxillary antrum
3.2.6
arterioscope
endoscope (3.1.3) used for observation, diagnosis, and some treatment of coronary arteries, peripheral
vessels, and intracardiac structures
3.2.7
arthroscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the interior of the joints such as the
knee, shoulder or elbow, which is introduced into the joint cavity usually through an artificial orifice
3.2.8
auditory canal endoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the middle ear and the ear canal
(the canal from the ear opening to the tympanic membrane or the ear drum)
3.2.9
bronchoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the trachea, bronchi and lungs
which is inserted through the mouth or nose
3.2.10
cholangioscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the choledoch (common bile duct)
which is inserted via an incision in the abdomen or via a flexible duodenoscope (3.2.18)
3.2.11
choledochoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the choledoch (common bile duct)
which is inserted via an incision in the abdomen or via a flexible duodenoscope (3.2.18)
3.2.12
colonoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the colon which is inserted through
the anus
3.2.13
culdoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the female peritoneal cavity and
organs, inserted into the rectouterine pouch (pouch of Douglas) through the posterior vaginal fornix
3.2.14
cystoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the bladder and the urinary tract,
inserted through the natural urinary orifice into the urethra
3.2.15
cystourethroscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the bladder and urethra including
the prostate region, inserted through the natural urinary orifice into the urethra
3.2.16
directoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the larynx and its peripheral parts
3.2.17
discoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the spine, which is inserted through
an artificial orifice in the body
3.2.18
duodenoscope
endoscope (3.1.3) used for observation, diagnosis, and treatment of the duodenum
3.2.19
enteroscope
endoscope (3.1.3) that is used for the visual examination and treatment of the small intestine (the
duodenum, jejunum, and ileum), which is inserted into the body through the mouth or the anus
3.2.20
ESDP endoscope
dedicated device used for the treatment of varicose veins, i.e., endoscopic subfascial dissection of
perforating veins (ESDP), which is inserted through an artificial orifi
...
