SIST EN ISO 14451-6:2013

Pyrotechnic articles - Pyrotechnic articles for vehicles - Part 6: Requirements for airbag modules (ISO 14451-6:2013)

ISO 14551-6:2013 specifies the types and order of tests for application to the airbag modules and sets out the acceptance criteria and means of categorization.
ISO 14551-6:2013 applies to type tests.
ISO 14551-6:2013 is not applicable to articles containing military explosives or commerical blasting agents except for black powder or flash composition.

Pyrotechnische Gegenstände - Pyrotechnische Gegenstände für Fahrzeuge - Teil 6: Anforderungen an Airbagmodule (ISO 14451-6:2013)

Diese Norm legt die Arten und die Reihenfolge der anzuwendenden Prüfverfahren für Airbagmodule und die
zugehörigen Bewertungskriterien fest.

Articles pyrotechniques - Articles pyrotechniques pour véhicules - Partie 6: Exigences relatives aux modules de sac gonflable (ISO 14451-6:2013)

L'ISO 14451-6:2013 spécifie les types et l'ordre des essais à réaliser sur les modules de sac gonflable et établit les critères d'acceptation correspondants et les règles de classement en catégories.
Elle est applicable aux essais de type.
Elle n'est pas applicable aux articles contenant des explosifs militaires ou des substances explosives commerciales, à l'exception de la poudre noire ou de la composition lumineuse.

Pirotehnični izdelki - Pirotehnični izdelki za vozila - 6. del: Zahteve za zračne blazine (ISO 14451-6:2013)

Ta del standarda ISO 14451 določa vrste in zaporedje preskusov za uporabo pri zračnih blazinah ter navaja merila sprejemljivosti in načine kategorizacije zadevnih blazin. Ta del standarda ISO 14451 se uporablja za tipske preskuse. Ta del standarda ISO 14451 se ne uporablja za izdelke, ki vsebujejo vojaški eksploziv ali tržne eksplozivne sestavine, razen črnega smodnika ali bliskovnega praška.

General Information

• Status: Published
• Public Enquiry End Date: 24-Jun-2011
• Publication Date: 10-Apr-2013
• ICS: 43.040.80 - Crash protection and restraint systems
• ICS: 71.100.30 - Explosives. Pyrotechnics and fireworks
• Technical Committee: IEKS - Explosives
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 27-Mar-2013
• Due Date: 01-Jun-2013
• Completion Date: 11-Apr-2013
• Directive: 2007/23/EC - Directive 2007/23/EC of the European Parliament and of the Council of 23 May 2007 on the placing on the market of pyrotechnic articles
• Directive: 2013/29/EU - Directive 2013/29/EU of the European Parliament and of the Council of 12 June 2013 on the harmonisation of the laws of the Member States relating to the making available on the market of pyrotechnic articles (recast)
• Mandate: M/416 - Standardization mandate assigned to CEN concerning pyrotechnic articles
• Ref Project: EN ISO 14451-6:2013 - Pyrotechnic articles - Pyrotechnic articles for vehicles - Part 6: Requirements and categorization for airbag modules (ISO 14451-6:2013)

Overview

EN ISO 14451-6:2013 (ISO 14451-6:2013) - published by CEN in conjunction with ISO - specifies the requirements, test sequence and categorization for airbag modules as part of the ISO 14451 series on pyrotechnic articles for vehicles. The standard applies to type tests and sets acceptance criteria and a test matrix for design verification, environmental and safety performance. It does not apply to items containing military explosives or commercial blasting agents (except black powder or flash composition).

Key topics and technical requirements

• Scope and applicability
  • Type testing of complete airbag modules; excludes military explosives.
  • Documentation requirements referenced to ISO 14451-2 (design and documentation completeness).
• Test sequence and matrix (Clause 5)
  • Specifies the order and combination of tests required for categorization (see Clause 6).
• Primary test types and acceptance criteria
  • Drop test (ISO 14451-2, 4.2): Acceptance - no ignition, no spill out of pyrotechnic composition.
  • Vibration and temperature test (ISO 14451-2, 4.3): Acceptance - no ignition, no spill out.
  • Thermal humidity cycling and functioning test (ISO 14451-2): Acceptance - no ignition.
  • Electrostatic discharge (ESD) test (ISO 14451-2, 4.5): Acceptance - no ignition.
  • Fire test (ISO 14451-2, 4.6): Heating rate specified 80 K/min; acceptance - only foreseeable fragmentation or opening allowed; burner orientation must engulf the module cross-section where pyrotechnic elements reside.
  • Functioning test (ISO 14451-2, 4.9): Verifies correct deployment/function after environmental exposure.
• Categorization (Clause 6)
  • Defines categories based on test outcomes and compliance with acceptance criteria.
• Conformity and regulatory linkage
  • Annex ZA relates the standard to EC Directive 2007/23/EC for placing pyrotechnic articles on the market, offering a presumption of conformity when implemented.

Applications

• Product type approval and safety validation of airbag modules for passenger cars, curtain modules and other vehicle restraint systems.
• Development and verification during design, qualification testing, supplier assessment and regulatory compliance activities.
• Basis for certificates from independent test laboratories and evidence for OEM procurement specifications.

Who should use this standard

• Airbag and restraint-system manufacturers
• Automotive OEM safety and compliance engineers
• Third‑party test laboratories performing type tests
• Regulatory authorities and certification bodies
• Procurement and quality managers specifying supplier acceptance criteria

Related standards

• ISO 14451 series: Part 1 (Terminology), Part 2 (Test methods), Part 4 (micro gas generators), Part 5 (airbag gas generators), Part 8 (igniters) - referenced for test methods, definitions and component-level criteria.

Keywords: EN ISO 14451-6:2013, ISO 14451-6, airbag modules, pyrotechnic articles, testing, categorization, drop test, ESD test, fire test, vehicle safety, type tests.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2013
3LURWHKQLþQLL]GHONL3LURWHKQLþQLL]GHONL]DYR]LODGHO=DKWHYH]D]UDþQH
EOD]LQH,62
Pyrotechnic articles - Pyrotechnic articles for vehicles - Part 6: Requirements for airbag
modules (ISO 14451-6:2013)
Pyrotechnische Gegenstände - Pyrotechnische Gegenstände für Fahrzeuge - Teil 6:
Anforderungen an Airbagmodule (ISO 14451-6:2013)
Articles pyrotechniques - Articles pyrotechniques pour véhicules - Partie 6: Exigences
relatives aux modules de sac gonflable (ISO 14451-6:2013)
Ta slovenski standard je istoveten z: EN ISO 14451-6:2013
ICS:
43.040.80 Varnostne naprave in sistemi Safety installations and
za zadrževanje restraint systems
71.100.30 Eksplozivi. Pirotehnika Explosives. Pyrotechnics
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 14451-6
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2013
ICS 43.040.80
English Version
Pyrotechnic articles - Pyrotechnic articles for vehicles - Part 6:
Requirements and categorization for airbag modules (ISO
14451-6:2013)
Articles pyrotechniques - Articles pyrotechniques pour Pyrotechnische Gegenstände - Pyrotechnische
véhicules - Partie 6: Exigences relatives aux modules de Gegenstände für Fahrzeuge - Teil 6: Anforderungen und
sac gonflable et leur classement en catégories (ISO 14451- Kategorisierung von Airbagmodulen (ISO 14451-6:2013)
6:2013)
This European Standard was approved by CEN on 9 February 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14451-6:2013: E
worldwide for CEN national Members.

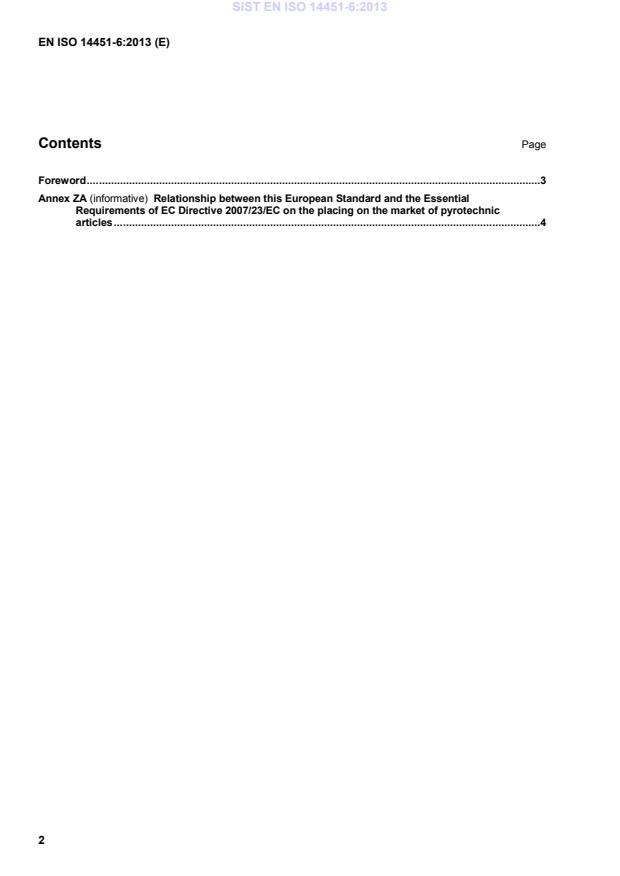

Contents Page
Foreword . 3
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EC Directive 2007/23/EC on the placing on the market of pyrotechnic
articles . 4

Foreword
This document (EN ISO 14451-6:2013) has been prepared by Technical Committee CEN/TC 212
“Pyrotechnic articles” the secretariat of which is held by NEN, in collaboration with Technical Committee
ISO/TC 22 "Road vehicles".
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by September 2013, and conflicting national standards shall be
withdrawn at the latest by September 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive.
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 14451-6:2013 has been approved by CEN as EN ISO 14451-6:2013 without any modification.
Annex ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EC Directive 2007/23/EC on the placing on the market
of pyrotechnic articles
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association to provide one means of conforming to Essential Requirements of
the New Approach Directive 2007/23/EC on the placing on the market of pyrotechnic articles.
Once this standard is cited in the Official Journal of the European Union under that Directive and has been
implemented as a national standard in at least one Member State, compliance with the normative clauses of
this standard given in Table ZA.1 confers, within the limits of the scope of this standard, a presumption of
conformity with the corresponding Essential Requirements of that Directive and associated EFTA regulations.
Table ZA.1 — Correspondence between this European Standard and Directive 2007/23/EC on the
placing on the market of pyrotechnic articles (1 of 2)
Clause(s)/sub-clause(s) of Essential Safety Requirements
Qualifying remarks/Notes
this document (ESRs) of Directive 2007/23/EC
Note: It is taken into account that the
intended purpose of the pyrotechnic
4.8 (1)
article is to function in a vehicle in case
of accidents
(2) See ISO 14451-2
4.8 (3) 1st sentence
Note: It is taken into account that the
intended purpose of the pyrotechnic
4.8 (3) 2nd and 3rd sentences
article is to function in a vehicle in case
of accidents
4.2 (3a)
4.5 (3b)
4.3, 4.4, 4.6 (3c)
4.5 (3d)
4.5 (3e)
4.4, 4.5 (3f)
4.6 (3g)
(3h) See ISO 14451-3
4.3, 4.5 (3i)
(3j) See ISO 14451-2
4.3, 4.4, 4.6 (3) Last sentence
1 (4a)
Table ZA.1 — (2 of 2)
Clause(s)/sub-clause(s) of Essential Safety Requirements
Qualifying remarks/Notes
this document (ESRs) of Directive 2007/23/EC
1 (4b)
4.8, 4.2, 6 (5 B.1)
See ISO 14451-2
(5 B.2)
and ISO 14451-3
4.6, 4.7 (5 B.3)
(5 B.4) Not applicable
(5 C.1) to (5 C.5) Not applicable
4.2 (5 C.6)
(5 C.7) Not applicable
WARNING — Other requirements and other EU Directives may be applicable to the product(s) falling
within the scope of this part of EN ISO 14451.

INTERNATIONAL ISO
STANDARD 14451-6
First edition
2013-03-15
Pyrotechnic articles — Pyrotechnic
articles for vehicles —
Part 6:
Requirements and categorization for
airbag modules
Articles pyrotechniques — Articles pyrotechniques pour véhicules —
Partie 6: Exigences relatives aux modules de sac gonflable et leur
classement en catégories
Reference number
ISO 14451-6:2013(E)
©
ISO 2013
ISO 14451-6:2013(E)
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

ISO 14451-6:2013(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements and acceptance criteria . 1
4.1 General . 1
4.2 Verification of design and documentation . 1
4.3 Drop test . 2
4.4 Vibration and temperature test .
...
