Rubber hoses and hose assemblies for asphalt and bitumen - Specification

This European standard specifies requirements for two types of hose and hose assembly identified by their maximum working pressures and main use i.e. Type 1 is for road and rail tanker use and Type 2 is for dockside use. The types are further divided into two classes related to the maximum temperature of the product to be conveyed. The hose constructions may be smooth or rough bore.

Gummischläuche und -schlauchleitungen für Asphalt und Bitumen - Spezifikation

Diese Europäische Norm legt Anforderungen für zwei Typen von Schläuchen und Schlauchleitungen fest, die nach maximalem Betriebsdruck und Hauptanwendung unterschieden werden, d. h. Typ 1 für Tankfahrzeuge auf Straße und Schiene sowie Typ 2 für die Verwendung an Kaianlagen. Die Typen werden weiter unterteilt in zwei Klassen, bezogen auf die maximale Temperatur des zu fördernden Produktes. Die Schläuche können im Aufbau eine glatte oder raue Innenschicht aufweisen.
ANMERKUNG   Diese Schlauchtypen sind nicht unbedingt einsetzbar für alle Produkttypen auf der Basis von Erdöl oder Kohlenteer oder für Produkte, die Kohlenteer enthalten.

Tuyaux et flexibles en caoutchouc pour asphalte et bitume - Spécification

La présente Norme européenne spécifie les exigences relatives à deux types de tuyaux et assemblages flexibles identifiés par la pression maximale de service et leur usage principal. Le Type 1 est destiné aux citernes routières et ferroviaires et le Type 2 aux utilisations portuaires. Les Types sont ensuite divisés en deux classes selon la température maximale du produit à acheminer. Ces tuyaux peuvent être à spirale intérieure noyée ou saillante.
NOTE   Ces types de tuyaux ou d’assemblages flexibles ne conviennent pas nécessairement à tous les produits à base de pétrole, au goudron de houille ou aux produits contenant du goudron de houille.

Gumene cevi in cevni priključki za asfalt in bitumen - Specifikacija

Ta evropski standard določa zahteve za dve vrsti cevi in cevnih priključkov, ki ju določa najvišji delovni tlak in glavna uporaba: tip 1 za uporabo pri cestnih in železniških cisternah, tip 2 pa za uporabo v pristaniščih. Tipa sta nadalje razdeljena v dva razreda glede na najvišjo temperaturo izdelka za transport. Cevni sestavi so lahko gladki ali grobi.

General Information

Status
Published
Public Enquiry End Date
24-May-2012
Publication Date
02-Apr-2014
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
20-Mar-2014
Due Date
25-May-2014
Completion Date
03-Apr-2014

RELATIONS

Buy Standard

Standard
SIST EN 13482:2014
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.LMDGummischläuche und -schlauchleitungen für Asphalt und Bitumen - SpezifikationTuyaux et flexibles en caoutchouc pour asphalte et bitume - SpécificationRubber hoses and hose assemblies for asphalt and bitumen - Specification83.140.40Gumene ceviHosesICS:Ta slovenski standard je istoveten z:EN 13482:2013SIST EN 13482:2014en,fr,de01-maj-2014SIST EN 13482:2014SLOVENSKI

STANDARDSIST EN 13482:20021DGRPHãþD
SIST EN 13482:2014
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13482
October 2013 ICS 23.040.70 Supersedes EN 13482:2001English Version
Rubber hoses and hose assemblies for asphalt and bitumen - Specification
Tuyaux et flexibles en caoutchouc pour asphalte et bitume -Spécification

Gummischläuche und -schlauchleitungen für Asphalt und Bitumen - Spezifikation This European Standard was approved by CEN on 7 September 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13482:2013: ESIST EN 13482:2014

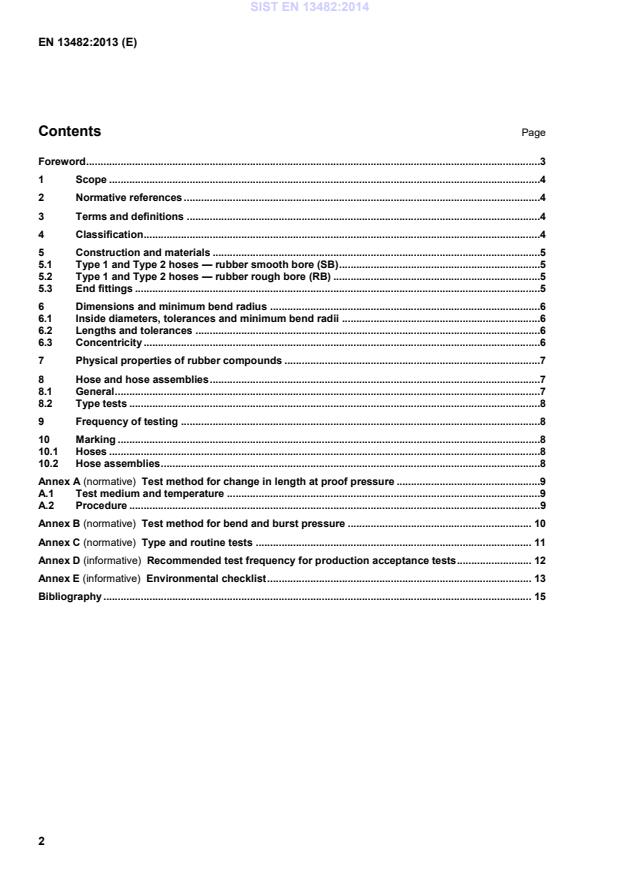

EN 13482:2013 (E) 2 Contents Page Foreword ..............................................................................................................................................................3 1 Scope ......................................................................................................................................................4 2 Normative references ............................................................................................................................4 3 Terms and definitions ...........................................................................................................................4 4 Classification ..........................................................................................................................................4 5 Construction and materials ..................................................................................................................5 5.1 Type 1 and Type 2 hoses — rubber smooth bore (SB) ......................................................................5 5.2 Type 1 and Type 2 hoses — rubber rough bore (RB) ........................................................................5 5.3 End fittings .............................................................................................................................................5 6 Dimensions and minimum bend radius ..............................................................................................6 6.1 Inside diameters, tolerances and minimum bend radii .....................................................................6 6.2 Lengths and tolerances ........................................................................................................................6 6.3 Concentricity ..........................................................................................................................................6 7 Physical properties of rubber compounds .........................................................................................7 8 Hose and hose assemblies ...................................................................................................................7 8.1 General ....................................................................................................................................................7 8.2 Type tests ...............................................................................................................................................8 9 Frequency of testing .............................................................................................................................8 10 Marking ...................................................................................................................................................8 10.1 Hoses ......................................................................................................................................................8 10.2 Hose assemblies ....................................................................................................................................8 Annex A (normative)

Test method for change in length at proof pressure ..................................................9 A.1 Test medium and temperature .............................................................................................................9 A.2 Procedure ...............................................................................................................................................9 Annex B (normative)

Test method for bend and burst pressure ................................................................ 10 Annex C (normative)

Type and routine tests ................................................................................................ 11 Annex D (informative)

Recommended test frequency for production acceptance tests .......................... 12 Annex E (informative)

Environmental checklist ............................................................................................ 13 Bibliography ..................................................................................................................................................... 15

SIST EN 13482:2014

EN 13482:2013 (E) 3 Foreword This document (EN 13482:2013) has been prepared by Technical Committee CEN/TC 218 “Rubber and plastics hoses and hose assemblies”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by April 2014, and conflicting national standards shall be withdrawn at the latest by April 2014. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 13482:2001. In comparison with EN 13482:2001 the following fundamental changes have been made: a) Bitumen type PmB bitumen 25 (55-55A) added in Table 2; b) Normative references updated; c) Informative Annex E concerning environmental aspects added. This European Standard is one in a series of specifications for hose and hose assemblies for conveying petroleum based and associated products. It covers types of hose and hose assemblies for conveying asphalt and bitumen, which are hazardous materials at temperatures where they can flow readily. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13482:2014

EN 13482:2013 (E) 4

1 Scope This European Standard specifies requirements for two types of hose and hose assembly (Type 1 and Type 2) identified by their maximum working pressures (Type

1 7 bar and Type 2 15 bar) and main use, i.e. Type 1 is for road and rail tanker use and Type 2 is for dockside use. The types are further divided into two classes related to the maximum temperature of the product to be conveyed (Class A up to 175 °C and Class B up to 200 °C). The hose constructions may be smooth bore (SB) or rough bore (RB). NOTE These types of hose or hose assemblies are not necessarily suitable for all types of petroleum based products or coal tar, or products containing coal tar. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

EN 14023, Bitumen and bituminous binders - Specification framework for polymer modified bitumens EN ISO 4671, Rubber and plastics hoses and hose assemblies — Methods of measurement of the dimensions of hoses and the lengths of hose assemblies (ISO 4671) EN ISO 7233:2008, Rubber and plastics hoses and hose assemblies — Determination of resistance to vacuum (ISO 7233:2006) EN ISO 7326, Rubber and plastics hoses — Assessment of ozone resistance under static conditions (ISO 7326) EN ISO 8031, Rubber and plastics hoses and hose assemblies — Determination of electrical resistance and conductivity (ISO 8031) EN ISO 8330:2008, Rubber and plastics hoses and hose assemblies – Vocabulary (ISO 8330:2007) EN ISO 10619-1, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness — Part 1: Bending tests at ambient temperature (ISO 10619-1) ISO 37, Rubber, vulcanized or thermoplastic — Determination of tensile stress-strain properties ISO 4649:2010, Rubber, vulcanized or thermoplastic — Determination of abrasion resistance using a rotating cylindrical drum device 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN ISO 8330:2008 apply. 4 Classification Hoses and hose assemblies shall be one of the following types: Type 1 maximum working pressure 7 bar for road and rail tanker hose and hose assemblies; Type 2 maximum working pressure 15 bar for dockside hose and hose assemblies. Each type shall be available in SB or RB construction and these additional letters shall be part of the identification. SIST EN 13482:2014

EN 13482:2013 (E) 5 Each type shall be classed according to the following maximum temperature of operation: Class A - Up to 175 °C, Class B - Up to 200 °C. NOTE These temperatures are the temperature of the product being conveyed inside the hose assembly. 5 Construction and materials 5.1 Type 1 and Type 2 hoses — rubber smooth bore (SB) These hoses shall have the following construction:  a synthetic rubber lining of minimum thickness 2,0 mm;  reinforcing plies of textile or steel wire;  a steel wire helix reinforcement; and

 an ozone resistant rubber cover of minimum thickness 2,0 mm. Internally, hoses shall have rubber linings that are smooth and free from delamination and blisters. 5.2 Type 1 and Type 2 hoses — rubber rough bore (RB) These hoses shall have the following construction:

 an internal steel wire helix of flat or round cross-section;  a synthetic rubber and/or textile lining matrix;  reinforcing plies of textile or steel wire;  additional helix reinforcement, if specified; and  an ozone resistant rubber cover of minimum thickness 2,0 mm. Overlapped joins in the lining matrix above

...
