Specifications for unused silicone insulating liquids for electrotechnical purposes

This International Standard covers specifications and test methods for unused silicone liquids
intended for use in transformers and other electrotechnical equipment.
The specified characteristics of silicone transformer liquid classified as L-NTUK-8360300 (in
accordance with IEC 61039) are described in Table 1.
Besides the standard transformer applications there are other applications of silicone liquids,
such like cable accessories, capacitors, electrical magnets etc. The specified characteristics
and minimum requirements for these liquids are described in Table 2.
NOTE Maintenance of used silicone liquid in electrotechnical equipment is covered in a separate publication
IEC 60944.

Anforderungen an ungebrauchte Silikonisolierflüssigkeiten für elektrotechnische Anwendungen

Spécifications pour liquides isolants silicones neufs pour usages électrotechniques

IEC 60836:2015 couvre les spécifications et les méthodes d essai pour les liquides silicones neufs destinés à être utilisés dans les transformateurs et tout autre appareil électrotechnique. Outre les applications normalisées dans les transformateurs, il existe d autres applications pour les liquides silicones, telles que les accessoires de câble, les condensateurs, les électro-aimants, etc. Cette édition inclut les modifications techniques majeures suivantes par rapport à l édition précédente: a) la classification des liquides selon l'IEC 61039 a été adaptée par rapport à la dernière édition de l'IEC 61039:2008; b) la classification des liquides selon l'IEC 61100:1992 a été éliminée du fait de la suppression de ladite IEC 61100; c) les exigences minimales relatives aux autres liquides silicones pour usages électrotechniques ont été ajoutées.

Specifikacije za nerabljene silikonske izolacijske tekočine za uporabo v elektrotehniki

Ta mednarodni standard zajema specifikacije in preskusne metode za nerabljene silikonske tekočine, namenjene za uporabo v transformatorjih in drugi elektrotehnični opremi.
Navedene značilnosti silikonske transformatorske tekočine, razvrščene kot L-NTUK-8360300 (v skladu s standardom IEC 61039), so opisane v tabeli 1.
Poleg standardnih vrst uporabe v transformatorjih obstajajo še drugi načini uporabe silikonskih tekočin, na primer pri kabelskem priboru, kondenzatorjih, električnih magnetih itd. Nekatere značilnosti in minimalne zahteve za te tekočine so opisane v tabeli 2. OPOMBA Ravnanje z uporabljeno silikonsko tekočino v elektrotehnični opremi je zajeta v posebni publikaciji standarda IEC 60944.

General Information

Status
Published
Publication Date
09-Nov-2015
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
29-Sep-2015
Due Date
04-Dec-2015
Completion Date
10-Nov-2015

RELATIONS

Buy Standard

Standard
SIST EN 60836:2015
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 60836:2015
01-december-2015
1DGRPHãþD
SIST EN 60836:2005
6SHFLILNDFLMH]DQHUDEOMHQHVLOLNRQVNHL]RODFLMVNHWHNRþLQH]DXSRUDERY
HOHNWURWHKQLNL

Specifications for unused silicone insulating liquids for electrotechnical purposes

Ta slovenski standard je istoveten z: EN 60836:2015
ICS:
29.040.01 Izolacijski fluidi na splošno Insulating fluids in general
SIST EN 60836:2015 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 60836:2015
---------------------- Page: 2 ----------------------
SIST EN 60836:2015
EUROPEAN STANDARD EN 60836
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2015
ICS 29.040.10 Supersedes EN 60836:2005
English Version
Specifications for unused silicone insulating liquids
for electrotechnical purposes
(IEC 60836:2015)

Spécifications pour liquides isolants silicones neufs Anforderungen an ungebrauchte Silikonisolierflüssigkeiten

pour usages électrotechniques für elektrotechnische Anwendungen
(IEC 60836:2015) (IEC 60836:2015)

This European Standard was approved by CENELEC on 2015-08-20. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 60836:2015 E
---------------------- Page: 3 ----------------------
SIST EN 60836:2015
EN 60836:2015

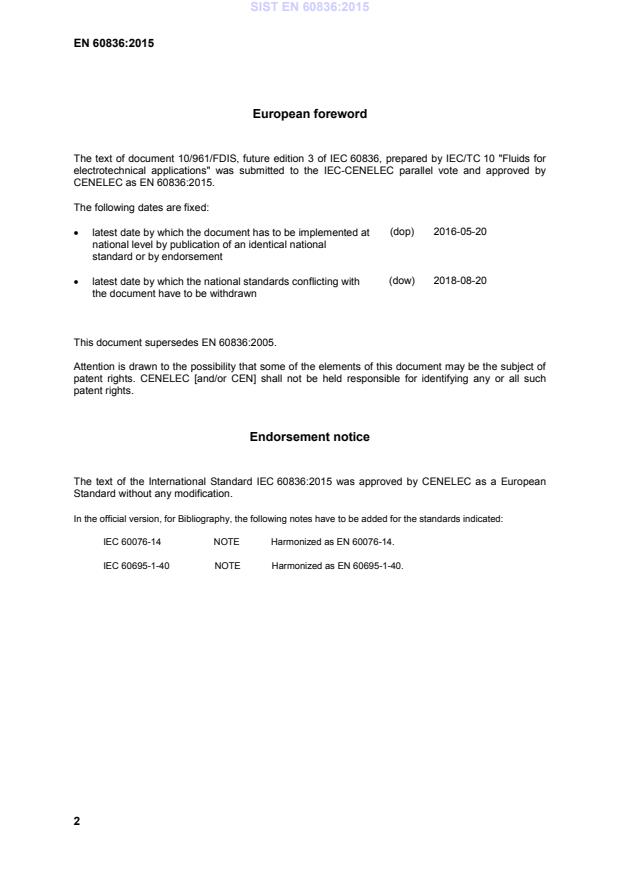

European foreword
