SIST EN IEC 60317-60-2:2020
(Main)Specifications for particular types of winding wires - Part 60-2: Polyester glass-fibre wound, resin or varnish impregnated, bare or enamelled rectangular copper wire, temperature index 155 (IEC 60317-60-2:2020)
Specifications for particular types of winding wires - Part 60-2: Polyester glass-fibre wound, resin or varnish impregnated, bare or enamelled rectangular copper wire, temperature index 155 (IEC 60317-60-2:2020)
This part of IEC 60317 specifies the requirements of polyester glass-fibre wound, resin or
varnish impregnated, bare or grade 1 or grade 2 enamelled rectangular copper winding wires,
temperature index 155. The impregnating agent can be, for instance, epoxy, polyester, or
polyesterimide resin based.
The range of nominal conductor dimensions covered by this document is:
– width: min. 2,0 mm max. 16,0 mm;
– thickness: min. 0,80 mm max. 5,60 mm.
NOTE For this type of wire, the heat shock test is inappropriate and therefore a heat shock temperature cannot be
established. Consequently, a class based on the requirements for temperature index and heat shock temperature
cannot be specified.
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten – Teil 60-2: Flachdrähte aus Kupfer, mit Polyesterglasfasern umsponnen, imprägniert mit Harz oder Lack, blank oder lackisoliert, Temperaturindex 155 (IEC 60317-60-2:2020)
Spécifications pour types particuliers de fils de bobinage - Partie 60-2: Fil de section rectangulaire en cuivre nu ou émaillé, guipé de fibres de verre polyester imprégnées de résine ou de vernis, d'indice de température 155 (IEC 60317-60-2:2020)
IEC 60317-60-2:2020 spécifie les exigences relatives aux fils de bobinage de section rectangulaire en cuivre nus ou émaillés de grade 1 ou de grade 2, guipés de fibres de verre polyester imprégnées de résine ou de vernis, d'indice de température 155. L'agent d'imprégnation peut être, par exemple, un matériau à base de résine époxy, polyester ou polyesterimide.
La gamme des dimensions nominales des conducteurs couvertes par le présent document est:
– largeur: min. 2,0 mm max. 16,0 mm;
– épaisseur: min. 0,80 mm max. 5,60 mm.
NOTE Pour ce type de fil, l'essai de choc thermique ne s'applique pas et la température de choc thermique ne peut donc pas être définie. Par conséquent, il n'est pas possible de spécifier une classe fondée sur les exigences d'indice de température et de température de choc thermique.
Specifikacije za posebne vrste navijalnih žic - 60-2. del: S poliestrskim steklenim vlaknom povita, s smolo ali posteklino impregnirana, gola ali emajlirana pravokotna bakrena žica, temperaturni indeks 155 (IEC 60317-60-2:2020)
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 60317-60-2:2020
01-oktober-2020
Nadomešča:
SIST EN 60317-60:2012
Specifikacije za posebne vrste navijalnih žic - 60-2. del: S poliestrskim steklenim
vlaknom povita, s smolo ali posteklino impregnirana, gola ali emajlirana
pravokotna bakrena žica, temperaturni indeks 155 (IEC 60317-60-2:2020)
Specifications for particular types of winding wires - Part 60-2: Polyester glass-fibre
wound, resin or varnish impregnated, bare or enamelled rectangular copper wire,
temperature index 155 (IEC 60317-60-2:2020)
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten – Teil 60-2:
Flachdrähte aus Kupfer, mit Polyesterglasfasern umsponnen, imprägniert mit Harz oder
Lack, blank oder lackisoliert, Temperaturindex 155 (IEC 60317-60-2:2020)
Spécifications pour types particuliers de fils de bobinage - Partie 60-2: Fil de section
rectangulaire en cuivre nu ou émaillé, guipé de fibres de verre polyester imprégnées de
résine ou de vernis, d'indice de température 155 (IEC 60317-60-2:2020)
Ta slovenski standard je istoveten z: EN IEC 60317-60-2:2020
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
SIST EN IEC 60317-60-2:2020 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 60317-60-2:2020
---------------------- Page: 2 ----------------------
SIST EN IEC 60317-60-2:2020
EUROPEAN STANDARD EN IEC 60317-60-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2020
ICS 29.060.10 Supersedes EN 60317-60:2012 (partially) and all of its
amendments and corrigenda (if any)
English Version
Specifications for particular types of winding wires - Part 60-2:
Polyester glass-fibre wound, resin or varnish impregnated, bare
or enamelled rectangular copper wire, temperature index 155
(IEC 60317-60-2:2020)
Spécifications pour types particuliers de fils de bobinage - Technische Lieferbedingungen für bestimmte Typen von
Partie 60-2: Fil de section rectangulaire en cuivre nu ou Wickeldrähten - Teil 60-2: Flachdrähte aus Kupfer, mit
émaillé, guipé de fibres de verre polyester imprégnées de Polyesterglasfasern umsponnen, imprägniert mit Harz oder
résine ou de vernis, d'indice de température 155 Lack, blank oder lackisoliert, Temperaturindex 155
(IEC 60317-60-2:2020) (IEC 60317-60-2:2020)
This European Standard was approved by CENELEC on 2020-07-27. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60317-60-2:2020 E
---------------------- Page: 3 ----------------------
SIST EN IEC 60317-60-2:2020
EN IEC 60317-60-2:2020 (E)

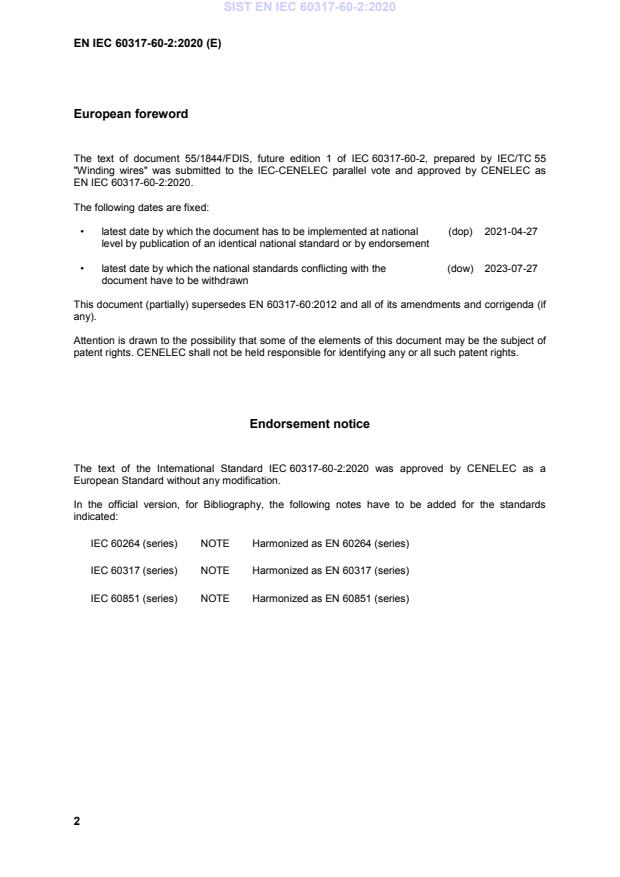

European foreword
